WoodPro WS-TS-1500 Ceramic Glass with Gasket – GLASS-WS-15 – 15" x 10-1/4" Arch top

WoodPro WS-TS-1500 Replacement Ceramic Glass Panel with Gasket – GLASS-WS-15 – 15" x 10-1/4" Arched Glass

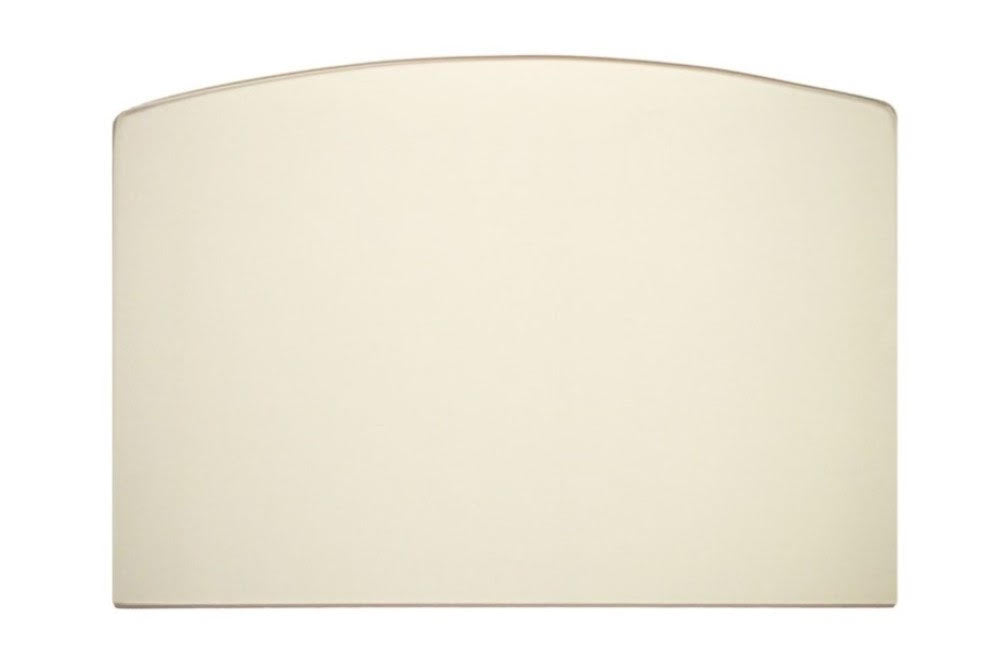

Restore a clear view of the fire with this replacement ceramic door glass with gasket for the WoodPro WS-TS-1500 wood-burning stove. Designed as a replacement for WoodPro part number GLASS-WS-15, this high-temperature ceramic glass panel features the distinctive arched top required for the compatible WoodPro stove door.

The replacement glass measures approximately 15" wide x 10-1/4" high at the top center of the arch x 9-3/16" high at the sides and is manufactured from 3/16" thick high-temperature ceramic glass. A replacement glass gasket is NOT included for installation.

This is true high-temperature ceramic stove glass – not ordinary tempered glass. Ceramic glass is specifically designed to withstand the intense temperatures and repeated heating and cooling cycles produced by a wood-burning stove.

Key Features:
• WoodPro Replacement Glass – Designed for the WoodPro WS-TS-1500 wood-burning stove
• Replaces GLASS-WS-15 – Replacement for WoodPro glass part number GLASS-WS-15
• Arched Glass Design – Approximately 10-1/4" high at the center of the arch and 9-3/16" high at the sides
• 15" Overall Width – Made to match the compatible WoodPro door glass application
• 3/16" Ceramic Glass – High-temperature ceramic material designed for wood-burning stove applications
• Glass Gasket NOT Included – A replacement gasket material should be used for proper installation
• High Heat Performance – Ceramic glass withstands temperatures and thermal cycling associated with wood-burning appliances
• Clear Fire Viewing – Restores the viewing area when the original glass is cracked, broken, etched, or permanently discolored
• Model-Specific Replacement – Designed for compatible applications requiring WoodPro GLASS-WS-15

Specifications:
• Brand Compatibility: WoodPro
• Product Type: Wood stove replacement door glass
• WoodPro Part Number: GLASS-WS-15
• Compatible Model: WS-TS-1500
• Glass Shape: Arched top
• Overall Width: Approximately 15"
• Maximum Height at Center / Top of Arch: Approximately 10-1/4"
• Height at Sides: Approximately 9-3/16"
• Glass Thickness: 3/16"
• Glass Type: High-temperature ceramic glass
• Application: Wood-burning stove door
• Glass Gasket: NOT Included

Glass Dimensions:
• Width: 15"
• Center Height: 10-1/4"
• Side Height: 9-3/16"
• Thickness: 3/16"
• Shape: Rectangular lower section with arched top

Compatibility:
• WoodPro WS-TS-1500 Wood Stove

Replacement / Search Part Numbers:
• GLASS-WS-15
• WoodPro GLASS-WS-15
• WoodPro WS-TS-1500 glass
• WS-TS-1500 replacement glass
• WoodPro WS-1500 stove glass

Important – Verify Both Part Number & Dimensions:
Before ordering, verify that your stove requires WoodPro part number GLASS-WS-15 and compare your original glass with the dimensions shown above.

This glass measures approximately 15" wide x 10-1/4" high at the center of the arch x 9-3/16" high at the sides x 3/16" thick.

Because this panel has an arched top, the 10-1/4" measurement represents the maximum height at the center/top of the arch. The vertical side height is approximately 9-3/16". Do not treat this as a standard rectangular 15" x 10-1/4" glass panel.

This glass may fit additional WoodPro applications that specify GLASS-WS-15, but fireplace and stove glass can vary by model and production series. Always verify the part number, shape, and dimensions before ordering.

Ceramic Glass – Not Tempered Glass:
This replacement panel is manufactured from 3/16" high-temperature ceramic glass. It is not ordinary tempered glass.

Wood-burning stoves produce intense heat and rapid temperature changes that can exceed the capabilities of standard tempered glass. High-temperature ceramic glass is specifically designed for these demanding heating applications while providing a clear view of the fire.

Glass Gasket NOT Included:
A replacement glass gasket is not included with this panel. The gasket provides a cushion and sealing surface between the ceramic glass and the metal stove door or retaining system. Highly recommended.

Proper gasket installation is important. Ceramic stove glass should not be installed in direct contact with metal where the appliance design requires gasket material.

When Should Stove Door Glass Be Replaced?
Replace the glass if you notice:
• Cracks running through the ceramic glass
• Chipped or damaged edges
• Broken or missing sections of glass
• Severe permanent etching or surface deterioration
• Damage around the glass retaining area
• Glass that no longer fits securely within the door assembly

Installation Tips:
• Allow the stove to cool completely before beginning installation
• Remove the stove door when practical and place it on a protected flat surface
• Note the position of the original glass, gasket, retainers, clips, and hardware before disassembly
• Carefully remove the old glass and gasket material
• Thoroughly clean the glass mounting and gasket areas
• Install the supplied gasket in the proper position
• Center the replacement ceramic glass correctly within the door opening
• Make sure the arched portion of the glass is properly positioned within the door
• Reinstall the glass retainers and mounting hardware evenly
• Tighten retaining hardware only enough to securely hold the glass in position
• Follow the WoodPro owner's or service manual for model-specific installation procedures

Important – Do Not Overtighten the Glass:
Ceramic stove glass must be allowed to expand and contract as the appliance heats and cools. Do not overtighten the glass retainers or mounting screws. Excessive or uneven pressure can place stress on the ceramic glass and may cause cracking.

When multiple glass retainers or screws are used, tighten them gradually and evenly in a crisscross pattern. The glass should be held securely without being rigidly clamped against the metal door.

Important Safety Note:
Never operate a wood-burning stove with cracked, broken, improperly installed, or missing door glass. Replace damaged glass with the correct high-temperature ceramic glass specified for the appliance.

Do not substitute ordinary window glass or standard tempered glass. This application requires high-temperature ceramic stove glass.

Why Choose This WoodPro Replacement Glass?
This replacement provides the 3/16" high-temperature ceramic glass and replacement gasket needed for compatible WoodPro WS-TS-1500 applications requiring GLASS-WS-15.

With its model-specific 15" wide arched profile, 10-1/4" center height, and 9-3/16" side height, this replacement takes the guesswork out of ordering generic stove glass and helps ensure you receive the correct shape and size for the intended application.

Restore the view of the fire with the WoodPro WS-TS-1500 Replacement Ceramic Glass Panel  / GLASS-WS-15.
