Waterford Ashling Archtop Glass Panel | 16 13/16" x 10 9/16" | Part #68-133-009

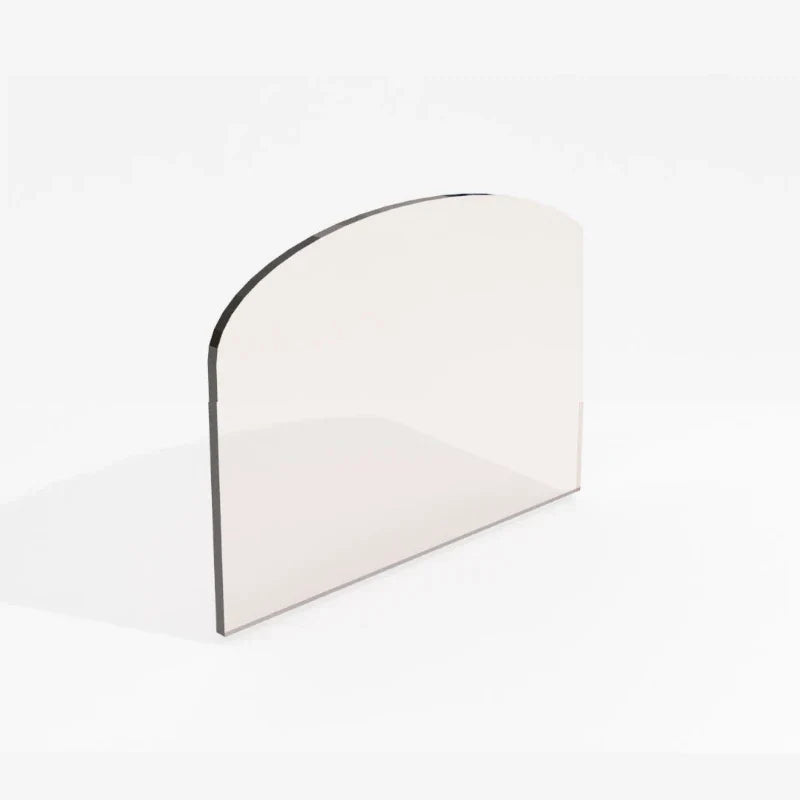

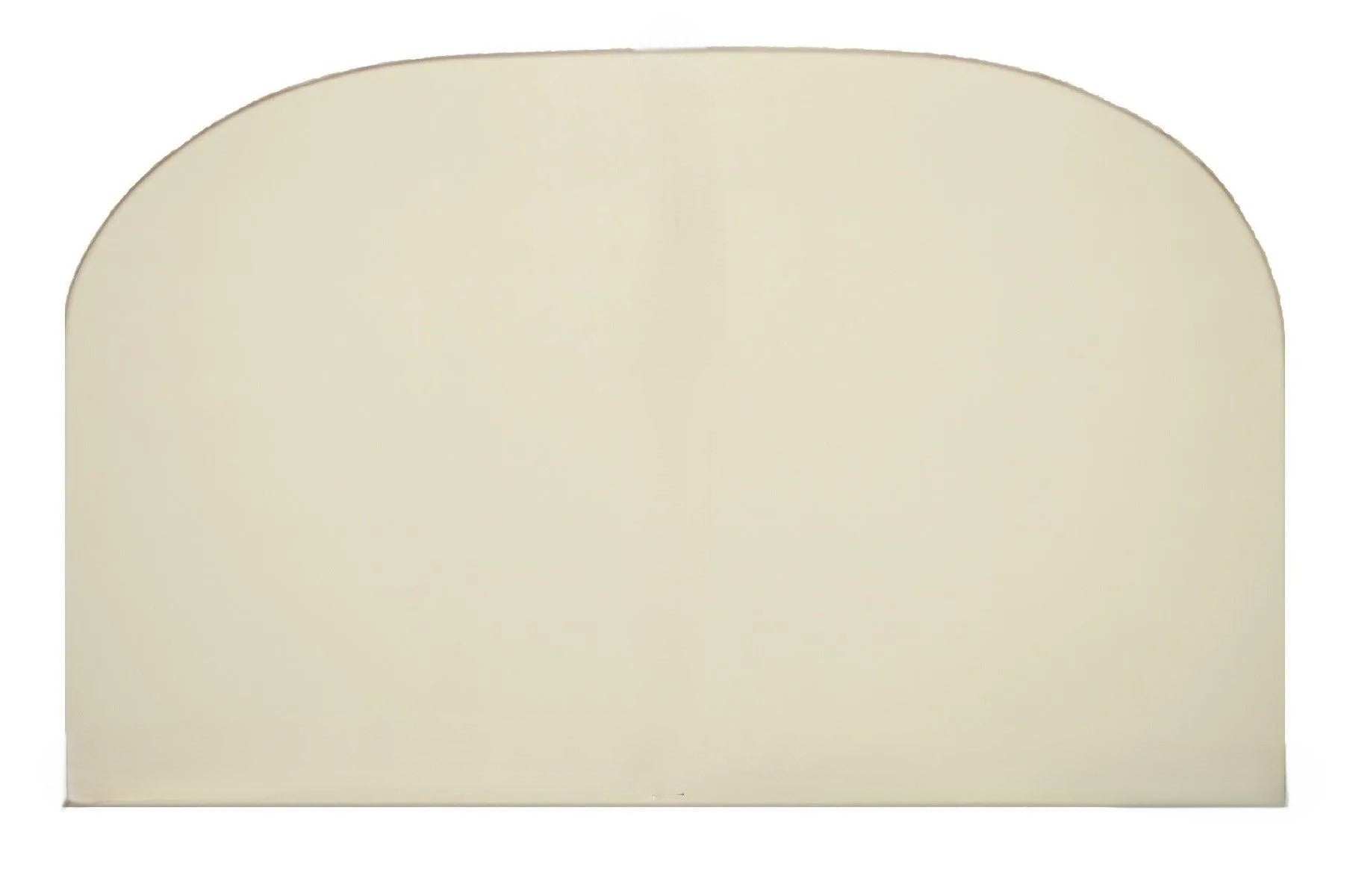

Waterford Ashling Archtop Ceramic Glass Panel – 16 13/16" x 10 9/16" | OEM Replacement | Part #68-133-009

Restore safe operation and clear firebox visibility to your Waterford Ashling wood stove with this OEM archtop ceramic / pyro-ceramic glass panel. Built to withstand extreme stove temperatures, this replacement glass delivers excellent durability, precise fit, and crystal-clear fire viewing.

Key Features:

• High-temperature ceramic / pyro-ceramic glass rated up to 1,400°F (760°C)
• Archtop design matches the original Waterford Ashling door profile
• Fully transparent panel restores a bright, unobstructed firebox view
• Precision OEM replacement for Waterford part number 68-133-009
• Safe, high-heat alternative to tempered glass
• Proudly manufactured in the USA

Specifications:

• Replacement Part Number: 68-133-009
• Glass Type: Ceramic / Pyro-ceramic (not tempered)
• Dimensions: 16 13/16" wide x 10 9/16" high x 3/16" thick
• Shape: Archtop
• Temperature Rating: Up to 1,400°F (760°C)
• Country of Origin: USA
• Gasket Required: Tape gasket sold separately

Compatible Model:

• Waterford Ashling wood stove

Pairs well with: Waterford Stove Parts

Installation Notes:

Allow the stove to cool completely before servicing. Remove the door if necessary and carefully loosen the glass retainers. Remove the old glass and all remaining gasket material. Clean the glass channel thoroughly. Apply new tape gasket evenly around the perimeter of the replacement glass. Set the glass into position and reinstall retainers snugly without overtightening. Maintain approximately 1/8" clearance around the glass to allow for thermal expansion during operation.

Important:
This is not tempered glass. Tempered glass is unsafe for wood stoves and may shatter at temperatures above 450°F. Ceramic, pyro-ceramic, and neo-ceramic glass are engineered for sustained high-heat environments and are rated to withstand temperatures up to 1,400°F.

Why Choose This Waterford Ashling Glass Panel?

Cracked or cloudy stove glass reduces efficiency, safety, and visual appeal. This OEM replacement restores proper sealing, clear fire viewing, and dependable performance while meeting original factory specifications.

Keep your glass looking its best with our glass cleaners.

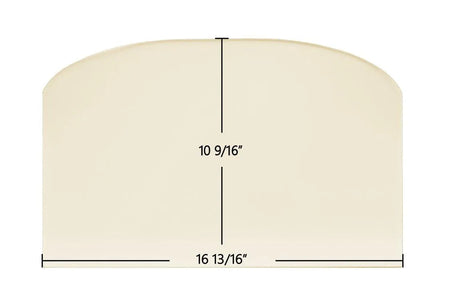

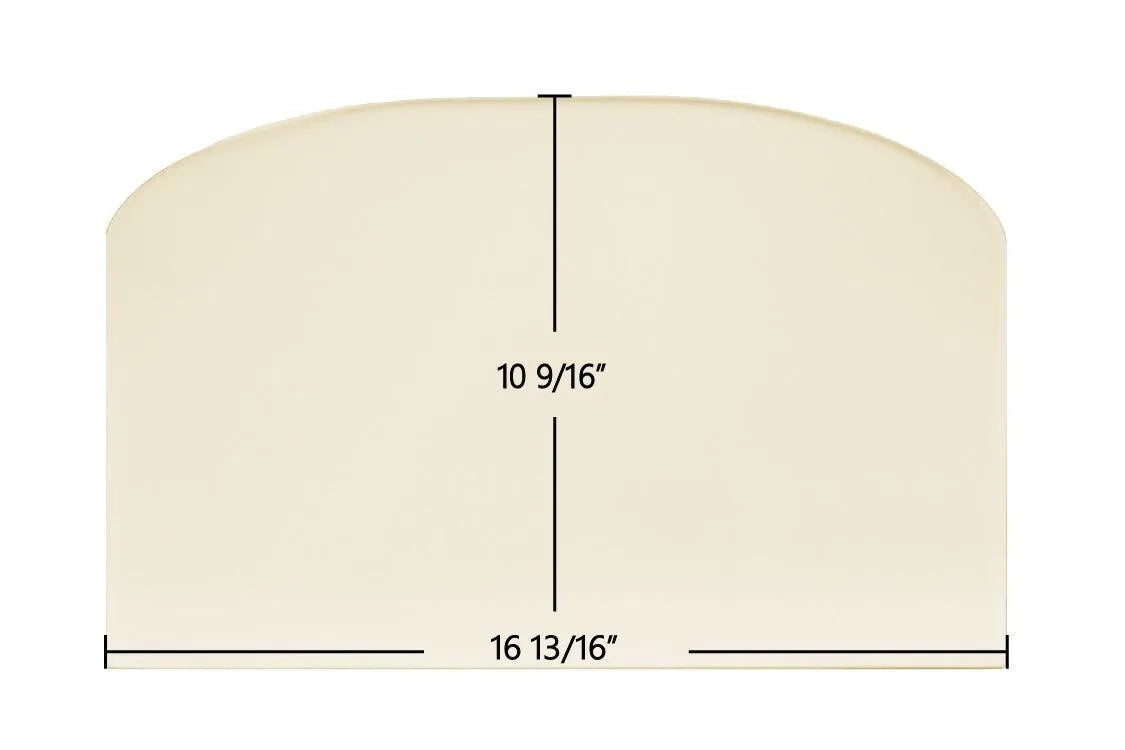

Measurements: 16 13/16" x 10 9/16"
Glass Type: Ceramic 3/16 (5mm) Thickness (Pyroceram/Robax)
Operating temperature: Up to 760° C / 1,400° F
Color: Clear (ceramic glass has a transparent amber tint)
Part #: waterfordashling
