Vermont Castings WinterWarm Small Ceramic Glass Panel | 19 3/4" x 11 3/8" | Part #160-1571

Vermont Castings WinterWarm Small Ceramic Glass Panel – 19 3/4" x 11 3/8" (Part #160-1571)

Restore safe operation and a clear firebox view with this OEM-quality ceramic / pyro-ceramic glass panel designed for Vermont Castings WinterWarm Small wood stoves. Built for models 2080, 2082, and 2084, this USA-made replacement glass provides dependable heat resistance and excellent clarity. Please note: while some manuals list this glass at 19 3/16" wide, the correct and accurate width is 19 3/4".

Key Features:

• High-temperature ceramic / pyro-ceramic glass rated up to 1,400°F (760°C)
• Fully transparent panel for unobstructed firebox visibility
• Precision-cut to OEM specifications for proper sealing and fit
• Correct width is 19 3/4", not 19 3/16" as listed in some manuals
• Designed specifically for Vermont Castings WinterWarm Small models
• Proudly manufactured in the USA

Specifications:

• Glass Type: Ceramic / Pyro-ceramic (not tempered)

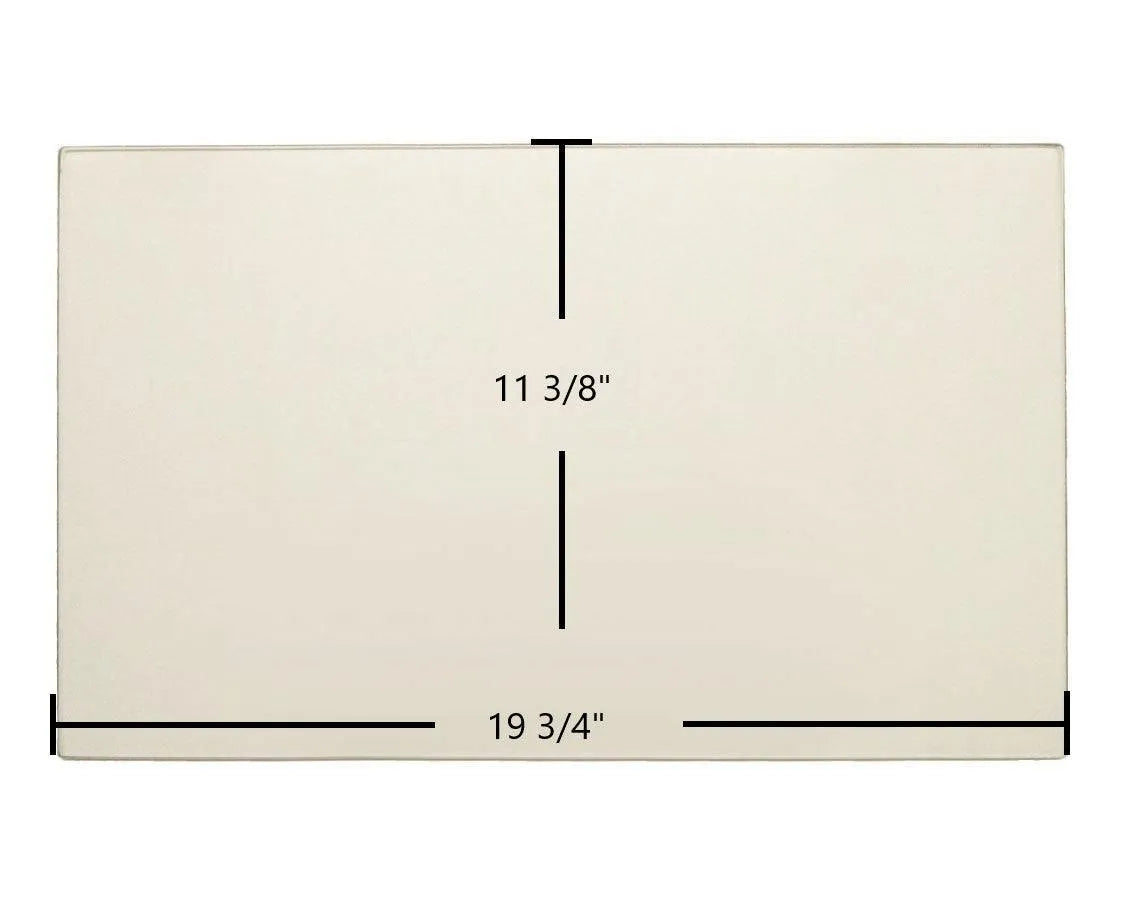

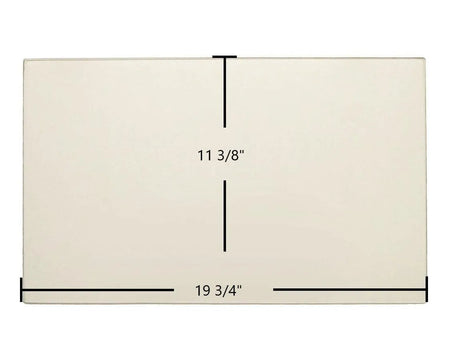

• Dimensions: 19 3/4" wide x 11 3/8" high x 3/16" thick
• Shape: Rectangular
• Replacement Part Number: 160-1571
• Compatible Models: Vermont Castings WinterWarm Small 2080, 2082, 2084
• Note: Tape gasket is sold separately

Installation Notes:

Allow the stove to cool completely before installation. Remove the door and glass retainers per the manufacturer’s instructions. Carefully remove the old glass and all existing gasket material. Clean the glass channel thoroughly. Apply new tape gasket evenly around the perimeter of the replacement glass. Reinstall the glass, ensuring even spacing around all edges. Tighten retainers snugly without overtightening, maintaining approximately 1/8" clearance to allow for thermal expansion.

Important:
This panel is not tempered glass. Tempered glass is unsafe for wood stoves and may fail above 450°F. Ceramic, pyro-ceramic, and neo-ceramic glass are engineered for sustained high-heat environments and are rated to withstand temperatures up to 1,400°F with minimal thermal expansion.

Why Choose This Vermont Castings Replacement Glass?

Using the correct size glass is critical for proper door sealing, efficiency, and safety. This OEM-fit replacement restores clarity, heat resistance, and dependable performance—ensuring your WinterWarm stove operates exactly as intended.

Keep your glass looking its best with our glass cleaners.

Measurements: 19 3/4" x 11 3/8"
Glass Type: Ceramic 3/16 (5mm) Thickness (Pyroceram/Robax)
Operating temperature: Up to 760° C / 1,400° F
Color: Clear (ceramic glass has a transparent amber tint)
Part #: 160-1571
