Vermont Castings Defiant Ceramic Glass Panel | 9 3/4" x 12 1/4" | Part #3000-5247

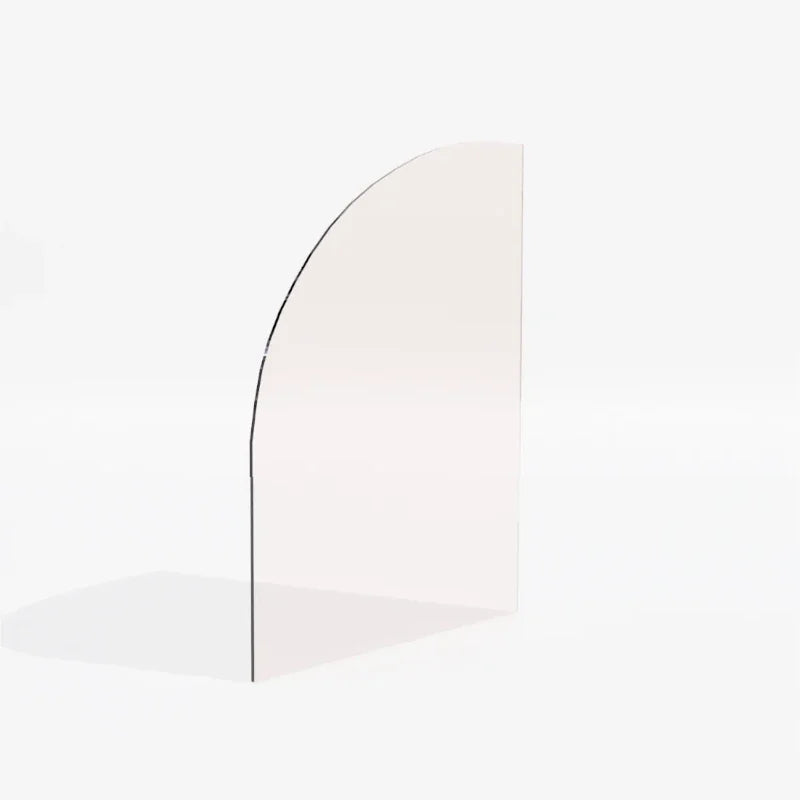

Vermont Castings Defiant Ceramic Glass Panel – 9 3/4" x 12 1/4" | OEM Replacement | Part #3000-5247

Restore safe operation and clear firebox visibility with this OEM replacement ceramic / pyro-ceramic glass panel designed for Vermont Castings Defiant wood stoves. Manufactured to exact factory specifications, this high-temperature glass is built for continuous wood stove use and provides a bright, unobstructed view of your fire. The panel is interchangeable for left or right installation.

Key Features:

• OEM ceramic / pyro-ceramic glass rated for continuous exposure up to 1,400°F
• Interchangeable design fits either left or right side Defiant door positions
• Precision-cut half-arch shape for factory-correct fit and sealing
• Fully transparent panel restores safe flame visibility and stove efficiency
• Made in the USA using premium heat-resistant materials

Specifications:

• Replacement Part Number: 3000-5247
• Glass Type: Ceramic / Pyro-ceramic (not tempered)
• Dimensions: 9 3/4" wide x 12 1/4" high x 3/16" thick
• Shape: Half Arch
• Compatibility: Vermont Castings Defiant models 1910, 1945, 1975, 1979, NC 1610, 2N1
• Temperature Rating: Up to 1,400°F (760°C)
• Gasket: Tape gasket sold separately
• Sold Individually: One panel per order

Pairs well with: Vermont Castings Parts

Installation Notes:

Allow the stove to cool completely before servicing. Remove the door if needed and carefully loosen the glass retainers. Remove the old glass and all existing gasket material. Clean the glass channel thoroughly. Apply new tape gasket evenly around the perimeter of the replacement glass, position the panel in the frame, and reinstall retainers snugly without overtightening to allow for proper thermal expansion during operation.

Important:
This panel is not tempered glass. Tempered glass is unsafe for wood stoves and may fail above 450°F. Ceramic, pyro-ceramic, and neo-ceramic glass are engineered for sustained high-heat environments and are rated to withstand temperatures up to 1,400°F.

Why Choose This Ceramic Stove Glass?

Cracked or cloudy glass reduces combustion efficiency, safety, and enjoyment. This OEM Vermont Castings Defiant replacement restores proper sealing, heat retention, and clear fire viewing for reliable, long-term stove performance.

Keep your glass looking its best with our glass cleaners.

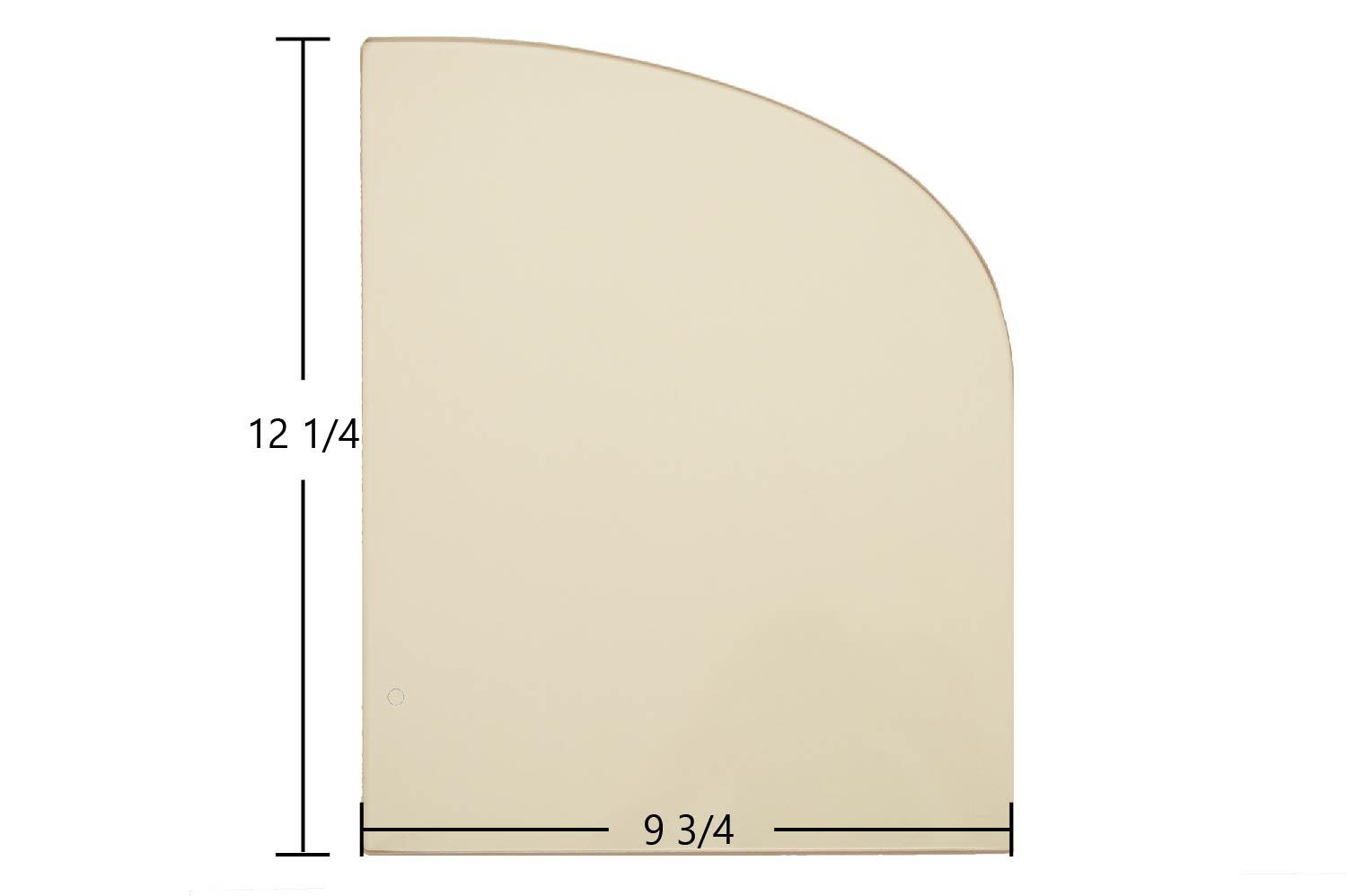

Measurements: 9 3/4" x 12 1/4"
Glass Type: Ceramic 3/16 (5mm) Thickness (Pyroceram/Robax)
Operating temperature: Up to 760° C / 1,400° F
Color: Clear (ceramic glass has a transparent amber tint)
Part #: 3000-5247
