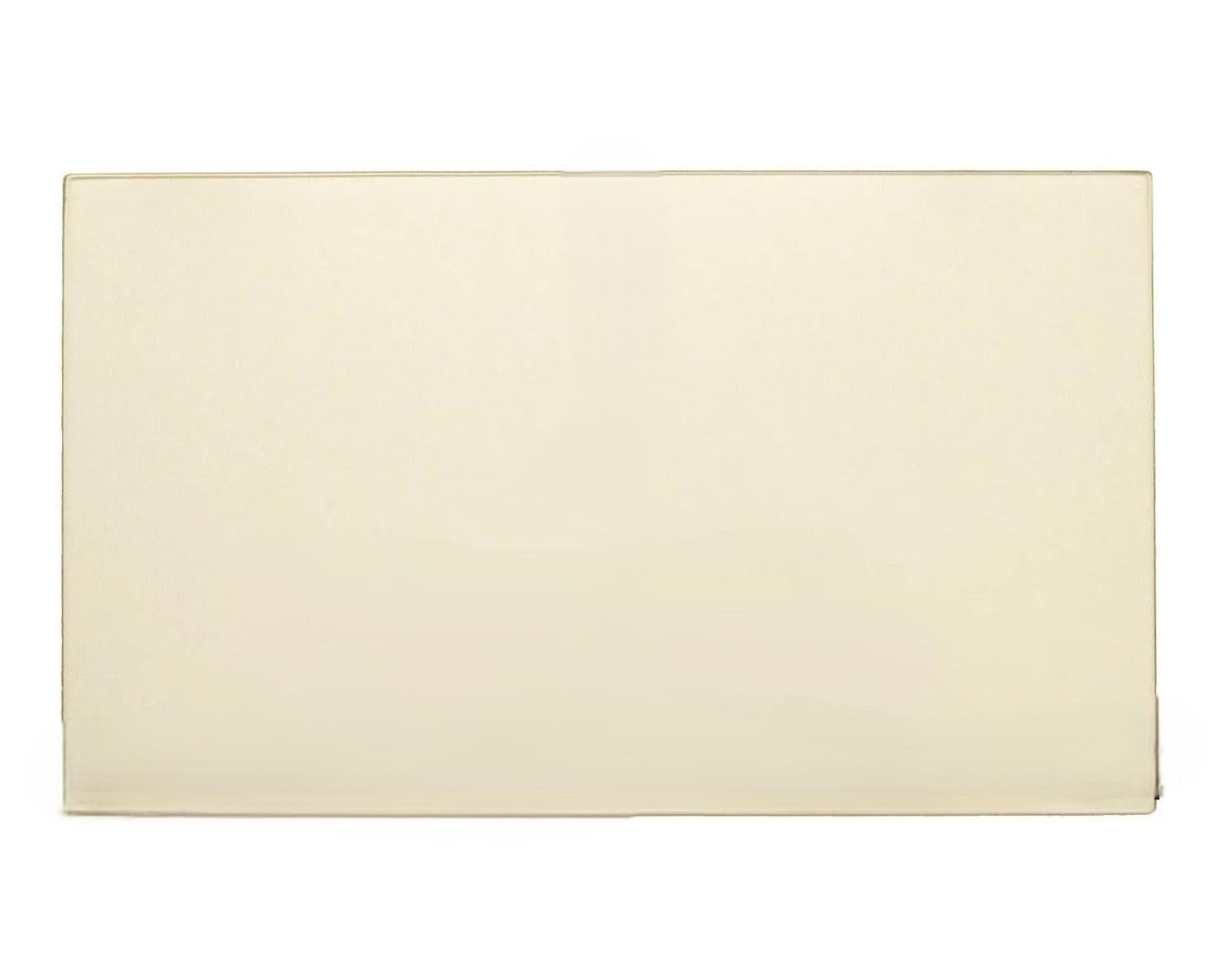

US Stove 5660 Center Ceramic Glass Panel – 15-7/8" x 10" | Replaces 88161

Restore the clear fire view and proper high-temperature performance of your US Stove 5660 pellet stove with this replacement ceramic glass center panel. Designed as a replacement for the center viewing glass associated with US Stove part number 88161, this panel is made from high-temperature ceramic glass specifically suited for pellet stove applications.

Unlike ordinary tempered glass, ceramic stove glass is engineered to withstand the intense temperatures and repeated heating and cooling cycles produced by a pellet-burning appliance. This makes it the proper type of replacement glass for compatible US Stove 5660 pellet stoves.

This listing is for the center glass panel only. The glass gasket is sold separately.

Key Features

• Replacement center ceramic glass panel for the US Stove 5660 pellet stove
• Replaces / cross-references US Stove part number 88161
• High-temperature ceramic glass designed for pellet stove applications
• Approximately 5mm (3/16") thick ceramic glass
• Withstands temperatures up to approximately 1,400°F
• Excellent thermal shock resistance
• Clear viewing surface restores the appearance of your pellet stove
• Precision-cut replacement panel
• Designed to withstand repeated heating and cooling cycles
• Glass gasket sold separately
• Replacement glass only – frame and mounting hardware are not included

Specifications

• Product Type: Pellet Stove Replacement Ceramic Glass Panel
• Position: Center Viewing Glass
• Brand Compatibility: US Stove / United States Stove Company
• Stove Model: 5660
• Cross-Reference Part Number: 88161

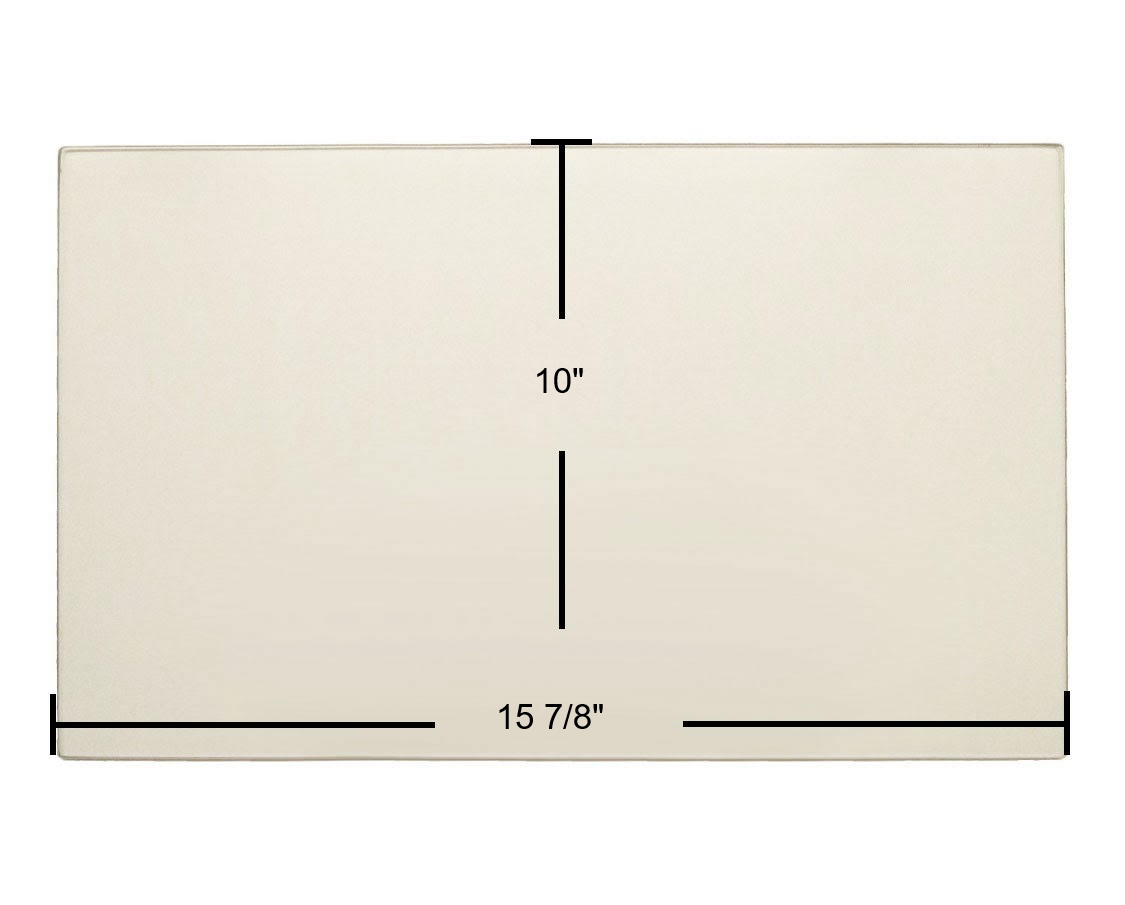

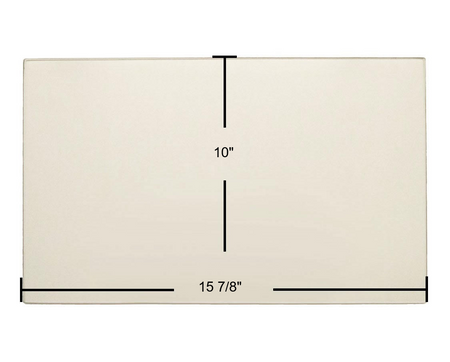

• Glass Size: 15-7/8" x 10"
• Glass Type: High-Temperature Ceramic Glass
• Thickness: Approximately 3/16" (5mm)
• Temperature Rating: Up to Approximately 1,400°F
• Shape: Rectangular
• Quantity: 1 Center Glass Panel
• Gasket Included: No
• Mounting Hardware Included: No

Compatibility

US Stove / United States Stove Company

• 5660 Pellet Stove

Replaces / Cross-References

• US Stove 88161 – Center Glass

Please Note: US Stove model 5660 uses a center glass panel along with separate side glass panels. This listing is specifically for the center glass panel.

Important – This Is Ceramic Glass, Not Tempered Glass

Pellet stove doors operate at temperatures that can exceed the capabilities of ordinary tempered glass.

This replacement panel is manufactured from high-temperature ceramic glass, which is designed to tolerate the extreme heat and thermal cycling produced by pellet stoves.

Do not substitute ordinary window glass or standard tempered glass in an application requiring high-temperature ceramic glass.

Gasket Sold Separately

The glass gasket is NOT included with this replacement panel.

We strongly recommend inspecting the existing glass gasket whenever replacing stove glass. A worn, compressed, damaged, or deteriorated gasket may prevent the new glass from sealing correctly.

Replace the gasket when necessary, before installing the new glass.

Installation Tips

• Allow the pellet stove to cool completely before beginning installation.
• Carefully remove the existing glass and clean the glass mounting area.
• Inspect the glass gasket and replace it if worn or damaged.
• Position the new ceramic glass carefully within the door assembly.
• Reinstall the glass retainers evenly.
• Tighten retaining hardware gradually using a crisscross pattern when applicable.
• Do not overtighten the glass retainers. Ceramic stove glass requires room for normal thermal expansion.
• Never operate the stove with cracked, improperly installed, or unsecured glass.

Before Ordering

Please verify your stove model and glass dimensions before placing your order.

US Stove has produced different appliances and revisions over the years, and replacement part information can vary. For the best fit, compare your existing glass and stove information with the specifications shown in this listing.

Why Choose Total-Hearth Replacement Ceramic Glass?

Total-Hearth specializes in replacement glass for wood stoves, pellet stoves, fireplaces, and other high-temperature heating appliances.

Our ceramic glass is selected specifically for high-temperature applications where ordinary glass cannot safely perform. Each replacement panel is carefully prepared to provide the heat resistance, clarity, and durability required for demanding stove and fireplace applications.

Replacing cracked, severely etched, or damaged glass helps restore both the appearance and safe operation of your pellet stove while giving you a clear view of the fire.

What's Included

• (1) US Stove 5660 Center Ceramic Glass Panel – 15-7/8" x 10"

Not Included:

• Glass gasket
• Door gasket
• Glass retainers
• Mounting hardware
• Side glass panels
