Quadra-Fire Isle Royale & Cape Cod Side Ceramic Glass Panel | 9 1/16" x 11 15/16" | Part #434-5230

Quadra-Fire Isle Royale & Cape Cod Side Ceramic Glass Panel – 9 1/16" x 11 15/16" (Part #434-5230)

Maintain safe operation and restore a clear, vivid firebox view with this OEM replacement ceramic / pyro-ceramic glass side panel for Quadra-Fire Isle Royale and Quadra-Fire Cape Cod wood stoves. This transparent panel is precision-cut for proper fit and is interchangeable between the right and left sides, delivering long-lasting durability under extreme heat.

Key Features:

• High-temperature ceramic / pyro-ceramic glass rated up to 1,400°F for continuous stove operation
• Fully transparent panel restores sharp, unobstructed fire viewing
• Interchangeable design fits either right or left side positions
• Precision-cut OEM dimensions ensure safe, secure installation
• Proudly made in the USA using premium heat-resistant materials

Specifications:

• Part Number: 434-5230
• Glass Type: Ceramic / Pyro-ceramic (not tempered)

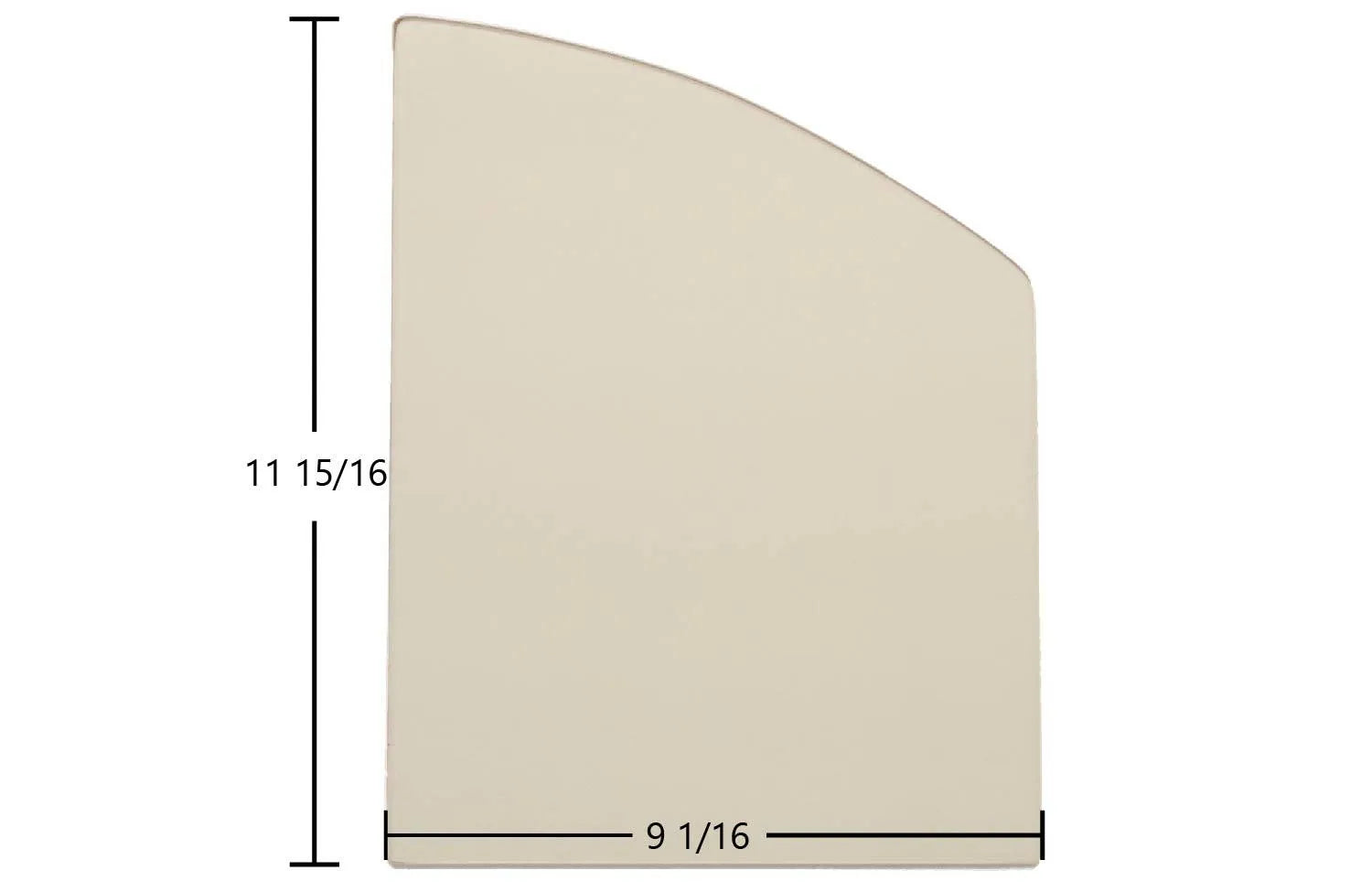

• Dimensions: 9 1/16" wide x 11 15/16" high

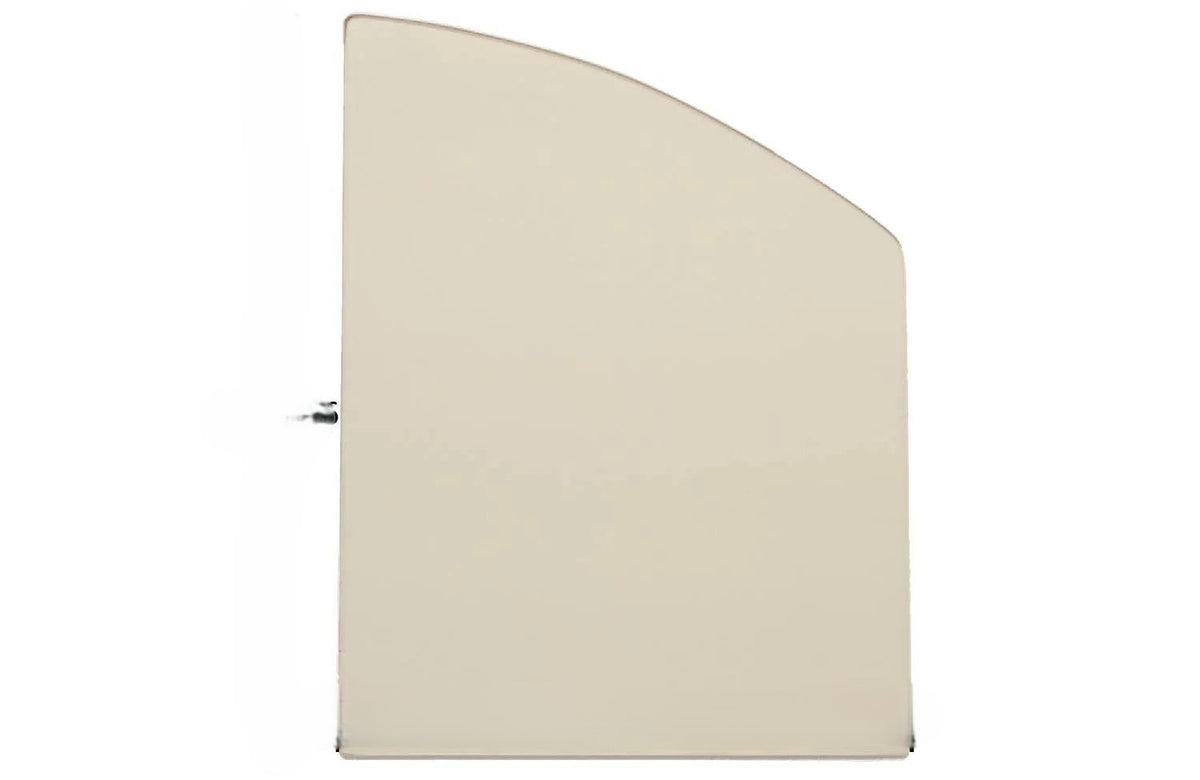

• Shape: Half arch
• Compatibility: Quadra-Fire Isle Royale and Quadra-Fire Cape Cod wood stoves
• Panel Placement: Right or left side (interchangeable)
• Temperature Rating: Up to 1,400°F (760°C)
• Quantity: Sold individually (one panel)
• Gasket: Tape gasket sold separately

Compatible Models:

• Quadra-Fire Isle Royale
• Quadra-Fire Cape Cod

Pairs well with: Quadra-Fire Parts

Installation Notes:

Allow the stove to cool completely before servicing. Remove the side panel retainers and carefully take out the damaged glass and old gasket material. Clean the glass channel thoroughly. Install new tape gasket around the perimeter of the replacement glass, position the panel evenly in the frame, and reinstall retainers snugly without overtightening to allow for thermal expansion.

Important:
This listing is for one glass panel only. If replacing both side panels, please order two. This is not tempered glass. Tempered glass cannot withstand sustained wood stove temperatures and may fail above 450°F. Ceramic, pyro-ceramic, and neo-ceramic glass are engineered for continuous exposure up to 1,400°F, ensuring safe, reliable performance.

Why Choose Our Ceramic Stove Glass?

This USA-made replacement panel is precision-cut to OEM specifications for dependable fit, long service life, and crystal-clear fire viewing. It restores safety, efficiency, and visual appeal to your Quadra-Fire Isle Royale or Cape Cod stove.

Keep your glass looking its best with our glass cleaners.

Measurements: 9 1/16" x 11 15/16"
Glass Type: Ceramic 3/16 (5mm) Thickness (Pyroceram/Robax)
Operating temperature: Up to 760° C / 1,400° F
Color: Clear (ceramic glass has a transparent amber tint)
Part #: 434-5230
