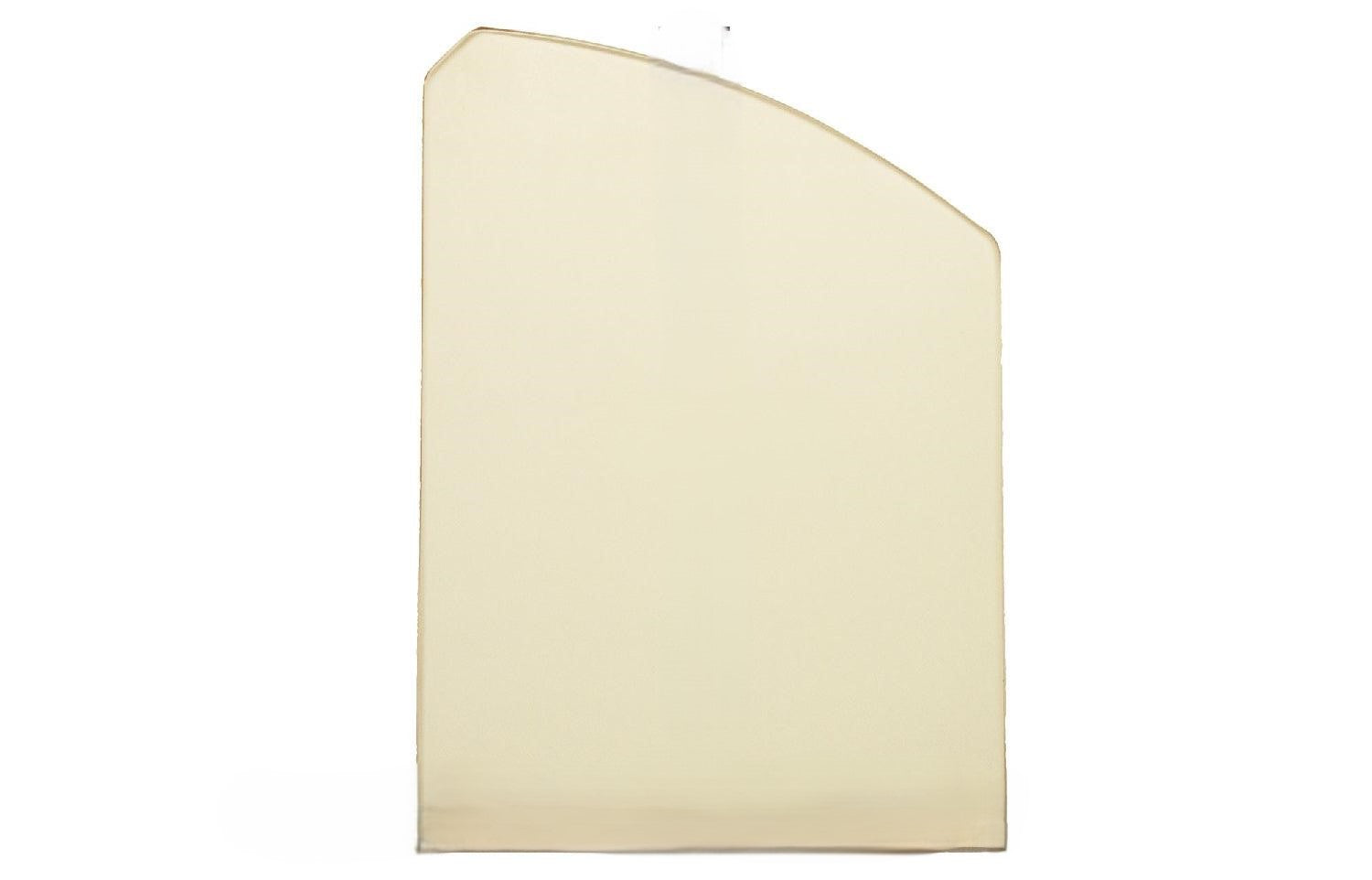

Quadra-Fire Cumberland Gap Ceramic Glass Panel | 9 3/16" x 13 1/16" | Part #7006-045

Quadra-Fire Cumberland Gap Ceramic Glass Panel – 9 3/16" x 13 1/16" (Part 7006-045)

Restore safe operation, heat efficiency, and clear firebox visibility with this OEM replacement ceramic glass panel for the Quadra-Fire Cumberland Gap wood stove. Precision-cut from high-temperature ceramic / pyro-ceramic glass, this transparent panel is interchangeable between the left and right sides and engineered to withstand extreme stove temperatures while delivering a crisp, unobstructed view of your fire.

Key Features:

• High-temperature ceramic / pyro-ceramic glass rated up to 1,400°F for continuous stove use
• Crystal-clear transparency restores full firebox visibility
• Interchangeable design fits either left or right panel position
• Precision-cut OEM replacement for proper fit and safe operation
• Proudly made in the USA using premium heat-resistant materials

Specifications:

• Part Number: 7006-045
• Glass Type: Ceramic / Pyro-ceramic (not tempered)

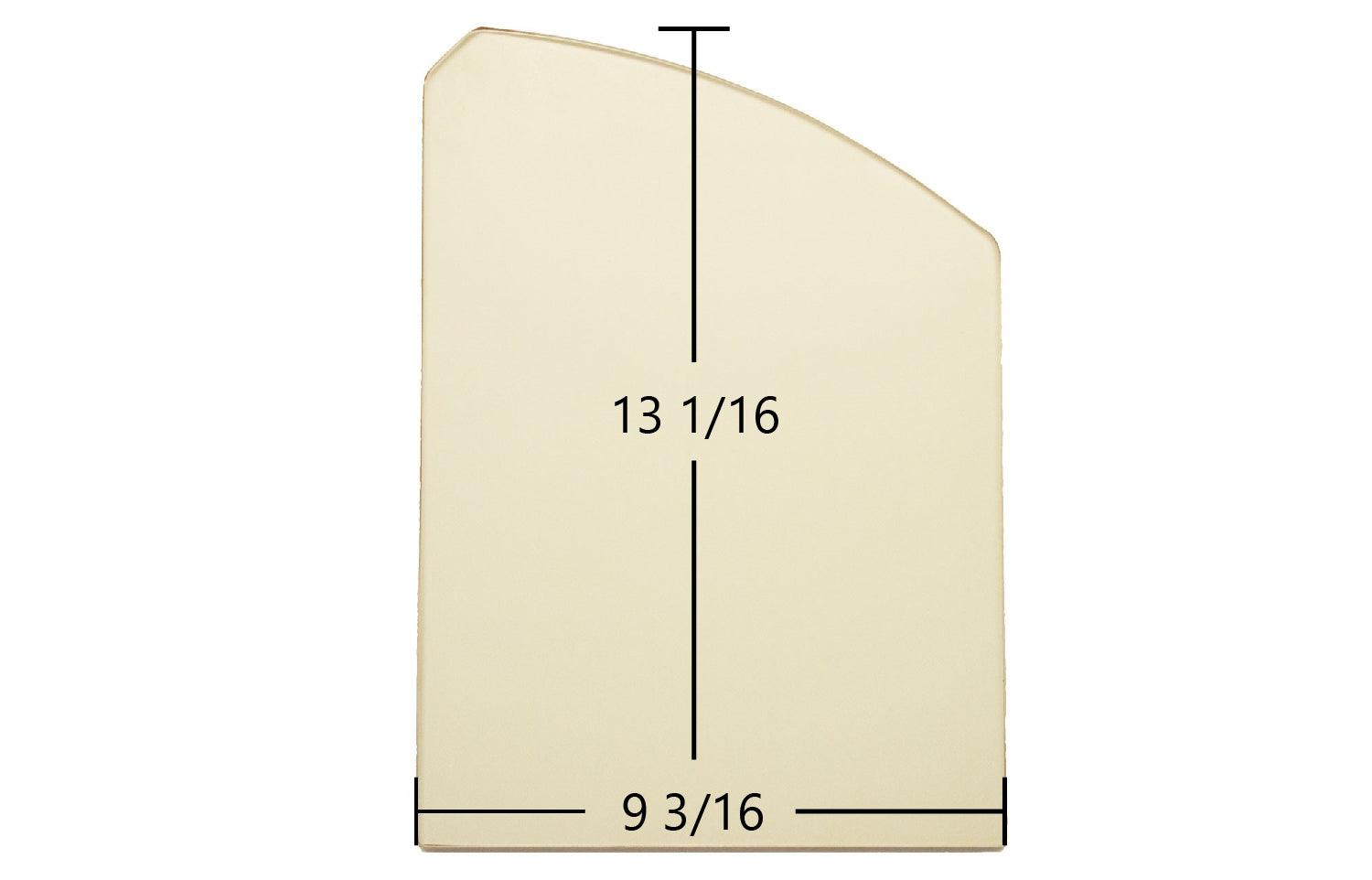

• Dimensions: 9 3/16" wide x 13 1/16" high
• Shape: Half arch
• Compatibility: Quadra-Fire Cumberland Gap wood stove
• Temperature Rating: Up to 1,400°F (760°C)
• Gasket: Tape gasket sold separately

Installation Notes:

Allow the stove to cool completely before servicing. Remove the door if required and carefully take out the damaged glass and old gasket material. Clean the glass channel thoroughly. Install new tape gasket around the perimeter of the glass, position the panel evenly into the frame, and secure the retainers snugly without overtightening to allow for proper thermal expansion.

Pairs Well With:
Quadra-Fire Parts

Important:
This is not tempered glass. Tempered glass cannot withstand the sustained high temperatures of wood stove operation and may fail above 450°F. Ceramic, pyro-ceramic, and neo-ceramic glass are engineered to handle continuous temperatures up to 1,400°F with minimal thermal expansion, ensuring safe and reliable stove performance.

Why Choose Our Ceramic Stove Glass?

This USA-made replacement panel is precision-cut to OEM specifications for proper fit, long service life, and dependable heat resistance. Whether replacing one panel or both, it restores safety, efficiency, and crystal-clear fire viewing to your Quadra-Fire Cumberland Gap stove.

Keep your glass spotless with one of our glass cleaners.

Measurements: 9 3/16" x 13 1/16"
Glass Type: Ceramic 3/16 (5mm) Thickness (Pyroceram/Robax)
Operating temperature: Up to 760° C / 1,400° F
Color: Clear (ceramic glass has a transparent amber tint)
Part #: 7006-045
