Pleasant Hearth PH35PS, PH50PS, PH50CABPS Ceramic Glass Panel | 11 7/8" x 9 7/8" | Part #SRV7077-158M

Pleasant Hearth Ceramic Glass Panel – 11 7/8" x 9 7/8" (Fits PH35PS, PH50PS, PH50CABPS | Part SRV7077-158M)

Restore safe operation and clear firebox visibility to your Pleasant Hearth pellet stove with this OEM replacement ceramic / pyro-ceramic glass panel. Precision-cut for PH35PS, PH50PS, and PH50CABPS models, this high-temperature glass is engineered to withstand continuous pellet stove heat while maintaining long-lasting clarity and strength.

Key Features:

• High-temperature ceramic / pyro-ceramic glass rated up to 1,400°F for continuous pellet stove use
• Fully transparent panel restores a bright, unobstructed fire view
• Precision OEM sizing ensures proper fit and secure installation
• Direct replacement for Pleasant Hearth part number SRV7077-158M
• Proudly made in the USA using premium heat-resistant materials

Specifications:

• Glass Type: Ceramic / Pyro-ceramic (not tempered)

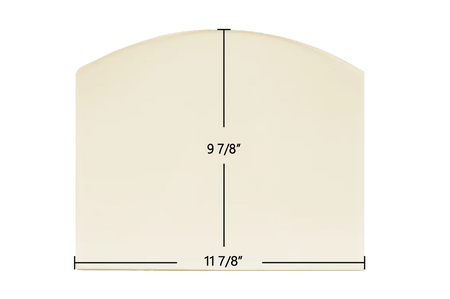

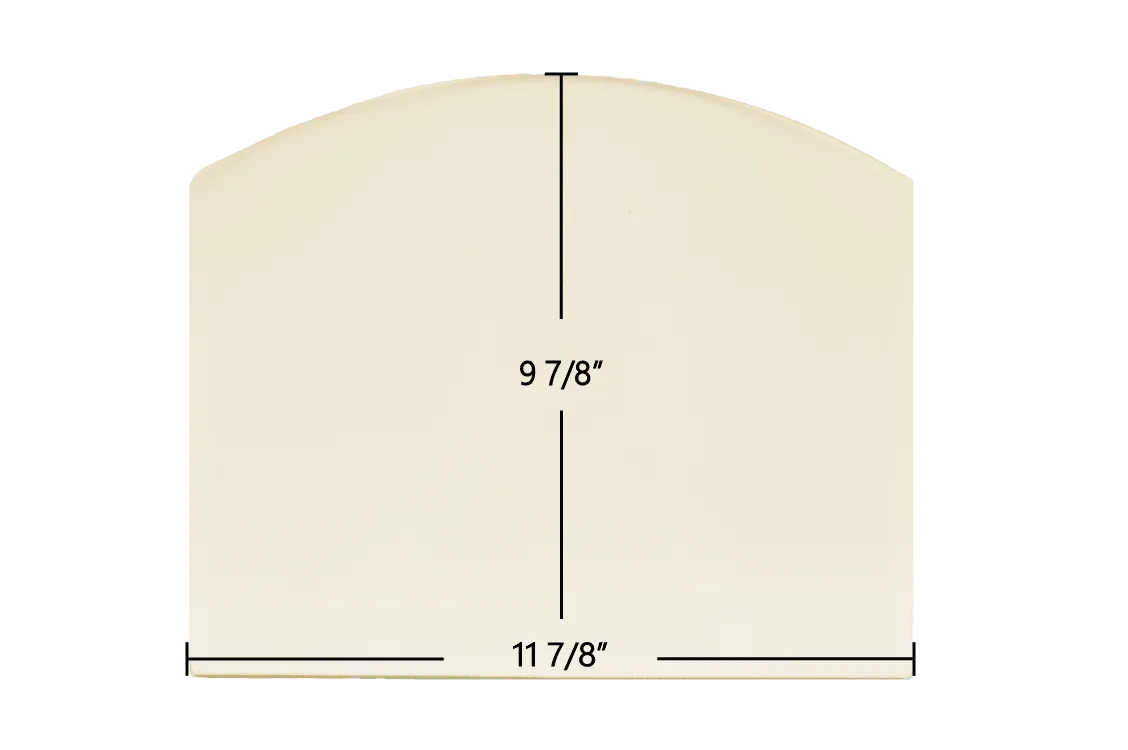

• Dimensions: 11 7/8" wide x 9 7/8" high
• Shape: Archtop
• Replacement Part Number: SRV7077-158M
• Compatibility: Pleasant Hearth PH35PS, PH50PS, PH50CABPS pellet stoves
• Temperature Rating: Up to 1,400°F (760°C)
• Gasket: Tape gasket sold separately

Pairs well with: Pleasant Hearth Parts

Installation Notes:

Allow the stove to cool completely before servicing. Remove the door retainers and carefully remove the damaged glass and old gasket material. Clean the glass channel thoroughly. Apply new tape gasket evenly around the perimeter of the replacement glass, set the panel into position, and reinstall retainers snugly without overtightening to allow for proper thermal expansion.

Important:
This is not tempered glass. Tempered glass is unsafe for pellet stove applications and may fail at temperatures above 450°F. Ceramic, pyro-ceramic, and neo-ceramic glass are engineered for continuous exposure up to 1,400°F, ensuring safe, reliable stove operation.

Why Choose Our Ceramic Stove Glass?

This USA-made replacement glass panel is precision-cut to OEM specifications, restoring safety, efficiency, and crystal-clear fire viewing to your Pleasant Hearth pellet stove. Built for durability and long service life, it is a dependable solution for high-heat pellet stove environments.

Keep your glass spotless with our glass cleaners.

Measurements: 11 7/8" x 9 7/8"
Glass Type: Ceramic 3/16 (5mm) Thickness (Pyroceram/Robax)
Operating temperature: Up to 760° C / 1,400° F
Color: Clear (ceramic glass has a transparent amber tint)
Part #: SRV7077-158M
