Hearthstone Craftsbury 8390 Archtop Ceramic Glass Panel – Replacement for Part #3030-047 (14 1/4" x 9 5/8")

Hearthstone Craftsbury 8390 Archtop Ceramic Glass Panel – 14 1/4" x 9 5/8" | Replaces Part #3030-047

Restore safe operation and clear firebox visibility to your Hearthstone Craftsbury 8390 wood stove with this OEM-quality archtop ceramic glass panel. Precision-cut from high-temperature ceramic / pyro-ceramic glass, this USA-made replacement delivers exceptional heat resistance, durability, and a crisp view of your fire.

Key Features:

• OEM archtop design engineered specifically for the Craftsbury 8390
• High-temperature ceramic glass rated for continuous use up to 1,400°F (760°C)
• Fully transparent panel restores unobstructed firebox visibility
• Precision-cut for proper sealing and safe operation
• Made in the USA using premium materials

Specifications:

• Glass Type: Ceramic / Pyro-ceramic (not tempered)

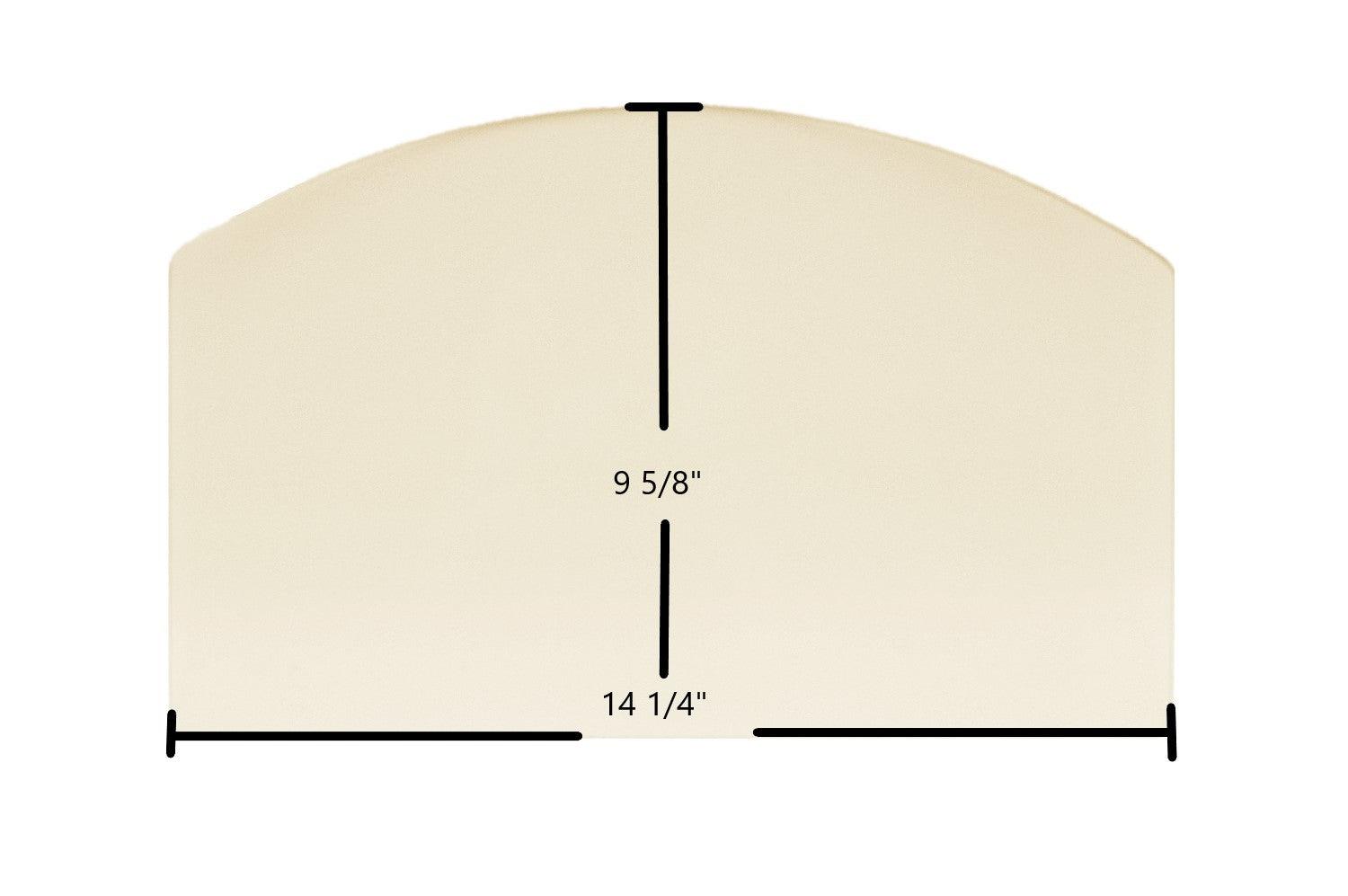

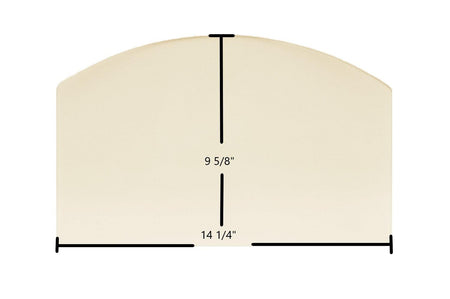

• Dimensions: 14 1/4" wide x 9 5/8" high x 3/16" thick
• Shape: Archtop
• Replacement Part Number: 3030-047
• Compatibility: Hearthstone Craftsbury 8390 wood stove
• Gasket: Tape gasket sold separately

Installation Notes:

Allow the stove to cool completely before servicing. Remove the door if required and carefully take out the damaged glass and old gasket material. Clean the glass channel thoroughly. Install a new tape gasket around the perimeter of the glass, place the panel evenly into position, and secure retainers snugly without overtightening to allow for proper thermal expansion.

Important:
This is not tempered glass. Tempered glass may fail at temperatures above 450°F and is unsafe for wood stoves. Ceramic, pyro-ceramic, and neo-ceramic glass are engineered to withstand continuous temperatures up to 1,400°F with minimal thermal expansion, ensuring long-term safety and performance.

Why Choose Our Ceramic Stove Glass?

Designed to OEM specifications, this Hearthstone Craftsbury 8390 replacement glass restores stove safety, efficiency, and visual clarity. Its precise fit, extreme heat resistance, and USA-made quality make it a dependable long-term solution.

Check your dimensions carefully before ordering to ensure proper fit.

Keep your glass looking its best with our glass cleaners.

Measurements: 14 1/4" x 9 5/8"
Glass Type: Ceramic 3/16 (5mm) Thickness (Pyroceram/Robax)
Operating temperature: Up to 760° C / 1,400° F
Color: Clear (ceramic glass has a transparent amber tint)
Part #: 3030-047
