Consolidated Dutchwest Large #2479 Non-Cat Archtop Ceramic Glass Panel – 17 3/4" x 11 3/4" (Part #3000-2157)

Consolidated Dutchwest Large #2479 Non-Cat Archtop Ceramic Glass Panel – 17 3/4" x 11 3/4" (Part #3000-2157)

Restore safe operation and clear firebox visibility with this OEM-quality ceramic / pyro-ceramic glass panel designed specifically for the Consolidated Dutchwest Large #2479 Non-Catalytic wood stove. Precision-cut with an arched top profile, this USA-made replacement glass is engineered for continuous high-heat exposure while delivering long-lasting clarity and durability.

Key Features:

• High-temperature ceramic / pyro-ceramic glass rated up to 1,400°F for wood stove use
• Archtop design matches the original Dutchwest Large door contour for proper OEM fit
• Fully transparent panel restores a bright, unobstructed fire view
• Precision-cut to factory specifications for secure installation
• Made in the USA using premium heat-resistant materials

Specifications:

• Replacement Part Number: 3000-2157
• Glass Type: Ceramic / Pyro-ceramic (not tempered)

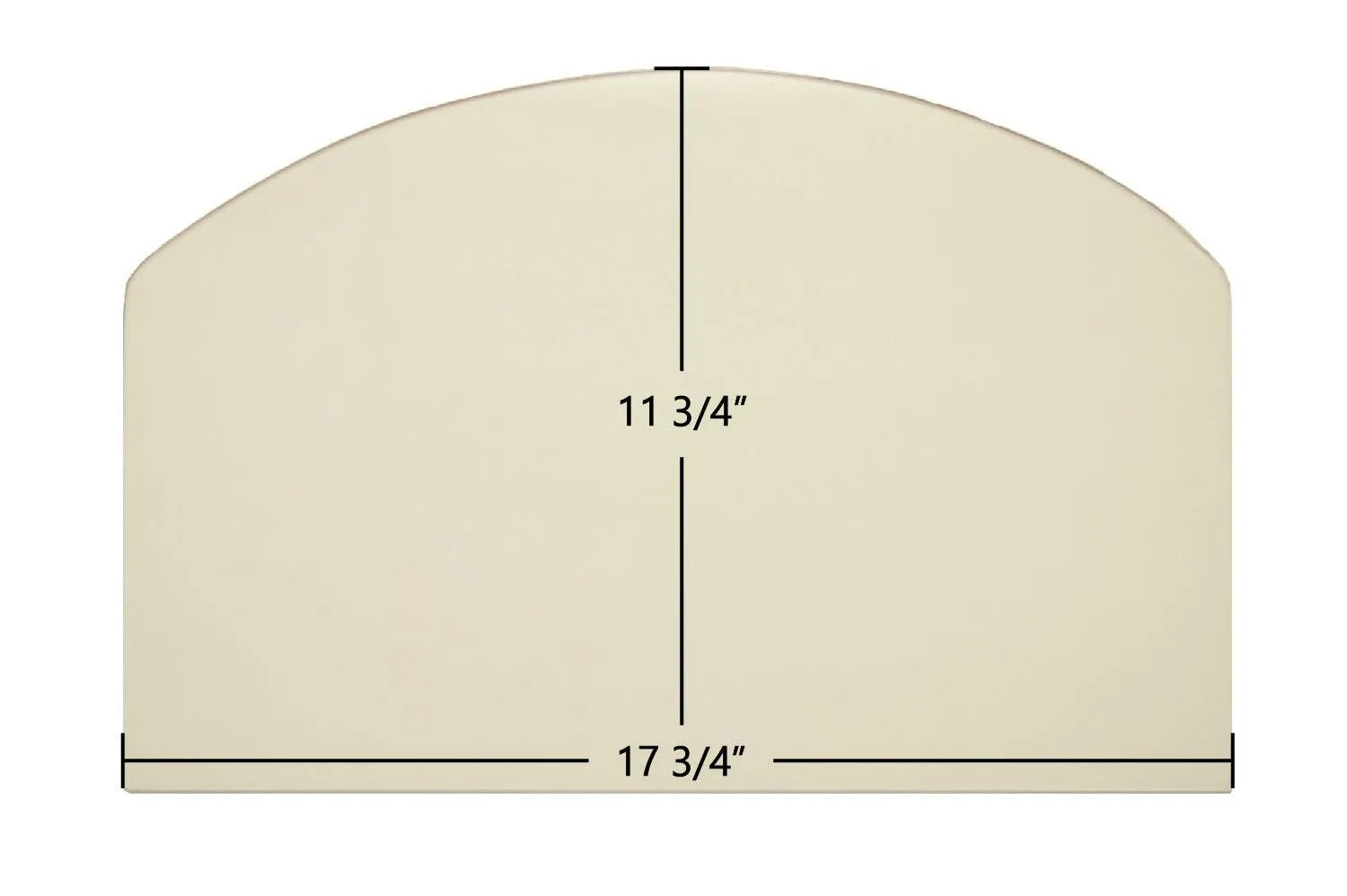

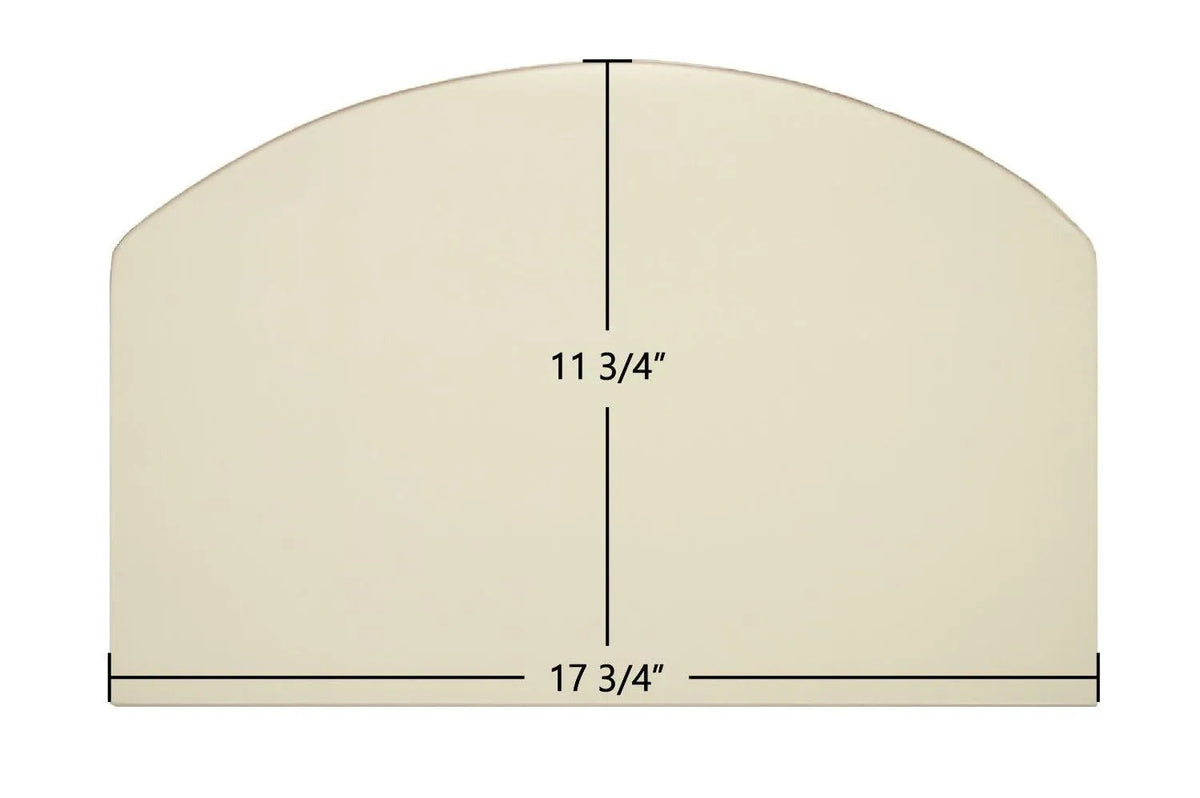

• Dimensions: 17 3/4" wide x 11 3/4" high x 3/16" thick
• Shape: Archtop
• Compatibility: Consolidated Dutchwest Large #2479 (Non-Catalytic)
• Temperature Rating: Up to 1,400°F (760°C)
• Gasket: Tape gasket sold separately

Pairs well with: Consolidated Dutchwest Parts

Installation Notes:

Allow the stove to cool completely before servicing. Remove the door retainers and carefully take out the damaged glass and old gasket material. Clean the glass channel thoroughly. Apply new tape gasket evenly around the perimeter of the replacement glass, seat the panel into position, and reinstall retainers snugly without overtightening to allow for proper thermal expansion.

Important:
This is not tempered glass. Tempered glass is unsafe for wood stoves and may fail at temperatures above 450°F. Ceramic, pyro-ceramic, and neo-ceramic glass are engineered to withstand continuous exposure up to 1,400°F, ensuring safe, reliable stove operation.

Why Choose This Ceramic Stove Glass?

Cracked or cloudy glass reduces stove efficiency, safety, and enjoyment. This OEM-fit Dutchwest replacement glass restores proper sealing, heat retention, and clear fire viewing while maintaining factory-correct performance.

Keep your glass looking its best with our glass cleaners.

Measurements: 17 3/4" x 11 3/4"
Glass Type: Ceramic 3/16 (5mm) Thickness (Pyroceram/Robax)
Operating temperature: Up to 760° C / 1,400° F
Color: Clear (ceramic glass has a transparent amber tint)
Part #: 3000-2157
