Ashley Stove Grate (51644R) – Cast Iron Replacement Grate for Ashley & King Stoves | 14-1/2" x 12-1/4"

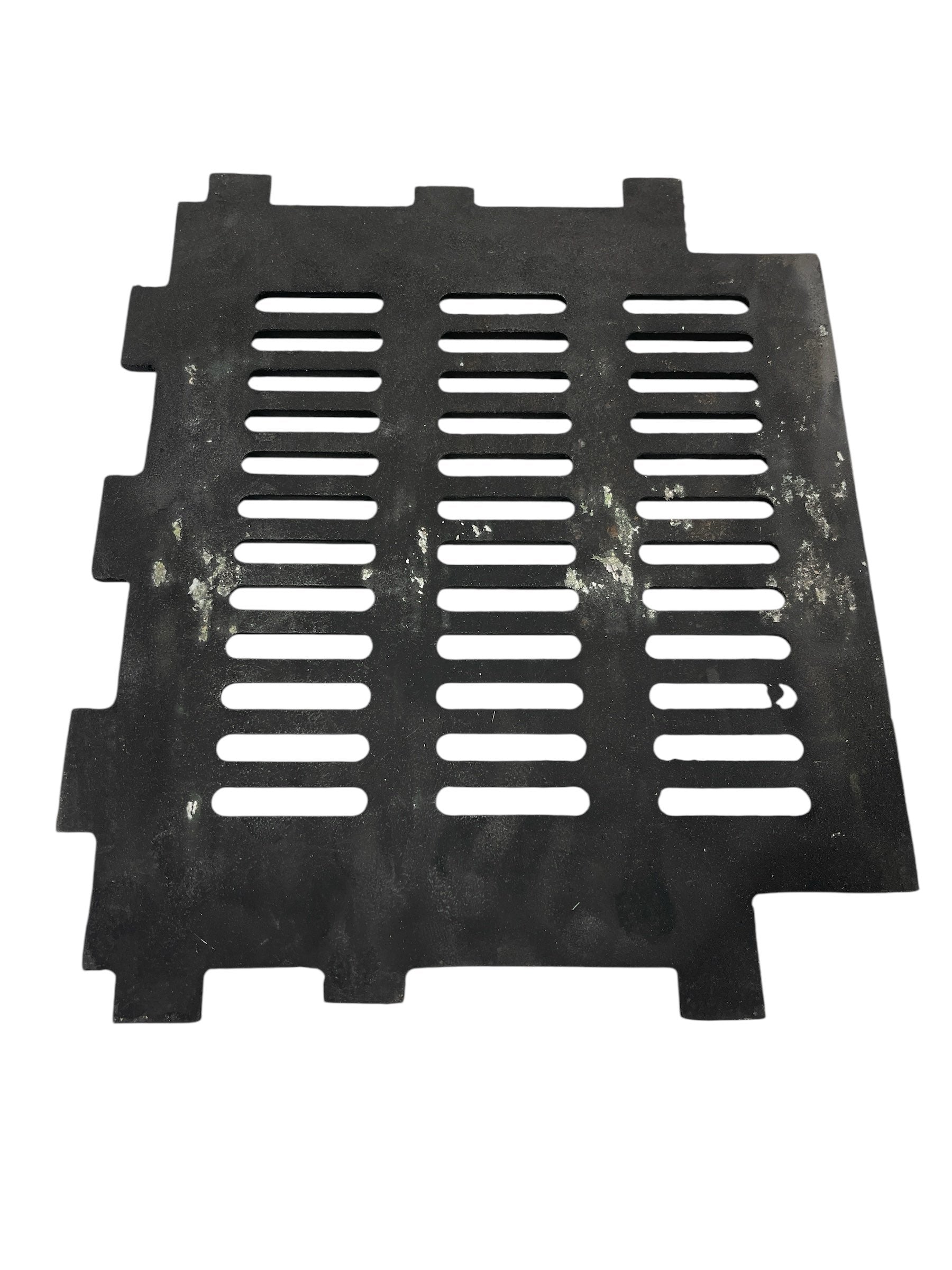

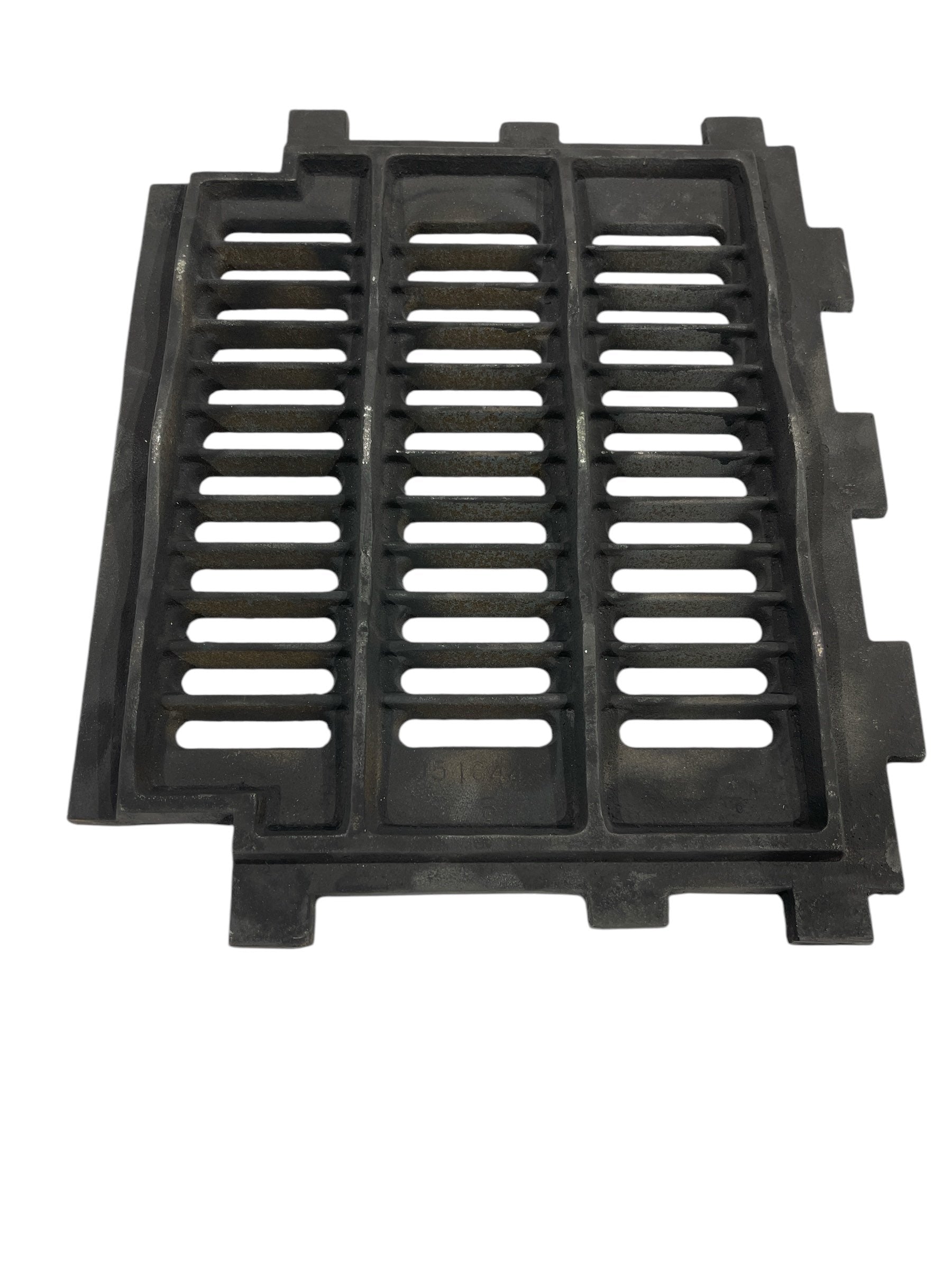

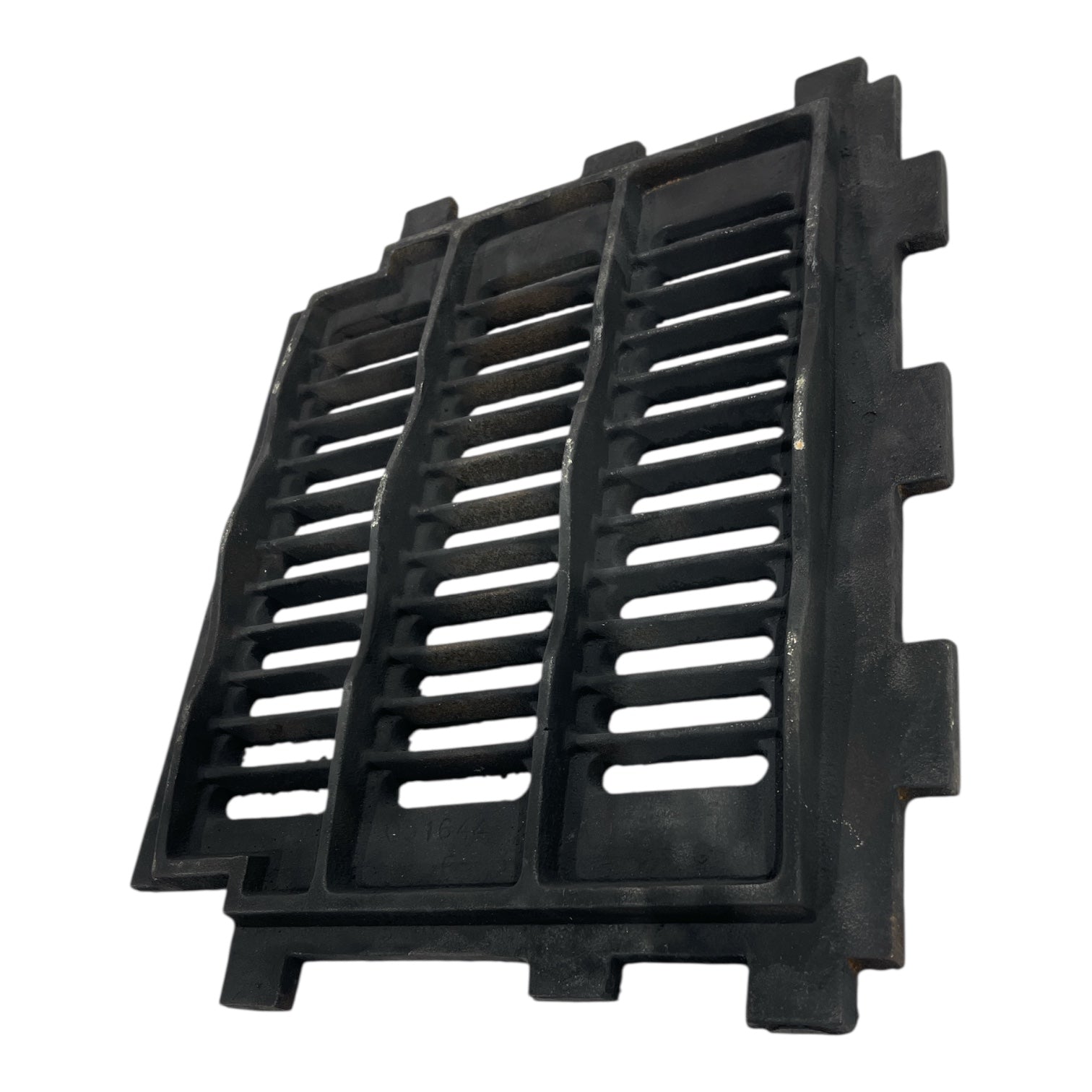

Ashley Stove Grate (51644R) – Cast Iron Replacement Grate for Ashley & King Stoves (14-1/2" x 12-1/4")

Upgrade your stove’s performance with the Ashley Grate (51644R) — a rugged, high-temperature cast iron replacement designed to fit select Ashley and King stove models. This square fire grate supports solid fuel and promotes effective airflow, helping to extend your stove's life and maintain efficient combustion.

Key Features:

• OEM-Style Fit – Specifically sized for Ashley and King stove models
• Solid Cast Iron Build – Handles intense heat and daily use with ease
• Improves Burn Efficiency – Allows for proper airflow and clean ash separation
• Universal Application – May also fit other brands or models with matching dimensions

Specifications:

• Part Number: 51644R

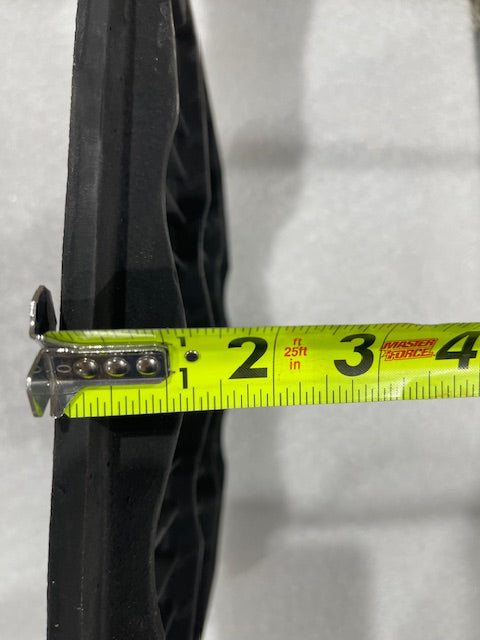

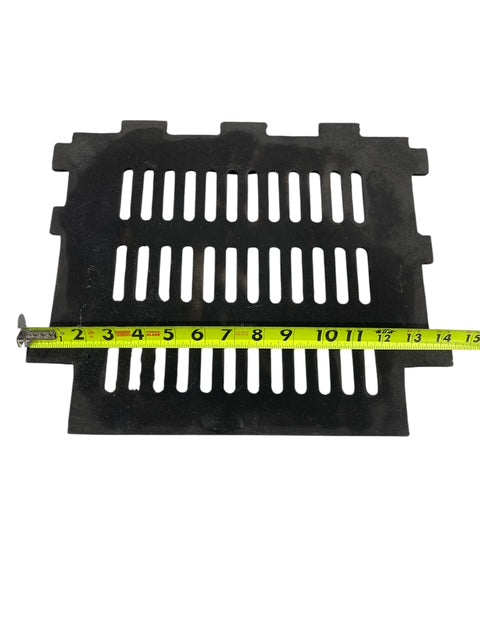

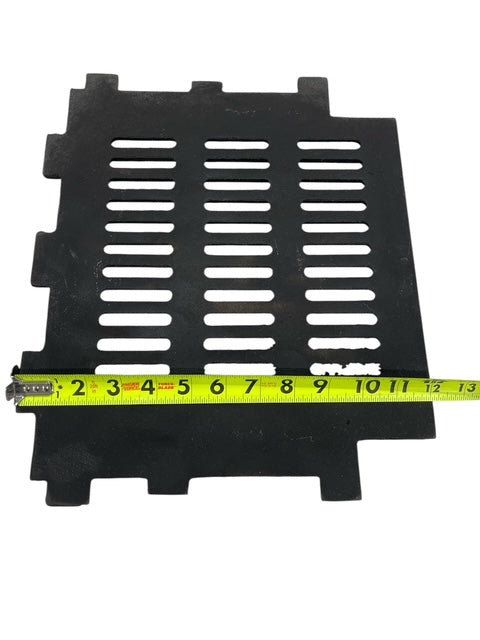

• Dimensions: 14-1/2" L x 12-1/4" W x 1-3/8" H
• Material: Black cast iron
• Style: Square stove grate
• Application: Wood and coal burning stoves
• Sold: Individually

Compatible Stove Brands and Models:
• Ashley Stoves: C92
• King Stoves: KNC, KTC
• Other wood or coal stoves with compatible grate dimensions and support layout

May fit additional models based on size and configuration. Always verify grate dimensions and firebox support style using your stove’s owner’s manual before ordering.

Pairs Well With: Ashley Stove Parts, ash pans, replacement fire grates, firebrick, and stove maintenance accessories

Why Choose the Ashley 51644R Cast Iron Stove Grate?

A damaged stove grate can restrict airflow, cause uneven burning, and reduce heating efficiency. Replacing it with the Ashley 51644R cast iron grate restores proper combustion airflow, improves heat output, and helps protect the firebox floor from direct heat exposure. This rugged replacement grate is an essential maintenance part for keeping your stove operating safely and efficiently.

Installation Instructions:

Allow the stove to cool completely before servicing. Make sure all embers are extinguished and remove excess ash from the firebox.

Open the stove door and remove any remaining fuel. Lift the old grate out of the firebox. If ash buildup is present, gently rock the grate to free it from the support ledges.

Clean the firebox floor and grate support rails to ensure the new grate seats properly. Inspect supports for damage or warping.

Place the new square cast iron grate into position, making sure it sits flat and stable on the support rails. The grate should not rock or bind once installed.

Reload fuel and resume normal stove operation.

Installation tip: Proper airflow depends on the grate sitting flat and unobstructed. Never operate your stove with a cracked or broken grate, as this can lead to firebox damage.

Helpful Installation Videos:

Wood stove grate replacement example (US Stove style grate removal and install):
https://www.youtube.com/watch?v=VgqnKj-Onog

This video demonstrates typical fire grate removal, sizing, and installation techniques. While it may not reference the Ashley 51644R specifically, the installation process is the same for most square cast iron wood and coal stove grates.
