Country Flame Blower Motor with Fan – 100102CF | 3-Speed Replacement for Pellet Stoves (Includes 9 1/4" Fan Blade)

Country Flame Blower Motor with Fan – 100102CF | 3-Speed Replacement for Pellet Stoves (Includes 9 1/4" Fan Blade)

Restore strong airflow and efficient heating performance in your pellet stove with the Country Flame 100102CF Blower Motor Assembly. This 3-speed replacement motor includes a 9 1/4" fan blade and is designed to fit multiple Country Flame models. Built for durability and performance, it ensures proper circulation and heat distribution. Some installations may require minor field modifications for a precise fit.

Key Features:

• 3-Speed Functionality – Adjustable airflow for optimal heat control
• Includes 9 1/4" Fan Blade – Provides high-efficiency air circulation
• Direct Replacement – Replaces OEM part #100102CF
• Aftermarket Magnum Part – Reliable, high-quality replacement at a better value
• Field Adjustable – Shaft collar and mounting screws may need trimming during installation

Specifications:

• Part Number: 100102CF
• Replaces: 7163-6257, 7163-6602
• Screw Mount Distance: 1 7/8"
• Motor Height (without screws): 2 ½"
• Motor Height (with screws): 3 ¼"
• Shaft Height: 7/8"
• Motor Diameter: 3 ¼"
• Shaft Diameter: 5/16"
• Fan Blade Diameter: 9 1/4"
• Installation Note: Shaft and mounting screws may require cutting for proper fit

Compatible Stove Models:

• Country Flame: BBF26, B26, E126, R
• Also fits various Magnum pellet stove models (check your owner’s manual for compatibility)

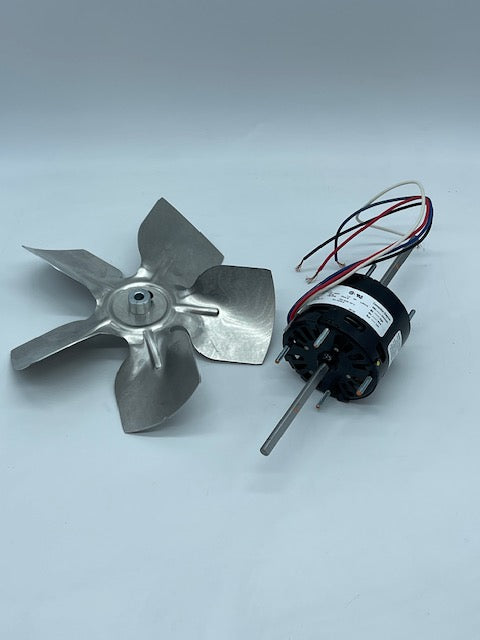

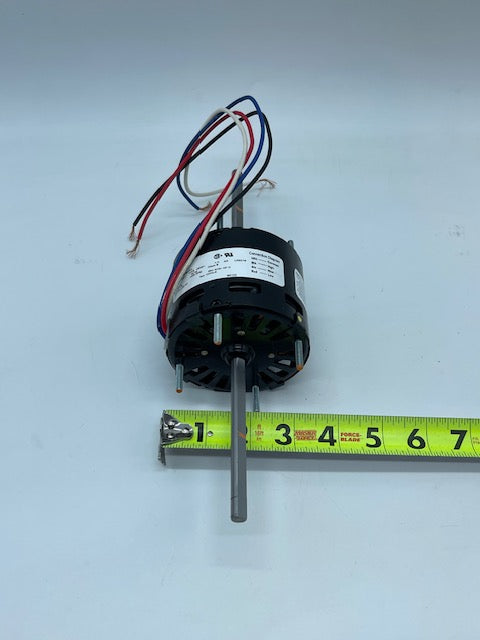

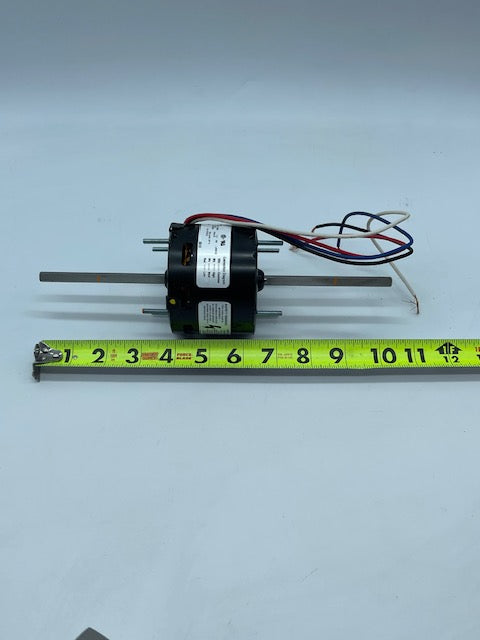

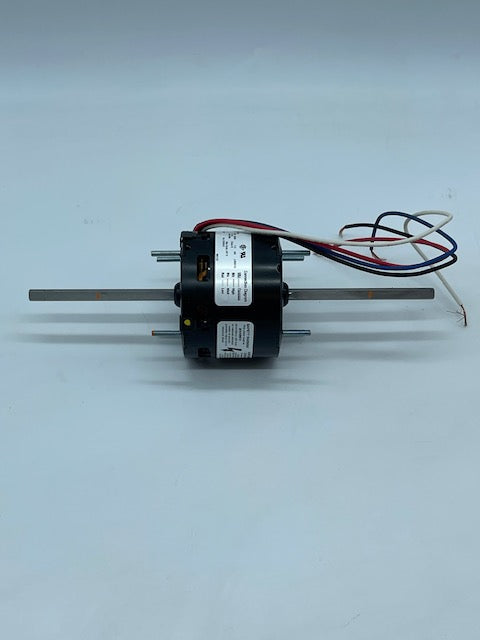

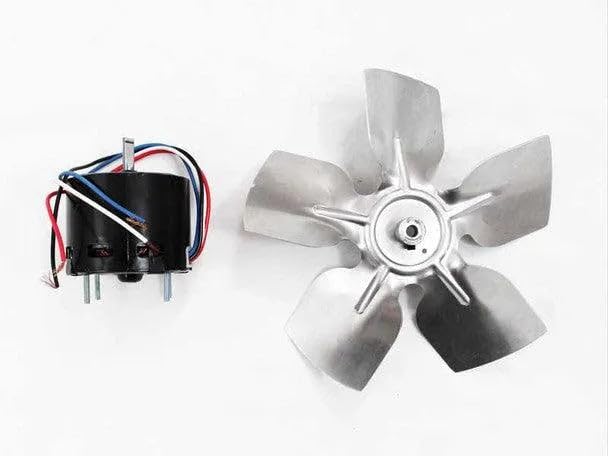

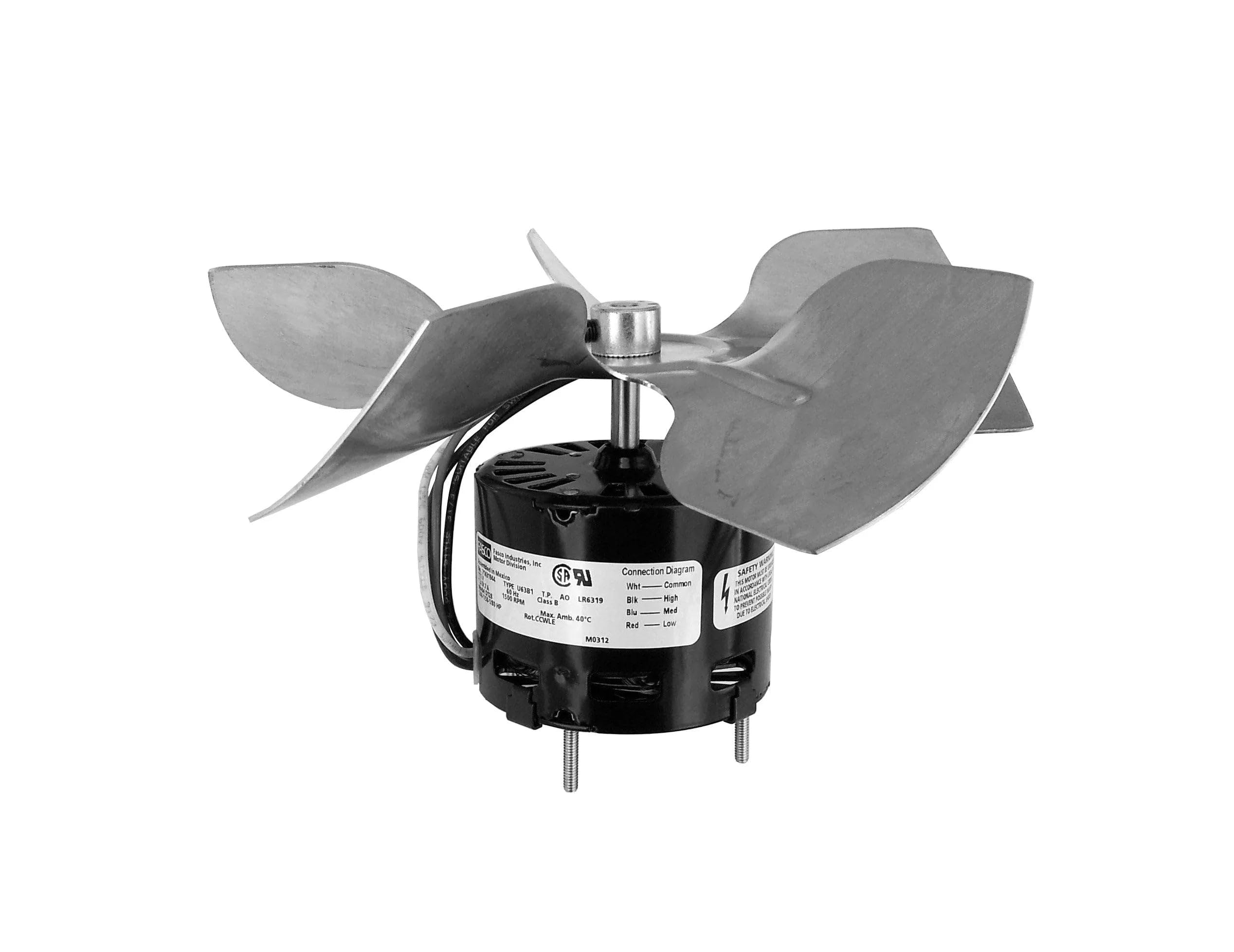

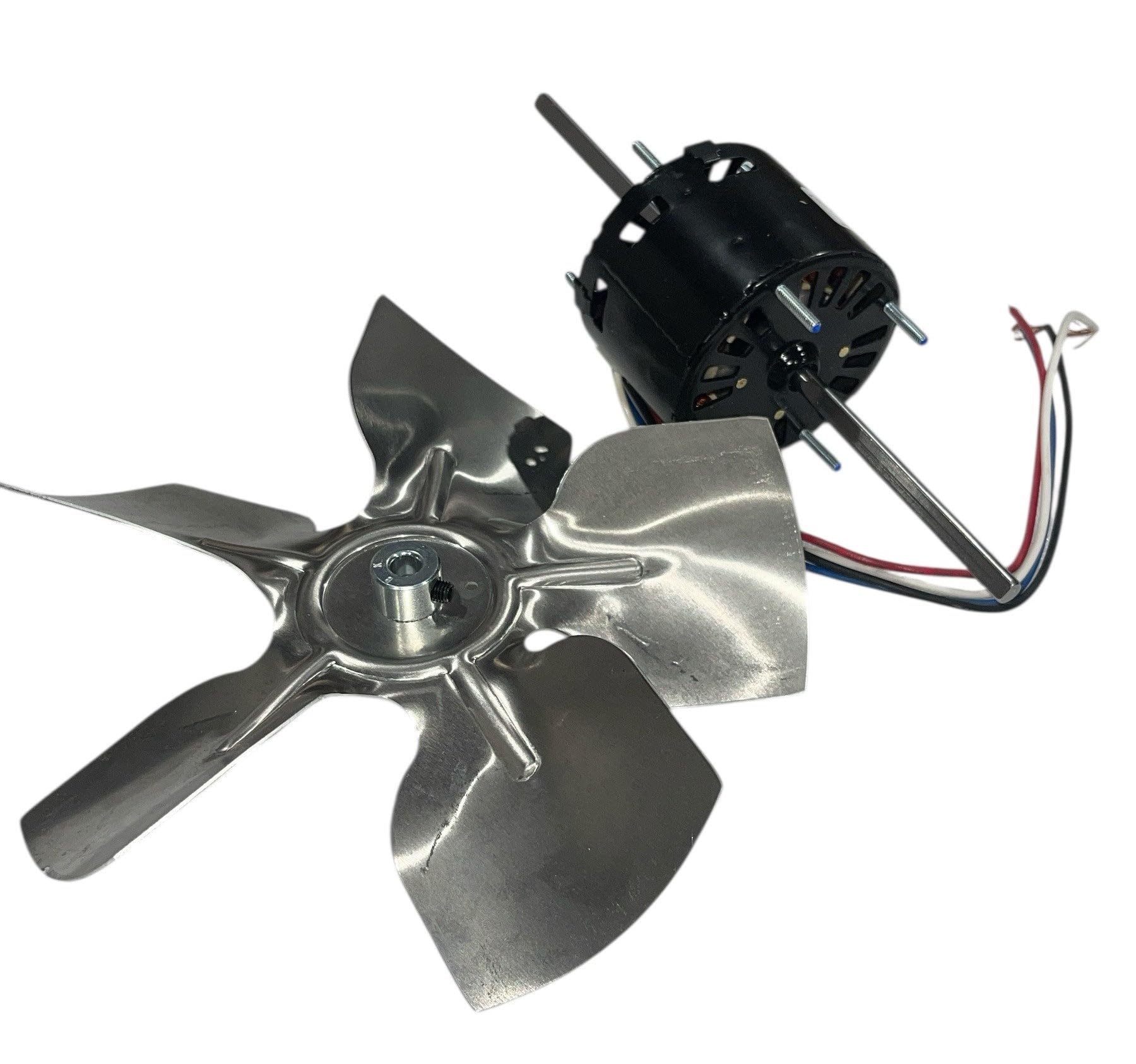

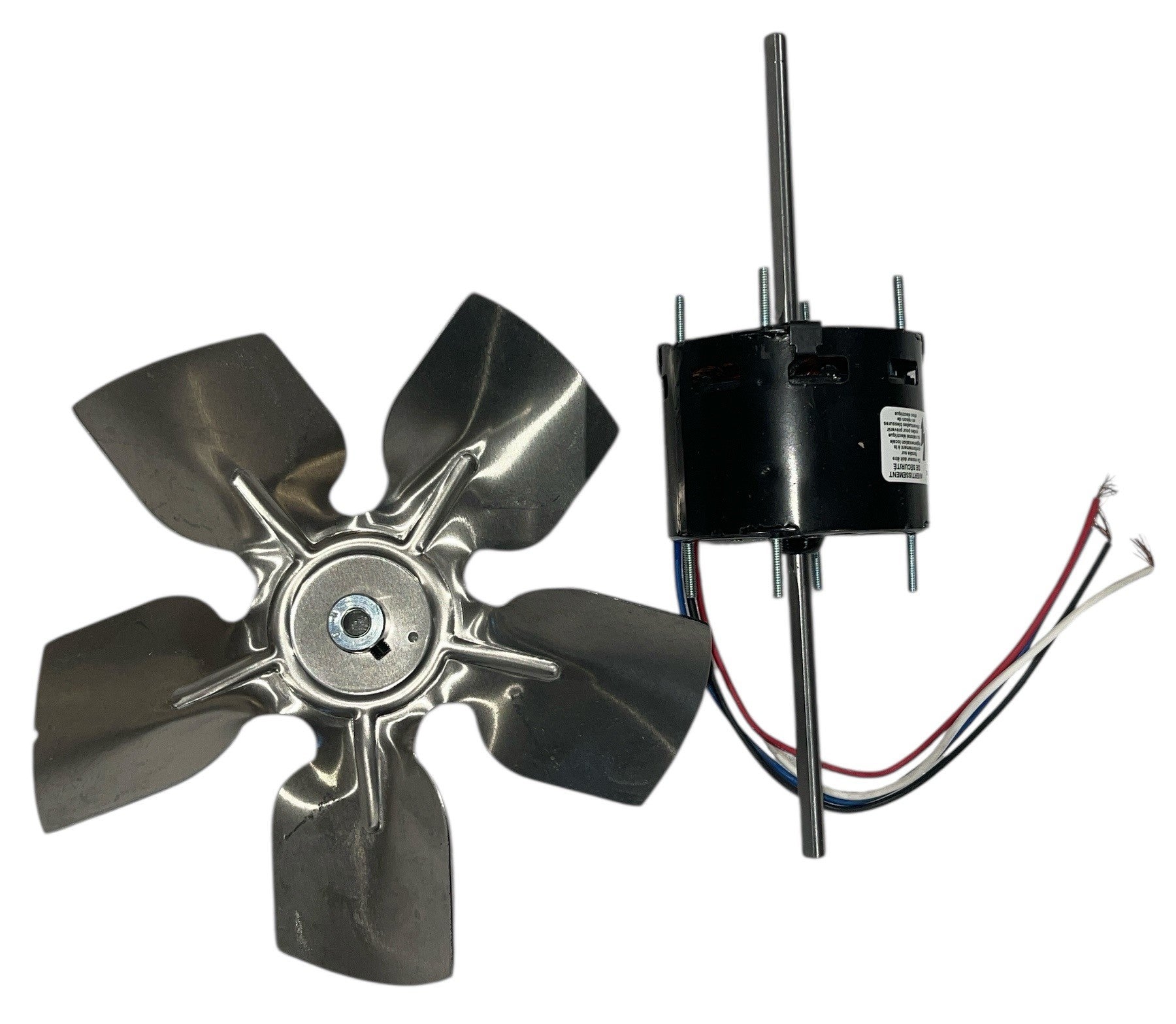

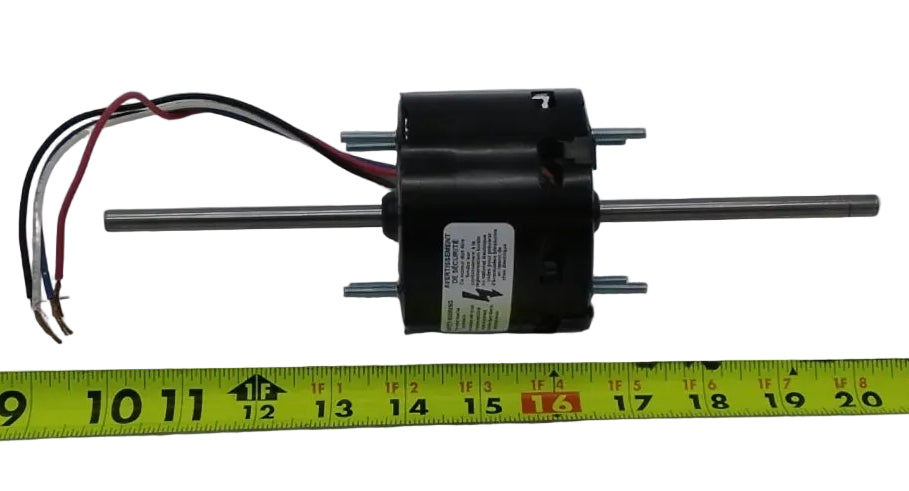

Important Note: The first five product images show the motor as shipped. The last two images demonstrate typical field modifications, such as trimming the shaft. Always verify measurements before ordering to ensure proper fitment.

Why Choose the Country Flame 100102CF Blower Motor?
A failing blower motor can cause poor heat circulation, excessive noise, and uneven room temperatures. The 100102CF blower motor with fan restores consistent airflow and reliable operation, helping your pellet stove run efficiently and quietly. Its 3-speed design allows you to fine-tune heat output while maintaining long-term durability.

Installation Instructions:
Disconnect power to the stove and allow all components to cool completely before servicing.
Remove the rear or side access panel to expose the blower motor assembly.
Disconnect the wiring from the existing motor, noting wire positions or taking a reference photo.
Remove mounting screws and carefully slide the old motor and fan assembly out of the stove.
Compare the new motor’s shaft length and mounting screws to the original. If necessary, trim the shaft or screws to match the required dimensions.
Position the new blower motor assembly into place, aligning mounting holes. Secure using the original or approved fasteners.
Reconnect wiring to the correct terminals.
Before reinstalling the access panel, restore power briefly and test the motor on all three speeds to confirm proper operation.
Turn power off, reinstall the access panel, restore power, and resume normal stove operation.

Installation Tip:
If vibration or noise occurs, verify that the fan blade is centered on the shaft and that all mounting screws are evenly tightened. Proper alignment is critical for quiet operation.

Upgrade your pellet stove’s airflow and heating performance with the Country Flame 100102CF Blower Motor with Fan—a reliable, adjustable, and cost-effective replacement built to keep your stove running efficiently all season long.
