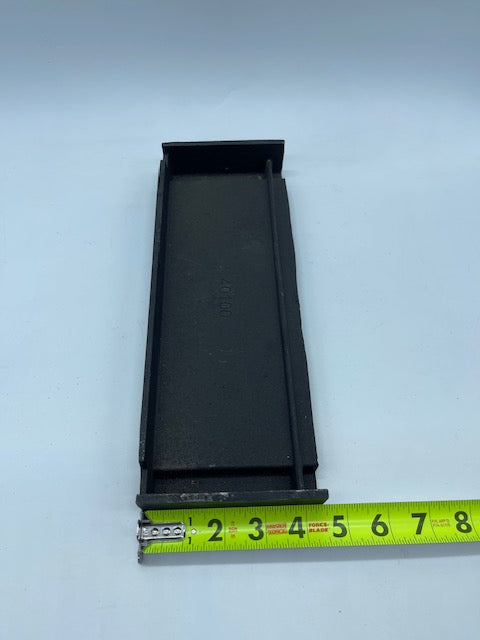

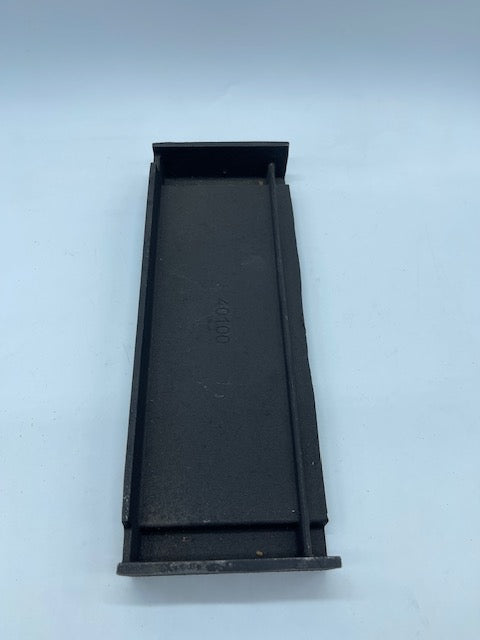

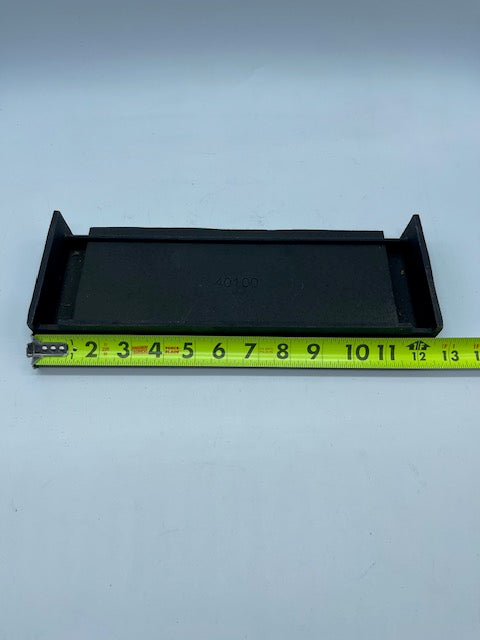

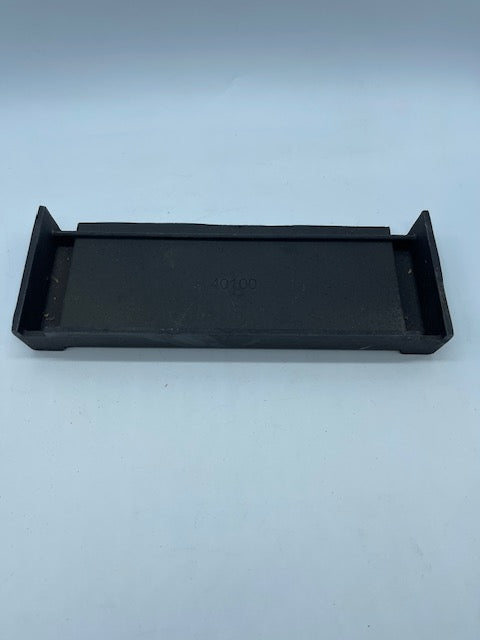

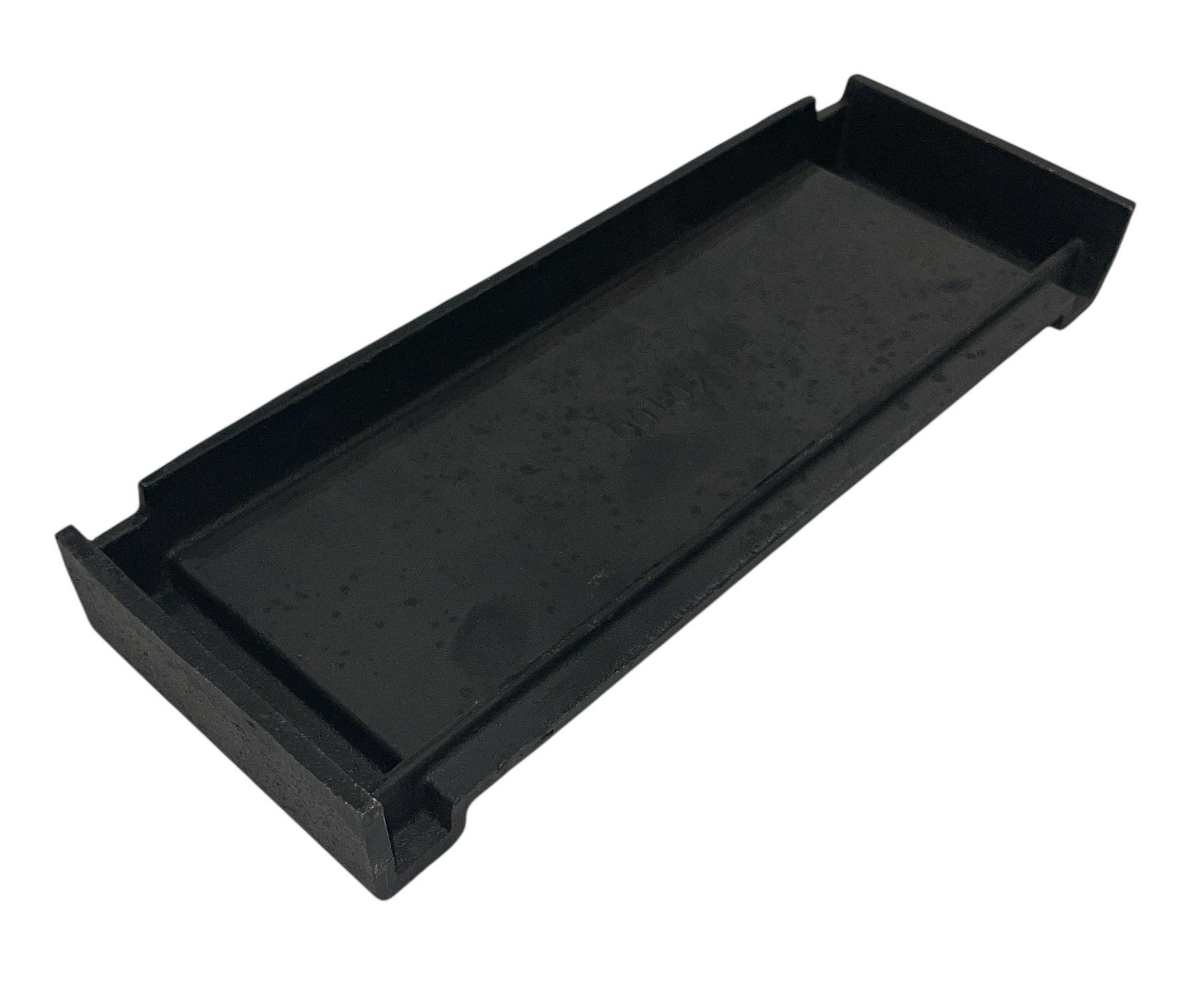

Wood Furnace Rear Liner (17130) Cast Iron Liner (40100) for US Stove & Vogelzang Circulators

Wood Furnace Rear Liner (17130) – Cast Iron Liner (40100) for US Stove & Vogelzang Circulators

Protect your stove’s firebox and prolong its lifespan with the Rear Liner Kit 17130. This for one heavy-duty cast iron liner (part #40100), designed as direct replacements for the front or rear trapezoidal liners in select US Stove and Vogelzang circulator models. These liners act as a heat barrier, shielding the internal firebox from damage caused by extreme temperatures during wood or coal combustion.

Key Features:

• High-Temperature Cast Iron – Built to endure high heat and resist warping and cracking
• Dual Purpose Design – Compatible for both front and rear liner installation
• OEM Replacement – Includes one 40100 liner, genuine US Stove parts for a precise fit
• Firebox Protection – Helps extend stove life by preventing structural wear and damage

Specifications:

• Part Numbers: 17130 (kit), 40100 (individual liner)
• Includes: 40100 Cast Iron Liner
• Material: Heavy-Duty Cast Iron
• Installation Position: Front or Rear
• OEM Status: Official US Stove replacement parts

Compatible Models:

US Stove Wood/Coal Circulators:
B2350 Wonderluxe
2827 Wondercoal
2941 Wonderwood (requires quantity of 3 liners for full replacement)

Vogelzang Circulator Units:
VG820E
VG900

Note: May fit additional models. Please consult your stove’s manual to confirm part compatibility.

Pairs well with:US Stove Company Parts and Vogelzang Parts

Why Choose the 17130 / 40100 Cast Iron Firebox Liner?

Worn, cracked, or missing firebox liners expose stove walls to direct flame and extreme heat, which can shorten stove life and reduce safety. Replacing damaged liners with this OEM cast iron liner restores proper heat shielding, helps maintain combustion efficiency, and protects the structural integrity of your circulator stove. Designed for durability and precision fit, it’s an essential maintenance component for long-term stove performance.

Installation Instructions:

Allow the stove to cool completely before servicing. Ensure all embers are extinguished and remove ash from the firebox.

Open the stove door and locate the existing front or rear liner panel. Remove any retaining bolts, clips, or brackets securing the liner in place.

Carefully lift or slide the old liner out of the firebox. Use caution, as cast iron liners are heavy.

Clean the firebox wall and mounting surfaces to remove ash, debris, and scale buildup. Inspect surrounding firebox components for cracks or excessive wear.

Position the new cast iron trapezoidal liner into the firebox, ensuring correct orientation for front or rear placement based on your stove model. The liner should sit flush against the firebox wall.

Secure the liner using the original hardware or approved replacements. Confirm the liner is firmly seated with no movement.

Repeat the process if additional liners are required. Once complete, resume normal stove operation.

Installation tip: Always replace liners showing signs of cracking, warping, or thinning. Operating a stove without proper liners can cause permanent firebox damage.

Helpful Installation Video:

Cast iron firebox liner removal and installation overview (applies to circulator-style stoves):
https://www.youtube.com/watch?v=SZ_bY_k7akk

This video demonstrates firebox access, liner removal, and panel reinstallation commonly used in US Stove and Vogelzang circulator stoves. While it may not reference the 40100 liner specifically, the installation process and liner positioning are the same.
