Warm Morning Square Grate (WM70130R) | Cast Iron Fire Grate for Model 701 Wood Stove | 9-3/4" x 9-3/4"

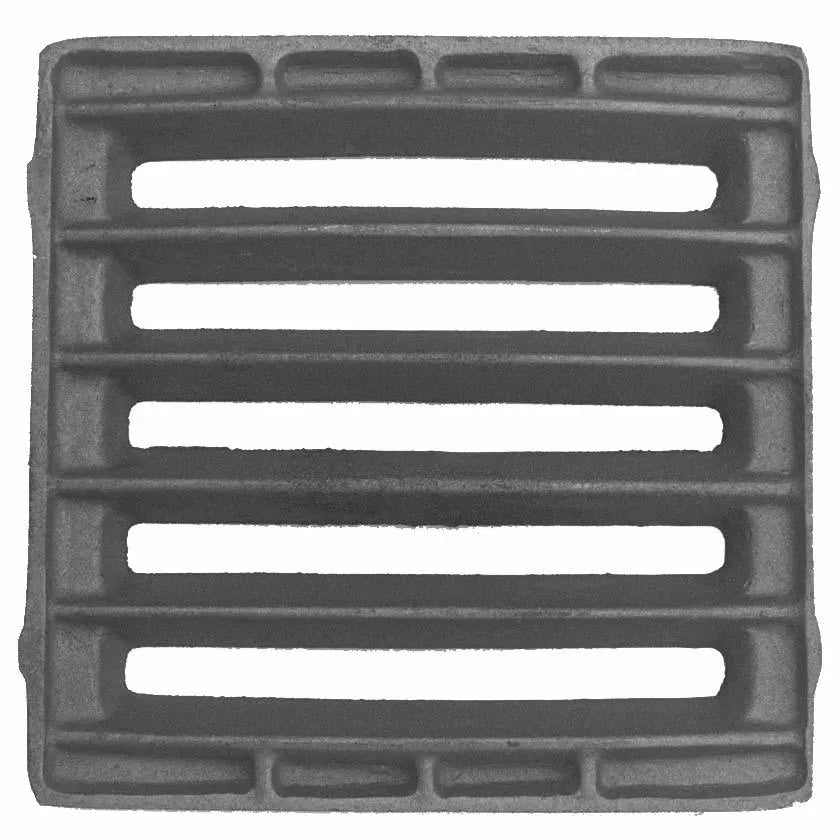

Warm Morning Square Grate (WM70130R) – Cast Iron Fire Grate for Model 701 Wood Stove (9-3/4" x 9-3/4")
Restore full functionality to your Warm Morning stove with the Square Grate (WM70130R) — a durable, aftermarket cast iron replacement designed for the Warm Morning 701 model. This heavy-duty grate supports the fire, improves airflow, and allows ash to fall through for easy cleanup. Three grates are required per stove; sold individually.

Key Features:

• Aftermarket Replacement – Built to match OEM specs for Warm Morning Model 701
• Solid Cast Iron Construction – Withstands high temperatures and daily use
• Optimized Airflow – Supports fuel and enables ash to fall for improved combustion
• Square Design – Ensures stability and a perfect fit in compatible stove models

Specifications:

• Part Number: WM70130R
• Dimensions: 9-3/4" L x 9-3/4" W
• Material: Cast iron
• Application: Fire grate for wood-burning stoves
• Quantity Required: 3 per stove (sold individually)
• Style: Square stove grate

Compatible Models:

• Warm Morning Model 701

Note: May also fit other stove models based on size and shape. Always confirm compatibility using your stove’s manual.

Pairs well with: Warm Morning Stove Parts

Why Choose the WM70130R Warm Morning Square Stove Grate?

Cracked or warped grates can restrict airflow, cause uneven burning, and reduce stove efficiency. Replacing worn components with the WM70130R cast iron fire grate restores proper combustion airflow, improves heat output, and helps protect the firebox. Installing a full set of three grates ensures balanced fuel support and consistent performance throughout the burn cycle.

Installation Instructions:

Allow the stove to cool completely before servicing. Make sure all embers are fully extinguished and remove excess ash from the firebox.

Open the stove door and remove any remaining fuel. Lift out the existing grates one at a time. If ash buildup is present, gently rock each grate to free it from the support ledges.

Clean the firebox floor and grate support rails to ensure the new grates seat properly. Inspect supports for damage or warping.

Install the new square cast iron grates into the firebox, positioning all three grates evenly so they sit flat and level together. Proper alignment is critical for airflow and fuel stability.

Once installed, confirm that the grates do not rock or bind. Reload fuel and resume normal stove operation.

Installation tip: Always replace grates as a complete set when possible. Mixing new and heavily worn grates can lead to uneven airflow and reduced performance.

Helpful Installation Videos:

Wood stove grate replacement example (US Stove style grate removal and install):
https://www.youtube.com/watch?v=VgqnKj-Onog

This video demonstrates a typical fire grate removal, positioning, and installation techniques. While it may not reference the Warm Morning 701 specifically, the process is the same for most square cast iron stove grate systems.

For safe, clean, and efficient stove operation, replace damaged or warped grates with this long-lasting cast iron solution. Order three WM70130R grates for a complete replacement in your Warm Morning 701 stove!
