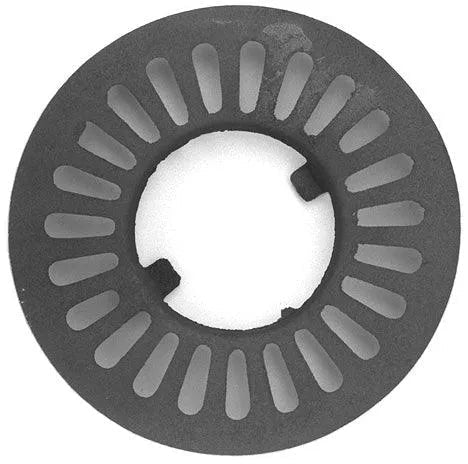

Warm Morning Round Grate (WM87R) | 12-1/2" Concave Cast Iron Dump Grate for Multiple Models

Warm Morning Round Grate (WM87R) – 12-1/2" Concave Cast Iron Dump Grate for Multiple Models

Restore proper airflow and burn efficiency in your Warm Morning stove with the Round Dump Grate (WM87R). This heavy-duty aftermarket replacement is concave-shaped and constructed from durable cast iron, designed to fit a variety of Warm Morning models. Ideal for supporting fuel and allowing ash to drop into the pan below.

Key Features:

• Aftermarket Replacement – Built to match OEM specifications for Warm Morning stoves
• Concave Design – Optimized shape for supporting fuel and encouraging even burning
• Durable Cast Iron – Long-lasting construction handles high heat and heavy use
• Ash Dump Compatible – Works with the WM88R grate slide (sold separately) for efficient ash removal

Specifications:

• Part Number: WM87R
• Dimensions: 12-1/2" L x 12-1/2" W x 1-3/4" H
• Material: Cast iron
• Application: Round dump grate
• Slide Compatibility: Designed for use with WM88R Grate Slide (sold separately)
• Sold: Individually

Compatible Models:

• Warm Morning 400
• Warm Morning 422
• Warm Morning 500
• Warm Morning 522
• Warm Morning 523
• Warm Morning 528
• Warm Morning 818

Note: May also fit other stoves and brands based on size and shape. Always verify fitment before ordering.

Pairs well with: Warm Morning Stove Parts

Why Choose the WM106XR / M106XR Round Dump Grate?

A damaged or worn fire grate can restrict airflow, cause uneven burning, and reduce stove efficiency. Replacing it with this 12-1/2 inch cast iron Warm Morning dump grate restores proper combustion, improves heat output, and makes ash removal easier. Built for long-term performance, this grate is an essential replacement part for keeping your Warm Morning stove operating safely and efficiently.

Installation Instructions:

Always allow the stove to cool completely before servicing. Ensure all embers are fully extinguished and remove any remaining ash from the firebox.

Open the stove door and remove any remaining fuel. Access the existing grate by opening the ash door or removing internal firebox components as required by your stove model.

If the stove uses a grate slide mechanism, disconnect the grate from the slide linkage. Carefully lift out the old dump grate. Inspect the firebox supports and clean away ash or debris before installing the new grate.

Position the new round dump grate into the firebox reminder ring or support ledge, ensuring it sits flat and centered. Reattach the grate slide linkage if applicable and confirm smooth rotation or rocking movement.

Before lighting the stove, operate the grate slide handle to verify proper movement and clearance. Once confirmed, reload fuel and resume normal operation.

Installation tip: Always confirm that the grate rotates or dumps freely without binding. For full operation, this grate must be paired with a compatible WM672R Grate Slide.

Helpful Installation Videos:

US Stove “VG900 Coal Grate (40101) Replacement Tutorial” (step-by-step grate replacement process):
https://www.youtube.com/watch?v=mD6U69ZnJ5k

US Stove “Shaker Frame and Grate (40256/40257)” (shows removal/install technique and hardware handling similar to many grate setups) :
https://www.youtube.com/watch?v=SZ_bY_k7akk

These videos demonstrate typical grate installation and operation. While they may not reference this exact Warm Morning part number, the installation process and grate function are similar across many cast iron wood and coal stoves.
