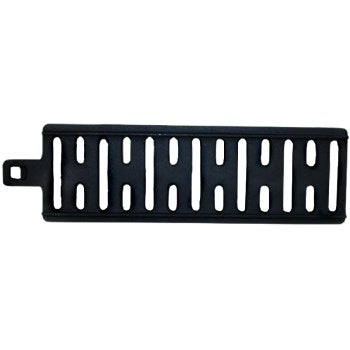

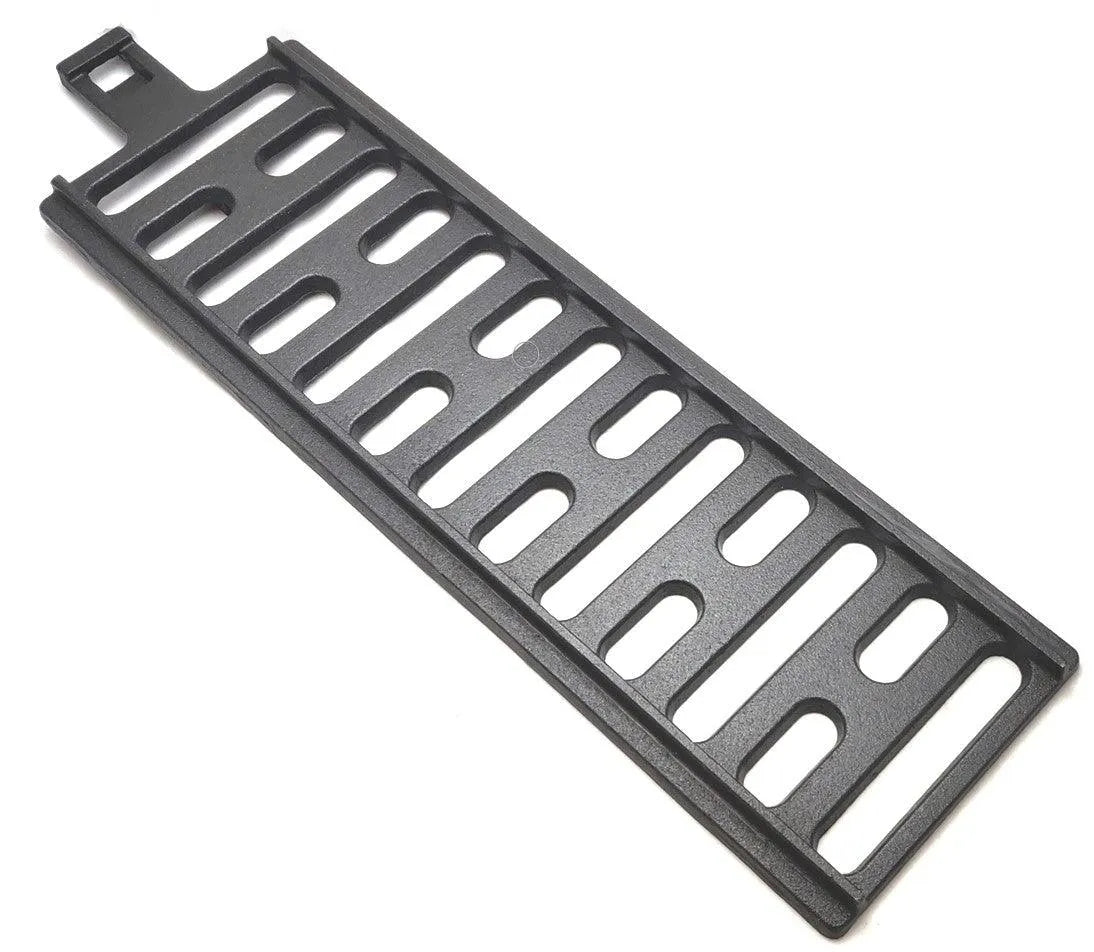

US Stove & Vogelzang Coal Grate | 23 3/4" x 6 5/8" Cast Iron Shaker Grate | OEM Part #40101 / 20287

US Stove & Vogelzang Coal Grate (40101 / 20287) – 23 3/4" x 6 5/8" Cast Iron Shaker Grate

Restore efficient airflow and ash management in your coal or wood stove with this durable cast iron replacement grate. Designed to fit a wide range of US Stove, Vogelzang, Ashley, and Sears Roebuck circulator models, this OEM-quality shaker grate ensures consistent performance and easy installation.

Key Features:
• Heavy-Duty Cast Iron – Built for long-lasting durability under high-heat conditions
• Optimizes Airflow & Ash Removal – Allows air to reach the fire and ash to drop into the pan
• OEM Replacement Part – Direct fit for US Stove #40101 / NBK #20287
• Do-It-Yourself Installation – Simple replacement for worn or broken grates

Specifications:
• Part Numbers: 40101, NBK 20287
• Dimensions: 23 3/4" (Length) x 6 5/8" (Width)
• Material: Solid cast iron
• Sold: Individually

• Fitment:
 • US Stove Wood/Coal Circulators: 2827, 2607, 2927, 2937, 2727, 2627, 2847, 4021 (Wonderwood), 4027, 3027, B2827, M2627, B2350 (Wonderluxe)
 • Vogelzang: VG900 Wonder Hearth Circulator
 • Ashley: Hearth Coal Circulators (various models)
 • Sears Roebuck: 143.84062

Pairs well with: US Stove Company Parts and Vogelzang Parts

Keep your stove operating at peak efficiency with the US Stove & Vogelzang Coal Grate (40101 / 20287). Engineered to handle high temperatures and daily use, this grate is a reliable solution for restoring airflow and combustion in your stove.

Why Choose the 40101 / 20287 Cast Iron Coal Grate?

A damaged shaker grate can restrict airflow, trap ash, and reduce stove efficiency. Replacing it with this OEM-style cast iron coal grate restores proper combustion airflow, improves ash management, and helps maintain safe, efficient stove operation. Built for durability and precision fit, this grate is a dependable solution for extending the life of your circulator stove.

Installation Instructions:

Allow the stove to cool completely before servicing. Ensure all embers are extinguished and remove ash from the ash pan.

Open the stove door and locate the existing shaker grate. Disconnect the shaker handle or linkage if required by your stove model.

Carefully slide or lift the old grate out of the firebox. If ash buildup is present, gently rock the grate to free it from the support rails.

Clean the grate supports and firebox floor to remove ash and debris. Inspect surrounding components for excessive wear or damage.

Position the new cast iron shaker grate into the firebox, ensuring proper alignment with the shaker mechanism.

Reconnect the shaker handle or linkage. Before lighting the stove, operate the shaker to confirm smooth movement and proper ash drop.

Reload fuel and resume normal stove operation.

Installation tip: Always confirm the grate moves freely through its full shaker range. Binding or resistance may indicate misalignment or worn supports.

Helpful Installation Videos:

US Stove coal grate replacement and shaker operation example:
https://www.youtube.com/watch?v=mD6U69ZnJ5k

Shaker grate system operation and ash management overview:
https://www.youtube.com/watch?v=SZ_bY_k7akk

These videos demonstrate shaker grate removal, installation, and operation commonly used in US Stove, Vogelzang, and similar wood or coal circulator stoves. While they may not reference the 40101 grate specifically, the installation process and shaker design are the same.
