US Stove Circuit Board | Replacement Digital Controller for 6300, 6500 & 8500 Pellet & Multi-Fuel Stoves | Part #80554

US Stove Circuit Board (80554) – Replacement Digital Controller for 6300, 6500 & 8500 Pellet & Multi-Fuel Stoves

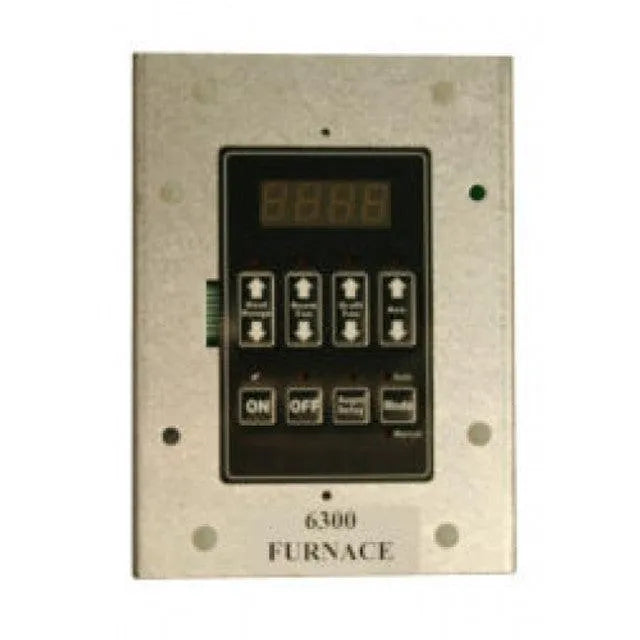

Upgrade and restore precise control to your pellet or multi-fuel stove with the US Stove Circuit Board 80554. This OEM replacement controller is designed for digital operation in select US Stove models, replacing older control panels with 3-button (A-B-C) interfaces. It offers improved programmability and dependable operation for core stove functions, including ignition, agitator, fan, and auger systems.

Key Features:

• OEM Digital Replacement – Replaces older A-B-C button control panels for better functionality
• Manages Multiple Systems – Controls ignition, auger, exhaust fan, room blower, and agitator
• Modern Upgrade – Replaces outdated analog dials (note: analog systems cannot be upgraded)
• Includes Fuse Assignments – Clear layout for all fuse placements and amperage ratings

Specifications:

• Part Number: 80554
• Function: Circuit Board / Controller Assembly
• Compatibility: For digital systems only (non-compatible with analog dial boards)
• OEM Status: Genuine US Stove Company part
• Sold: Individually

Fuse Assignments (Left to Right):

• Igniter – AGC 5 Amp (Fast Blow)
• Agitator – MDL 1 Amp (Slow Blow, Time Delay)
• Exhaust Fan – AGC 5 Amp (Fast Blow)
• Room Fan – AGC 5 Amp (Fast Blow)
• Auger – MDL 1 Amp (Slow Blow, Time Delay)
• Main Fuse (Bottom Right) – AGC 7.5 Amp (Fast Blow)

Compatible Models:

US Stove Pellet & Multi-Fuel Stoves:

• 6300
• 6500 American Harvest
• 8500 Multi-Fuel

Note: This board replaces older control panels with buttons labeled A-B-C. It is not compatible with older analog dial control systems.

Pairs well with: American Harvest Parts and US Stove Company Parts

Why Choose the US Stove 80554 Circuit Board?

A failing control board can cause startup problems, feeding issues, or complete stove shutdown. Replacing it with the OEM 80554 digital circuit board restores proper timing, accurate fuel delivery, and dependable system coordination. Built to factory specifications, this controller ensures safe operation and consistent performance in demanding pellet and multi-fuel heating environments.

Installation Instructions:

Disconnect power to the stove at the breaker before servicing. Allow the stove to cool completely.

Remove the control panel cover or rear access panel according to your stove model.

Carefully disconnect the wiring harnesses from the existing circuit board. Label connectors or take a photo before removal to ensure proper reconnection.

Remove the mounting screws securing the old circuit board and carefully lift it out.

Position the new 80554 circuit board into the control housing and secure it with the original mounting hardware.

Reconnect all wiring harnesses firmly, ensuring each connector is fully seated and matches its original position.

Verify that all fuses are installed correctly and match the specified amperage and type.

Restore power to the stove. Power on the unit and confirm normal startup, ignition, auger operation, and fan control.

Reinstall all access panels and resume normal stove operation.

Installation tip: If the stove fails to operate after installation, immediately disconnect power and recheck wiring connections and fuse placement before further operation.
