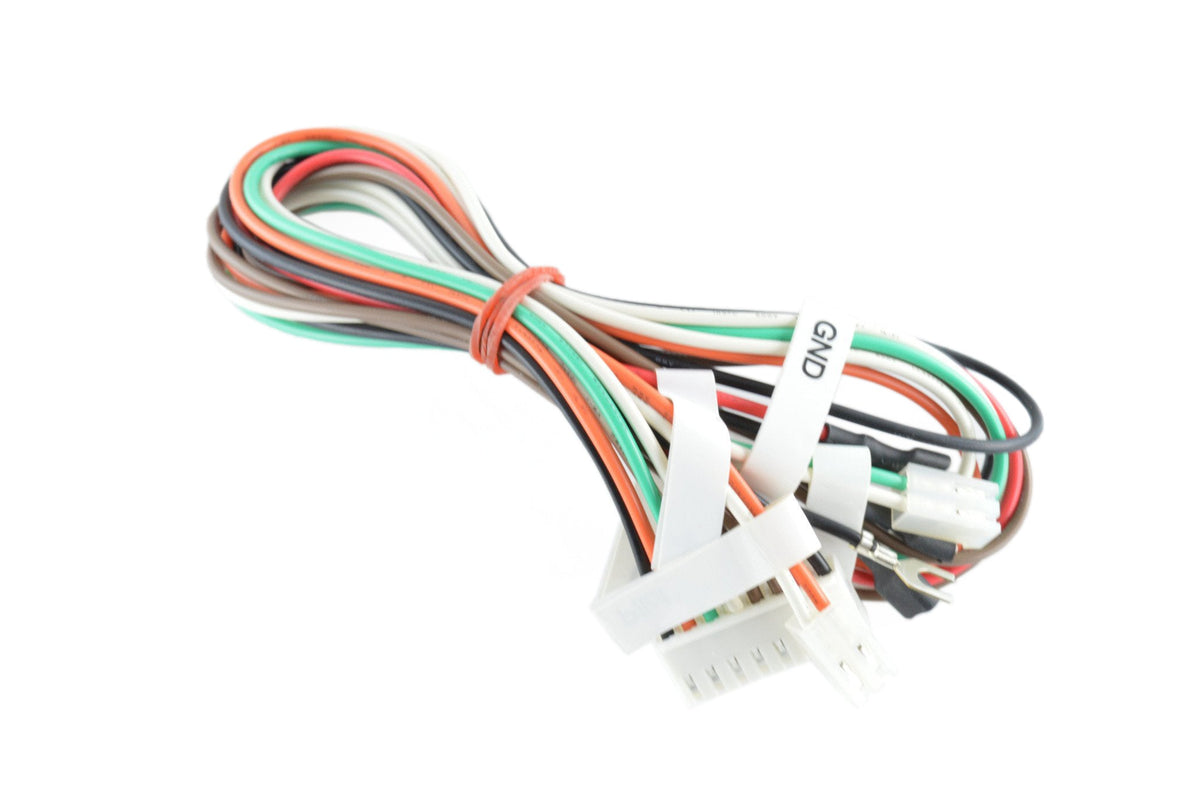

American Flame AF-40008PIN12WH2 Wiring Harness - product view 1

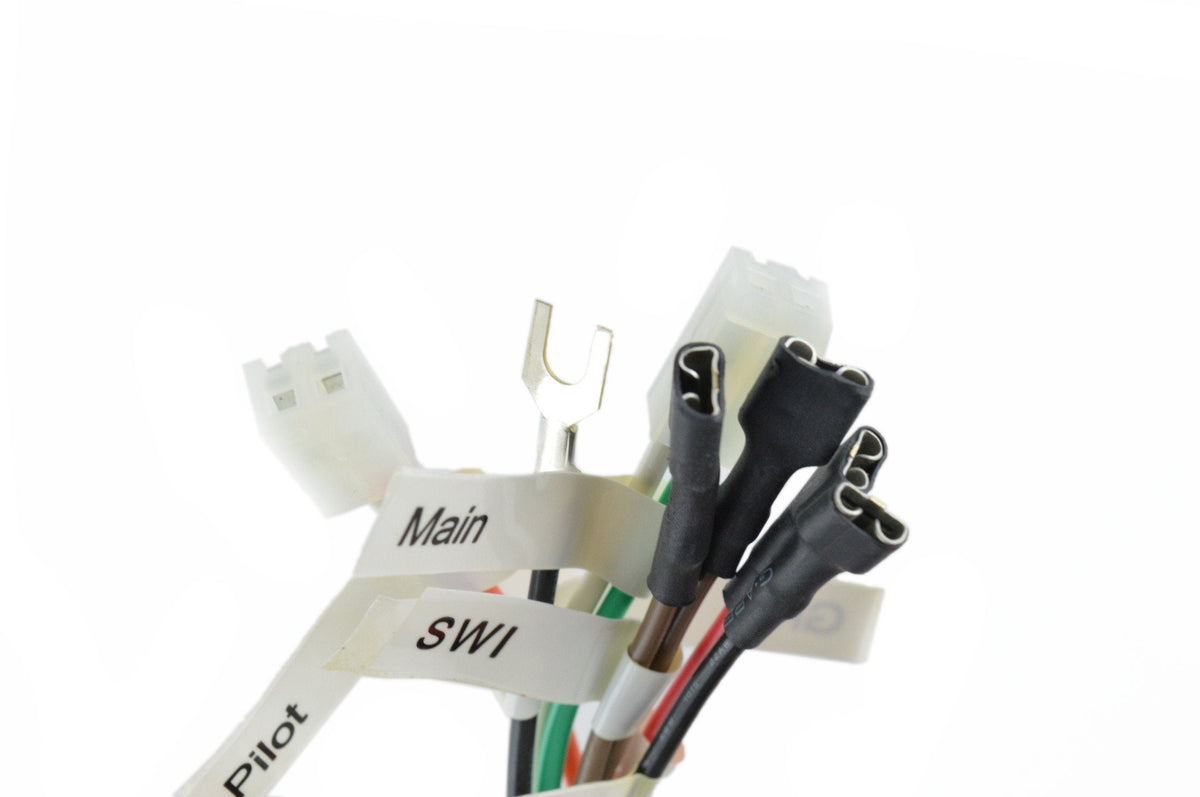

American Flame AF-40008PIN12WH2 Wiring Harness - product view 2

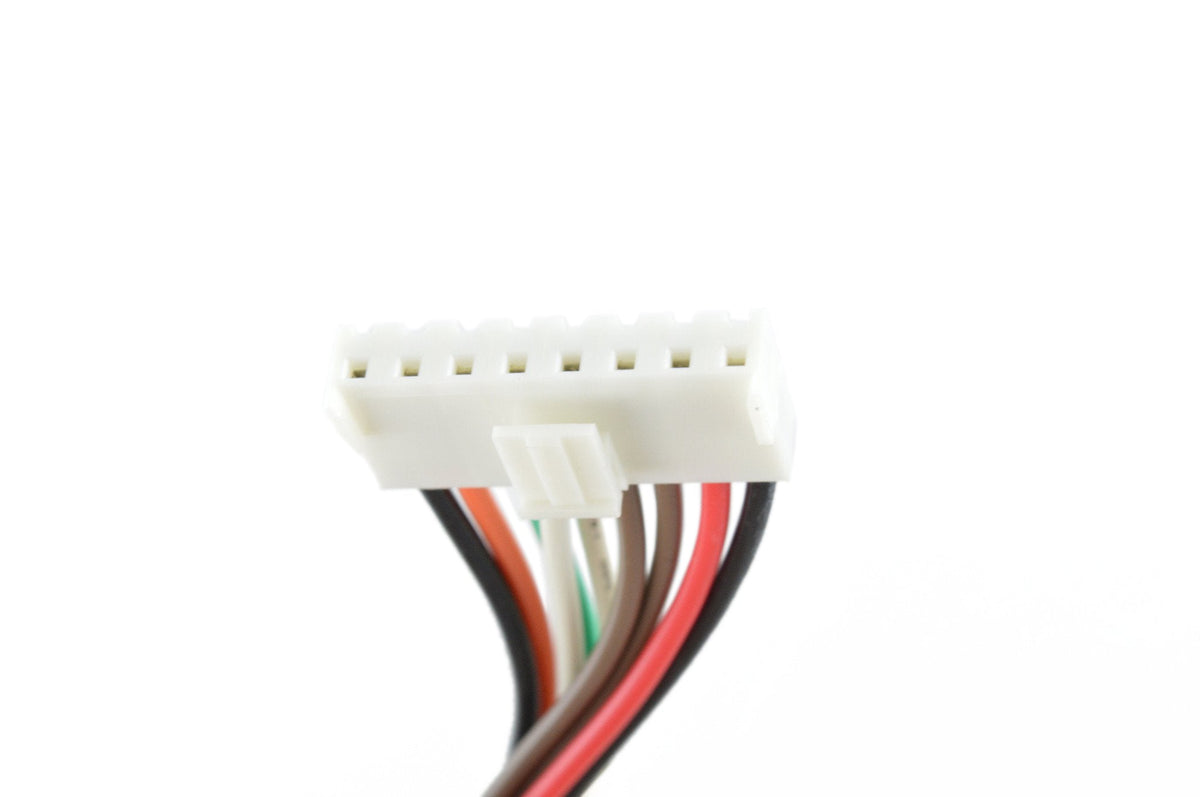

American Flame AF-40008PIN12WH2 Wiring Harness - product view 3
American Flame AF-40008PIN12WH2 Wiring Harness - product view 1
American Flame AF-40008PIN12WH2 Wiring Harness - product view 2
American Flame AF-40008PIN12WH2 Wiring Harness - product view 3
Wiring Harness

American Flame AF-40008PIN12WH2 Wiring Harness

In stock
SKU: SO-FP1116
(0)
$18.88
Before You Order
Special Order Notice
This item is a Special Order product and requires additional processing before shipment. Please allow an additional 2–3 business days for order processing before shipping.
Pricing Notice
This product is priced at our lowest available rate and does not qualify for discount codes or promotional offers.
Questions before ordering? Call (877) 223-6999 — we’ll verify it with you.
SSL Secure Checkout

Need Assistance...

Email 217-223-0999

American Flame AF-40008PIN12WH2 Wiring Harness

Replace the wiring harness in a compatible American Flame electronic ignition system with this AF-40008PIN12WH2 harness. Match the connectors and original part reference to the appliance parts diagram before installation.

Features & Benefits

  • Replacement harness for compatible American Flame electronic ignition systems.
  • AF-40008PIN12WH2 part identification helps distinguish the correct harness.
  • Cross-referenced to Empire R10812 for specified American Flame control configurations.
  • Harness-only replacement lets you retain other serviceable ignition components.
  • Check connector layout and appliance revision before ordering.

Specifications

  • Component: electronic ignition wiring harness
  • Primary part number: AF-40008PIN12WH2
  • Manufacturer catalog description: 12-inch wiring harness
  • Package: one harness

Compatibility

Match the original part number, connector configuration and appliance parts diagram before ordering. A brand name alone does not establish compatibility.

Cross Reference

  • American Flame / Skytech and Savannah: AF-40008PIN12WH2 / AF40008PIN12WH2
  • American Hearth, Empire and White Mountain Hearth: R10812
  • Astria, FMI / Desa, IHP, Ironstrike and Superior: J6201
  • Montigo: RGC3018

Fireplace Models

  • White Mountain Hearth / Empire: OP36FP72M(N,P)-2 and OP42FP72M(N,P)-2, American Flame electronic ignition versions requiring R10812.
  • White Mountain Hearth / Empire: OLP36FP72S(N,P)-3 and OLP42FP72S(N,P)-3, where the parts diagram specifies R10812.

What's in the Box

One American Flame wiring harness. Control module, valve and battery holder are not included.

Important Note

Not a universal fireplace harness. The similarly named OP36FP32 and OP42FP32 millivolt versions do not establish fit. Control module, valve and battery holder are not included. Disconnect power and follow the appliance service instructions; use a qualified technician where required.

Why Choose This Replacement?

Choose a part-number-matched harness instead of adapting a universal cable to an incompatible ignition system.
