18-Inch PSE Pilot Tubing, Silver/Brass Nuts, 250-02766 / W010-0586

18-Inch PSE Pilot Tubing, Silver/Brass Nuts, 250-02766 / W010-0586

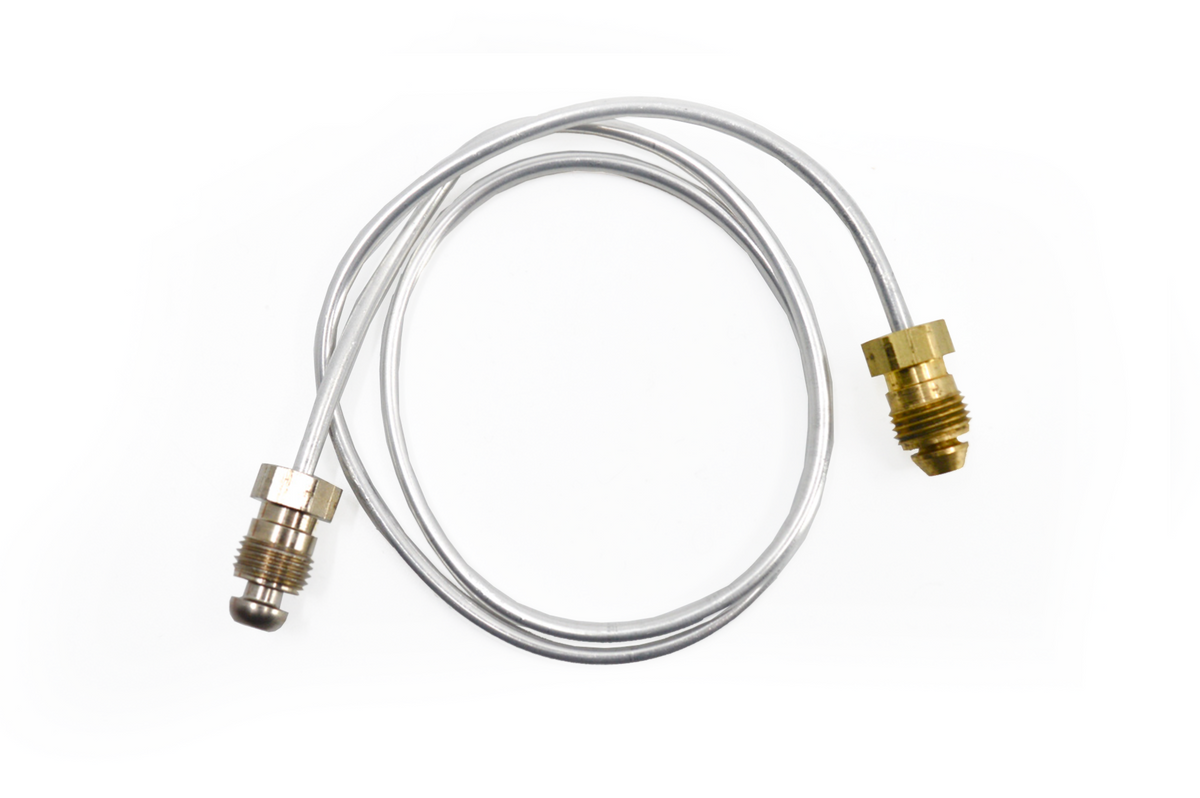

An 18-inch tube for matching PSE top-convertible pilot installations. The silver nut connects at the pilot and the brass nut at the gas control. This version is not for SIT pilot assemblies.

Key Features

• 18-inch pilot tube

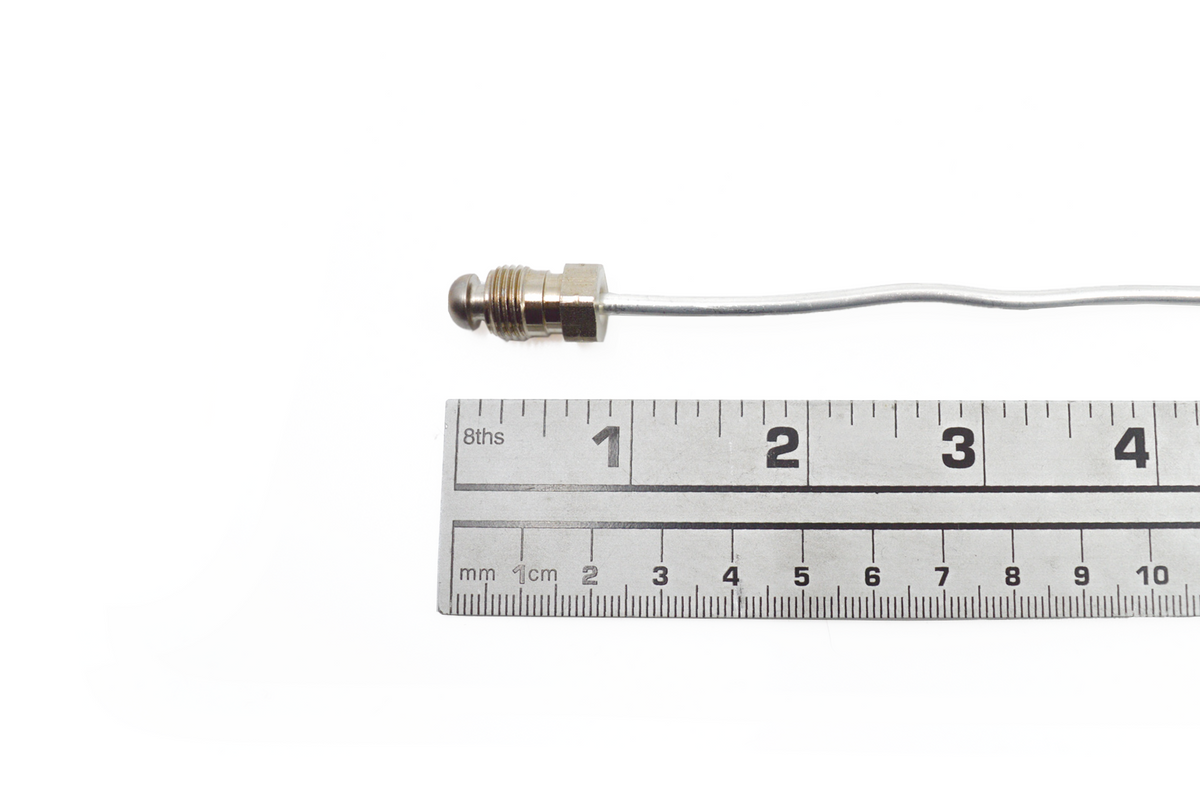

• Silver nut for the pilot connection
• Brass nut for the gas-control connection
• For matching PSE top-convertible pilot assemblies
• References 250-02766 / W010-0586; not for SIT pilots

Specifications

Part reference: 250-02766 / W010-0586. Sold individually.

Cross Reference

• Avalon (Travis Industries): 250-02766
• Continental: W010-0586
• Fireplace Xtrordinair (Travis Industries): 250-02766
• Lopi (Travis Industries): 250-02766
• Napoleon: W010-0586
• Travis Industries (Avalon - Fireplace Xtrordinair - Lopi): 250-02766

Fireplace Models

Model references below are a starting point for identifying the original component, not a guarantee for every version. Confirm the exact part number, connections and appliance revision before ordering.

Continental

• CDVS280-1NSB

Napoleon

• GDS28N, GS28N, GDS28P, GS28P Haliburton™ Direct Vent Gas Stove

Travis Industries (Avalon - Fireplace Xtrordinair - Lopi)

• 564 Diamond-Fyre GSR2 Deluxe Fireplace (Avalon) 2013 - 2014 / SN 3409-023428 - 3409-025119
• 564 Diamond-Fyre GSR2 Scr Deluxe Fireplace (Avalon) 2014 - 2015 / SN 3409-026315 - 3409-026415
• 564 HO GSR2 Gas Fireplace (Avalon) 2012 - 2014 - SN 3415-001799 - 3415-005268
• 564 HO GSR2 Scr Gas Fireplace (Avalon) 2014 - 2017 / SN 3415-005269 - 3415-009369
• 564 SS GS2 Gas Fireplace, Seattle (Avalon) 2012 - 2014 / SN 3409-019316 - 3409-025019
• 564 SS GS2 Scr Gas Fireplace (Avalon) 2014 - 2017 / SN 3409-025320 - 3409-038278
• 564 SS GSR2 Deluxe Gas Fireplace (Avalon) 2013 - 2014 / SN 3409-021560 - 3409-024968
• 564 SS GSR2 Scr Deluxe Gas Fireplace (Avalon) 2014 - 2017 / SN 3409-025420 - 3409-038903
• 616 DF GSR2 (Avalon) 2013 - 2017 / SN 3416-002052 - 3416-009655
• 616 GSR2 Insert (Avalon) 2012 - 2017 / SN 3416-000964 - 3416-010355
• 864 HO NB GSR2 Fireplace (Avalon) 2013 - 2014 / SN 3407-007839 - 3407-009640
• 864 HO NB GSR2 Scr Fireplace (Avalon) 2014 - 2015 / SN 3407-009641 - 3407-010240
• 864 ST GS2 Fireplace (Avalon) 2013 - 2014 / SN 3410-002514 - 3410-003509
• 864 ST GS2 Scr Fireplace (Avalon) 2014 - 2017 / SN 3410-003510 - 1000000
• 864 TRV GS2 Fireplace (Avalon) 2012 - 2014 / SN: 3412-010139 - 3412-015086
• 864 TRV GS2 Scr Fireplace (Avalon) 2014 - 2017 / SN: 3412-015212 - 3412-027610
• 864 TRV GSR2 Deluxe Fireplace (Avalon) 2013 - 2014 / SN: 3412-011823 - 3412-014936
• 864 TRV GSR2 Scr Deluxe Fireplace (Avalon) 2014 - 2017 / SN: 3412-015277 - 3412-028301
• Cypress Stove GS2 2013 - 2014 / SN: 3308-001250 - 3308-001678
• Cypress Stove GS2 Scr 2014 - 2017 / SN: 3308-001679 - 1000000
• DVL GSR2 NB Insert (Avalon) 2012 - 2017 / SN: 3403-606750 - 3403-627789
• DVS GSR2 NB Insert (Avalon) 2012 - 2017 / SN: 3401-146823 - 3401-159240
• Eden Gas Stove GS2 2012 - 2014 / SN: 3307-001569 - 3307-001877
• Radiant Large Gas Insert 2015-2017 / SN: 3310-000000 - 3310-002426
• Radiant Small Gas Insert 2015 - 2017 / SN: 3309-000000 - 3309-001293
• Tree of Life GS2 2012 - 2015 / SN: 3306-010699 - 3306-012284
• Tree of Life GS2 Scr 2014 - 2017 / SN: 3306-012285 - 3306-013439
• 21 TRV GSR2 Fireplace (FPX) 2013 - 2014 / SN: 3408-004214 - 3408-005599
• 31 DVI GSB2 (FPX) 2012 - 2018 / SN: 3413-003901 - 3413-008183
• 33 DVI GSB2 (FPX) 2012 - 2019 / SN: 3414-003482 - 1000000
• 564 Diamond-Fyre GS2 (FPX) 2013 - 2013 / SN: 3409-019706 - 3409-022956
• 564 Diamond-Fyre GSR2 Deluxe Fireplace (FPX) - 2014 - 2014 / SN: 3409-023428 - 3409-025119
• 564 Diamond-Fyre GSR2 Scr Deluxe Fireplace (FPX) - 2014 - 2014 / SN: 3409-026315 - 3409-026415
• 564 HO GSR2 Gas Fireplace (FPX) 2012 - 2014 / SN: 3415-001799 - 3415-005268
• 564 SS GS2 Gas Fireplace (FPX) 2012 - 2014 / SN: 3409-019316 - 3409-025019
• 564 SS GS2 Scr Gas Fireplace (FPX) 2014 - 2019 / SN: 3409-025320 - 3409-038278
• 564 SS GSR2 Deluxe Gas Fireplace (FPX) 2013 - 2014 / SN: 3409-021560 - 3409-024968
• 564 SS GSR2 Scr Deluxe Gas Fireplace (FPX) 2014 - 2019 / SN: 3409-025420 - 3409-038903
• 616 DF GSR2 Insert (FPX) 2013 - 2017 / SN: 3416-002052 - 3416-009655
• 616 GSR2 Insert (FPX) 2012 - 2019 / SN: 3416-000964 - 3416-012655
• 864 HO NB GSR2 Fireplace (FPX) 2012 - 2014 / SN: 3407-007839 - 3407-009640
• 864 HO NB GSR2 Scr Fireplace (FPX) - 2014 - 2015 / SN: 3407-009641 - 3407-010240
• 864 ST GS2 Fireplace (FPX) 2012 - 2014 / SN: 3410-002514 - 3410-003509
• 864 TRV Deluxe Fireplace GSR2 (FPX) 2013 - 2014 / SN: 3412-011823 - 3412-014936
• 864 TRV Fireplace GS2 (FPX) 2012 - 2013 / SN: 3412-010139 - 3412-011594
• 864 TRV GS2 Scr Fireplace (FPX) 2014 - 2017 / SN: 3412-015212 - 3412-029392
• 864 TRV GSR2 Scr Deluxe Fireplace (FPX) 2014 - 2018 / SN: 3412-015277 - 3412-030819
• DVL GSR2 NB Insert (FPX) 2012 - Current / SN: 3403-606750 - 1000000
• DVS GSR2 NB Insert (FPX) 2012 - Current / SN: 3401-146823 - 1000000
• 564 HO GSR2 Scr Gas Fireplace (FPX) 2014 - Current / SN: 3415-005269 - Current
• 864 ST GS2 Scr Fireplace (FPX) 2014 - Current / SN: 3410-003510 - Current
• 21 TRV GSR2 Fireplace (Lopi) 2013 - 2014 / SN: 3408-004214 - 3408-005599
• 31 DVI GSB2 (Lopi) 2012 - 2018 / SN: 3413-003901 - 3413-008183
• 33 DVI GSB2 (Lopi) 2012 - 2019 / SN: 3414-003482 - 1000000
• 564 Diamond-Fyre GS2 (Lopi) 2013 - 2013 / SN: 3409-019706 - 3409-022956
• 564 Diamond-Fyre GSR2 Deluxe Fireplace (Lopi) - 2014 to 2015 / SN: 3409-023428 - 3409-025119
• 564 Diamond-Fyre GSR2 Scr Deluxe Fireplace (Lopi) 2014 - 2014 / SN: 3409-026315 - 3409-026415
• 564 HO GSR2 (Aust)
• 564 HO GSR2 Scr Gas Fireplace (Lopi) 2014 - 2017 / SN: 3415-005269 - 3415-009369
• 564 SS GS2 Fireplace (Lopi) 2012 - 2014 / SN: 3409-019316 - 3409-025019
• 564 SS GS2 Scr Fireplace (Lopi) 2014 - 2017 / SN: 3409-025320 - 3409-038278
• 564 SS GSR2 Deluxe Gas Fireplace, Bostonian (Lopi) 2013 - 2014 / SN: 3409-021560 - 3409-024968
• 564 SS GSR2 Scr Deluxe Gas Fireplace (Lopi) 2014 - Current / SN: 3409-025415 - 3409-038903
• 616 DF GSR2 Insert (Lopi) 2013 - 2017 / SN: 3416-002052 - 3416-009655
• 616 GSR2 Insert (Lopi) 2012 - 2019 / SN: 3416-000964 - 3416-012655
• 864 HO NB GSR2 Fireplace (Lopi) 2012 - 2014 / SN: 3407-007839 - 3407-009640
• 864 HO NB GSR2 Scr Fireplace (Lopi) 2014 - 2015 / SN: 3407-009641 - 3407-010240
• 864 ST GS2 Fireplace (Lopi) 2012 - 2014 / SN: 3410-002514 - 3410-003509
• 864 ST GS2 Scr Fireplace (Lopi) 2014 - 2017 / SN: 3410-003510 - 1000000
• 864 TRV GS2 Fireplace (Lopi) 2012 - 2014 / SN: 3412-010139 - 3412-015086
• 864 TRV GS2 Scr Fireplace (Lopi) 2014 - 2017 / SN: 3412-015212 - 3412-027610
• 864 TRV GSR2 Deluxe Fireplace, Hearthview (Lopi) 2013 - 2014 / SN: 3412-011823 - 3412-014936
• 864 TRV GSR2 Scr Deluxe Fireplace (Lopi) 2014 - 2017 / SN: 3412-015277 - 3412-028301
• Berkshire GS2 2013 - 2014 / SN: 3101-883978 - 3101-885581
• Berkshire GS2 Scr 2014 - 2016 / SN: 3101-885442 - 3101-888294
• Berkshire GSR2 Deluxe Stove 2016 - 2017 / SN: 3101-887540 - 3101-888809
• DVL GSR2 NB Insert (Lopi) 2012 - Current / SN: 3403-606750 - 1000000
• DVS GSR2 NB Insert (Lopi) 2012 - Current / SN: 3401-146823 - 1000000
• Greenfield GS2 2013 - 2014 / SN: 3108-001983 - 3108-003517
• Greenfield GS2 Scr 2014 - 2016 / SN: 3108-003518 - 3108-005281
• Northfield GS2 Scr 2014 - 2015 / SN: 3107-005068 - 3107-006432
• Northfield Gas Stove GS2 2012 - 2014 / SN: 3107-003627 - 3107-005217
• Greenfield GSR2 Deluxe Stove 2016 - Current / SN: 3108-005282 - Current
• Northfield GSR2 Deluxe Stove 2016 - Current / SN: 3107-006705 - Current
• 21 TRV GSR2 Fireplace (Avalon) 2013 - 2014 / SN 3408-004214 - 3408-005599
• 31 DVI GSB2 (Avalon) 2012 - 2017 / SN 3413-003901 - 3413-008183
• 33 DVI GSB2 (Avalon) 2013 - 2017 / SN 3414-003482 - 3414-006180
• 564 Diamond-Fyre GS2 (Avalon) 2013 - 2013 / SN 3409-019706 - 3409-022956

Product Description

One 18-inch pilot tube with silver pilot-end nut and brass gas-control-end nut. Pilot assembly and valve are not included.

Important Note

Confirm availability and lead time before ordering. Gas components must be selected and installed by a qualified technician following the appliance instructions and applicable codes. Verify connections, suitability and leak-free operation before use.
