Hearth & Home 2166-304 Control Wiring Harness

Hearth & Home 2166-304 Control Wiring Harness

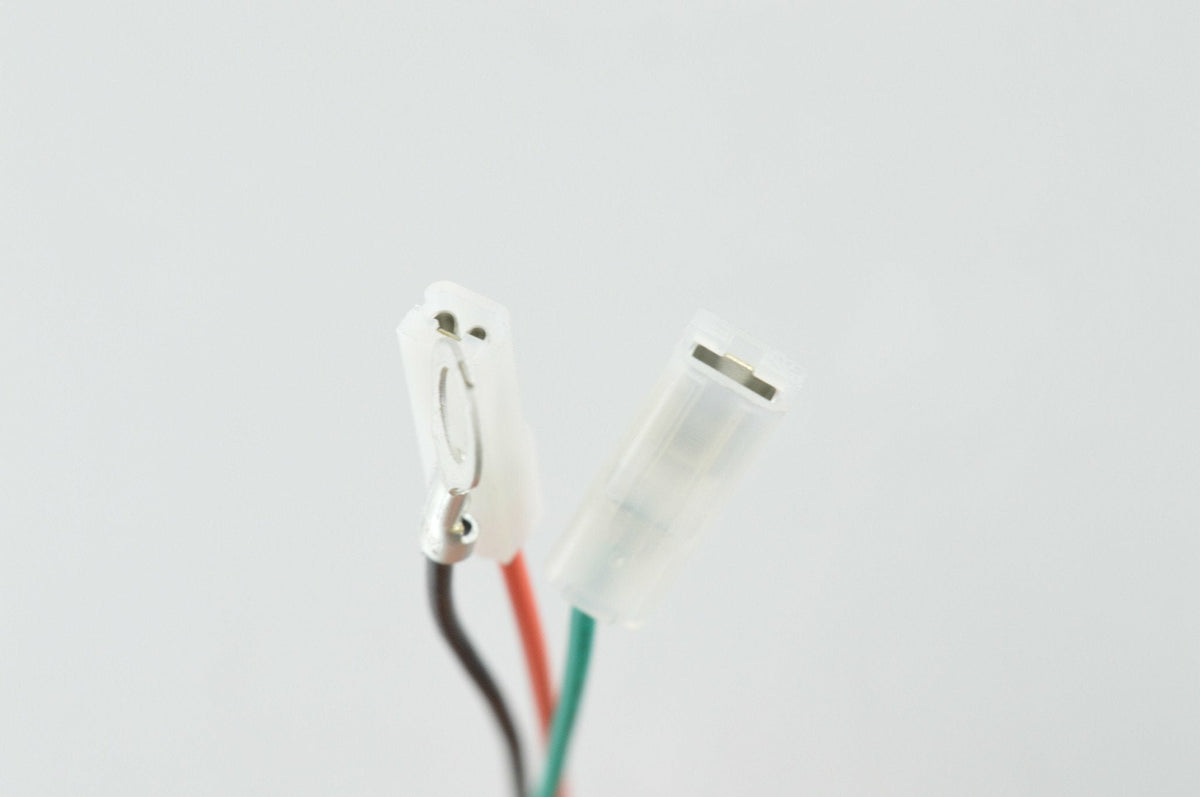

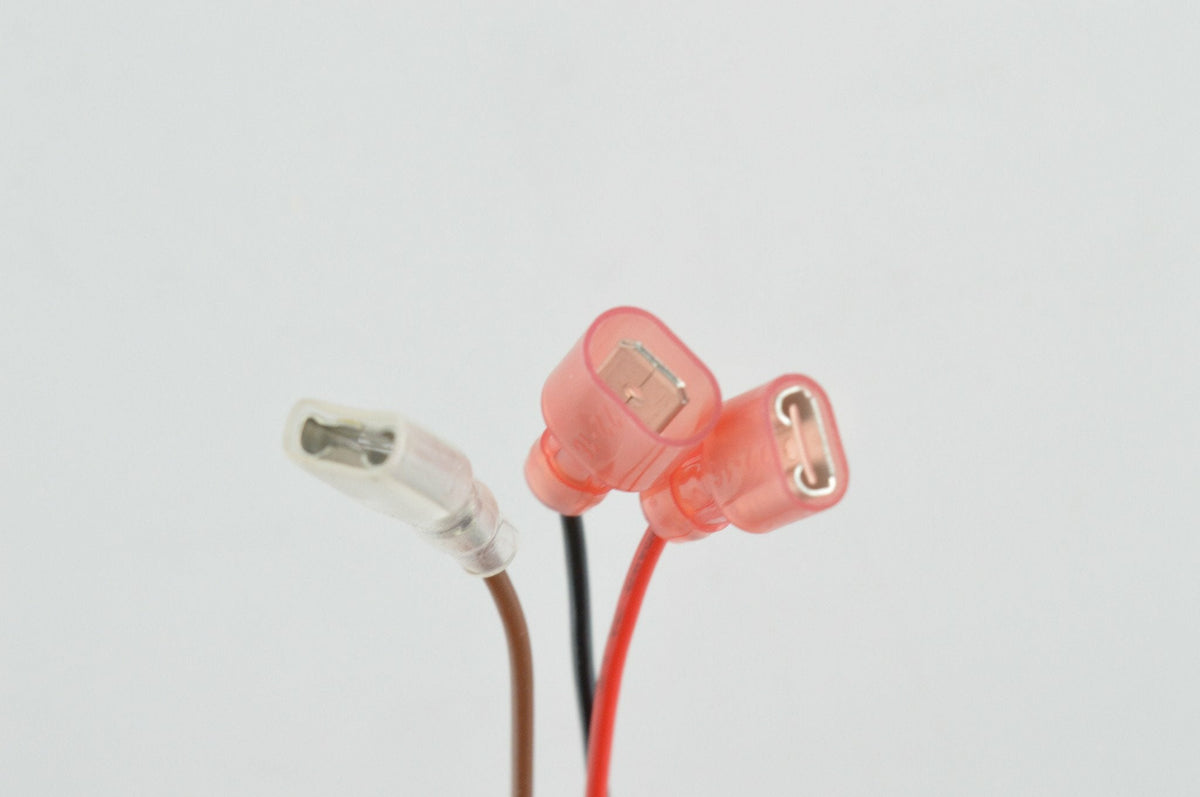

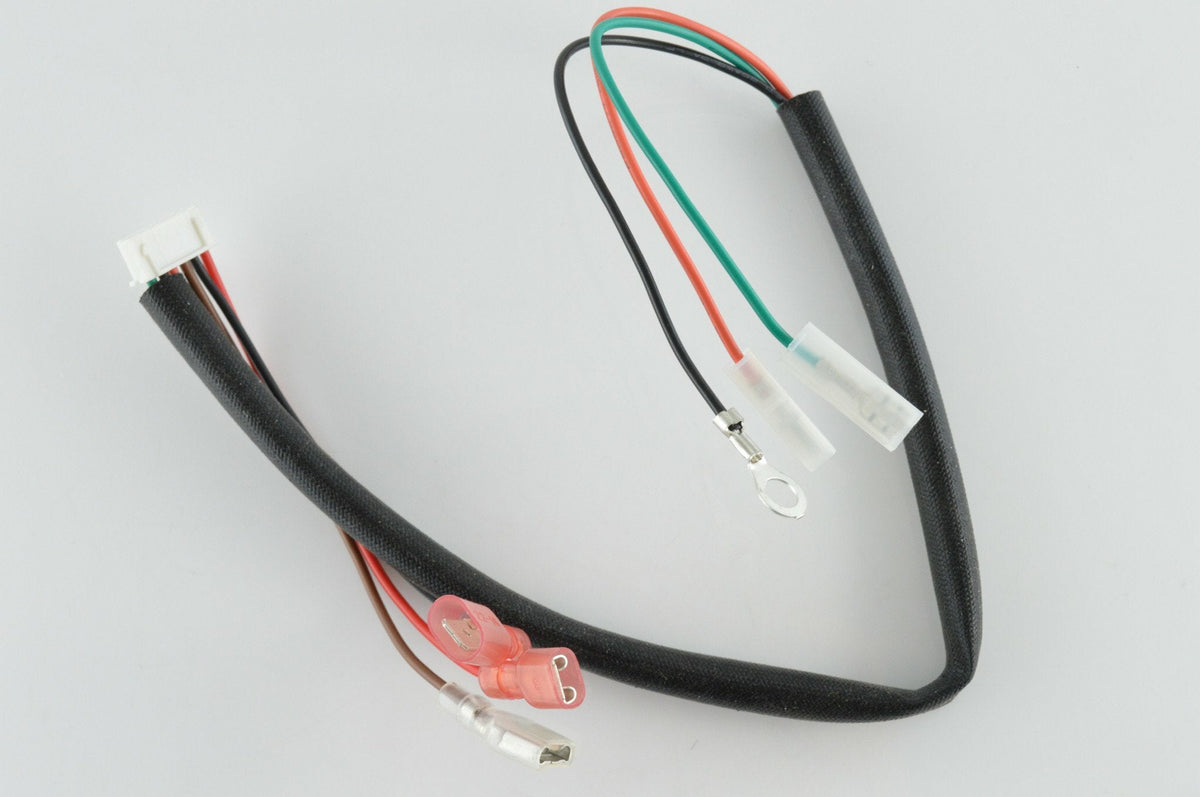

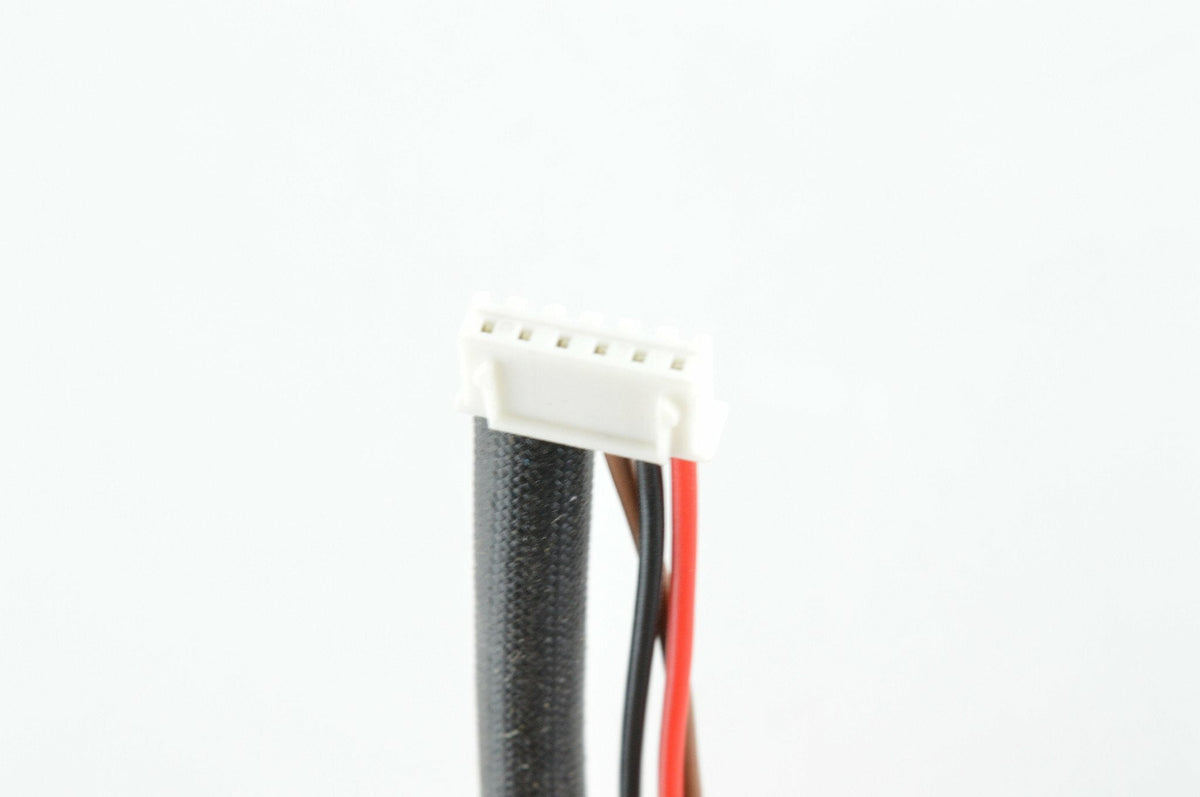

Replacement wiring harness for the matching Hearth & Home control assembly. The short sleeved assembly has a white plug, branched terminal connectors and a ring-terminal lead as shown.

Key Features

• Replacement control harness 2166-304
• Supplier service reference SRV2166-304
• Preterminated branch connectors and ring terminal
• Sleeved wiring assembly supplied separately
• Match plug arrangement and appliance parts documentation

Specifications

Part reference: 2166-304 / SRV2166-304.

Cross Reference

• Heat N Glo: 2166-304 / SRV2166-304
• Heatilator: 2166-304 / SRV2166-304
• Majestic: 2166-304 / SRV2166-304
• Quadra-Fire: 2166-304 / SRV2166-304 / 446-511A
• Napoleon / Continental: W750-0511 (supplier cross-reference; verify exact appliance parts list)

Fireplace Models

Verified examples: Heat N Glo 6000CLX-IPI-S and 6000CLX-IPI-T, for revisions listing wire harness 2166-304. Cross-references do not establish universal compatibility.

Product Description

One 2166-304 wiring harness. Control module and other electrical components are not included.

Important Note

Confirm availability and lead time before ordering. Match the original component, connections and appliance revision. Installation and safety checks should be performed by a qualified fireplace technician following the appliance instructions.
