Snap-Disc Limit Control For Boiler, Adjustable from 175 to 215 (SD005)

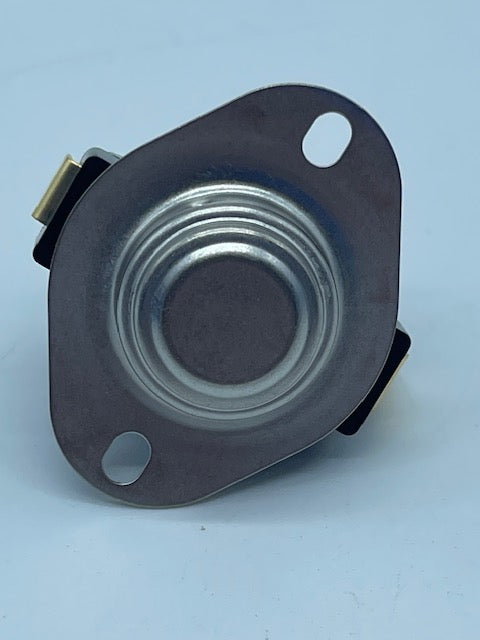

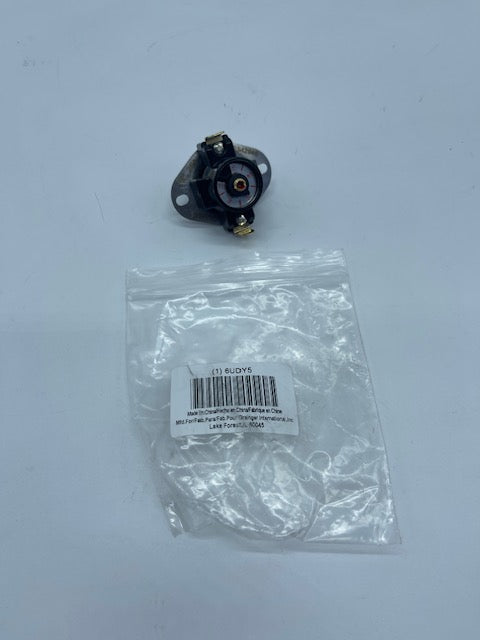

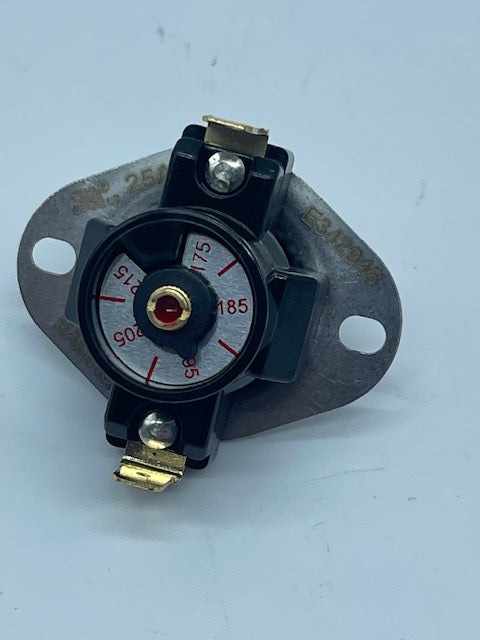

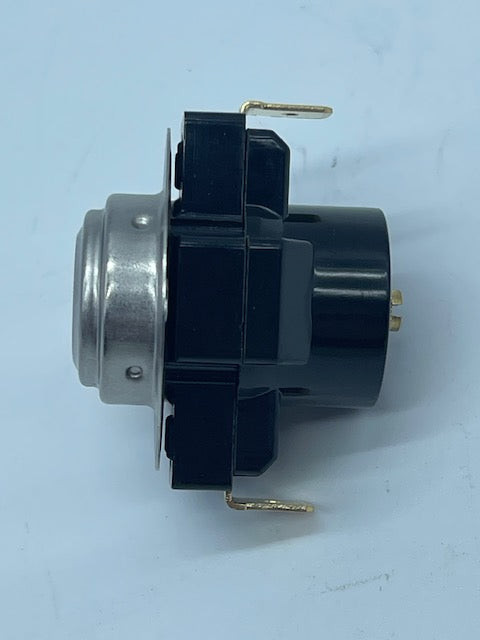

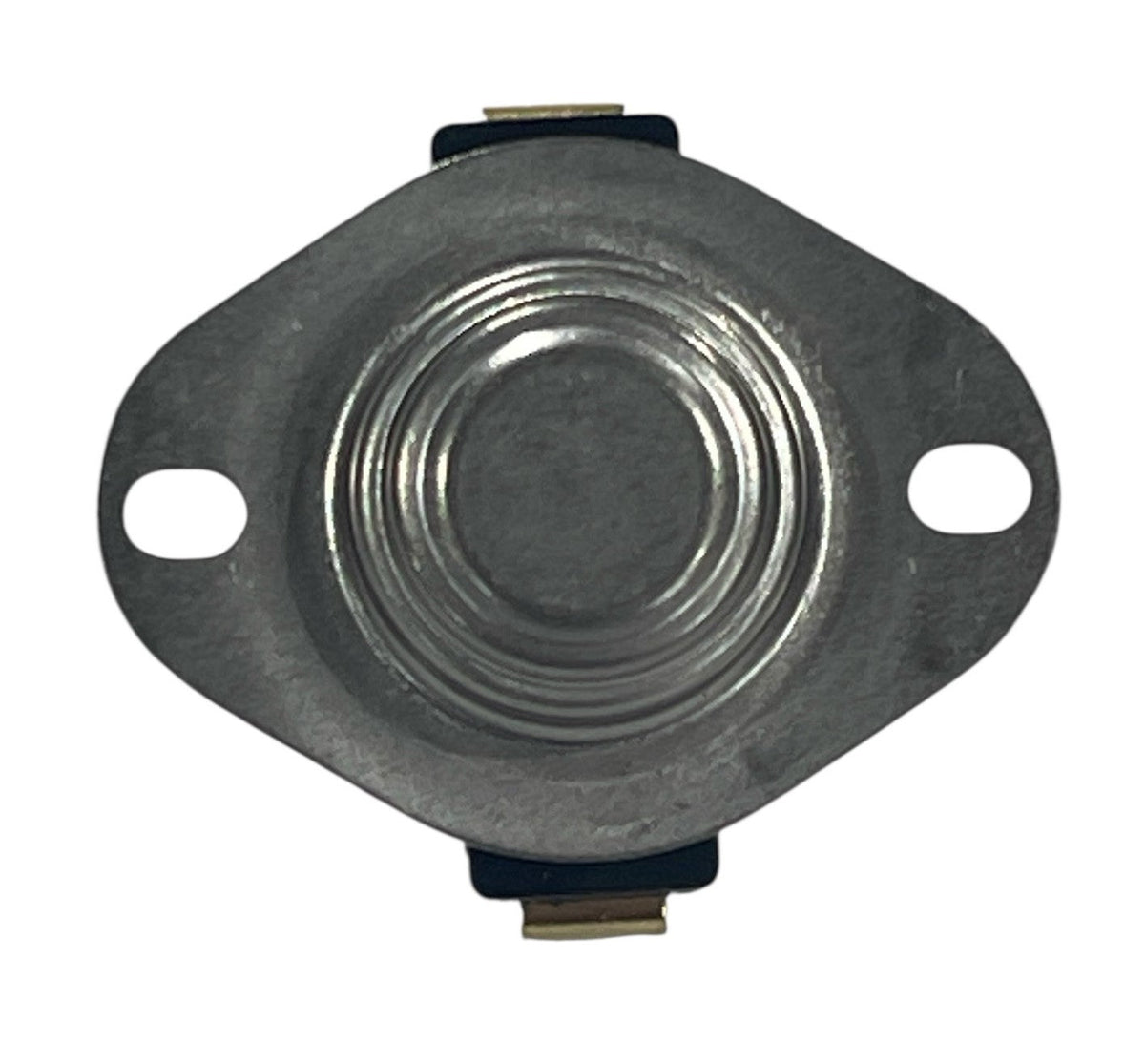

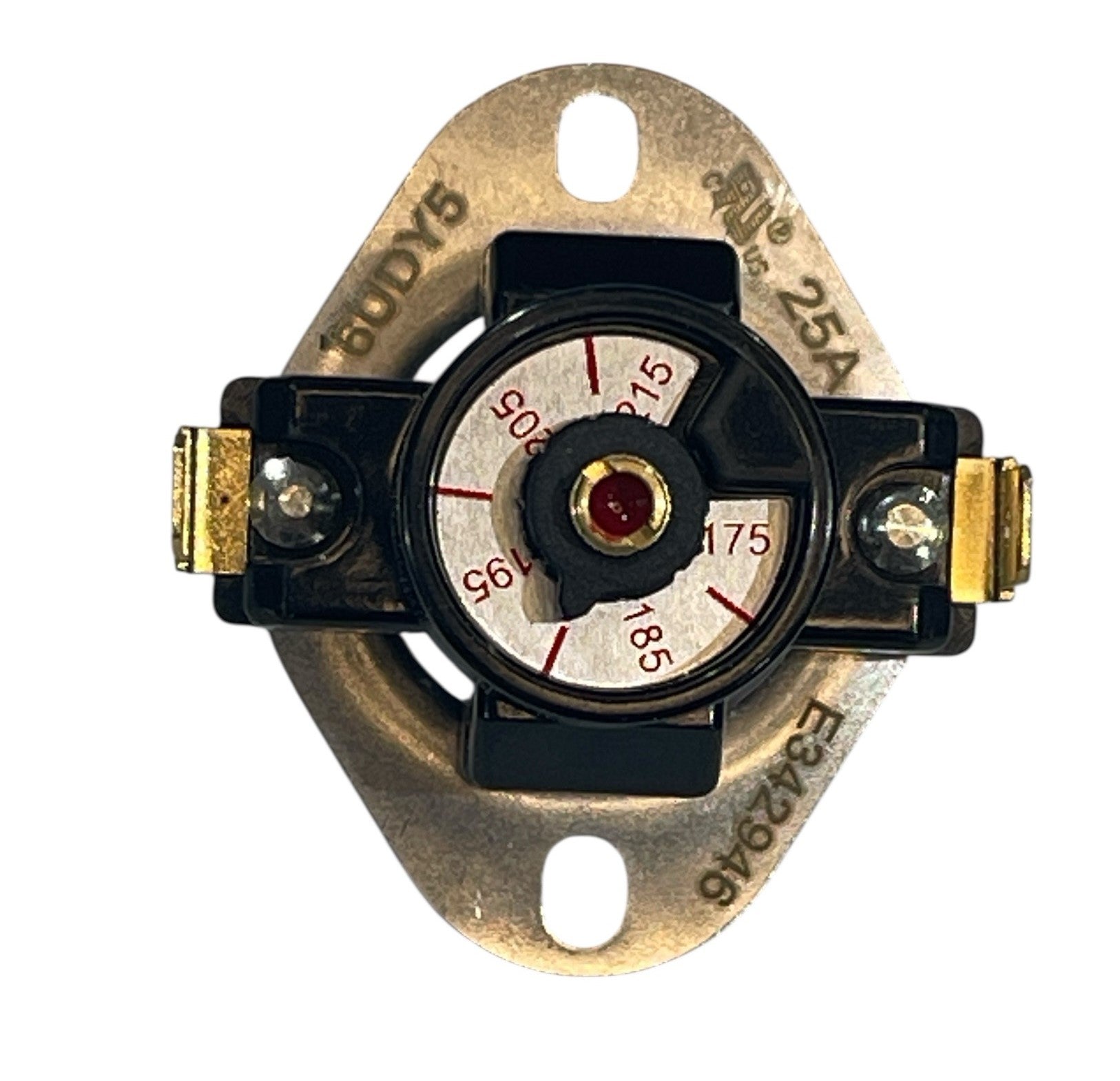

Adjustable Temperature Limit Controller (6UDY5) – Open on Rise, SPST, 135°F–215°F – Surface Mount Thermo-Disc

Protect your heating system with the 6UDY5 Adjustable Temperature Limit Controller. This surface-mount, open-on-rise thermal switch features an automatic reset for consistent, reliable over-temperature protection. Designed for safety and performance, it’s ideal for use in stoves, furnaces, HVAC systems, and industrial equipment.

Key Features:

• Open on Rise – Automatically disconnects power when the temperature exceeds the set limit
• Automatic Reset – Restores operation once the temperature drops below the reset threshold
• Adjustable Temperature Range – Covers a wide operating spectrum from 135°F to 215°F
• Surface Mount Design – Installs easily on flat metal surfaces using two mounting holes

Specifications:

• Switch Type: SPST (Single Pole, Single Throw)
• Opening Temperature Range: 175°F – 215°F
• Closing Temperature Range: 135°F – 175°F
• Temperature Differential: 40°F
• Mounting Style: Surface mount with screw holes
• Model: 6UDY5
• Reset Type: Automatic

Fitment Note:
This adjustable thermal limit controller is commonly used in wood stoves, pellet stoves, HVAC systems, and various industrial heating applications. Always verify voltage and mounting compatibility before installation.

Ensure safety and reliable performance with the 6UDY5 Adjustable Temperature Limit Controller. Built for durability and precision, it’s the perfect replacement or upgrade for high-temperature systems that require consistent thermal protection.
