Shaker Grate Section (40314 / 23852) – Cast Iron Replacement for US Stove, Breckwell & Vogelzang Furnaces | 8-1/4" x 4-1/4" x 3"

Shaker Grate Section (40314 / 23852) – Cast Iron Replacement for US Stove, Breckwell & Vogelzang Furnaces (8-1/4" x 4-1/4" x 3")

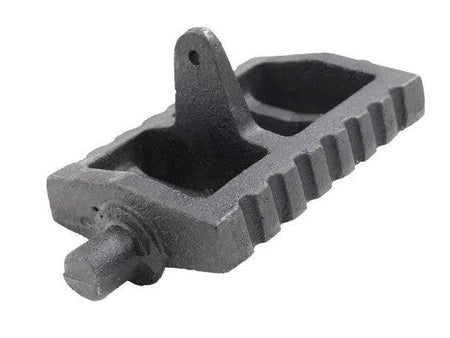

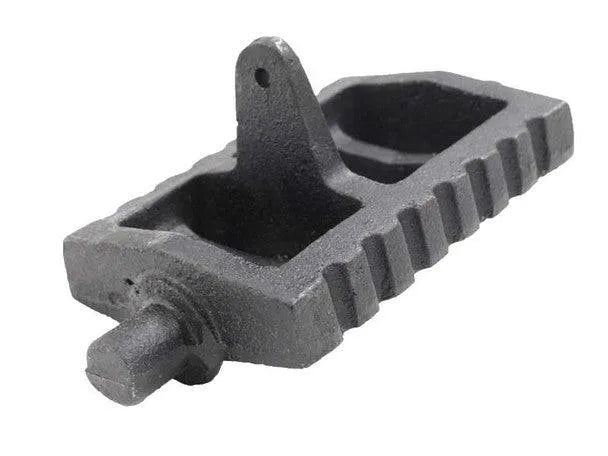

Keep your furnace operating efficiently with the Shaker Grate Section (40314 / 23852). This durable, OEM cast iron part is designed to sit at the bottom of your stove, allowing combustion air to flow upward and ash to fall into the pan below. Built with a 1/4" hole for proper airflow and ash management, this shaker grate fits many popular models from US Stove, Breckwell, and Vogelzang.

Key Features:
• OEM Replacement – Genuine US Stove Company part for precise fit and function
• Heavy-Duty Cast Iron – Long-lasting construction for high-heat environments
• Improves Combustion Efficiency – Allows air to flow through and ashes to drop below
• Sold Individually – Replace only the sections that are worn or damaged

Specifications:
• Part Numbers: 40314 / 23852

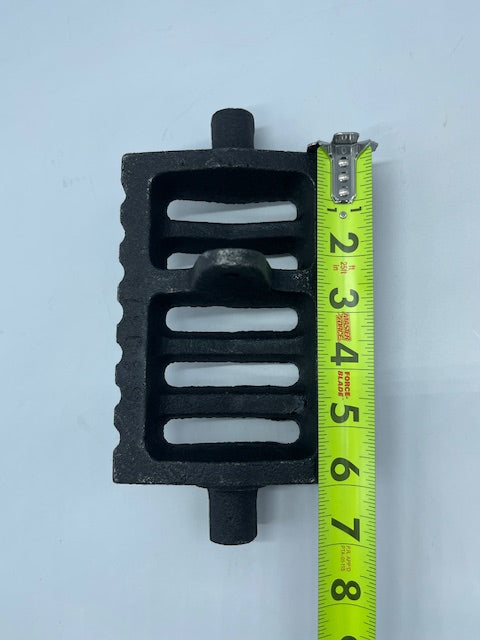

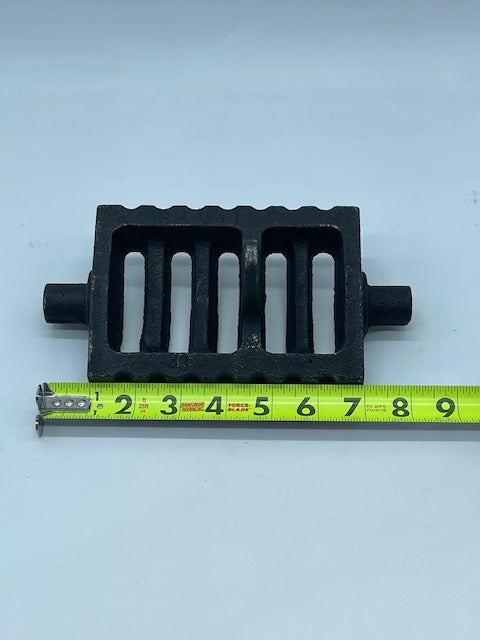

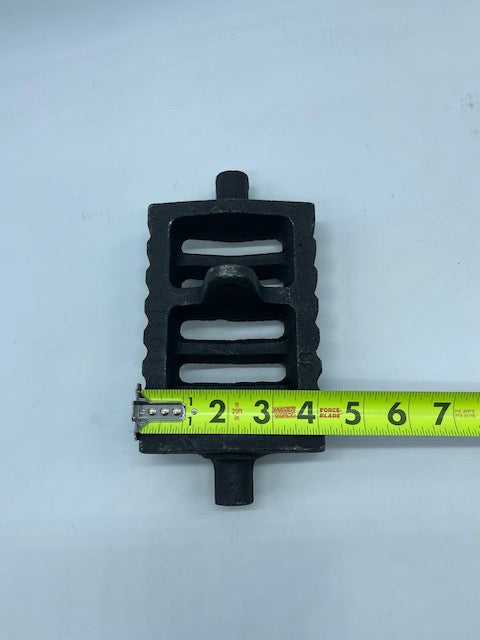

• Dimensions: 8-1/4" L x 4-1/4" W x 3" H
• Hole Size: 1/4" diameter (airflow design)
• Material: Solid cast iron
• Application: Shaker grate section for wood/coal furnaces
• Sold: Individually

Compatible Models:
US Stove Furnaces: Ashley 1602R; Clayton 1600G, 1600M, 1602M; Exterior 1600EF; Clayton 7.1, Clayton 14.2; HotBlast 1600, 1602, 1800G, 1802
Vogelzang Wood Furnaces: VG7100
Breckwell Furnaces: SF747

Note: May also fit other models. Please confirm compatibility with your owner’s manual before ordering.

Pairs Well With: US Stove Company Parts, ash pans, shaker handles, firebrick, and furnace maintenance accessories

Why Choose the 40314 / 23852 Shaker Grate Section?

Worn or cracked shaker grates can restrict airflow, trap ash, and reduce furnace efficiency. Replacing damaged sections with this OEM cast iron shaker grate restores proper ash management, improves combustion efficiency, and helps protect the firebox. Because the grate is sold individually, it offers a cost-effective solution for maintaining your furnace without unnecessary part replacement.

Installation Instructions:

Allow the furnace to cool completely before servicing. Ensure all embers are extinguished and remove ash from the ash pan.

Open the firebox door and access the shaker grate assembly from inside the furnace. Identify the damaged shaker grate section.

Disconnect the shaker linkage or rod if required, depending on furnace model. Slide or lift the damaged grate section out of the grate frame.

Clean the grate frame and surrounding firebox area to remove ash and debris. Inspect remaining grate sections for wear or cracking.

Install the new cast iron shaker grate section, aligning it with the existing grate sections and ensuring proper engagement with the shaker mechanism.

Reconnect the shaker linkage if removed. Before firing the furnace, operate the shaker handle to confirm smooth movement and proper ash drop.

Reload fuel and resume normal operation.

Installation tip: Always check that all grate sections move freely together. Binding or uneven movement can reduce shaker effectiveness and cause premature wear.

Helpful Installation Videos:

Furnace shaker grate removal and replacement example (US Stove–style furnace):
https://www.youtube.com/watch?v=mD6U69ZnJ5k

Shaker grate operation and ash management overview (wood/coal furnace):
https://www.youtube.com/watch?v=SZ_bY_k7akk

These videos demonstrate shaker grate section removal, installation, and operation commonly used in US Stove, Clayton, Vogelzang, and similar wood or coal furnaces. While they may not reference the 40314 part number directly, the shaker grate design and installation process are the same.

Keep your furnace running at peak efficiency by replacing worn, cracked, or warped shaker grates. The 40314 shaker grate section offers durability, precision, and the trusted quality of genuine USSC parts.
