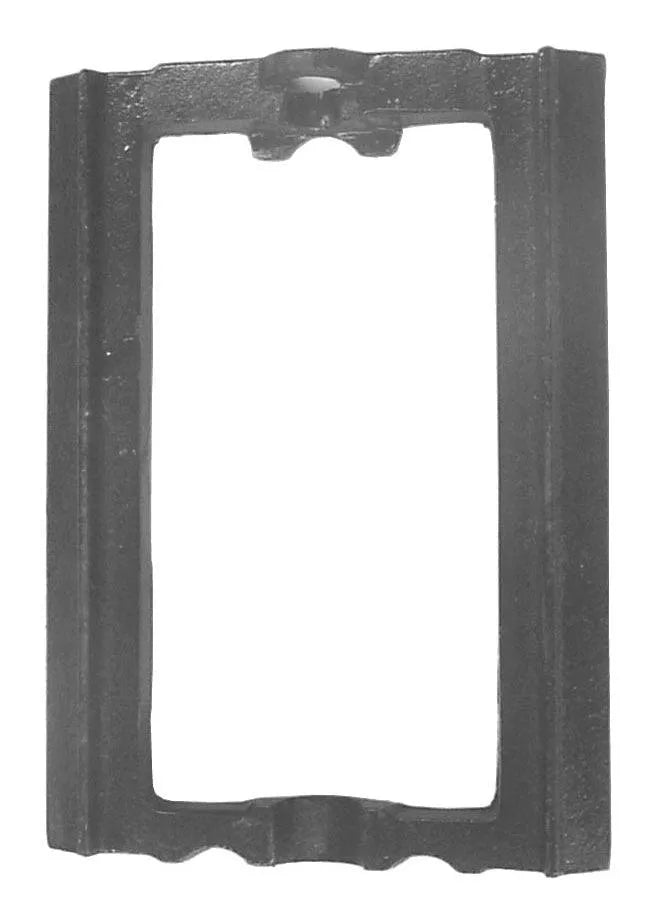

Shaker Grate Frame (40256 / 20264) – Cast Iron Replacement Frame for Johnson, US Stove & Vogelzang Furnaces (13" x 9-5/16")

Shaker Grate Frame (40256 / 20264) – Cast Iron Replacement Frame for Johnson, US Stove & Vogelzang Furnaces (13" x 9-5/16")

Grate frame for Shaker Grate 40257

Ensure the stability and efficiency of your shaker grate system with the Shaker Grate Frame (40256 / 20264). This durable cast iron frame is designed to support shaker grate sections in wood and coal furnaces from Johnson, US Stove, and Vogelzang. With a sturdy fit and long-lasting construction, it’s ideal for keeping your firebox functioning safely and effectively.

Key Features:
• OEM Replacement Part – Genuine US Stove part ensures a precise fit and reliable performance
• Cast Iron Construction – Built tough to withstand intense heat and frequent use
• Supports Shaker Grate Sections – Provides a solid foundation for grates, enhancing airflow and combustion
• Versatile Compatibility – Fits a wide range of furnace models across multiple brands

Specifications:
• Part Numbers: 40256 / 20264
• Dimensions: 13" L x 9-5/16" W (Frame Width Also Noted as 9-3/8")
• Material: Solid cast iron
• Application: Shaker grate frame for wood and coal furnaces
• Sold: Individually (some units require 2 or more frames)
• OEM: Yes – US Stove part

Compatible Models:
Johnson Furnaces: J7300, J7300C, J9900
US Stove Furnaces: Ashley 22AF; HotBlast 1300; HotBlast 1500 (Qty: 2 required); 1527, 1537, 1537Q; Clayton 1537Q; 1537M, 1557M Add-on Furnaces
Vogelzang Furnaces: 1500; 2500 (Qty: 2 required); Norseman 1500

Note: May also fit additional models and brands. Always verify part number and quantity required in your stove’s owner’s manual.

Pairs Well With: Shaker grate sections (40257), US Stove Company Parts, ash pans, shaker handles, firebrick, and furnace maintenance accessories

Why Choose the 40256 / 20264 Shaker Grate Frame?

A cracked or warped grate frame can cause misalignment of shaker grates, restrict airflow, and reduce furnace efficiency. Replacing it with this OEM cast iron shaker grate frame restores proper grate positioning, improves ash removal, and supports consistent combustion. Designed for durability and precision fit, this frame is an essential component of a properly functioning shaker grate system.

Installation Instructions:

Allow the furnace to cool completely before servicing. Ensure all embers are extinguished and remove ash from the ash pan.

Open the firebox door and locate the shaker grate assembly. Identify the shaker grate frame supporting the grate sections.

Disconnect the shaker linkage or rod if required by your furnace design. Carefully lift or slide the old grate frame out of the firebox.

Clean the firebox floor and support rails to remove ash and debris. Inspect surrounding grate components for wear or damage.

Position the new cast iron shaker grate frame into the firebox, ensuring it sits flat and properly supports the shaker grate sections (40257).

Reinstall shaker grate sections and reconnect the shaker linkage if removed. Before firing the furnace, operate the shaker handle to confirm smooth movement and proper ash drop.

Reload fuel and resume normal furnace operation.

Installation tip: Always confirm all grate sections move together smoothly. Binding or uneven movement can indicate incorrect frame alignment or additional worn components.

Helpful Installation Videos:

Furnace shaker grate and frame replacement example (US Stove–style furnace):
https://www.youtube.com/watch?v=mD6U69ZnJ5k

Shaker grate system operation and ash management overview (wood/coal furnace):
https://www.youtube.com/watch?v=SZ_bY_k7akk

These videos demonstrate shaker grate frame positioning, grate alignment, and shaker operation commonly used in US Stove, Clayton, Johnson, and Vogelzang furnaces. While they may not reference the 40256 frame specifically, the installation process and component layout are the same.

This Shaker Grate Frame is an essential part of your furnace’s combustion system—supporting shaker grate operation and promoting consistent burning. Order now for a long-lasting, high-performance replacement you can trust!
