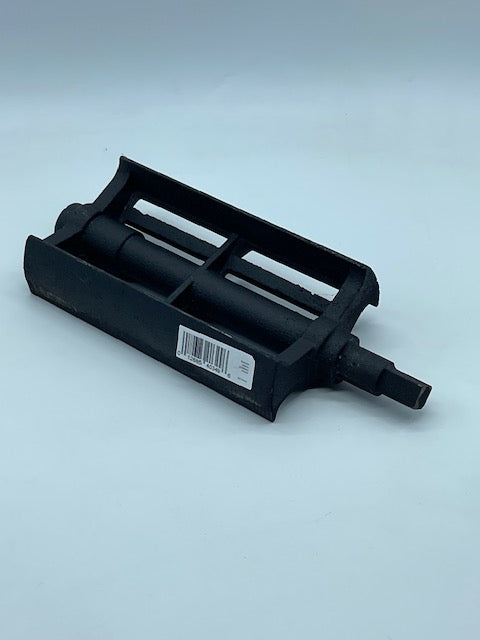

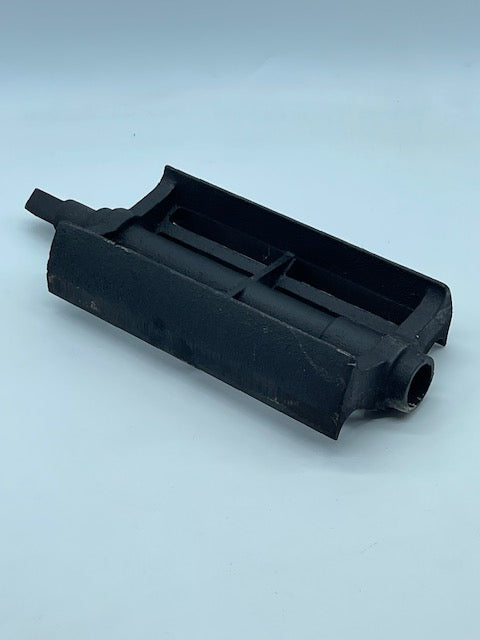

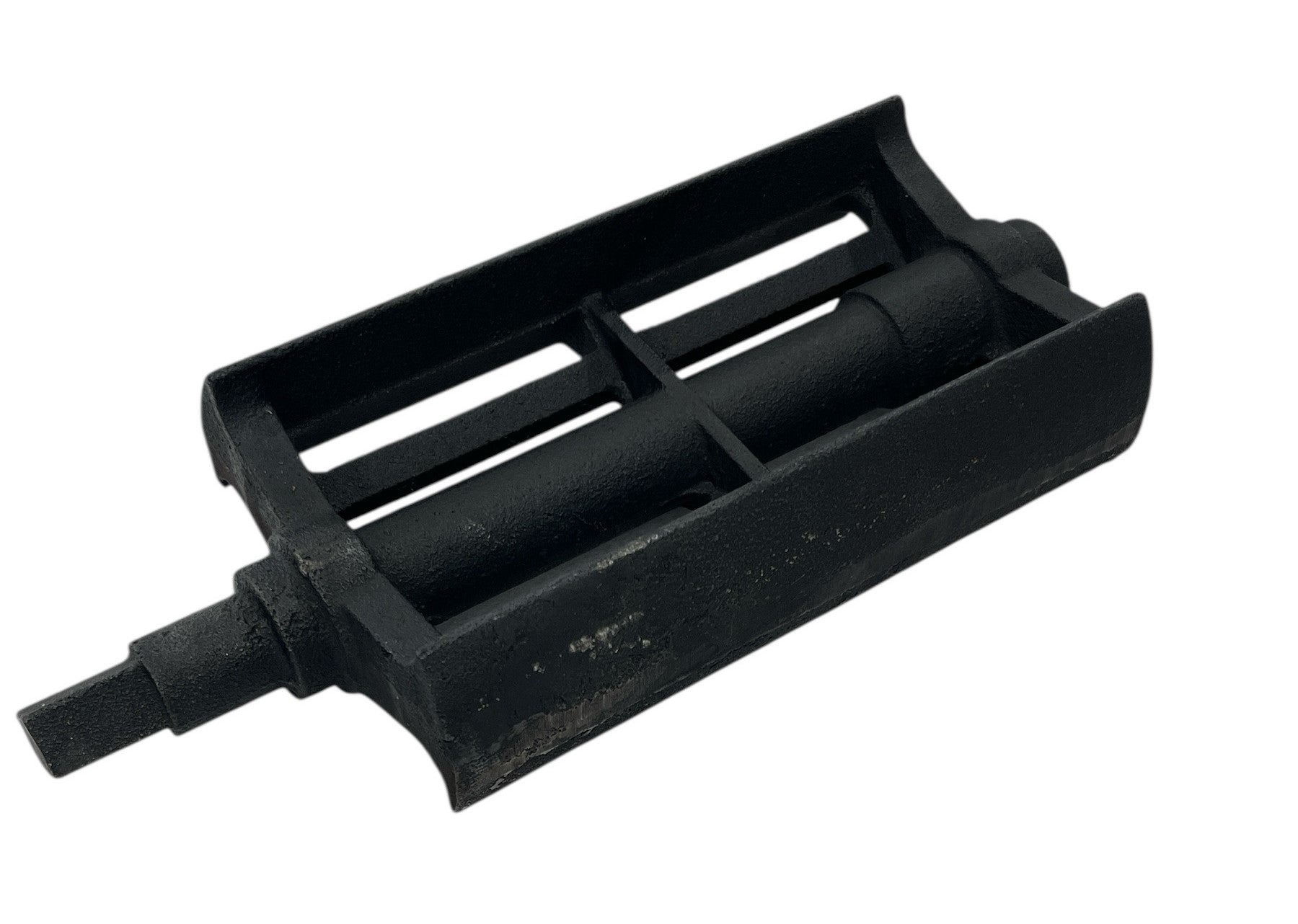

US Stove Cast Iron Shaker Grate (40349) – OEM Replacement for Ashley & Jensen Wood/Coal Furnaces

US Stove Cast Iron Shaker Grate (40349) – Replacement for Ashley & Jensen Wood/Coal Furnaces

Fits in shaker grate frame 40369

Restore your furnace’s efficiency with the US Stove Shaker Grate (40349). This heavy-duty cast iron replacement grate is designed for Ashley and Jensen wood/coal furnace models. Its rugged build supports burning fuel while enabling ash to fall through efficiently, improving airflow and combustion performance.

*Note: Some models require two grates or a combination of long and short grates for complete installation.

Key Features:

• OEM Replacement – Genuine US Stove part for Ashley and Jensen models
• Heavy-Duty Cast Iron – Built to withstand extreme heat and long-term use
• Interlocking Design – Ends fit into adjoining grate notches for stable assembly
• Essential Component – Ensures proper ash management and combustion airflow

Specifications:

• Part Numbers: 40349, J3055A

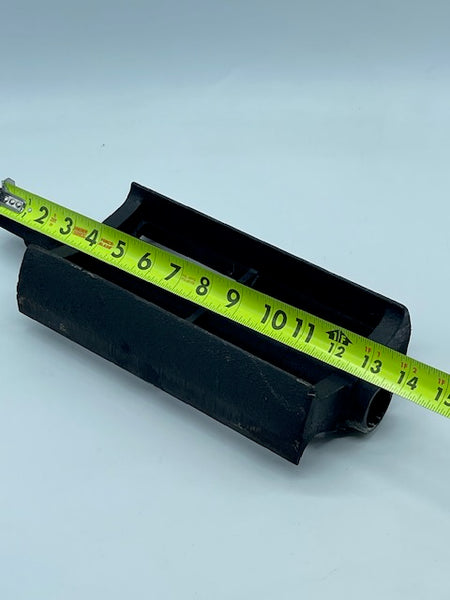

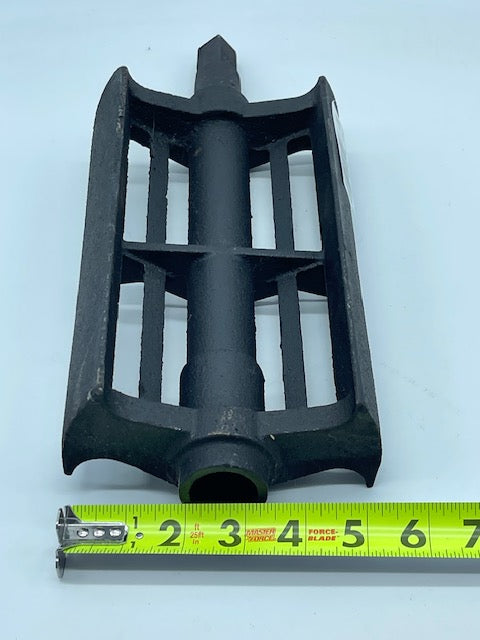

• Dimensions: Approx. 13"–13¼" (L) x 5"–5½" (W) x 2¼" (H)
• Material: Cast Iron
• Function: Shaker grate for wood and coal combustion
• OEM Status: Genuine US Stove replacement part
• Sold: Individually

Compatible Models:

Ashley Wood Furnaces:

• 24A (Qty: 2 required)
• 30A (Qty: 2 required)

Jensen Wood Furnaces:

• 24AF, 24AG, 24AJ, 24AZ
• 24A, 24AC
• 24B
• 30A, 30AC
• 36A, 36B

Note: Some furnace setups may require both long and short grates. Always consult your owner's manual for proper configuration.

Pairs Well With:
Shaker grate frame 40369, US Stove Company Parts, ash pans, shaker handles, firebrick, and furnace maintenance accessories

Why Choose the US Stove 40349 Shaker Grate?

A worn or cracked shaker grate can trap ash, restrict airflow, and reduce furnace efficiency. Replacing it with the OEM 40349 cast iron shaker grate restores proper fuel support, improves ash management, and helps maintain clean, consistent combustion. Built to factory specifications, this grate delivers long-lasting durability and reliable performance for safe heating.

Installation Instructions:

Allow the furnace to cool completely before servicing. Ensure all embers are extinguished and remove ash from the ash pan.

Open the firebox door and locate the shaker grate assembly inside the furnace.

If necessary, disconnect the shaker handle or linkage according to your furnace design.

Carefully lift or slide the existing shaker grate out of the 40369 shaker grate frame. If ash buildup is present, gently rock the grate to free it.

Clean the grate frame and firebox floor to remove ash and debris. Inspect remaining grate sections and the frame for wear or cracking.

Insert the new 40349 cast iron shaker grate into the frame, ensuring the interlocking ends seat properly with adjacent grates.

Reconnect the shaker linkage if removed. Operate the shaker handle to confirm smooth movement and proper ash drop before lighting the furnace.

Reload fuel and resume normal operation.

Installation tip: All shaker grates should move freely together. Binding or uneven movement may indicate incorrect alignment or additional worn components.
