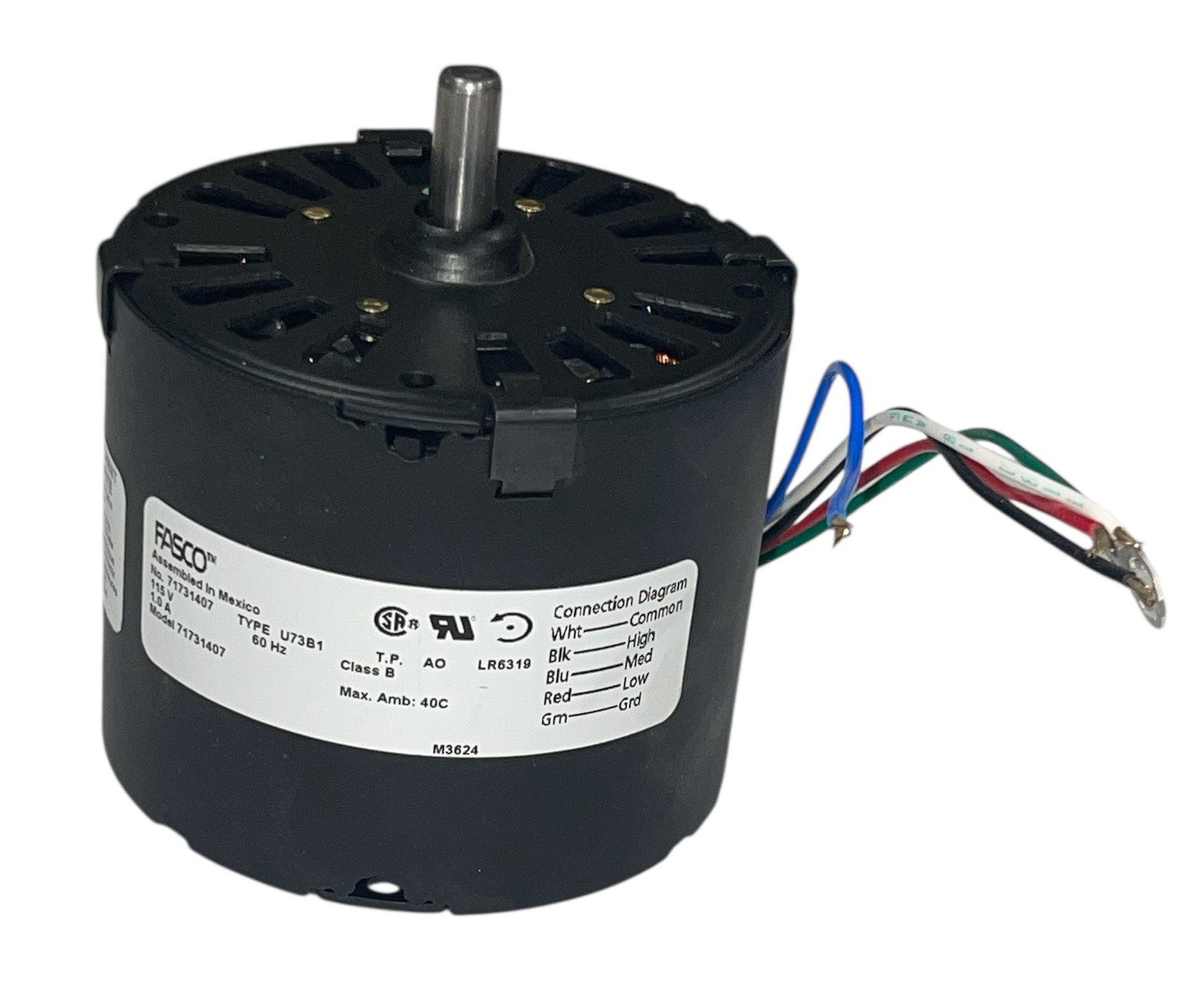

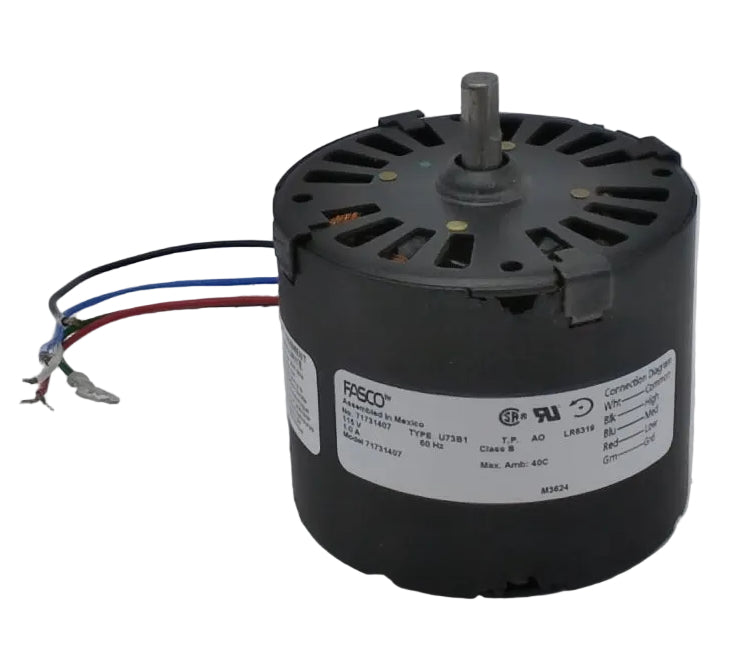

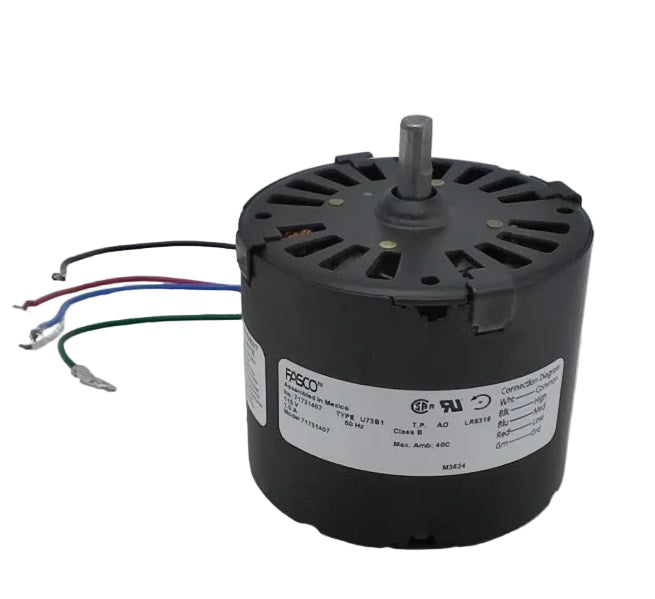

Silent Flame 3-Speed Blower Motor – SF782012 | Original Fasco Replacement (Motor Only, No Wiring Harness Connectors)

Silent Flame 3-Speed Blower Motor (SF782012) – Original Fasco Replacement Motor (No Wiring Harness Connectors)

Replace a worn or failing blower motor with the original Fasco SF782012 3-Speed Blower Motor, designed for Silent Flame heating units. This OEM-grade replacement motor delivers reliable airflow, quiet operation, and long-lasting performance. It is supplied without the plastic wiring harness connectors, making it ideal for installations where existing wiring is reused or hardwired connections are required. Built to Fasco’s exacting standards, this motor restores proper heat circulation and efficiency in pellet and wood-burning appliances.

Key Features:
• Original Fasco Motor – OEM-grade replacement for dependable performance
• 3-Speed Operation – Allows adjustable airflow for precise heat control
• Motor Only Design – No plastic wiring harness connectors included
• Quiet & Efficient – Engineered for smooth, low-noise operation
• Built for Longevity – Designed for continuous-duty heating applications

Specifications:

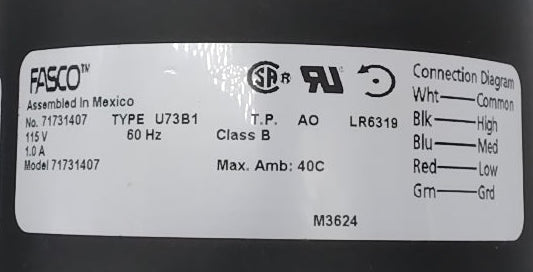

• Model: SF782012
• Motor Type: 3-Speed
• Voltage: 115V
• Amperage: 1.0 Amp
• Frequency: 60 Hz
• Rotation: Counterclockwise (CCW)

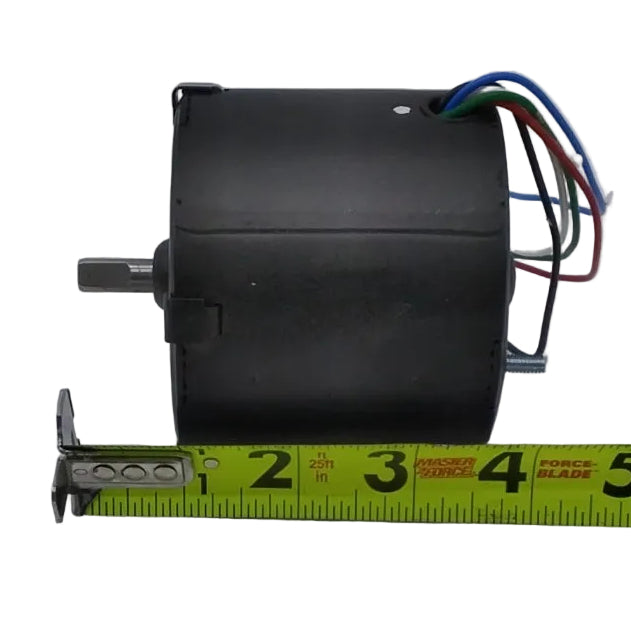

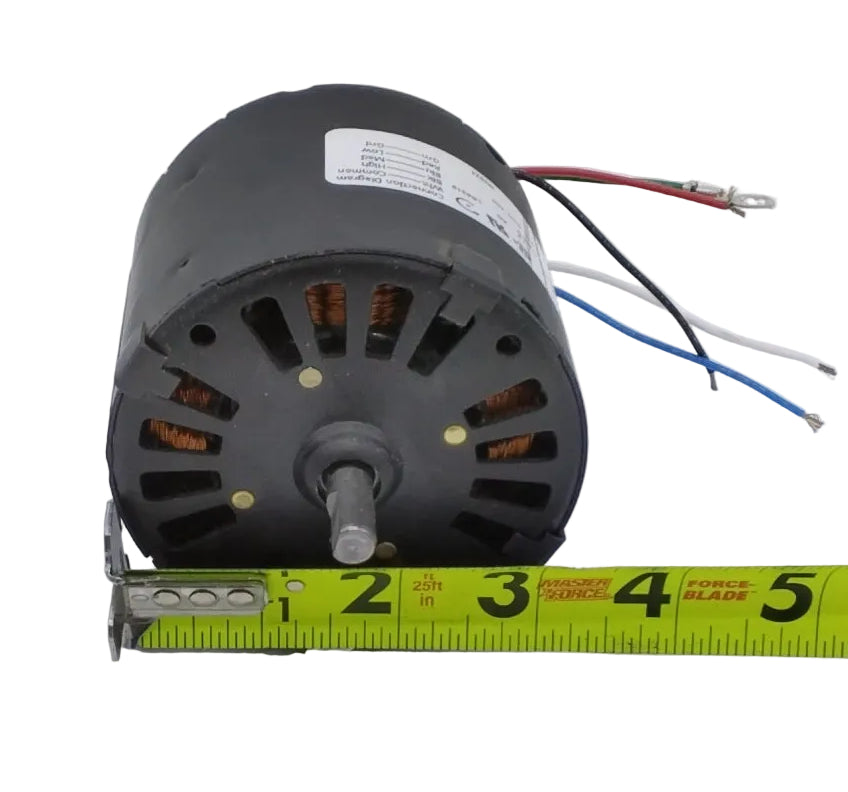

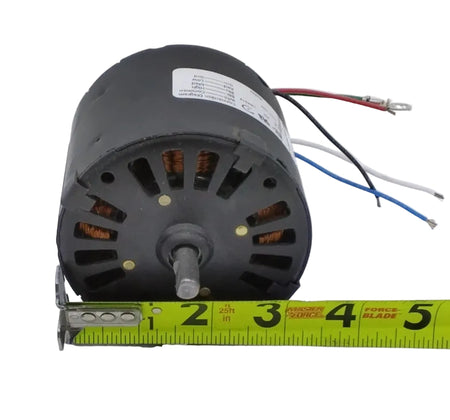

• Shaft Length: 5/8"
• Shaft Diameter: 5/16"
• Includes: Motor only (no housing, fan blade, or wiring connectors)

Replaces the Following Part Numbers:
• R16CCW213MD
• R16CCW282MD
• R22CCW238M
• 7163-5197
• 7173-1407
• OEM Regal / Fasco Part #: 71731407

Compatible Models:
• Silent Flame Stoves
• May also fit additional pellet or wood-burning stoves using the same motor specifications

Always verify motor rotation, shaft dimensions, voltage, and wiring configuration using your stove’s manual before ordering.

Pairs Well With:
Silent Flame stove parts, blower wheels, motor mounting brackets, speed control switches, and replacement wiring components

Why Choose the Fasco SF782012 Blower Motor?

A failing blower motor can reduce heat output, cause overheating, or result in noisy operation. Replacing it with the original Fasco SF782012 motor restores proper airflow, improves heat distribution, and ensures reliable stove performance. Manufactured to OEM standards, this motor provides the durability and consistency required for demanding heating environments.

Installation Instructions:

Disconnect power to the stove at the breaker before servicing. Ensure the stove and blower assembly are completely cool.

Remove the rear or side access panel to access the blower motor assembly.

Disconnect the existing motor wiring. If applicable, label wires or take a photo to ensure correct reconnection.

Remove the mounting screws or bolts securing the old blower motor to the housing or bracket. Carefully remove the motor and detach the blower wheel if reused.

Inspect the blower wheel and mounting bracket for damage or debris. Clean as needed before installing the new motor.

Install the SF782012 blower motor onto the mounting bracket. Secure it firmly using the original hardware or approved replacements.

Transfer the blower wheel to the new motor shaft if required. Ensure the wheel is properly aligned and spins freely without rubbing.

Reconnect the wiring according to the original configuration, confirming correct speed leads and ground connection.

Restore power briefly and test the motor at all three speeds to confirm proper rotation and airflow. If correct, reinstall the access panel and resume normal operation.

Installation tip: This motor rotates counterclockwise (CCW). Incorrect rotation or mismatched wiring can cause poor airflow or damage. Always confirm specifications before installation.
