Replacement Timberwolf, Napoleon, and Ambiance Fiber Baffle Board, T2200, T2201, EPI22, W010-3563, Set of 2, 2304A

2304A Lynn Replacement Timberwolf, Napoleon & Ambiance Fiber Baffle Board Set – Replaces W010-3563, W010-3563-SER & W018-0118 – Fits T2200, T2201, EPI22, S20, S20i, T20i & Outlander 19 Models – Set of 2 – Superwool Plus 2100°F – Made in USA

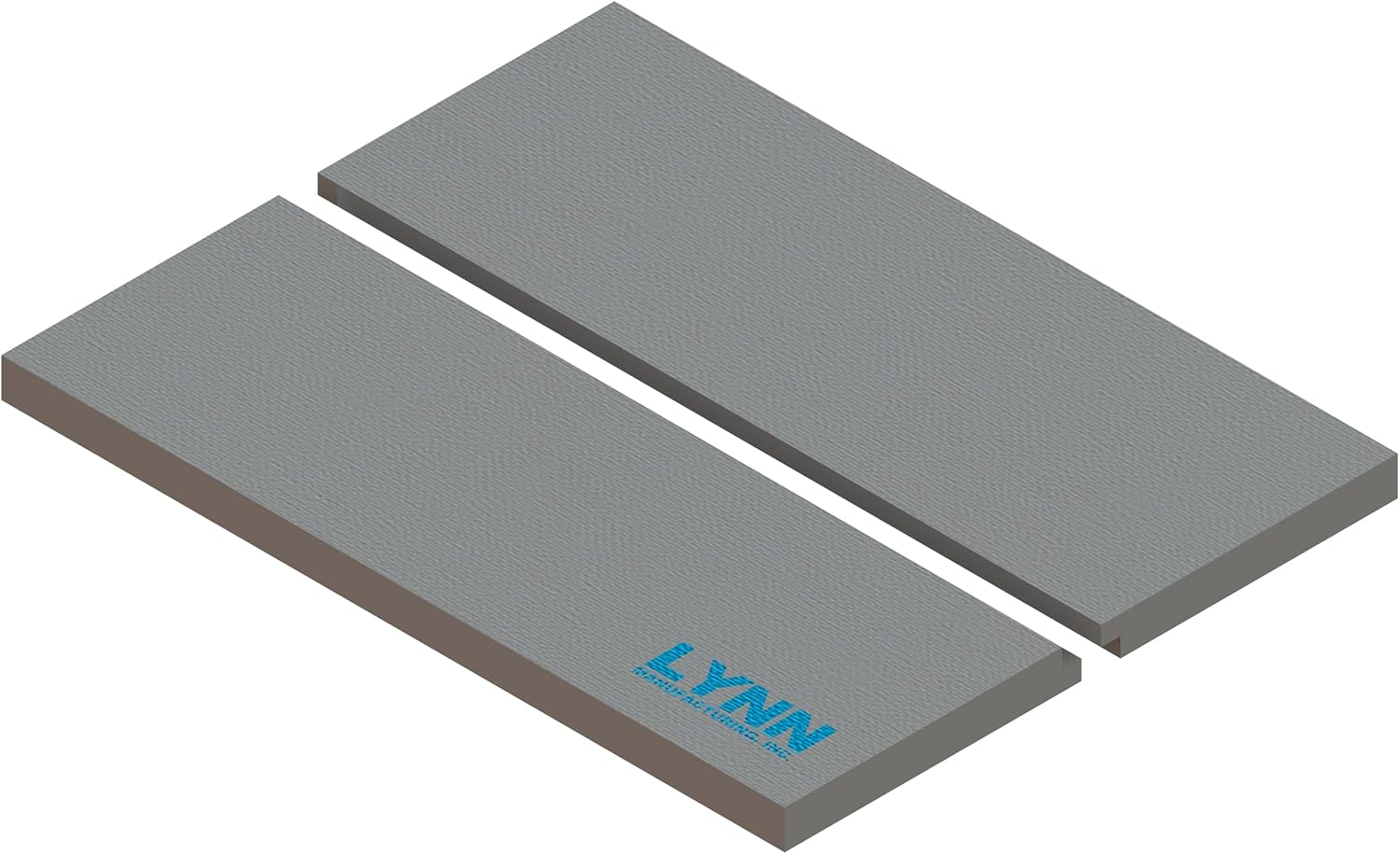

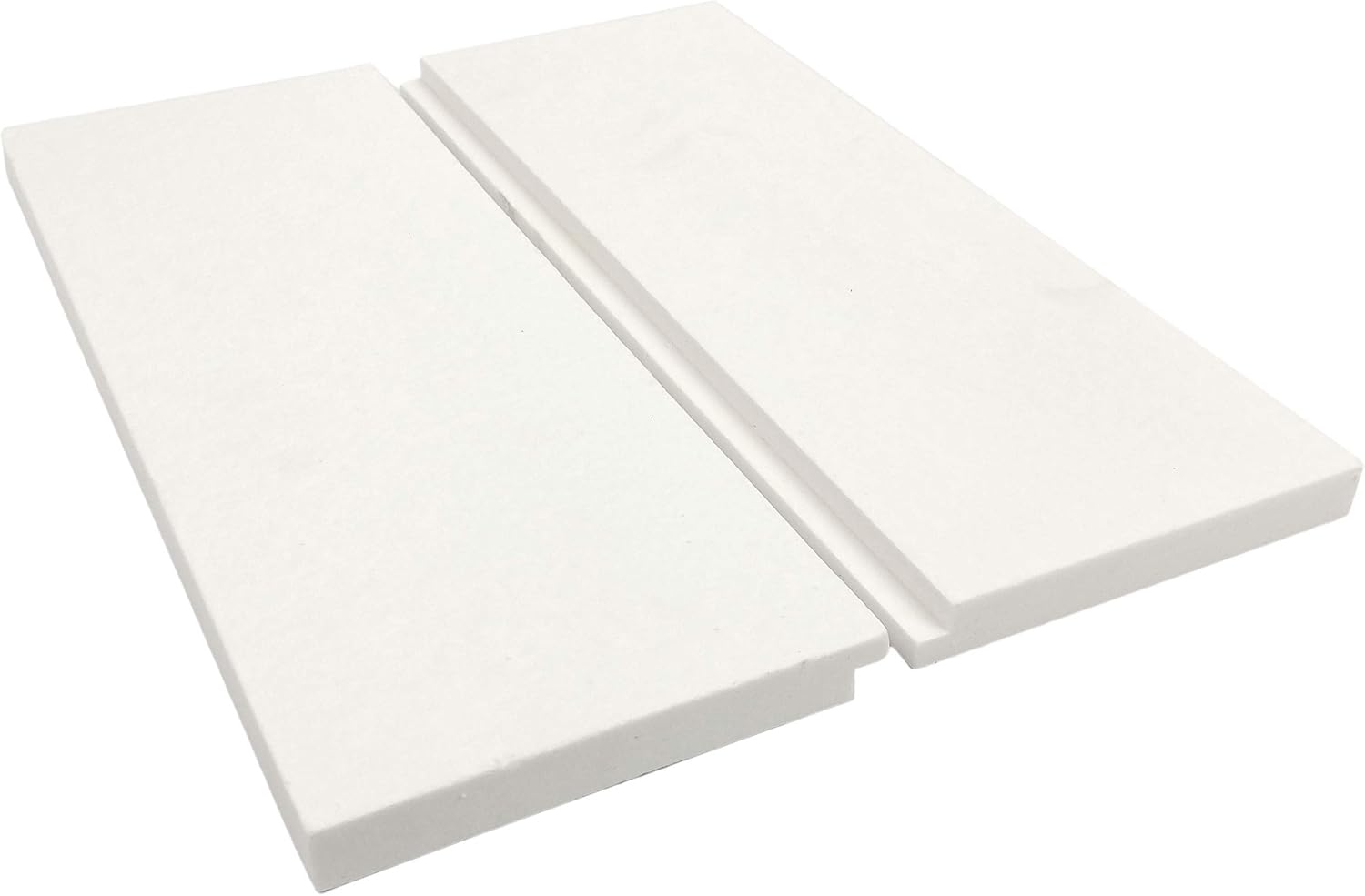

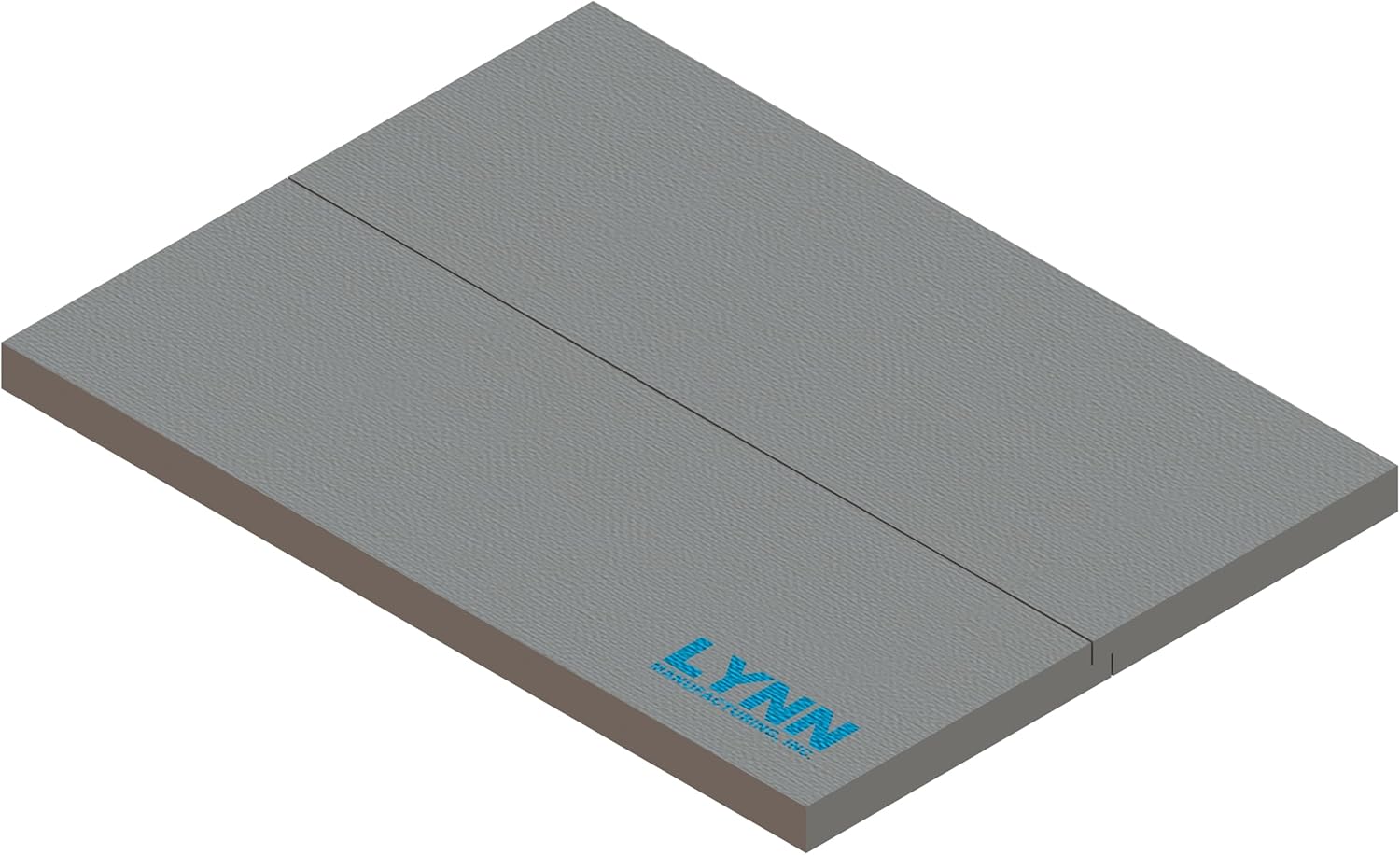

Restore clean-burning performance and protect your wood stove’s firebox with the Lynn Manufacturing 2304A Replacement Fiber Baffle Board Set. Designed as a direct replacement for Timberwolf, Napoleon, and Ambiance baffle boards, this set replaces part numbers W010-3563, W010-3563-SER, and W018-0118. Each set includes two high-temperature baffle boards made from durable Superwool Plus, engineered to withstand extreme heat while supporting proper airflow and secondary combustion.

Key Features:
• Replaces W010-3563, W010-3563-SER, and W018-0118
• Fits Timberwolf, Napoleon, and Ambiance wood stoves and inserts
• Includes 2 fiber baffle boards for complete replacement
• High-temperature Superwool Plus material rated up to 2100°F
• Rigidized gray finish for improved durability and strength
• Helps restore clean combustion, heat retention, and stove efficiency
• Made in the USA by Lynn Manufacturing

Specifications:
• Product Name: Replacement Fiber Baffle Board Set
• Part Number: 2304A
• Replaces: W010-3563, W010-3563-SER, W018-0118
• Quantity: Set of 2 baffle boards
• Dimensions: Approx. 20-1/8" x 7-5/8" x 1" each
• Joint Style: Shiplap joint
• Material: Superwool Plus ceramic fiber alternative
• Color: Rigidized gray
• Temperature Rating: Up to 2100°F
• Manufacturer: Lynn Manufacturing
• Country of Origin: USA

Compatible Stove Brands & Models:
• Timberwolf T2200
• Timberwolf T2201 / TI2201
• Timberwolf EPI22
• Napoleon EPI22
• Napoleon S20 / S20-1
• Napoleon S20i
• Napoleon T20i
• Ambiance Outlander 19 / 9010
• Ambiance Outlander 19i / 9100

Fitment Note:
Please confirm your stove model and original baffle part number before ordering. This replacement set is designed for models using W010-3563, W010-3563-SER, or W018-0118.

Important Note:
This product is made from Superwool Plus, a modern pyro-ceramic fiber alternative designed for high-heat stove applications. It is not tempered glass. This material is engineered for direct flame exposure, high-temperature insulation, and long-term durability inside the firebox.

Pairs Well With:
Timberwolf replacement parts, Napoleon wood stove parts, Ambiance Outlander parts, firebrick, secondary air tubes, insulation blankets, and combustion system components.

Why Choose the Lynn Manufacturing 2304A Baffle Board Set?
A cracked, missing, or deteriorated baffle can reduce heat output, increase smoke, disrupt secondary combustion, and expose the top of your stove to excessive heat. Replacing worn baffles with the Lynn Manufacturing 2304A set helps restore proper airflow, improve burn efficiency, retain heat in the firebox, and support cleaner stove performance.

Installation Instructions:
Allow the stove or insert to cool completely before servicing.
Remove any internal components needed to access the baffle area.
Carefully remove the existing baffle boards.
Clean the support ledges and inspect for ash, debris, or damage.
Install the new 2304A baffle boards in the same orientation as the originals.
Ensure the boards sit flat, are fully supported, and align correctly at the shiplap joint.
Reinstall any removed components before operating the stove.

Installation Tip:
Never operate your wood stove with missing, broken, or improperly installed baffle boards. Damaged baffles can reduce efficiency, increase emissions, and lead to overheating of internal stove components.

Restore clean combustion, improve heat retention, and protect your stove with the Lynn Manufacturing 2304A Timberwolf, Napoleon, and Ambiance Fiber Baffle Board Set—built for durability, safety, and dependable high-temperature performance.
