NBK-21381 Draft Inducer Motor, 1/15 HP | Modine 5H0735980001

NBK-21381 Draft Inducer Motor, 1/15 HP | Modine 5H0735980001

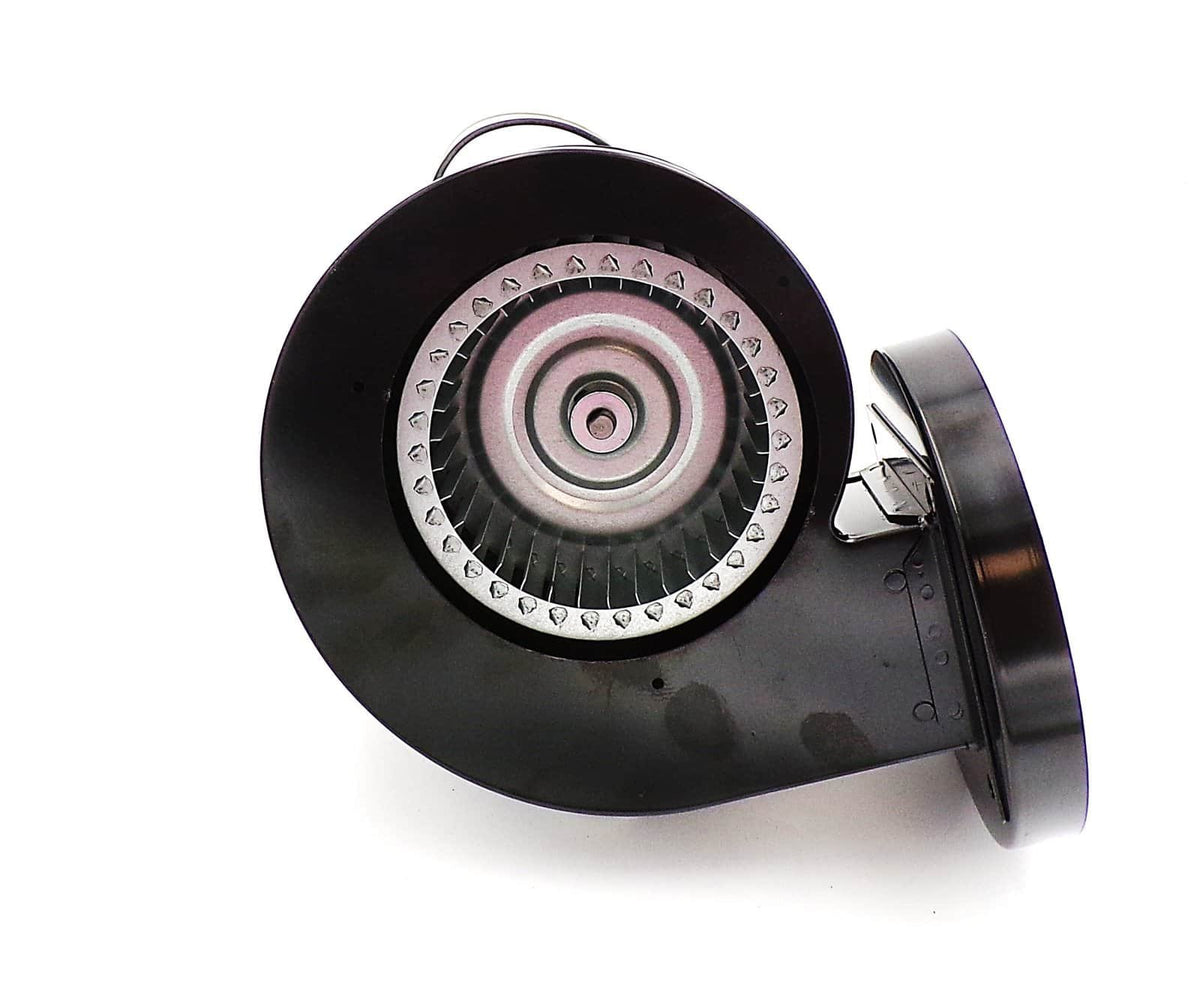

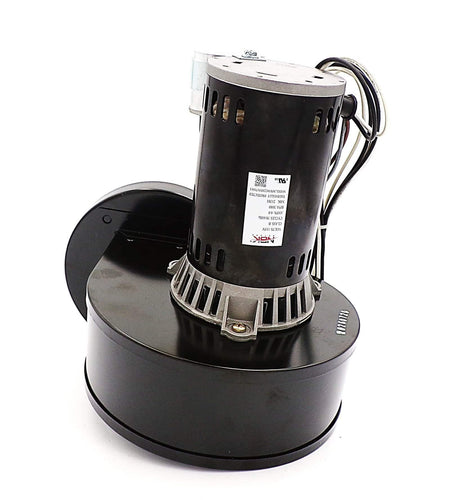

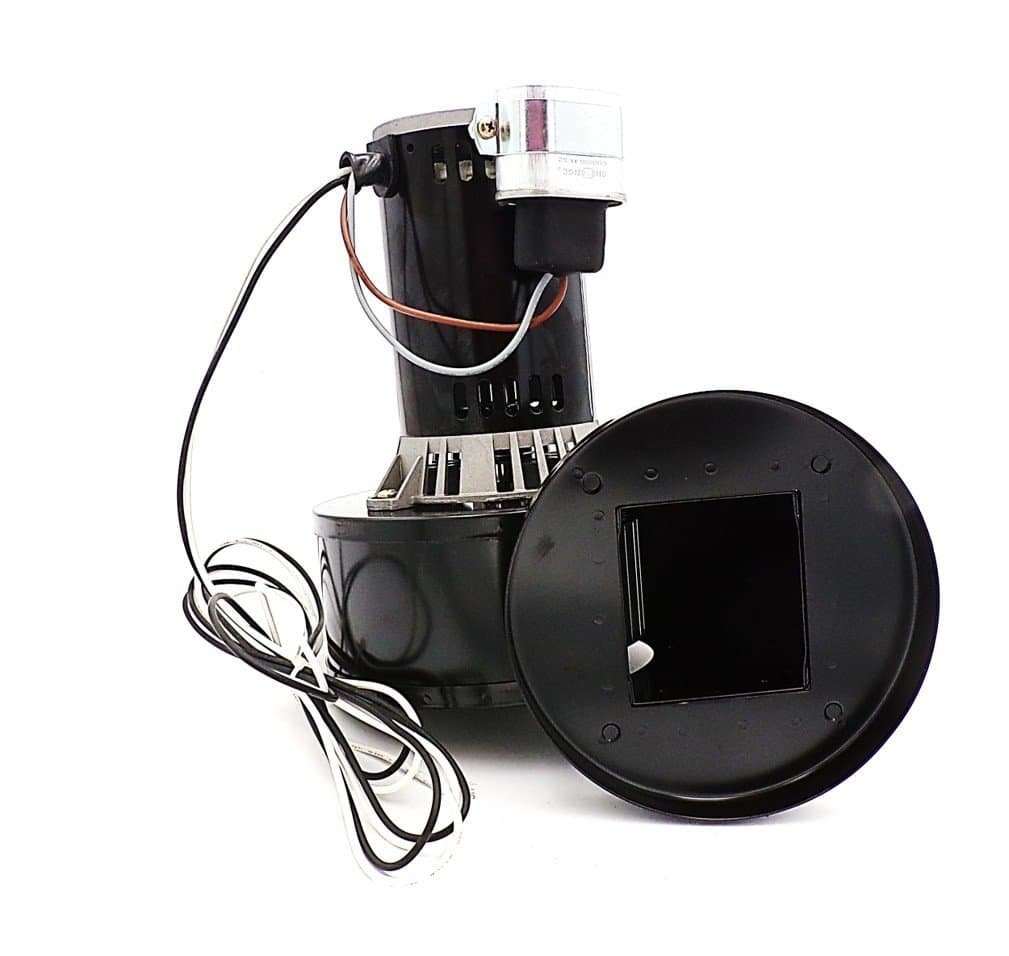

The NBK-21381 is a 115V, 1/15 HP aftermarket draft inducer assembly for Modine 5H0735980001, 5H73598-1 and Rotom FB-RFB599. The 3080 RPM motor comes with the blower assembly, mounted capacitor, wiring and outlet plate.

Key Features

• Replaces Modine 5H0735980001, 5H73598-1 and Rotom FB-RFB599.

• 115V, 50/60 Hz operation.

• 1/15 HP motor rated at 3080 RPM.

• Thermally protected motor with Class B insulation.

• Mounted capacitor, wiring and outlet plate included.

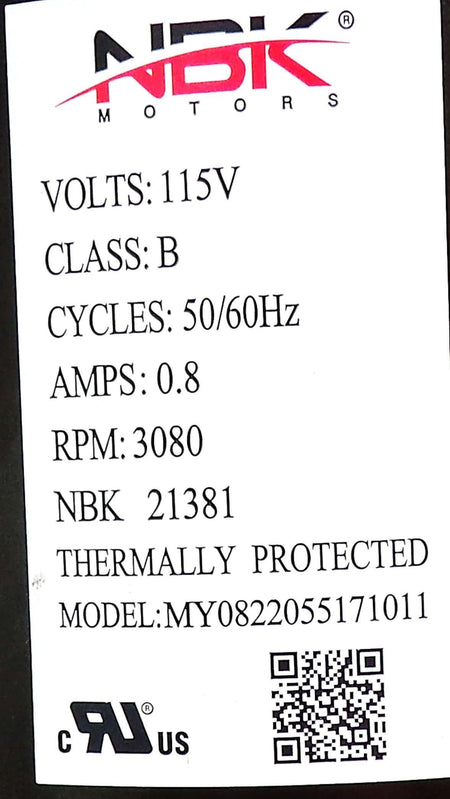

Specifications

NBK part number: 21381
Type: Draft Inducer Motor
Voltage: 115 V
Horsepower: 1/15 HP
Frequency: 50/60 Hz
Current: 0.8 A
Speed: 3080 RPM
Insulation class: B
Thermal protection: Thermally protected

Compatibility / Pairs With

Replacement part numbers:
Modine: 5H0735980001, 5H73598-1
Rotom: FB-RFB599

Match the complete original part number, equipment model, electrical ratings, mounting and connections before ordering. Part-number references do not establish compatibility with every model from a brand.

Browse more replacement parts at Total Hearth.

What's in the Box

1 × NBK-21381 inducer motor and blower assembly with blower wheel, mounted capacitor, wiring and outlet plate.

Important Note

This is an NBK aftermarket part. Disconnect power and let the equipment cool before servicing. A qualified HVAC technician should install the assembly and complete required venting and combustion-system checks.

Why Choose the NBK-21381?

Choose NBK-21381 for a matching Modine 5H0735980001 repair with the motor and blower assembly supplied together.
