NBK-21380 Draft Inducer Motor, 400/460V | Carrier 48TM000647

NBK-21380 Draft Inducer Motor, 400/460V | Carrier 48TM000647

The NBK-21380 aftermarket draft inducer assembly replaces Carrier 48TM000647. It combines a 400/460V motor, blower housing and wheel with wiring and a housing gasket for compatible HVAC equipment.

Key Features

• Replaces Carrier 48TM000647.

• 400/460V, 50/60 Hz operation.

• 2875/3450 RPM motor speed.

• Class B insulation and 40°C ambient temperature rating.

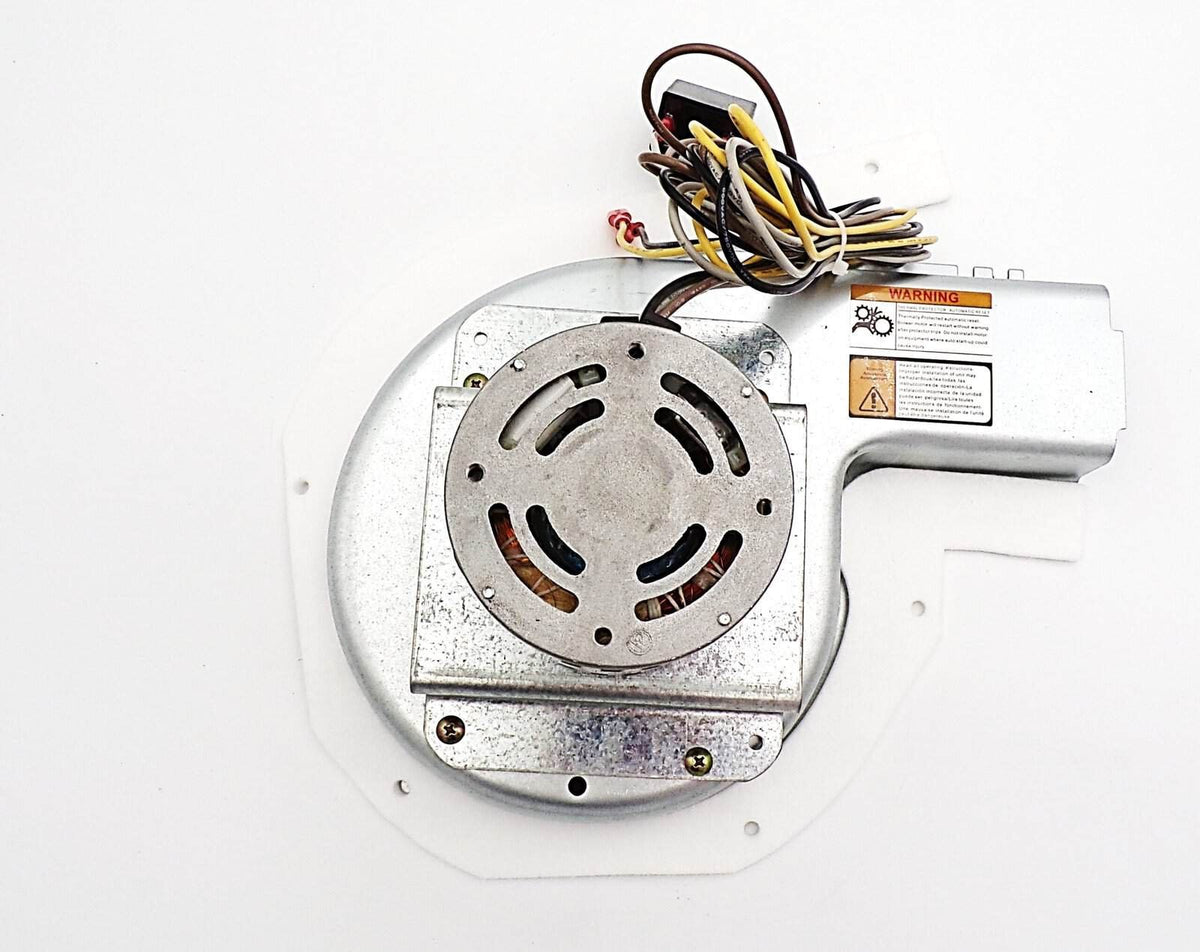

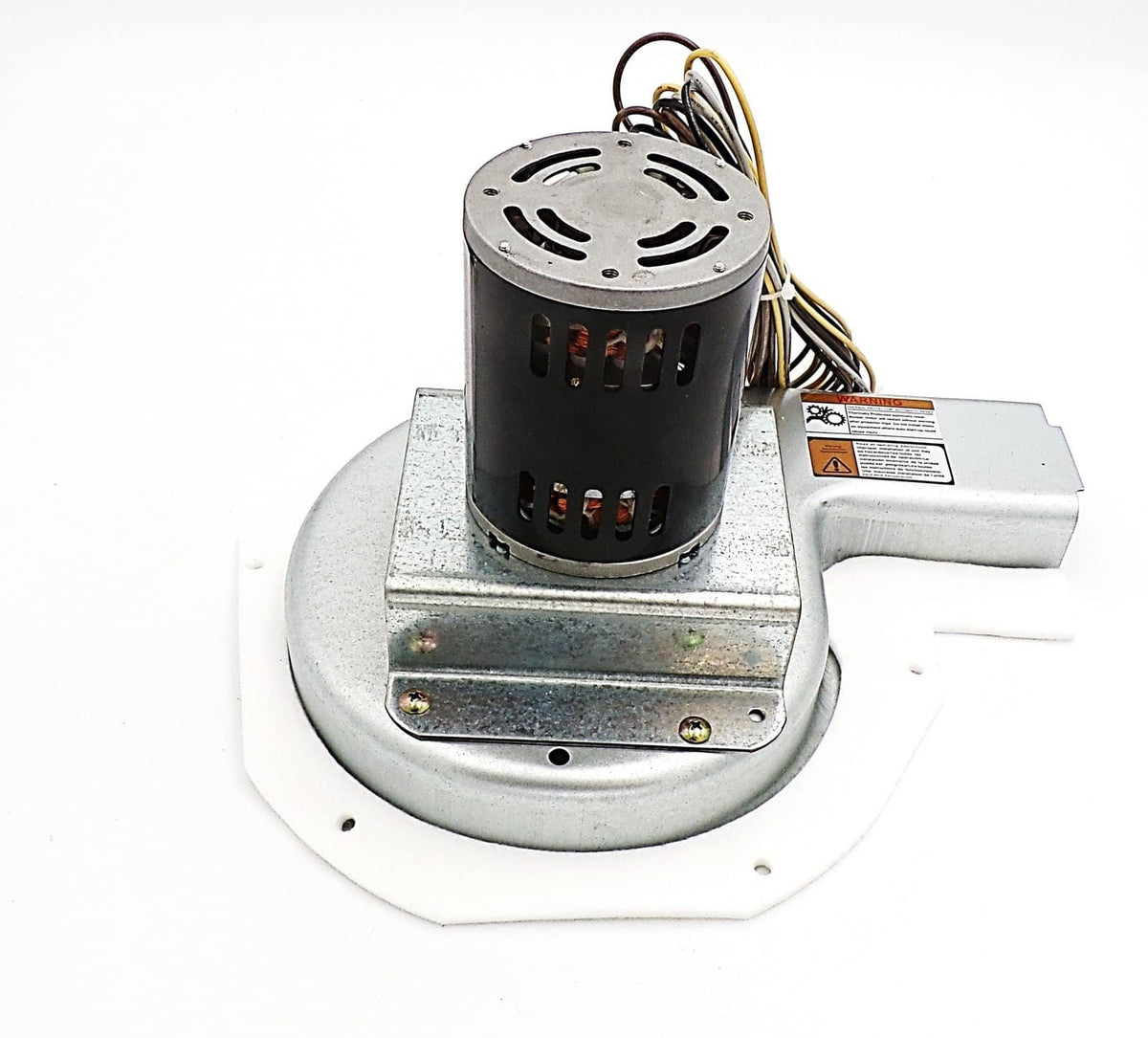

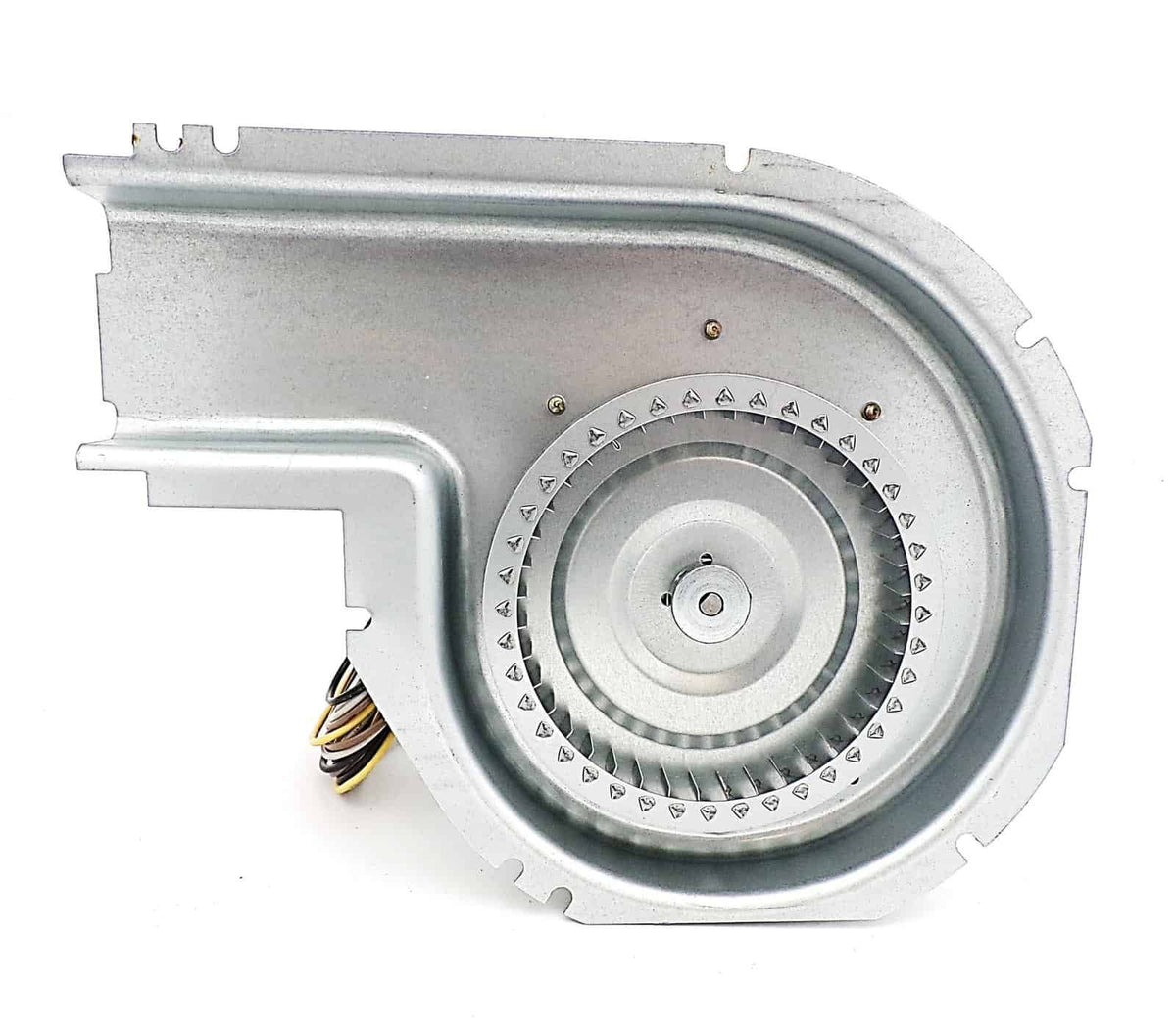

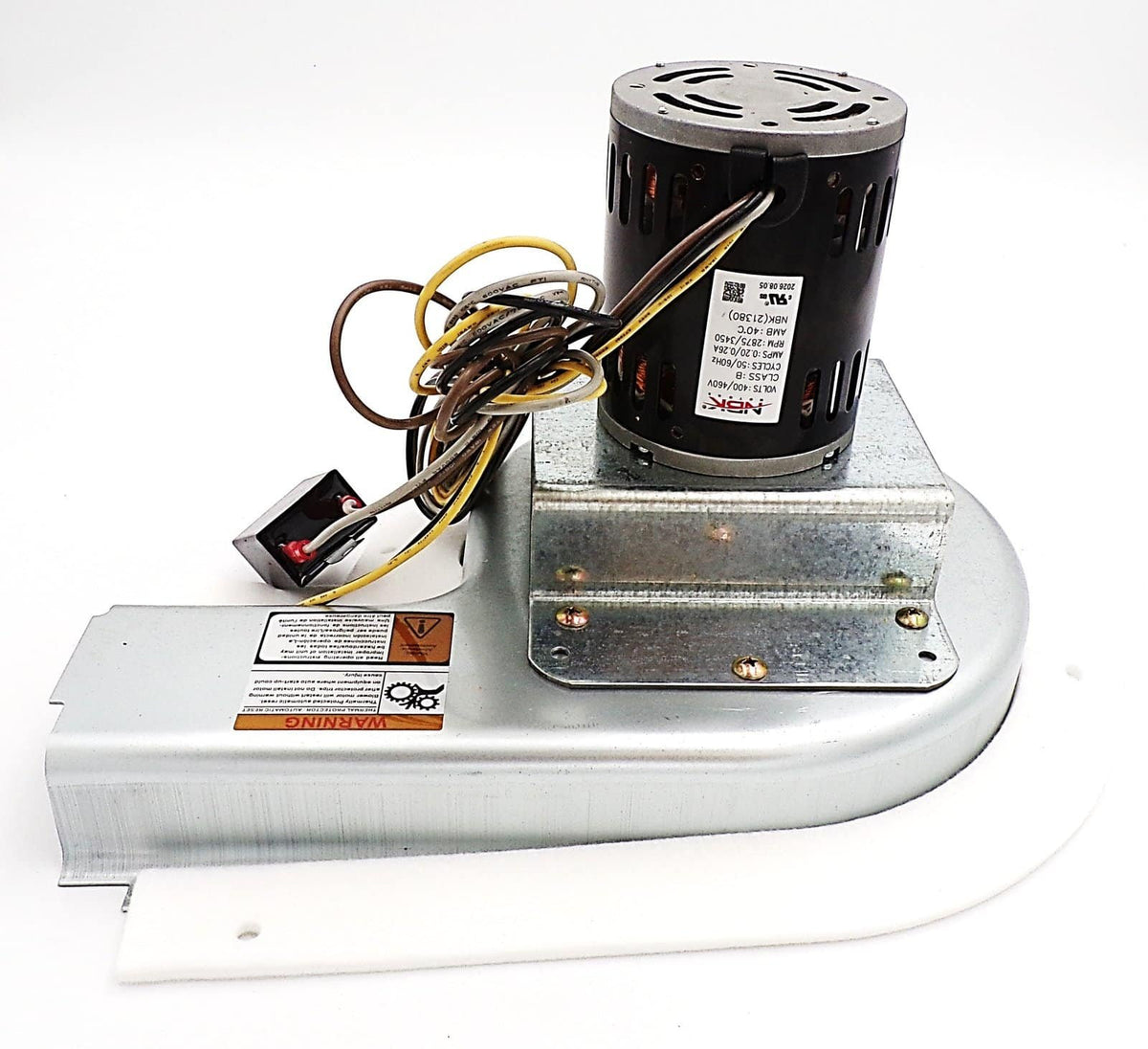

• Motor and blower assembly with wiring and housing gasket.

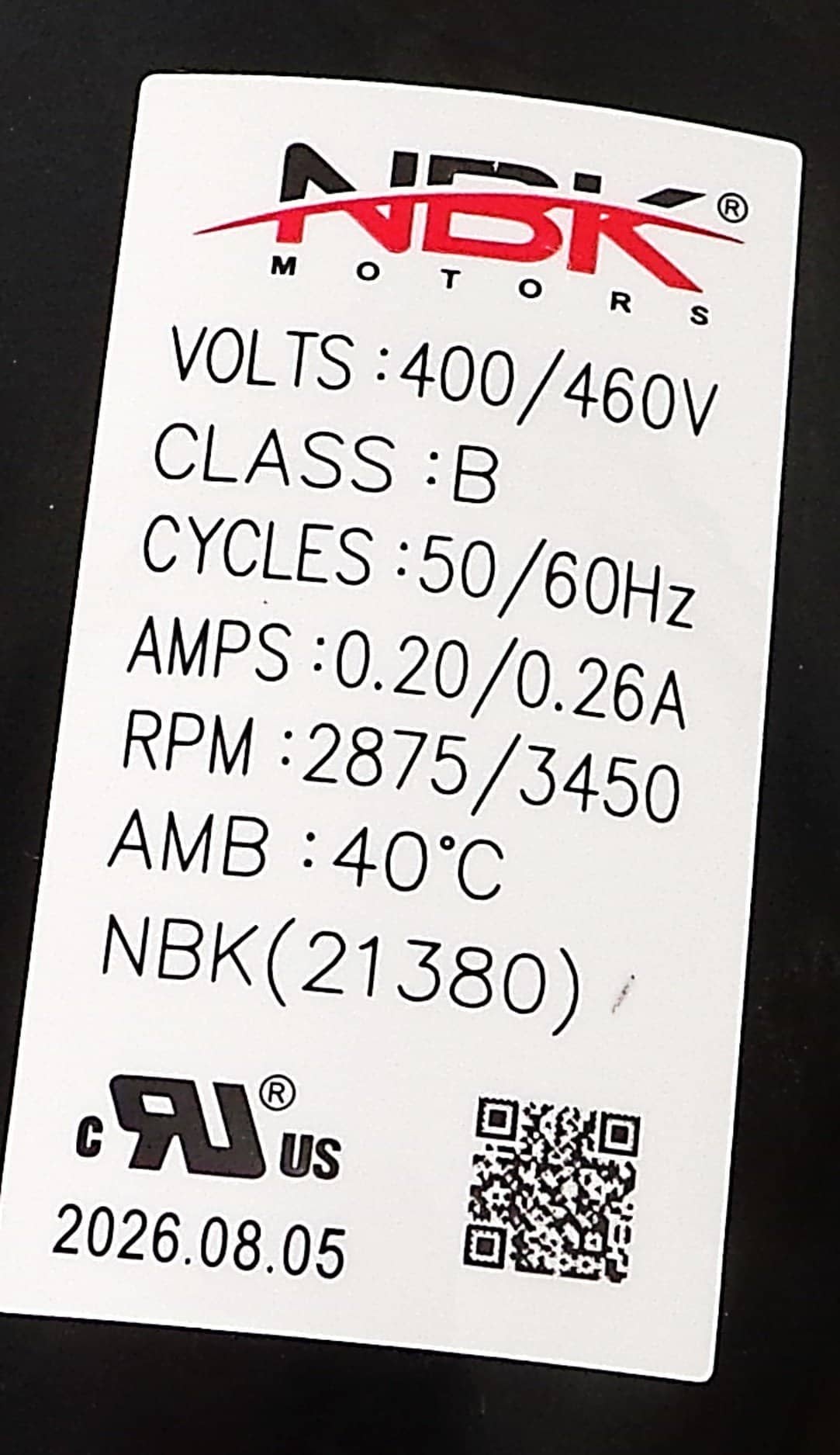

Specifications

NBK part number: 21380
Type: Draft Inducer Motor
Voltage: 400/460 V
Frequency: 50/60 Hz
Current: 0.20/0.26 A
Speed: 2875/3450 RPM
Insulation class: B
Ambient temperature: 40°C

Compatibility / Pairs With

Replacement part numbers:
Carrier: 48TM000647

Match the complete original part number, equipment model, electrical ratings, mounting and connections before ordering. Part-number references do not establish compatibility with every model from a brand.

Browse more replacement parts at Total Hearth.

What's in the Box

1 × NBK-21380 inducer motor assembly with blower wheel, housing and wiring; 1 housing gasket.

Important Note

This is an NBK aftermarket part. Disconnect power and let the equipment cool before servicing. A qualified HVAC technician should install the assembly and complete required venting and combustion-system checks.

Why Choose the NBK-21380?

Choose NBK-21380 for a matching Carrier 48TM000647 repair with the motor and blower assembly supplied together.
