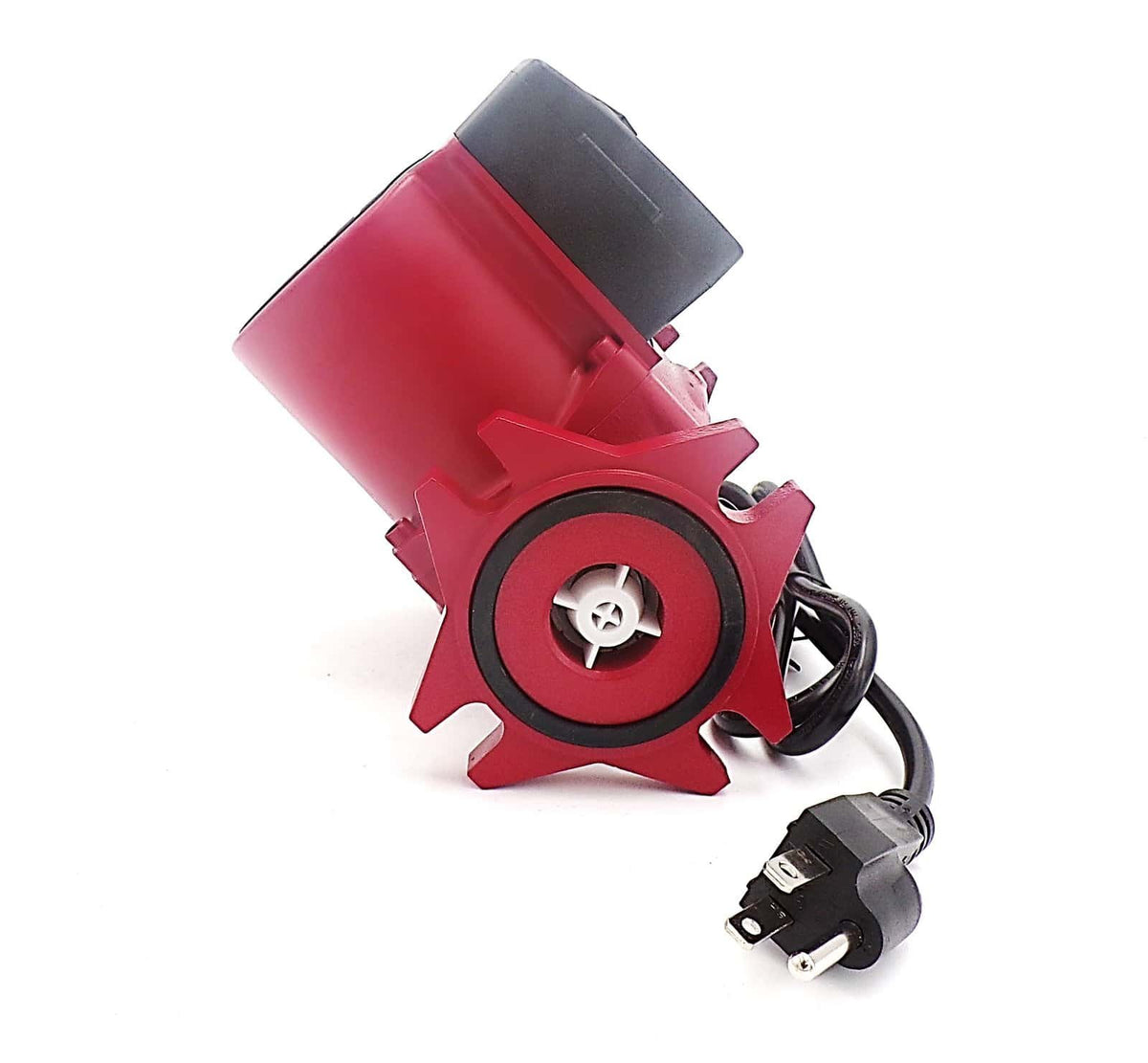

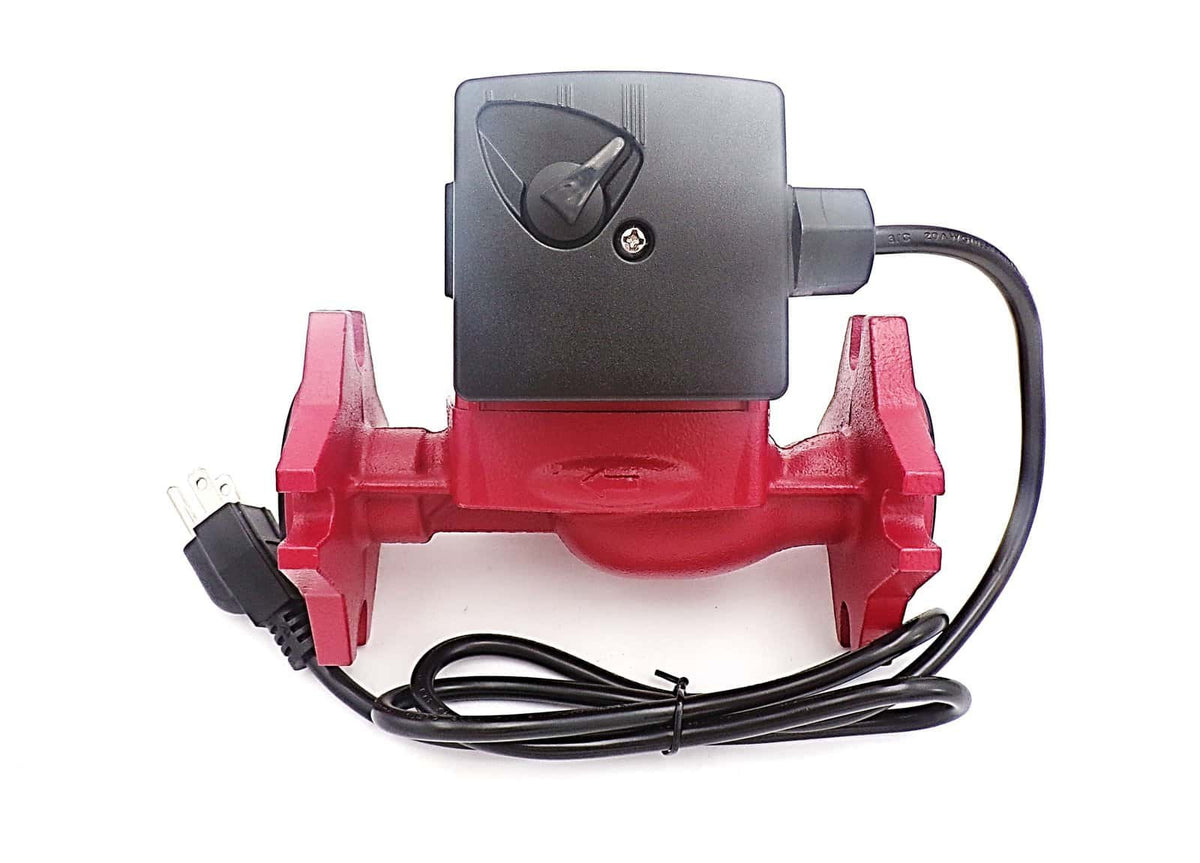

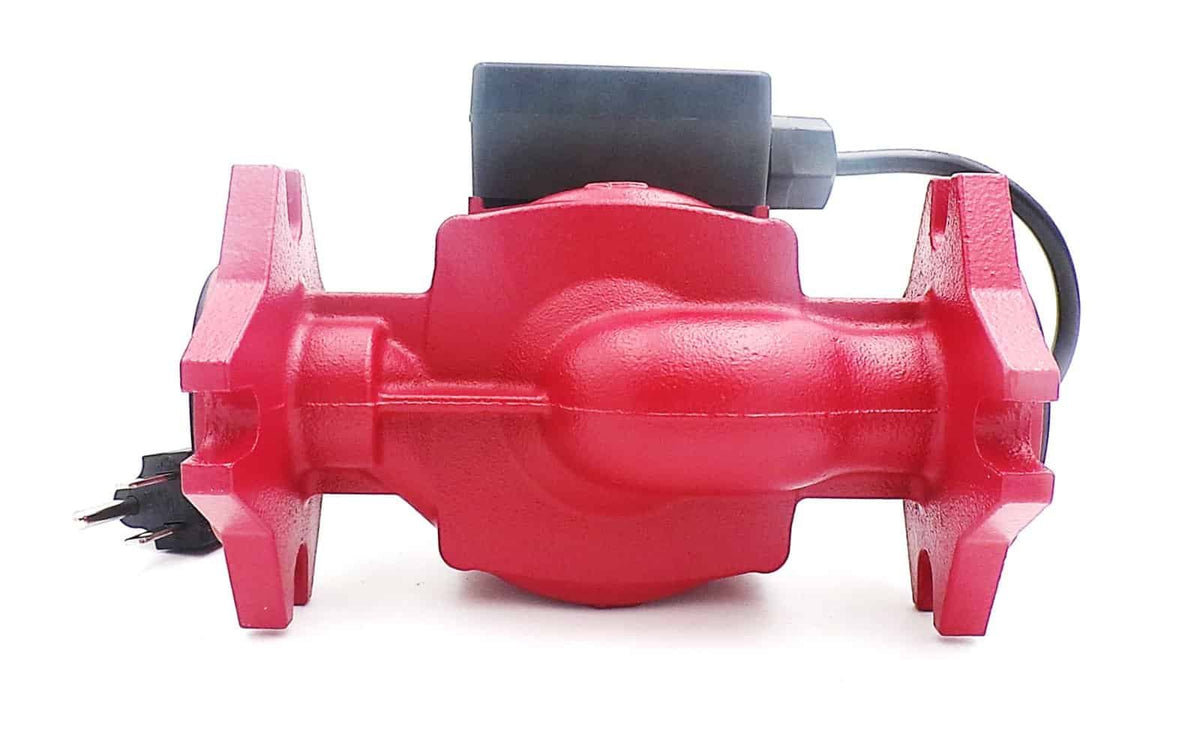

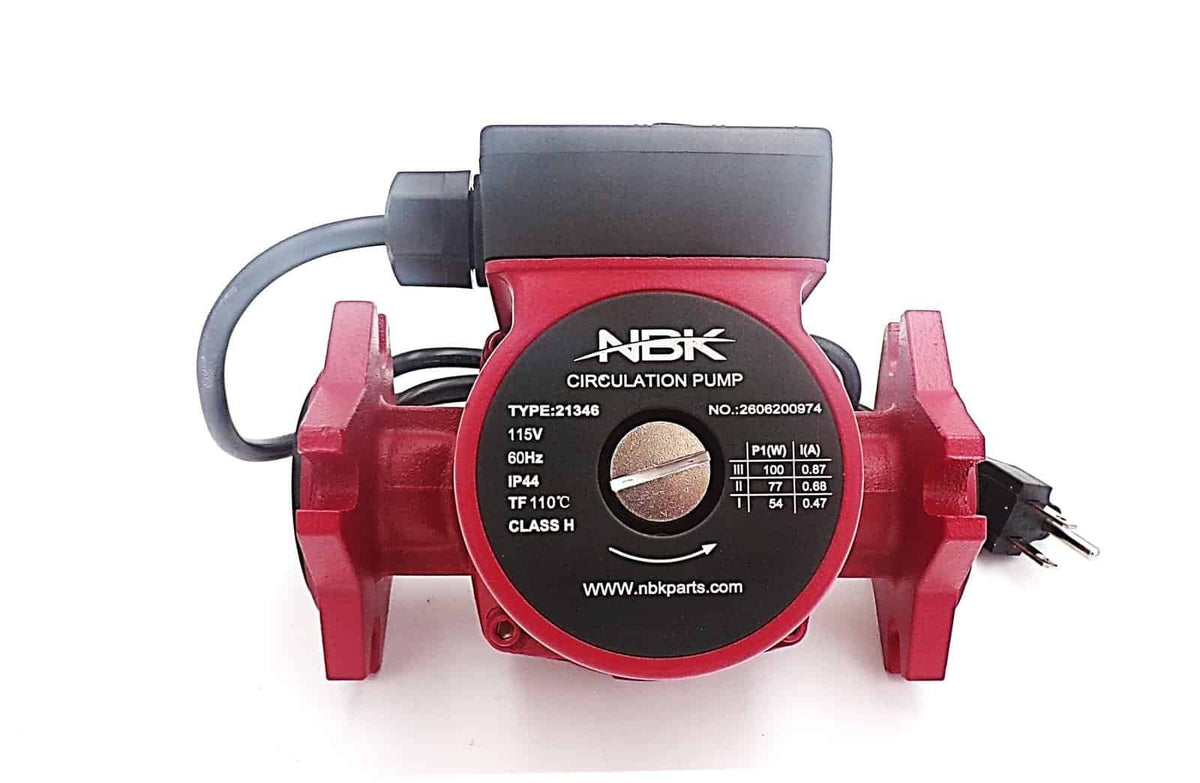

NBK-21346 3-Speed Circulator Pump, 100W | HON PC3F1558IUF00

NBK-21346 3-Speed Circulator Pump, 100W | HON PC3F1558IUF00

The NBK-21346 aftermarket circulator pump replaces HON PC3F1558IUF00. It operates on 115V, 60 Hz power with three speed settings, a four-slot flange connection and an attached grounded power cord.

Key Features

• Replaces HON PC3F1558IUF00.

• 115V, 60 Hz operation.

• Three settings: 54W, 77W and 100W input power.

• Four-slot flange connection.

• Attached grounded power cord.

Specifications

NBK part number: 21346
Type: Circulator Pump
Voltage: 115 V
Frequency: 60 Hz
Speed settings: 3
Input power by setting: I: 54 W; II: 77 W; III: 100 W
Current by setting: I: 0.47 A; II: 0.68 A; III: 0.87 A
Ingress rating: IP44
Thermal class: TF 110°C
Insulation class: H
Connection: Four-slot flange

Compatibility / Pairs With

Replacement part numbers:
HON: PC3F1558IUF00

Match the original part number, voltage, required flow and head, flange dimensions and connections before ordering. Confirm suitability for the system’s fluid, pressure and temperature requirements.

Browse more replacement parts at Total Hearth.

What's in the Box

1 × NBK-21346 circulator pump with attached grounded power cord.

Important Note

This is an NBK aftermarket part. Disconnect power, let the system cool, isolate and relieve pressure before service. A qualified installer should fit the pump, check for leaks and follow the system’s filling instructions.

Why Choose the NBK-21346?

Choose NBK-21346 for a matching HON PC3F1558IUF00 repair with three selectable settings and an attached grounded cord.
