NBK-21345 Two-Speed Draft Inducer Motor | Fasco 70625423

NBK-21345 Two-Speed Draft Inducer Motor | Fasco 70625423

The NBK-21345 is a two-speed, 115V aftermarket draft inducer assembly that replaces Fasco 70625423, Nidec 820443 and US Motors N11969. Its 1/8 HP motor is assembled with the blower housing, attached wiring and mounted capacitor.

Key Features

• Replaces Fasco 70625423, Nidec 820443 and US Motors N11969.

• 115V, 60 Hz operation.

• Two-speed motor with a 1/8 HP rating.

• Thermally protected motor with Class B insulation.

• Attached wiring and mounted capacitor included.

Specifications

NBK part number: 21345
Type: Draft Inducer Motor
Voltage: 115 V
Frequency: 60 Hz
Horsepower: 1/8 HP
Current: 2.0 A
Number of speeds: 2
Insulation class: B
Thermal protection: Thermally protected

Compatibility / Pairs With

Replacement part numbers:
Fasco: 70625423
Nidec: 820443
US Motors: N11969

Match the complete original part number, equipment model, electrical ratings, mounting pattern and connections before ordering. Part-number references do not establish compatibility with every model from a brand.

Browse more replacement parts at Total Hearth.

What's in the Box

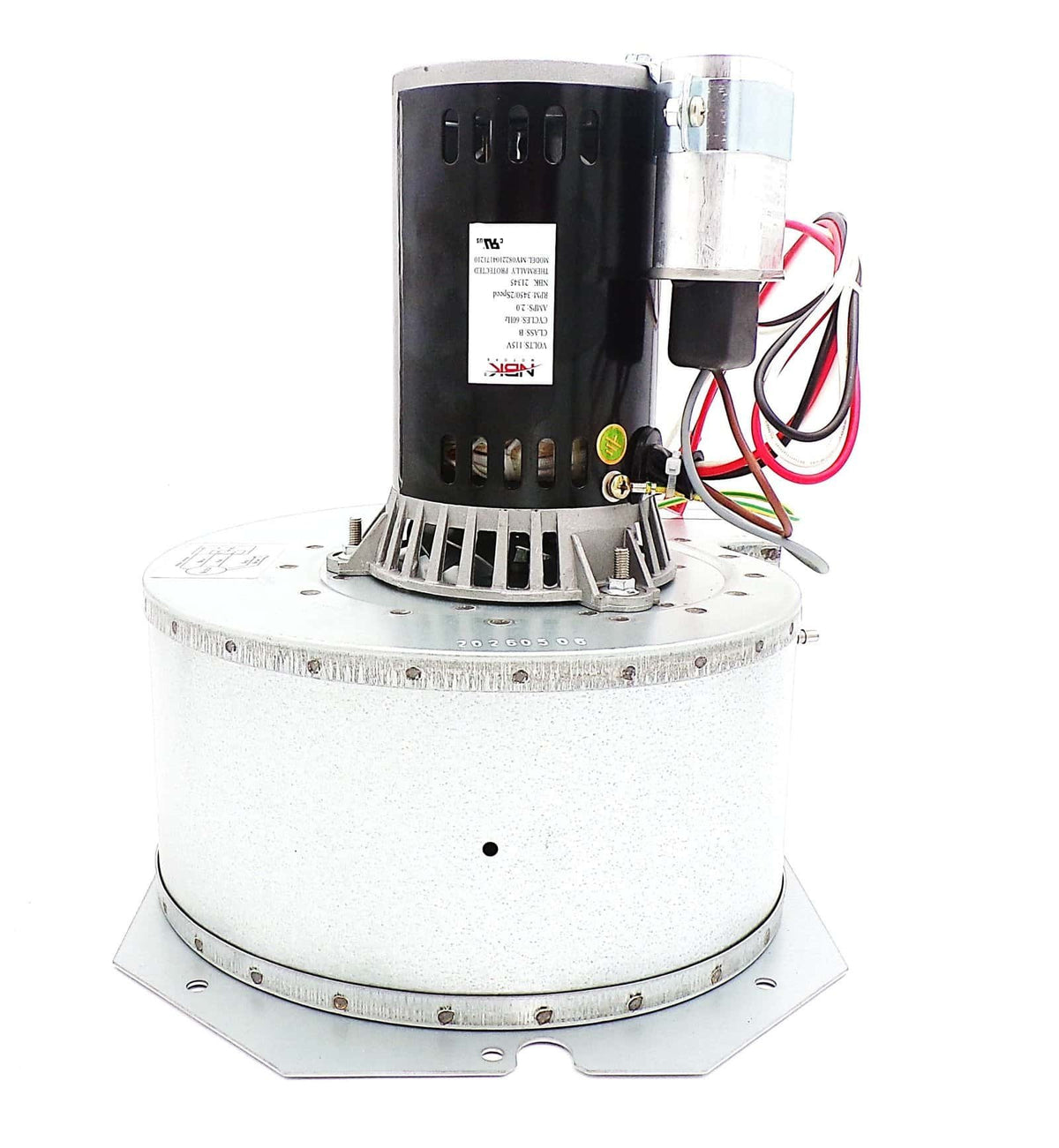

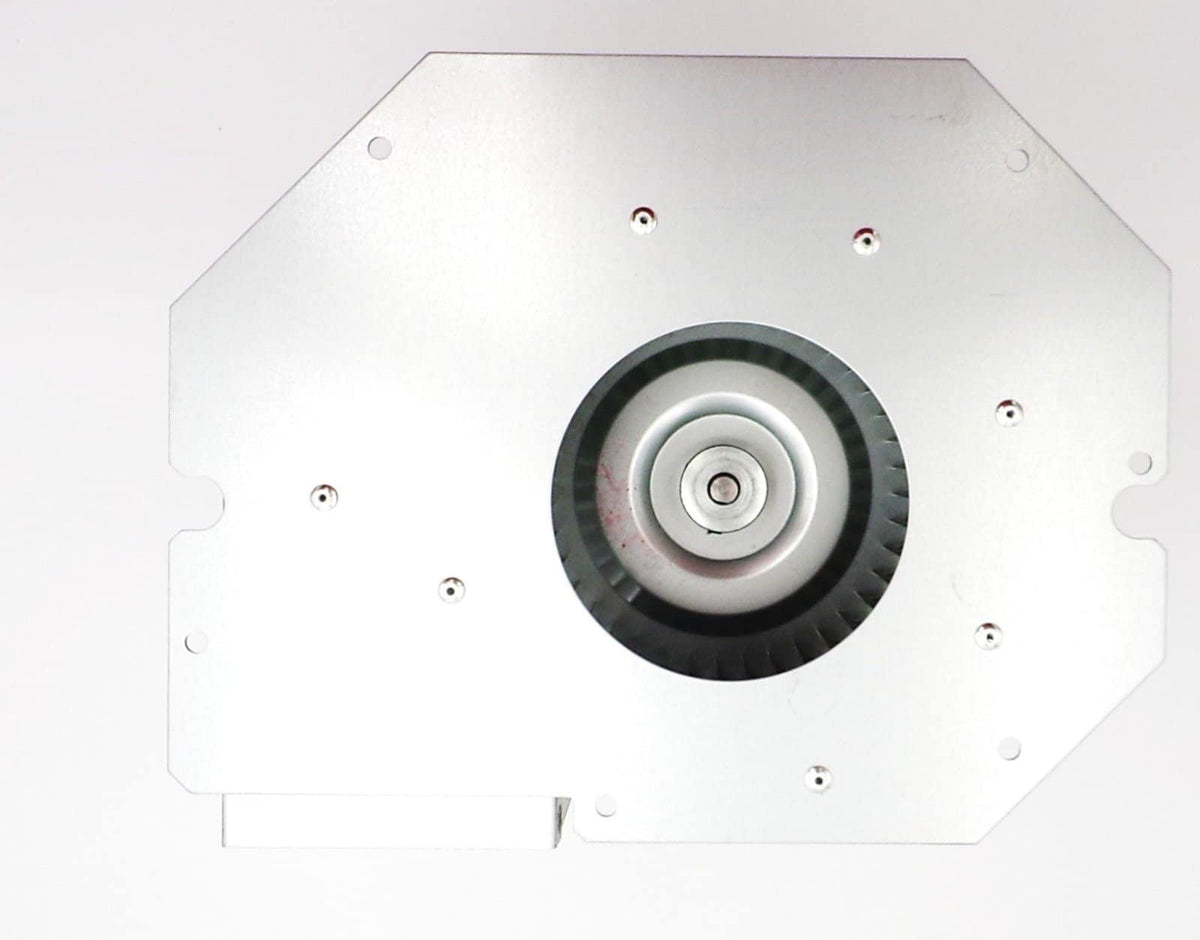

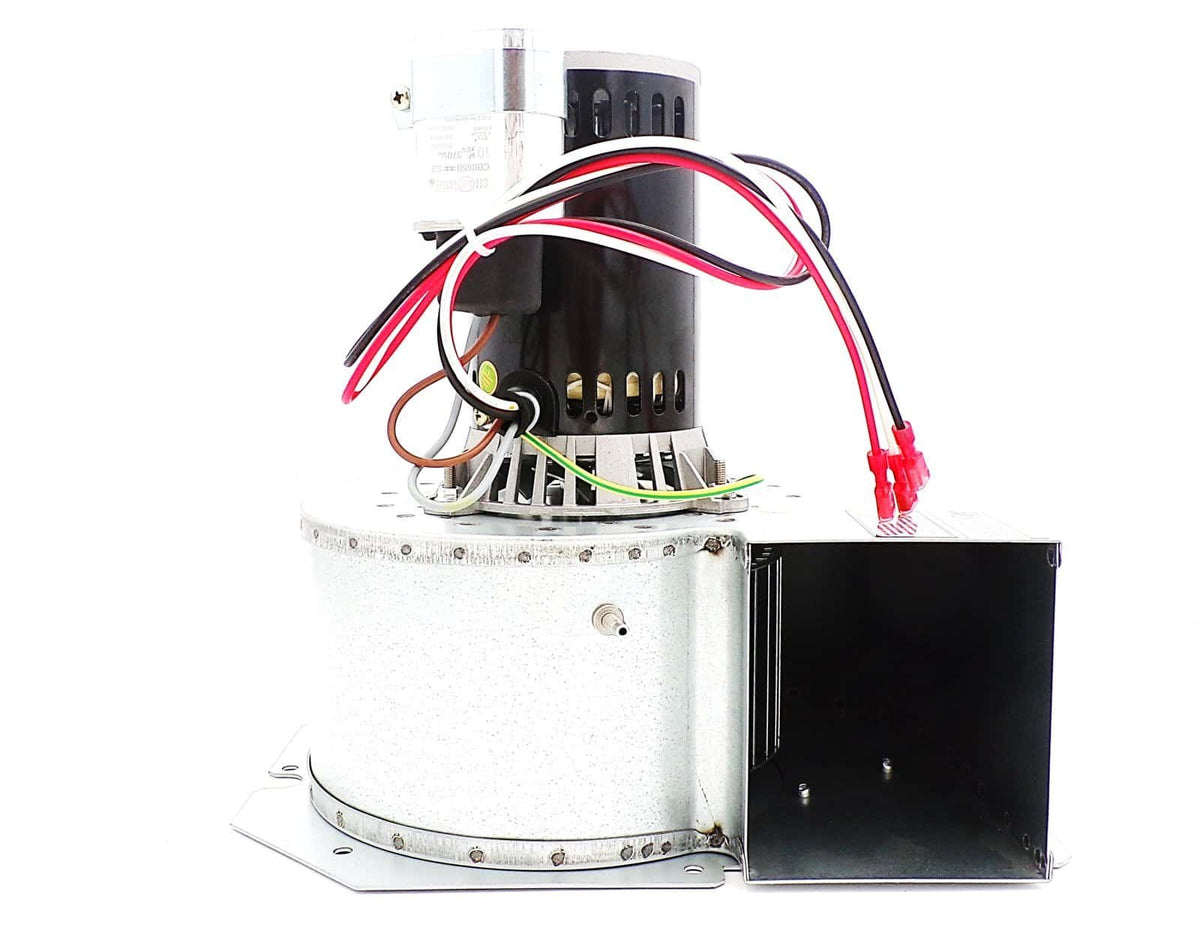

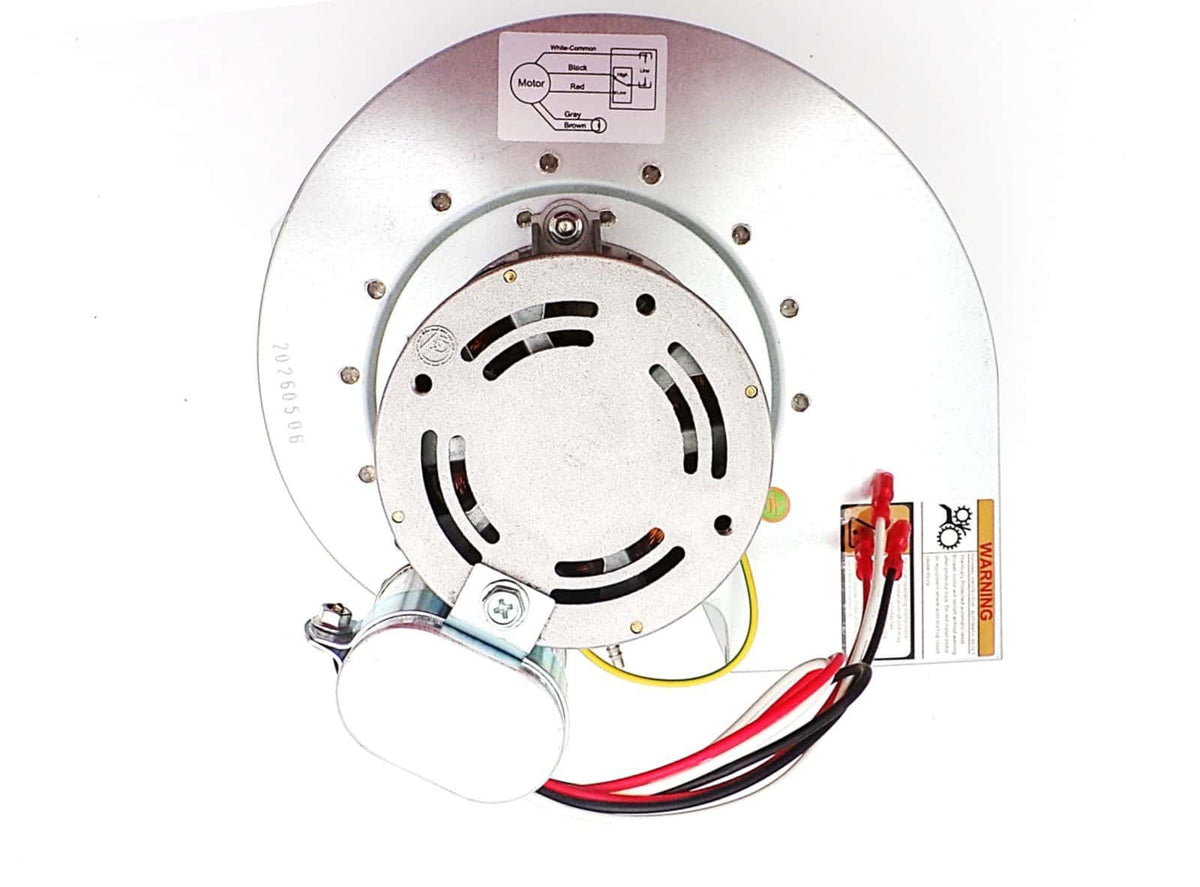

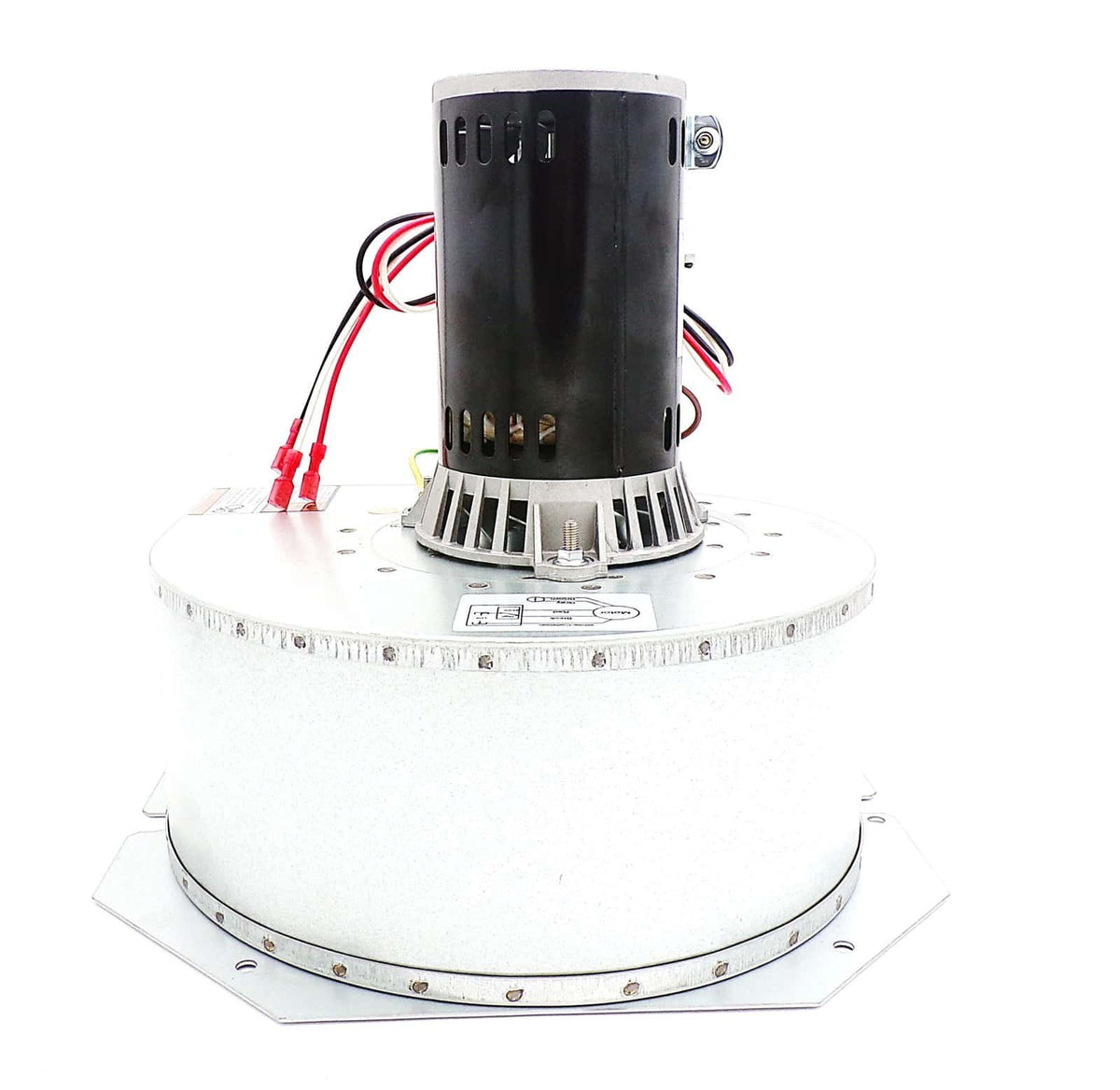

1 × NBK-21345 draft inducer assembly with motor, blower wheel, housing, attached wiring and mounted capacitor.

Important Note

This is an NBK aftermarket part. Disconnect electrical power and allow the equipment to cool before servicing. A qualified HVAC technician should install the assembly and complete the required venting and combustion-system checks according to the equipment manufacturer’s instructions.

Why Choose the NBK-21345?

Choose the NBK-21345 for a matching two-speed inducer repair requiring Fasco 70625423, Nidec 820443 or US Motors N11969, with a mounted capacitor and attached wiring.
