NBK-21344 Draft Inducer Motor, 1/15 HP | Fasco 70626112

NBK-21344 Draft Inducer Motor, 1/15 HP | Fasco 70626112

The NBK-21344 is a 115V, 1/15 HP aftermarket draft inducer assembly that replaces Fasco 70626112, Nidec 820444 and US Motors N0110. It includes the motor, blower housing and attached wiring for a compatible HVAC repair.

Key Features

• Replaces Fasco 70626112, Nidec 820444 and US Motors N0110.

• 115V, 60 Hz operation.

• 1/15 HP motor with a 3200 RPM speed.

• Thermally protected motor with Class B insulation.

• Motor and blower housing assembly with attached wiring.

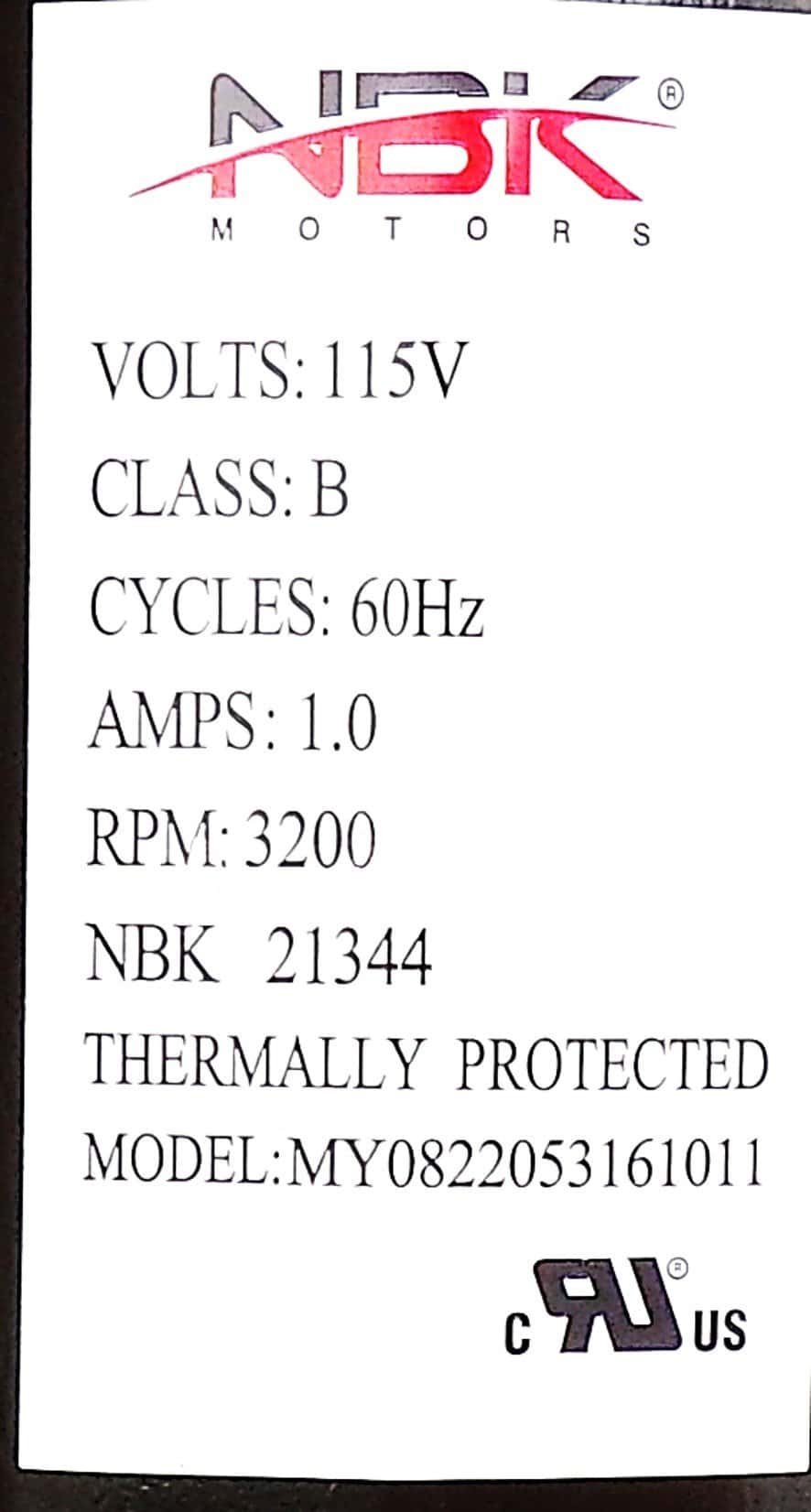

Specifications

NBK part number: 21344
Type: Draft Inducer Motor
Voltage: 115 V
Frequency: 60 Hz
Horsepower: 1/15 HP
Current: 1.0 A
Speed: 3200 RPM
Insulation class: B
Thermal protection: Thermally protected

Compatibility / Pairs With

Replacement part numbers:
Fasco: 70626112
Nidec: 820444
US Motors: N0110

Match the complete original part number, equipment model, electrical ratings, mounting pattern and connections before ordering. Part-number references do not establish compatibility with every model from a brand.

Browse more replacement parts at Total Hearth.

What's in the Box

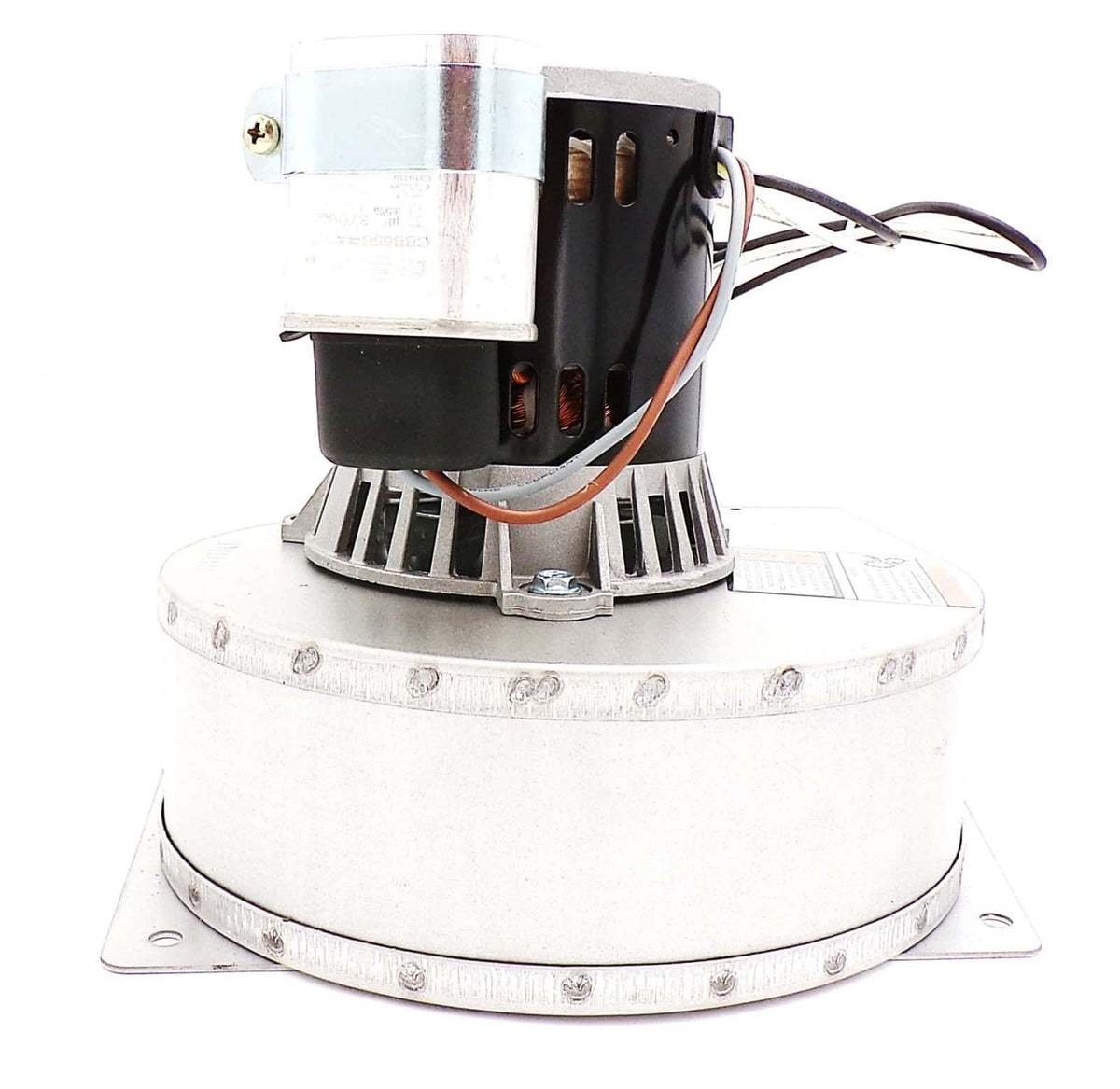

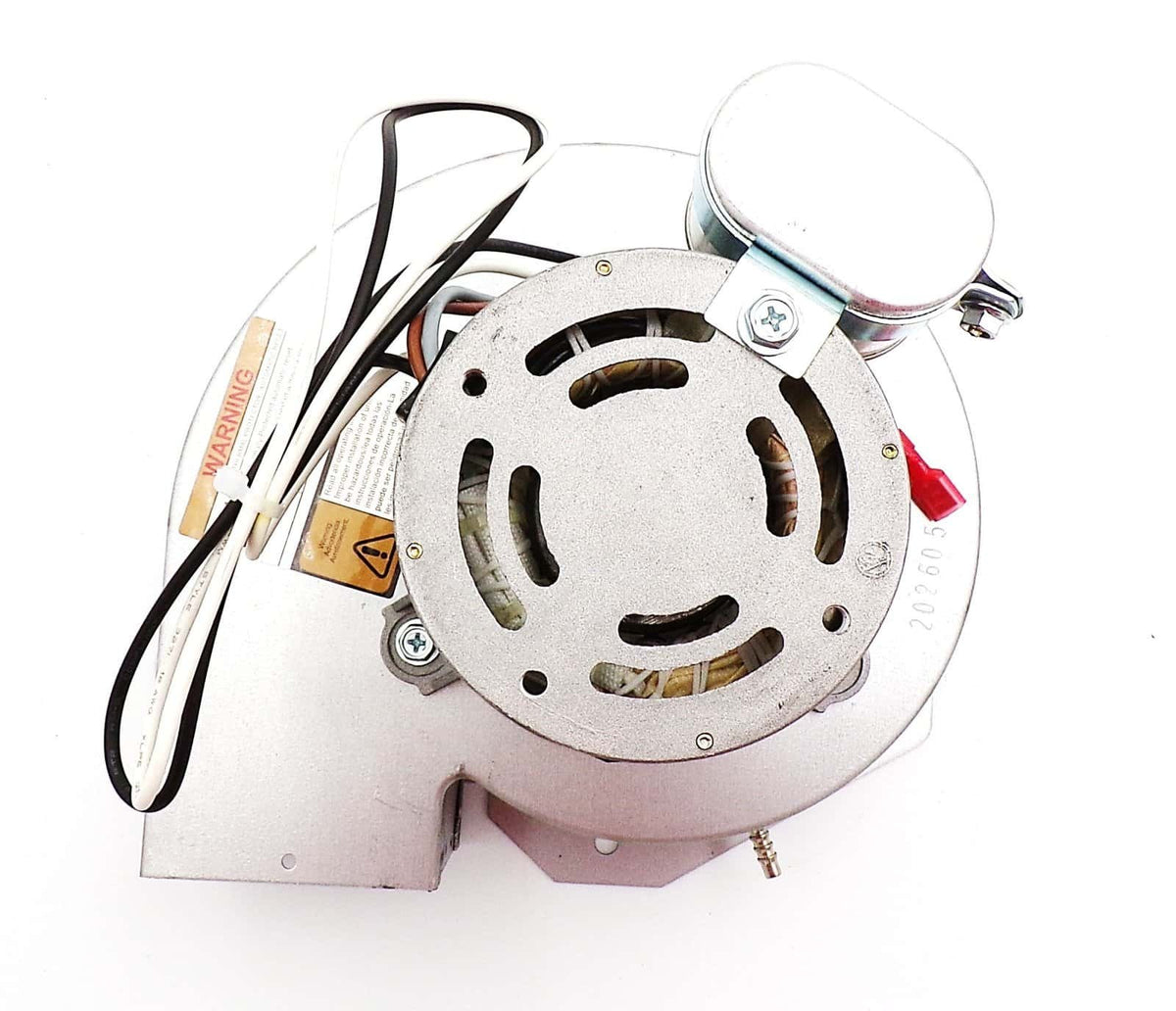

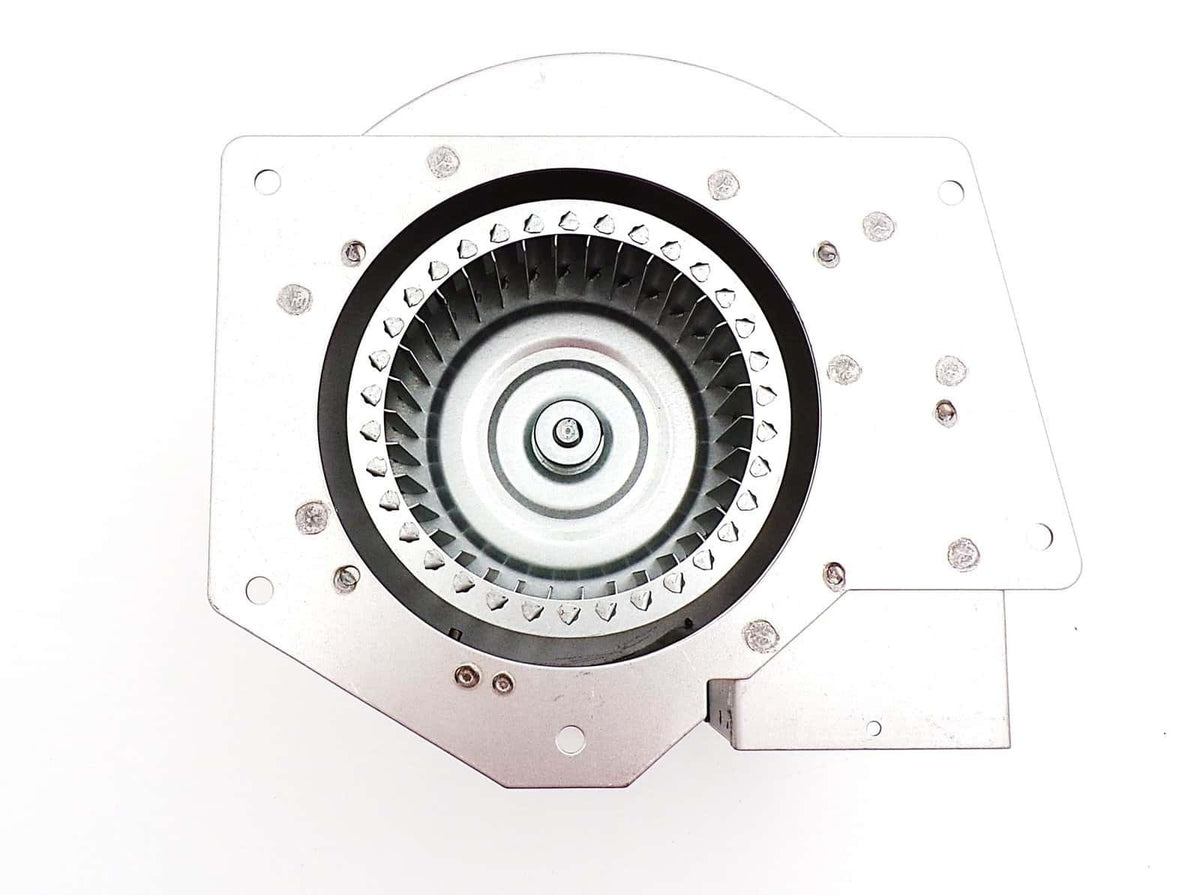

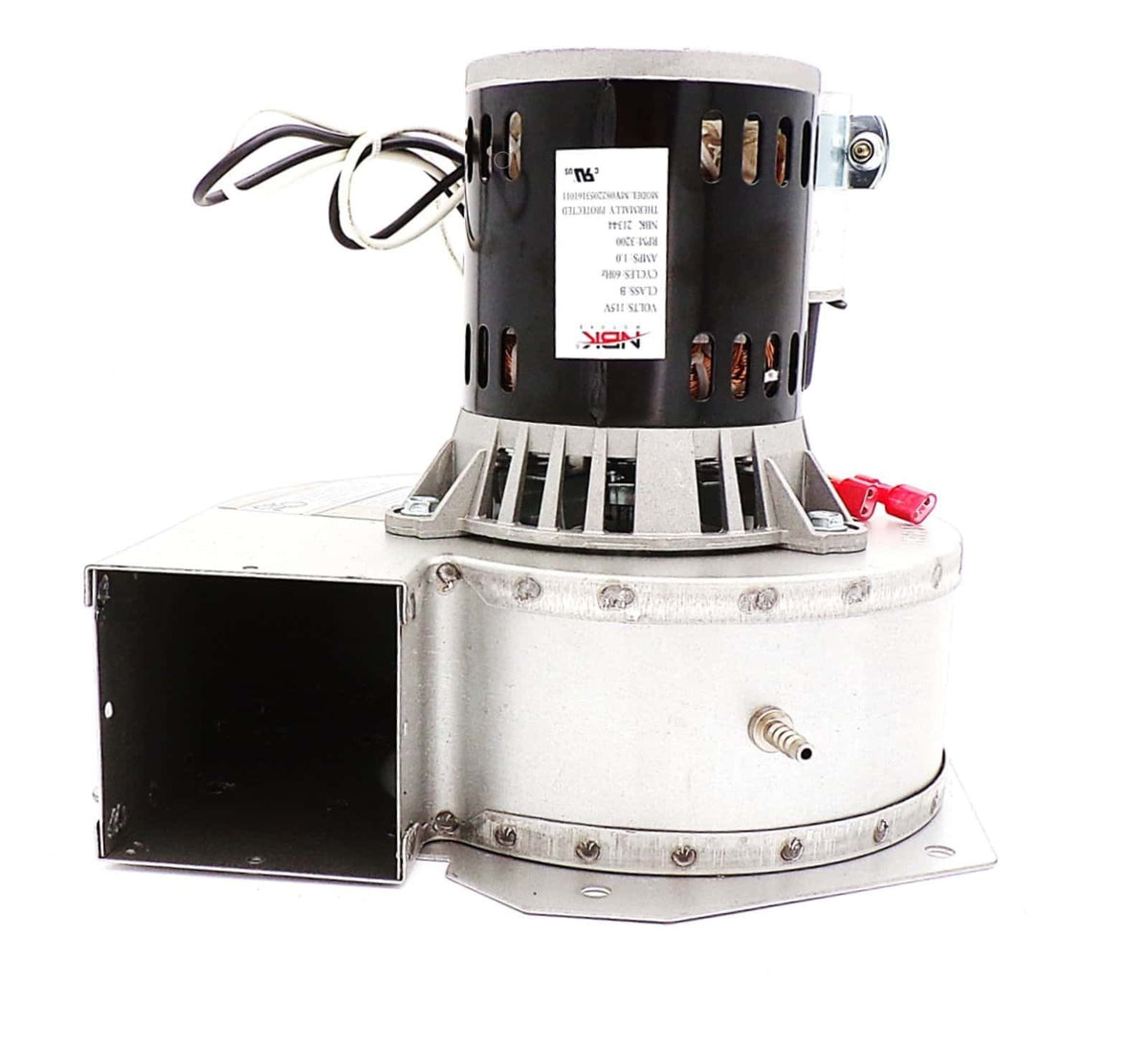

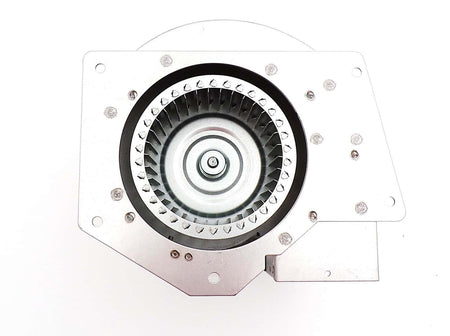

1 × NBK-21344 draft inducer assembly with motor, blower wheel, housing, attached wiring and mounted capacitor.

Important Note

This is an NBK aftermarket part. Disconnect electrical power and allow the equipment to cool before servicing. A qualified HVAC technician should install the assembly and complete the required venting and combustion-system checks according to the equipment manufacturer’s instructions.

Why Choose the NBK-21344?

Choose the NBK-21344 for a repair requiring Fasco 70626112 or a matching replacement part number above, with the correct electrical and mechanical fit.
