NBK-21335 ECM Refrigeration Motor, 1550 RPM | Genteq 5472

NBK-21335 ECM Refrigeration Motor, 1550 RPM | Genteq 5472

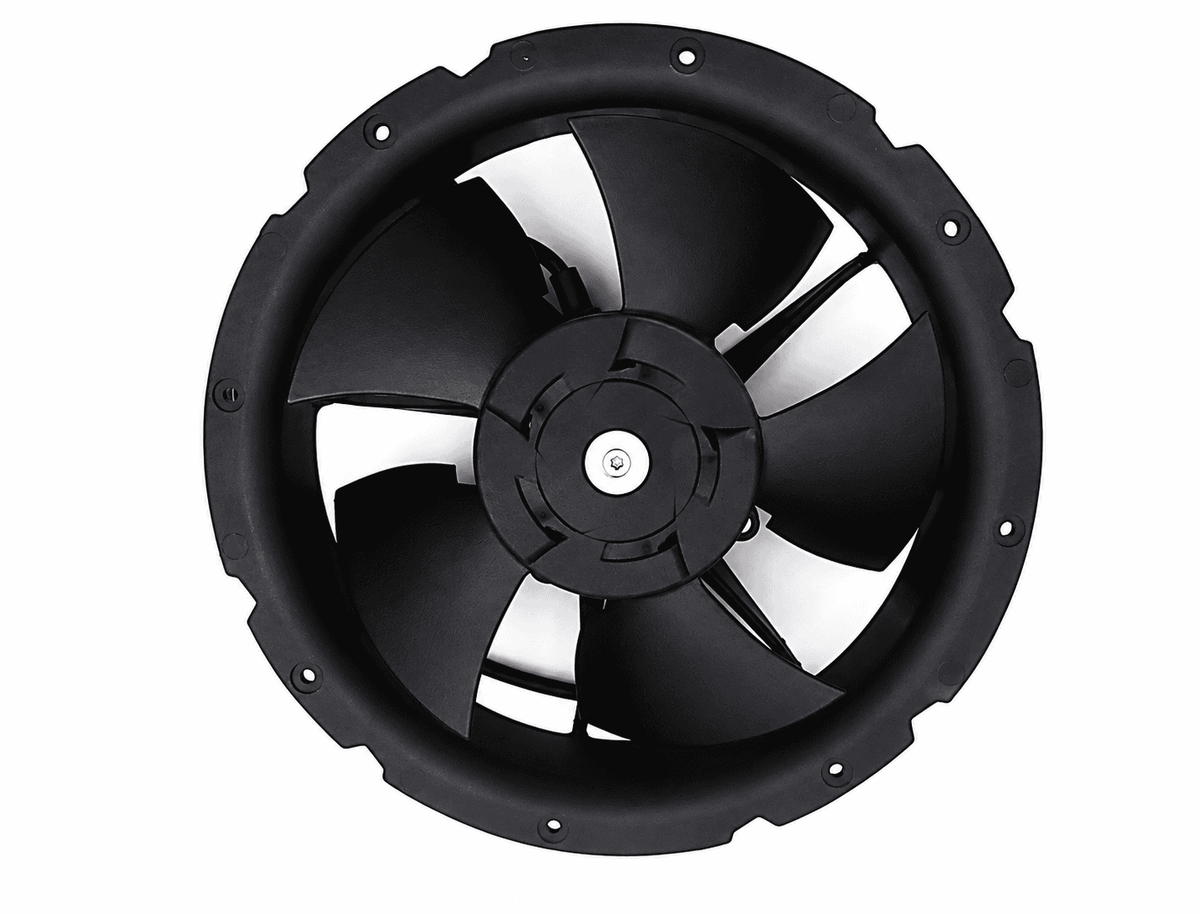

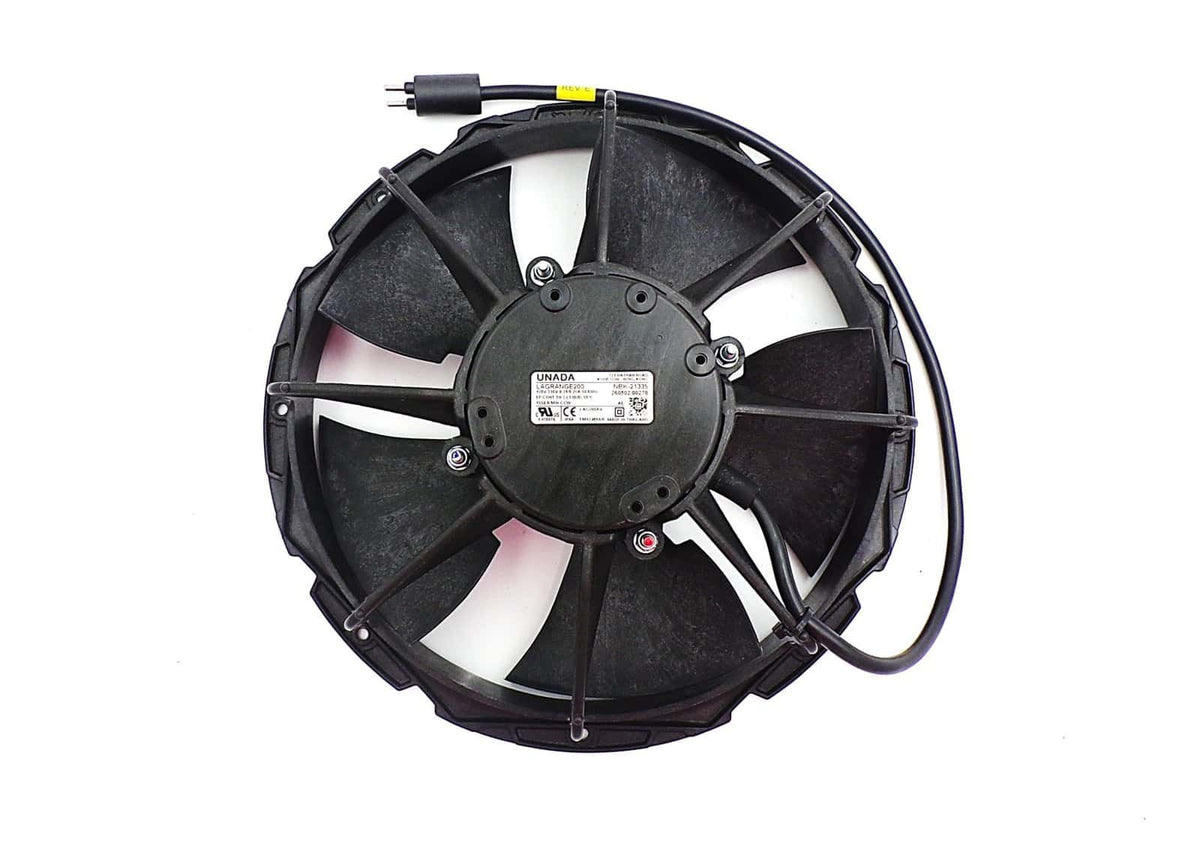

The NBK-21335 aftermarket ECM refrigeration motor replaces Genteq 5472 and the matching MARS and US Motors parts below. This 120/230V assembly runs at 1550 RPM with CCW rotation and includes the fan blade and mounting frame.

Key Features

• Replaces Genteq 5472 and matching MARS and US Motors parts below.

• 120/230V, 50/60 Hz operation.

• 1550 RPM with CCW rotation.

• Continuous-duty motor with IP66 ingress rating.

• Fan blade, mounting frame and electrical lead with connector included.

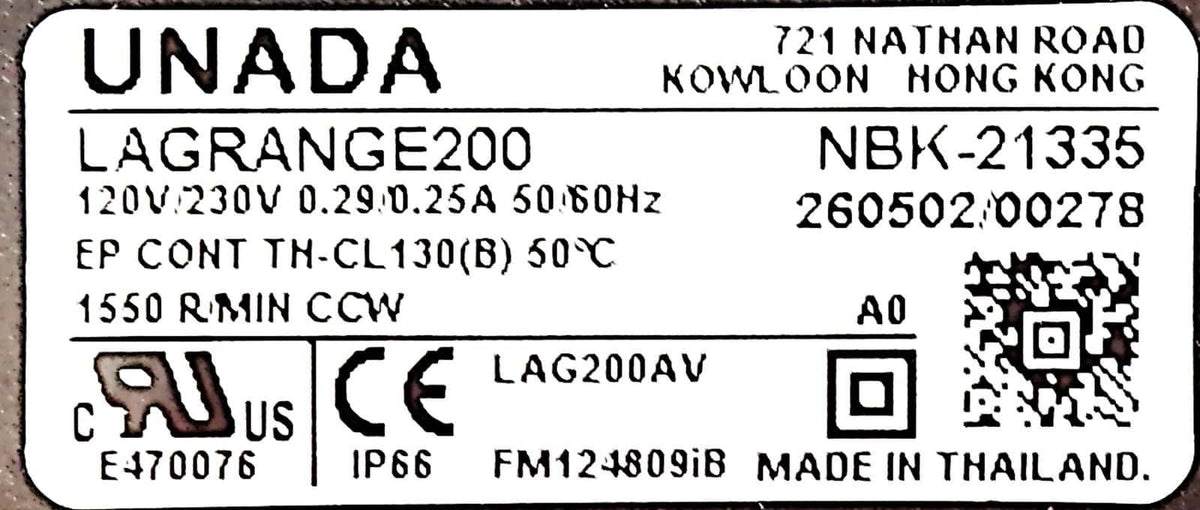

Specifications

NBK part number: 21335
Type: ECM Refrigeration Motor
Voltage: 120/230 V
Frequency: 50/60 Hz
Current: 0.29/0.25 A
Speed: 1550 RPM
Rotation: CCW
Duty: Continuous
Thermal class: 130(B)
Ingress rating: IP66

Compatibility / Pairs With

Replacement part numbers:
Genteq: 5472
MARS: 05472
US Motors: EC5472FP, S82-749

Match the original part number, voltage, speed, rotation, mounting, fan and connector before ordering. Confirm the rotation viewing direction with the equipment manufacturer; references do not cover every model.

Browse more replacement parts at Total Hearth.

What's in the Box

1 × NBK-21335 ECM refrigeration motor assembly with fan blade, mounting frame and attached electrical lead with connector.

Important Note

This is an NBK aftermarket part. Disconnect power before servicing. A qualified technician should install the assembly, check wiring and rotation, and secure the fan and guards before operation.

Why Choose the NBK-21335?

Choose NBK-21335 for a matching 1550 RPM refrigeration-motor repair with the fan blade and mounting frame included.
