NBK-21334 ECM Refrigeration Motor, 1450 RPM | Genteq MD5471

NBK-21334 ECM Refrigeration Motor, 1450 RPM | Genteq MD5471

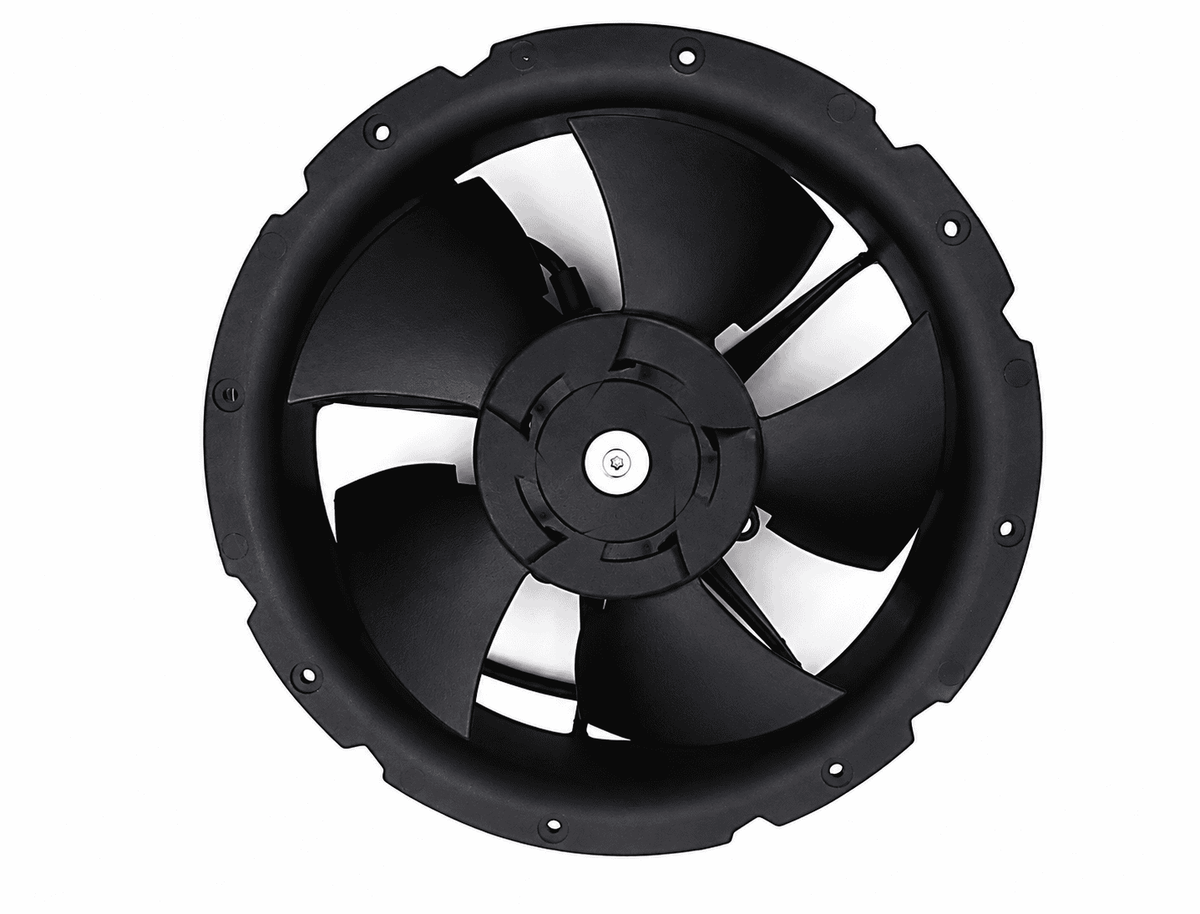

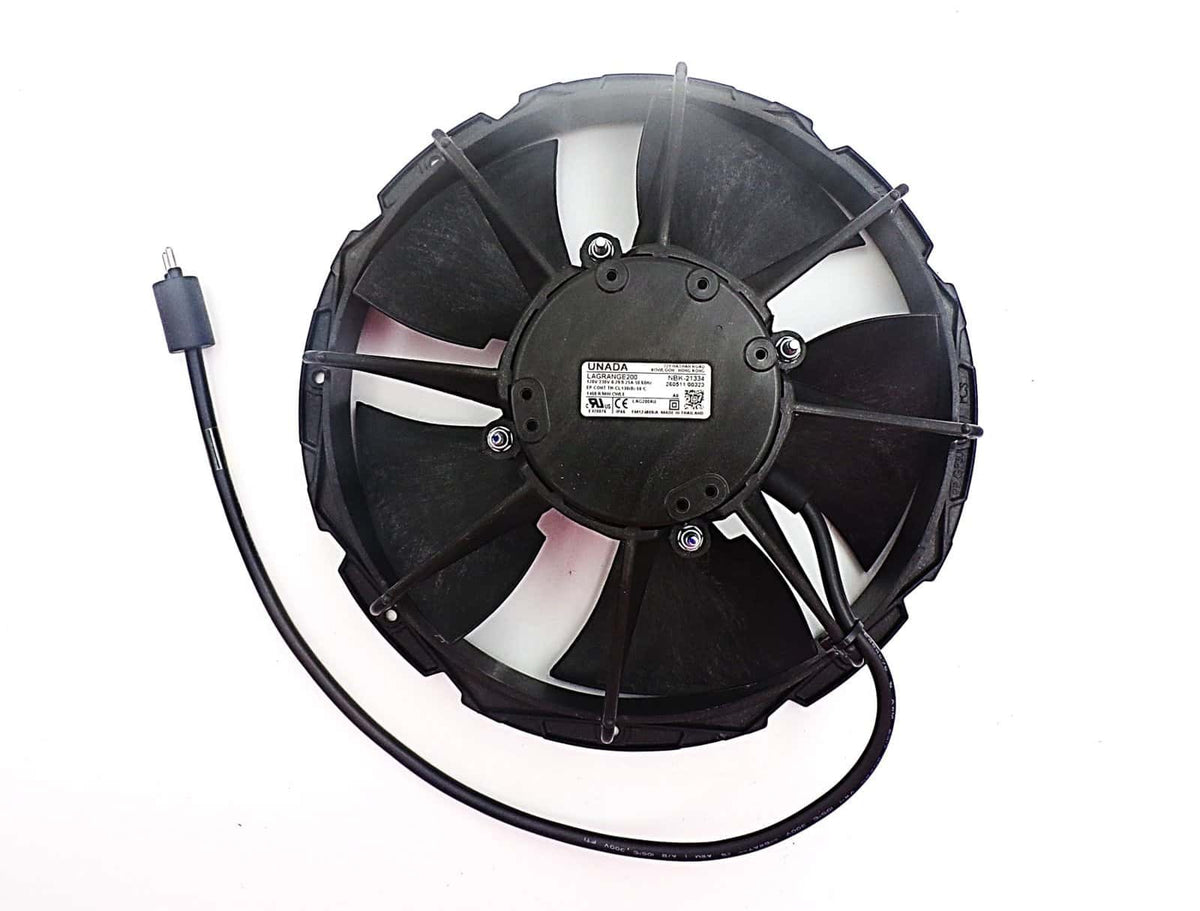

The NBK-21334 aftermarket ECM refrigeration motor replaces Genteq MD5471 and the matching MARS and US Motors parts below. This 120/230V assembly runs at 1450 RPM with CWLE rotation and includes the fan blade and mounting frame.

Key Features

• Replaces Genteq MD5471 and matching MARS and US Motors parts below.

• 120/230V, 50/60 Hz operation.

• 1450 RPM with CWLE rotation.

• Continuous-duty motor with IP66 ingress rating.

• Fan blade, mounting frame and electrical lead with connector included.

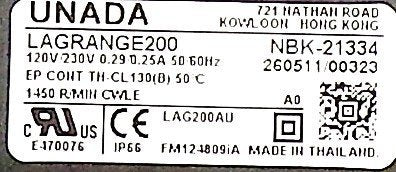

Specifications

NBK part number: 21334
Type: ECM Refrigeration Motor
Voltage: 120/230 V
Frequency: 50/60 Hz
Current: 0.29/0.25 A
Speed: 1450 RPM
Rotation: CWLE
Duty: Continuous
Thermal class: 130(B)
Ingress rating: IP66

Compatibility / Pairs With

Replacement part numbers:
Genteq: MD5471
MARS: 05471, S81-804
US Motors: EC5471

Match the original part number, voltage, speed, rotation, mounting, fan and connector before ordering. Confirm the rotation viewing direction with the equipment manufacturer; references do not cover every model.

Browse more replacement parts at Total Hearth.

What's in the Box

1 × NBK-21334 ECM refrigeration motor assembly with fan blade, mounting frame and attached electrical lead with connector.

Important Note

This is an NBK aftermarket part. Disconnect power before servicing. A qualified technician should install the assembly, check wiring and rotation, and secure the fan and guards before operation.

Why Choose the NBK-21334?

Choose NBK-21334 for a matching 1450 RPM refrigeration-motor repair with the fan blade and mounting frame included.
