NBK-21310 3-Speed Circulator Pump, 1/8 HP | Taco 009-F5

NBK-21310 3-Speed Circulator Pump, 1/8 HP | Taco 009-F5

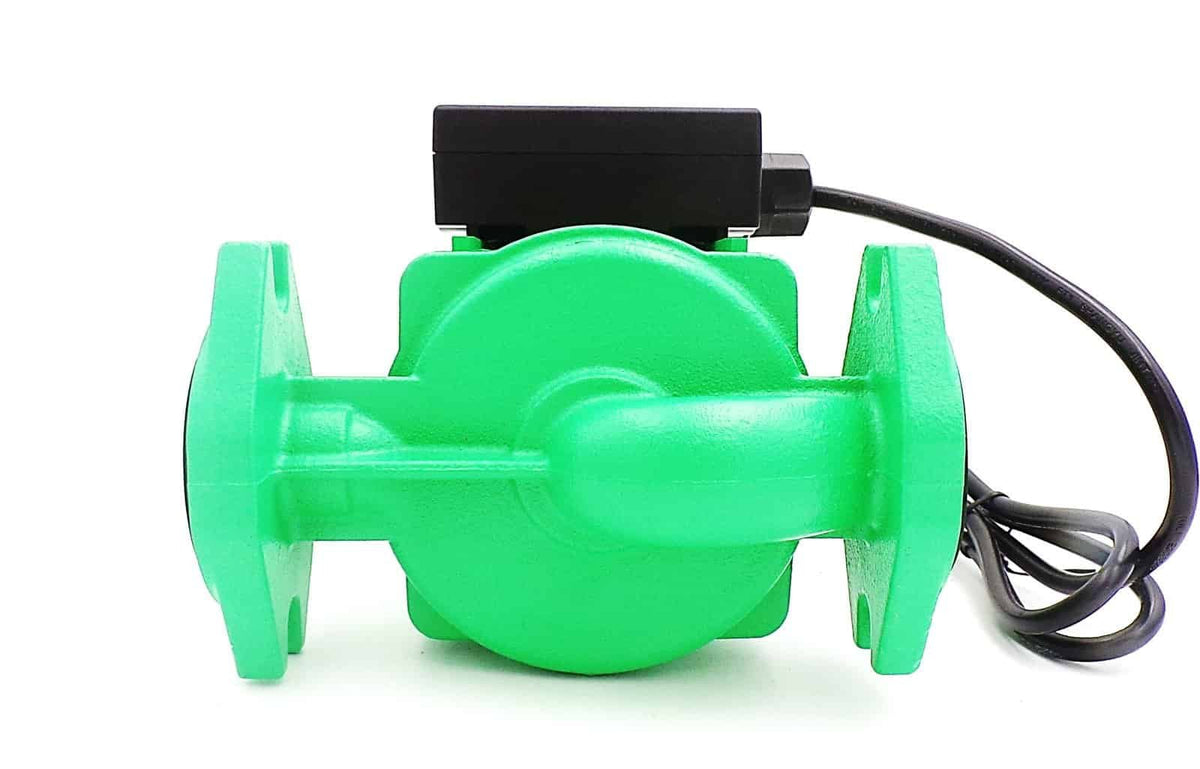

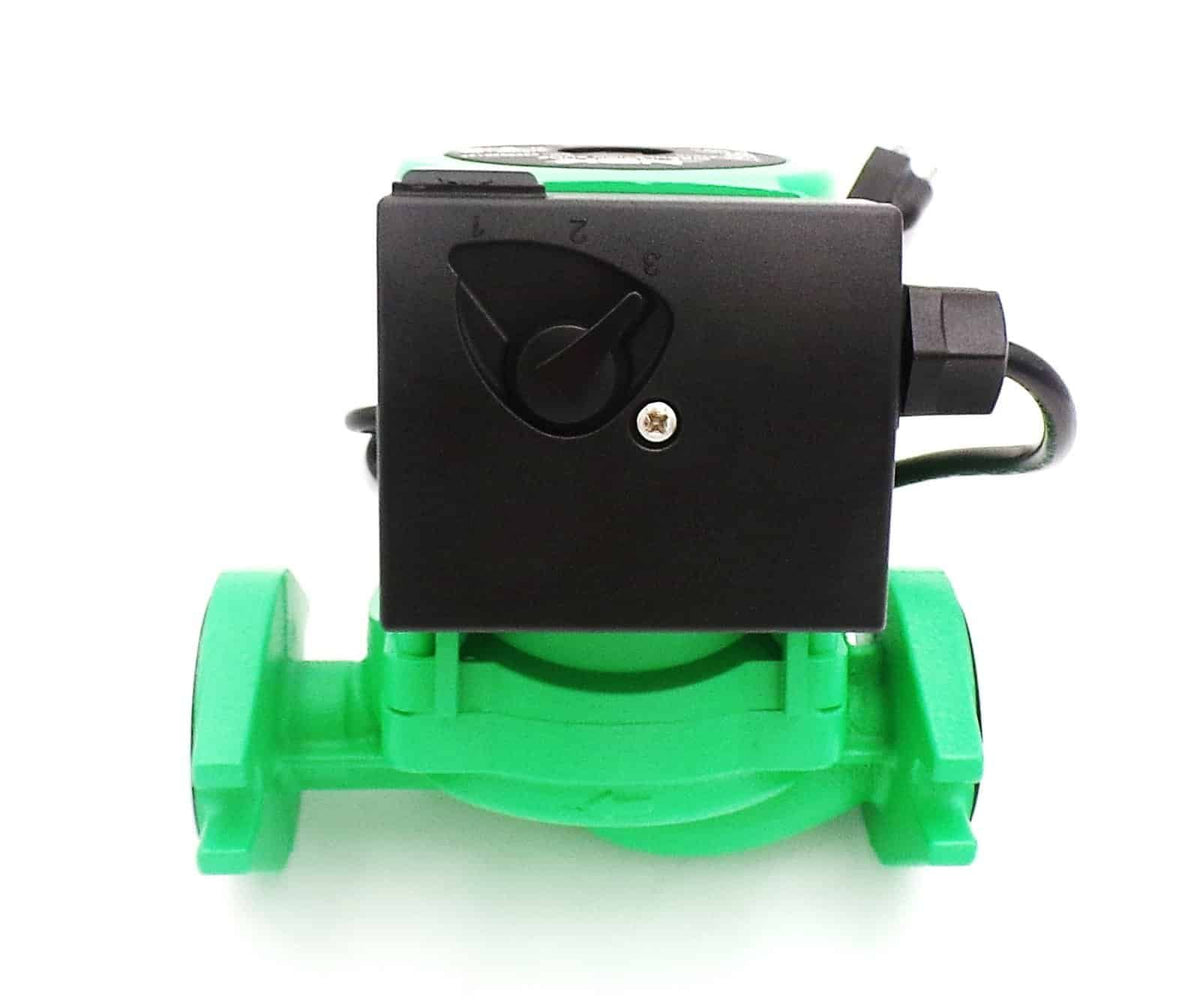

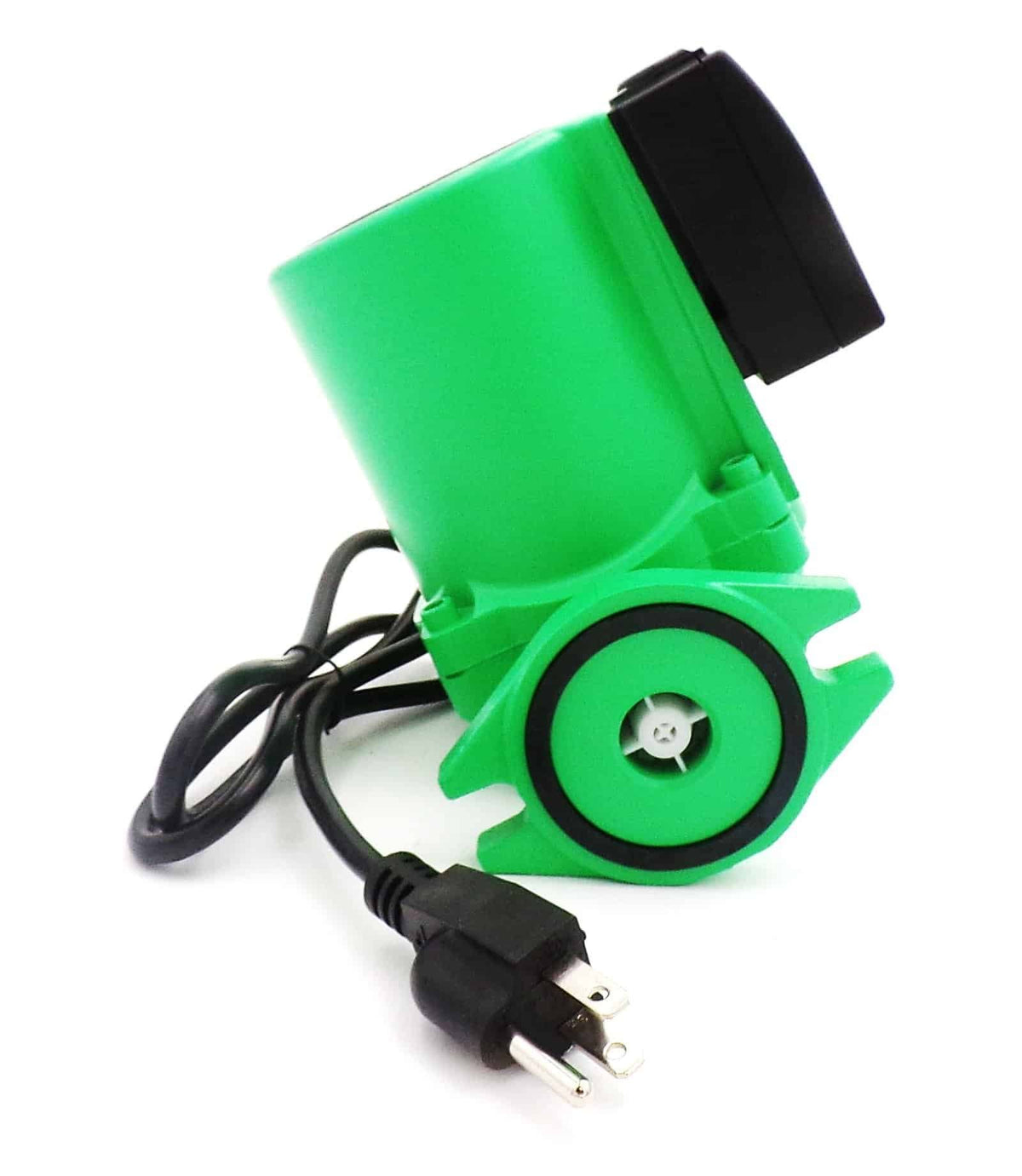

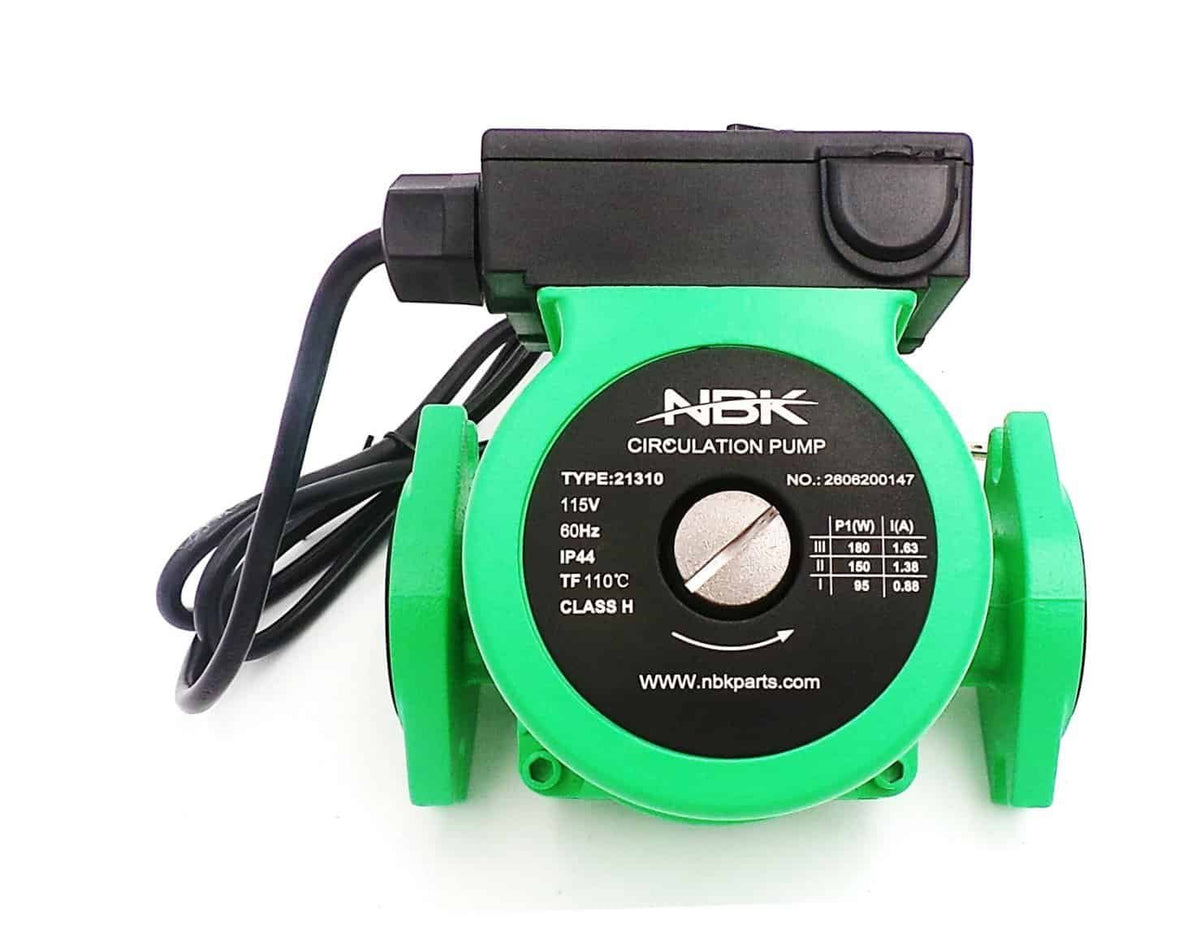

The NBK-21310 aftermarket circulator pump replaces Taco 009-F5 in compatible heating systems. This 115V, 1/8 HP pump has three selectable speeds, flanged connections and an attached grounded power cord.

Key Features

• Replaces Taco 009-F5.

• 115V, 60 Hz, 1/8 HP rating.

• Three settings: 95W, 150W and 180W input power.

• Maximum flow of 10 GPM.

• Flanged pump with attached grounded power cord.

Specifications

NBK part number: 21310
Type: Circulator Pump
Voltage: 115 V
Frequency: 60 Hz
Horsepower: 1/8 HP
Speed settings: 3
Input power by setting: I: 95 W; II: 150 W; III: 180 W
Current by setting: I: 0.88 A; II: 1.38 A; III: 1.63 A
Ingress rating: IP44
Thermal class: TF 110°C
Insulation class: H
Maximum flow: 10 GPM
Connection: Flanged

Compatibility / Pairs With

Replacement part numbers:
Taco: 009-F5

Match the original part number, voltage, required flow and head, flange dimensions and connections before ordering. Confirm suitability for the system’s fluid, pressure and temperature requirements.

Browse more replacement parts at Total Hearth.

What's in the Box

1 × NBK-21310 circulator pump with attached grounded power cord.

Important Note

This is an NBK aftermarket part. Disconnect power, let the system cool, isolate and relieve pressure before service. A qualified installer should fit the pump, check for leaks and follow the system’s filling instructions.

Why Choose the NBK-21310?

Choose NBK-21310 for a matching Taco 009-F5 repair with three selectable settings and an attached grounded cord.
