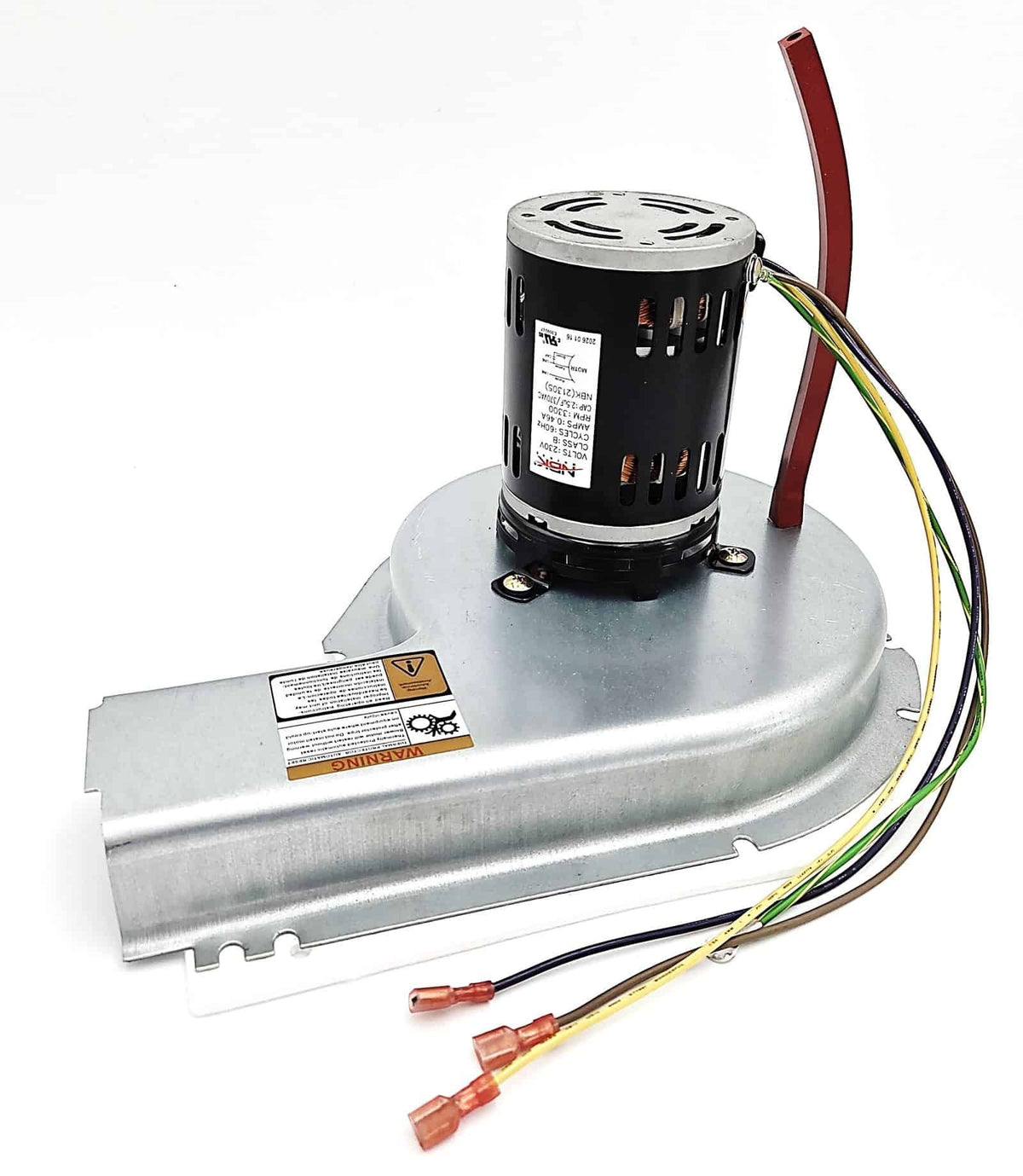

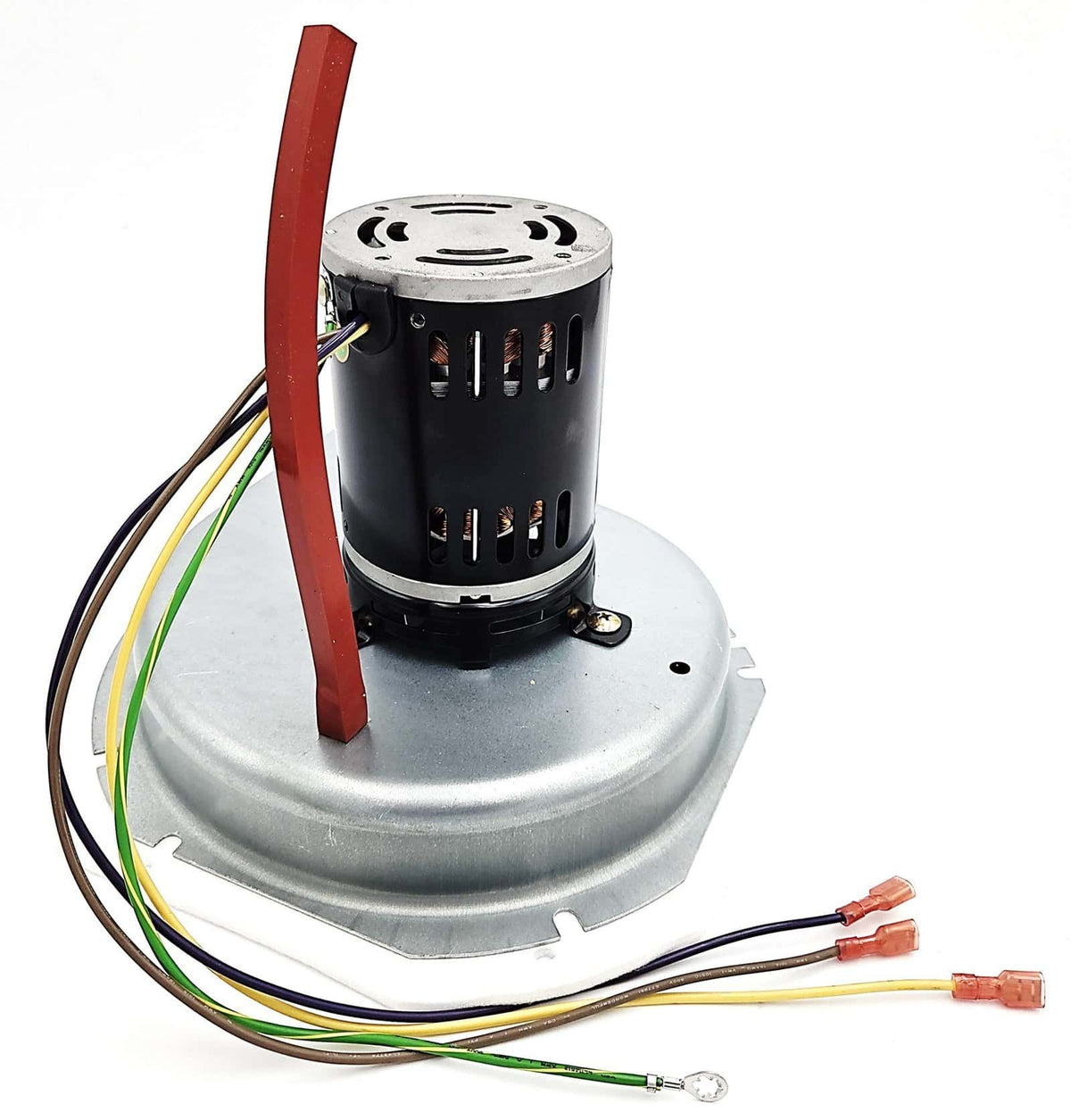

The NBK-21305 is a 230V aftermarket draft inducer assembly that replaces Carrier 48VL400196, HC30CK229 and 345585-75111, plus the Fasco, ICP and Packard numbers below. Its motor runs at 3300 RPM and is assembled with the blower housing and attached wiring.

Key Features

• Replaces Carrier 48VL400196, HC30CK229 and 345585-75111, plus matching Fasco, ICP and Packard parts.

• 230V, 60 Hz operation.

• 3300 RPM motor speed.

• 0.46A current rating and Class B insulation.

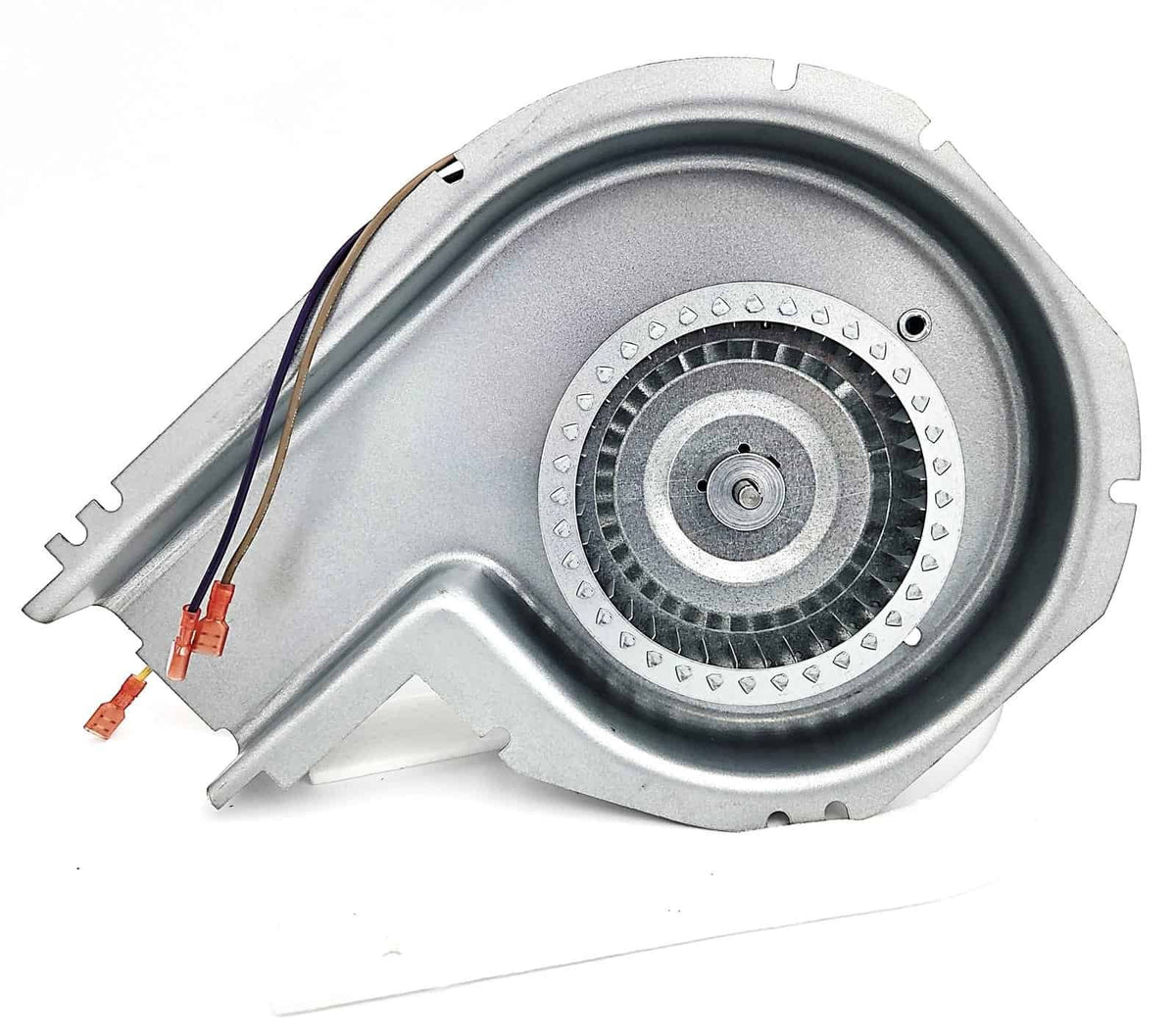

• Motor and blower housing assembly with attached wiring.

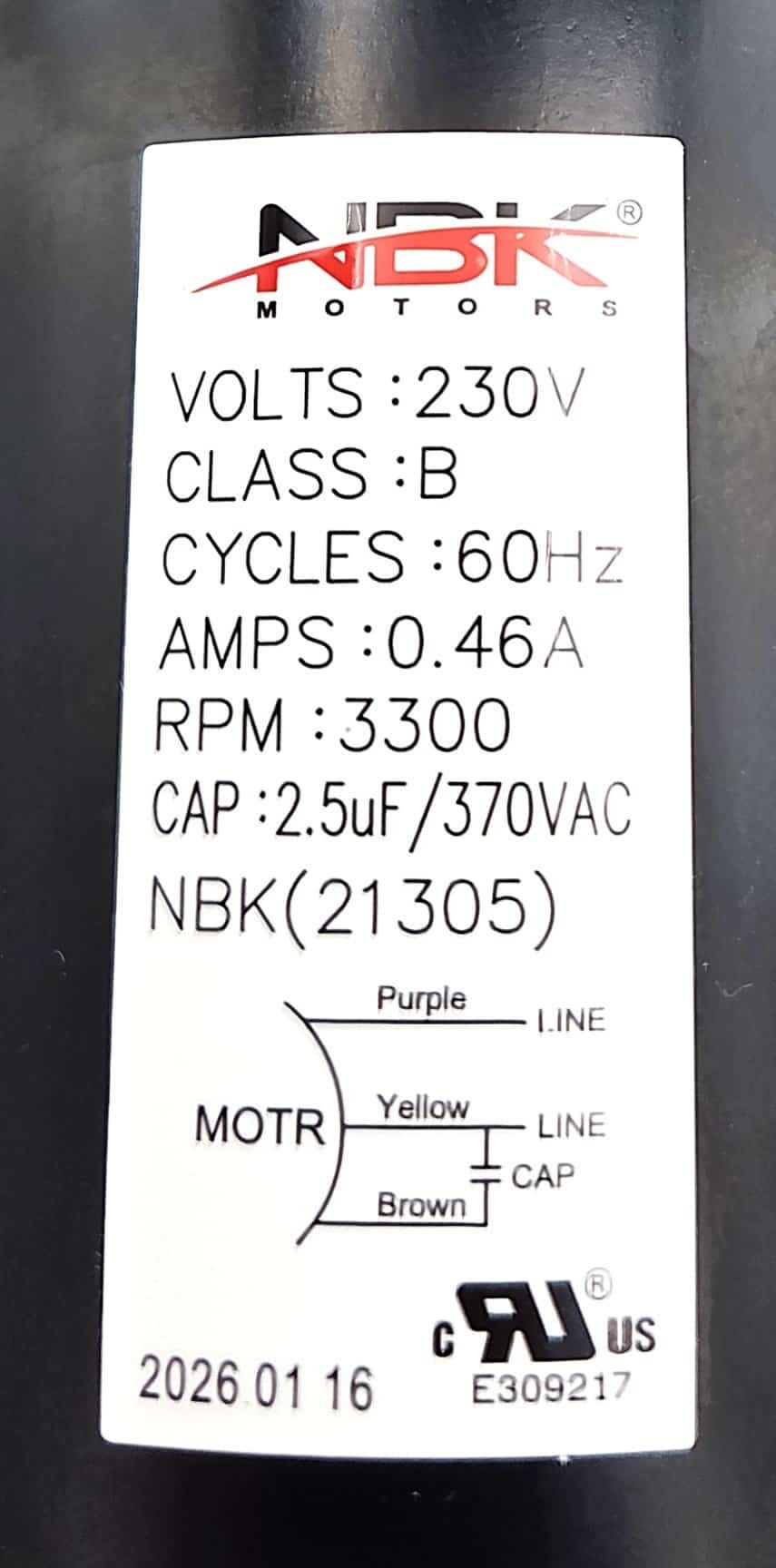

Specifications

NBK part number: 21305
Type: Draft Inducer Motor
Voltage: 230 V
Frequency: 60 Hz
Current: 0.46 A
Speed: 3300 RPM
Insulation class: B
Required run capacitor: 2.5 µF / 370 VAC

Compatibility / Pairs With

Replacement part numbers:
Carrier: 345585-75111, 48VL400196, HC30CK229
Fasco: 712112112
ICP: 1192143, 1178420
Packard: 66420

Match the complete original part number, equipment model, electrical ratings, mounting pattern and connections before ordering. Part-number references do not establish compatibility with every model from a brand.

Browse more replacement parts at Total Hearth.

What's in the Box

1 × NBK-21305 draft inducer assembly with motor, blower wheel, housing, attached wiring, tubing and mounting gasket.

Important Note

This is an NBK aftermarket part. Disconnect electrical power and allow the equipment to cool before servicing. A qualified HVAC technician should install the assembly and complete the required venting and combustion-system checks according to the equipment manufacturer’s instructions.

Why Choose the NBK-21305?

Choose the NBK-21305 for a repair requiring Carrier 48VL400196 or a matching replacement part number above, with the correct electrical and mechanical fit.
