NBK-21304 Draft Inducer Motor, 230V | Trane BLW01310

NBK-21304 Draft Inducer Motor, 230V | Trane BLW01310

The NBK-21304 aftermarket draft inducer assembly replaces Trane BLW01310, Packard 66128 and MARS 10565. It has a 230V, 3480 RPM motor and includes the blower housing, attached wiring and mounting gasket for a matching repair.

Key Features

• Replaces Trane BLW01310, Packard 66128 and MARS 10565.

• 230V, 60 Hz operation.

• 3480 RPM motor speed.

• Thermally protected motor with Class B insulation.

• Assembly includes attached wiring, a capacitor and mounting gasket.

Specifications

NBK part number: 21304
Type: Draft Inducer Motor
Voltage: 230 V
Frequency: 60 Hz
Current: 0.24 A
Speed: 3480 RPM
Insulation class: B
Thermal protection: Thermally protected
Included capacitor: 1.5 µF, 450 VAC

Compatibility / Pairs With

Replacement part numbers:
Trane: BLW01310
Packard: 66128
MARS: 10565

Match the complete original part number, equipment model, electrical ratings, mounting pattern and connections before ordering. Part-number references do not establish compatibility with every model from a brand.

Browse more replacement parts at Total Hearth.

What's in the Box

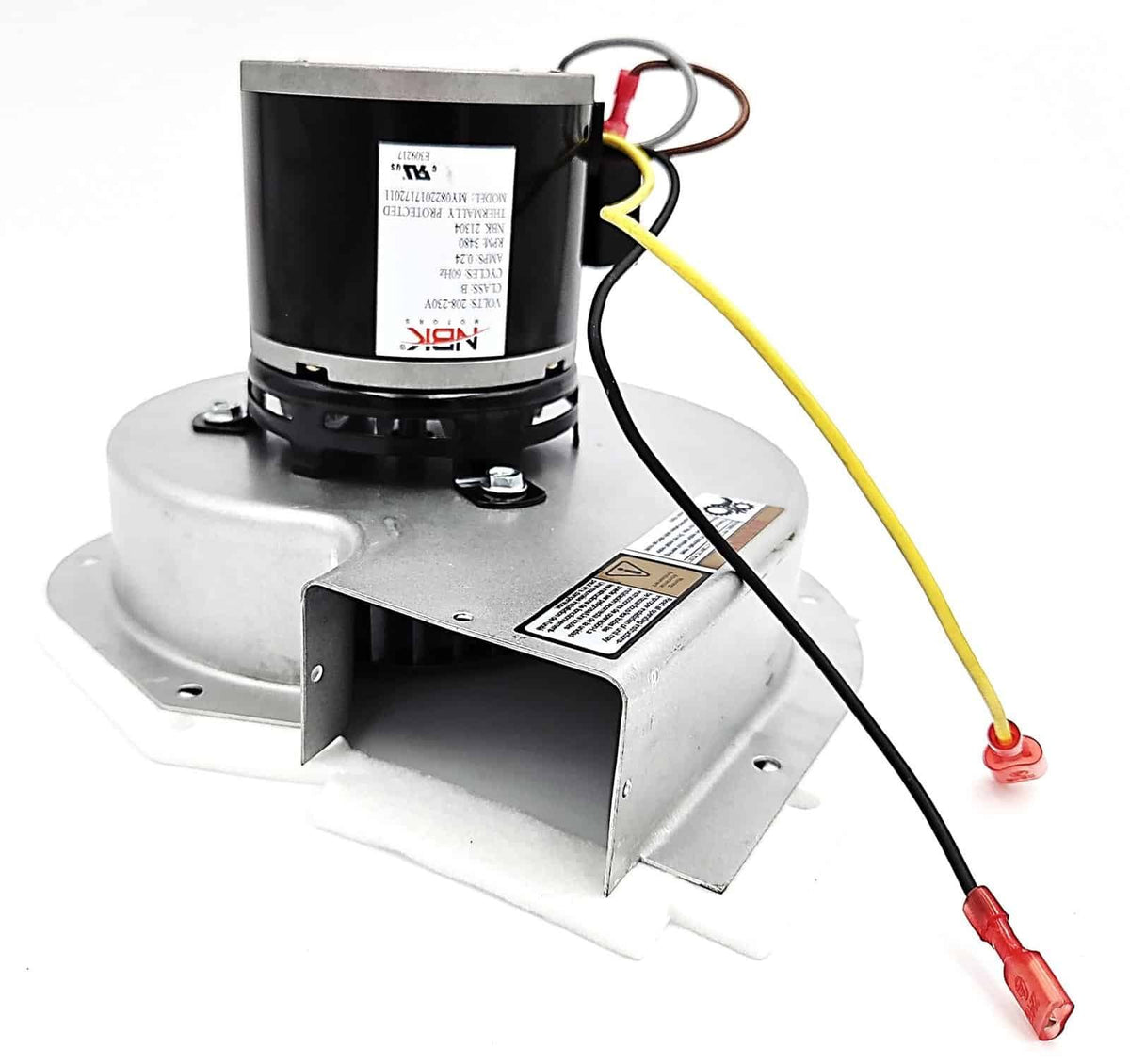

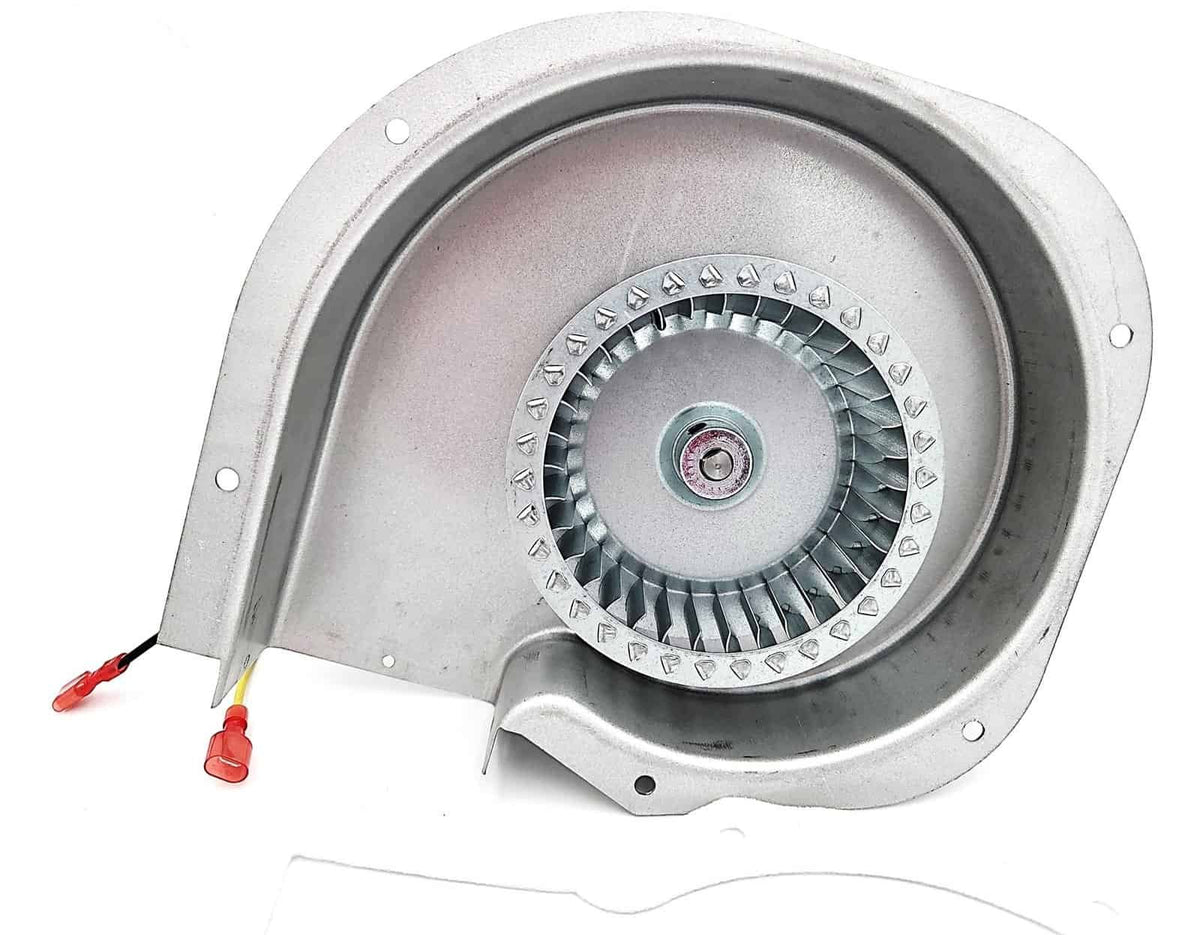

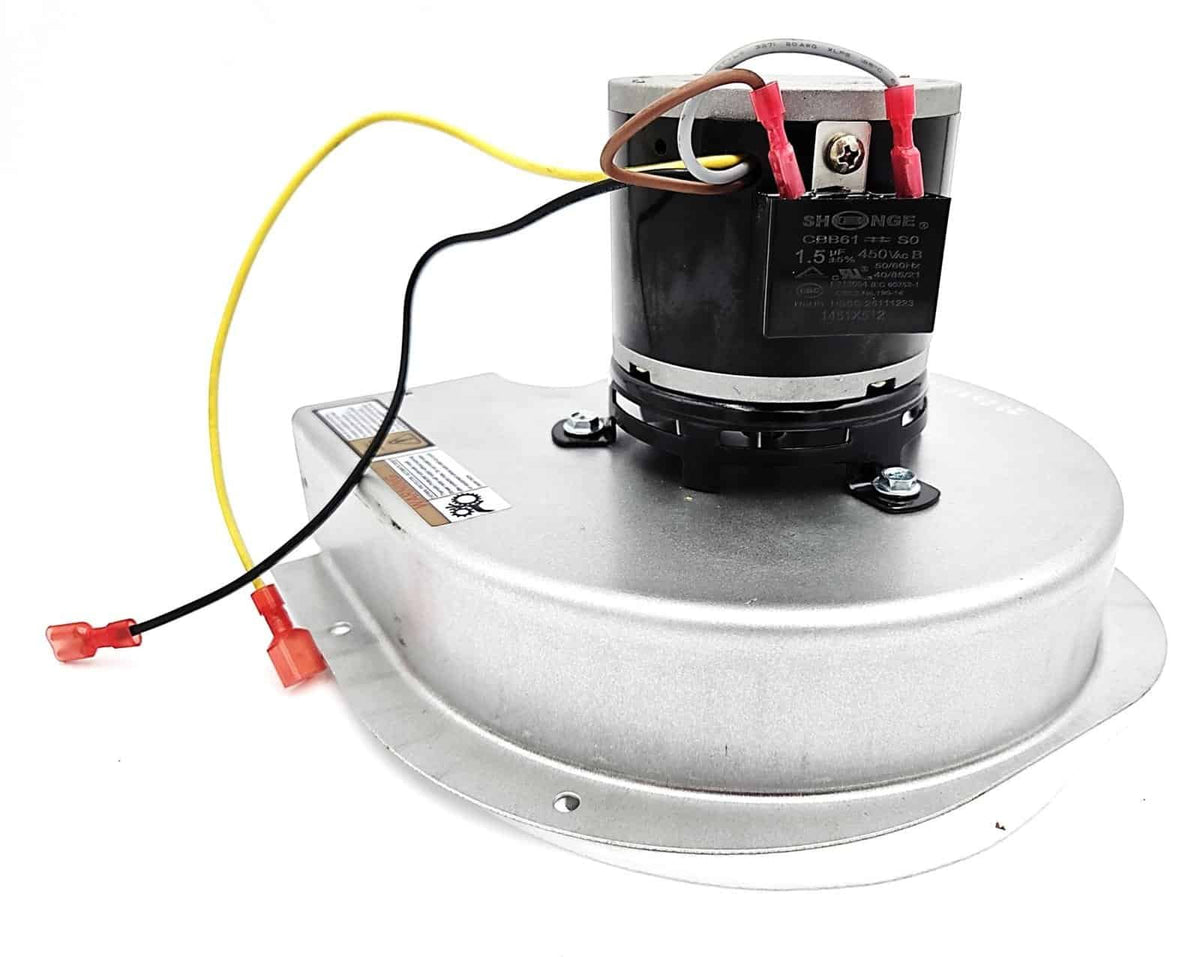

1 × NBK-21304 draft inducer assembly with motor, blower wheel, housing, attached wiring, capacitor and mounting gasket.

Important Note

This is an NBK aftermarket part. Disconnect electrical power and allow the equipment to cool before servicing. A qualified HVAC technician should install the assembly and complete the required venting and combustion-system checks according to the equipment manufacturer’s instructions.

Why Choose the NBK-21304?

Choose the NBK-21304 for a matching Trane BLW01310, Packard 66128 or MARS 10565 repair, with the motor, blower housing and mounting gasket together in one assembly.
