NBK-21290 Draft Inducer Motor, 115V | Fasco A196

NBK-21290 Draft Inducer Motor, 115V | Fasco A196

The NBK-21290 is a 115V aftermarket draft inducer assembly that replaces Fasco A196 and the matching Trane part numbers below. Its motor and housing assembly includes attached wiring for the corresponding equipment connection.

Key Features

• Replaces Fasco A196 and matching Trane references.

• 115V, 60 Hz operation.

• 0.5A motor current rating.

• Class B motor insulation.

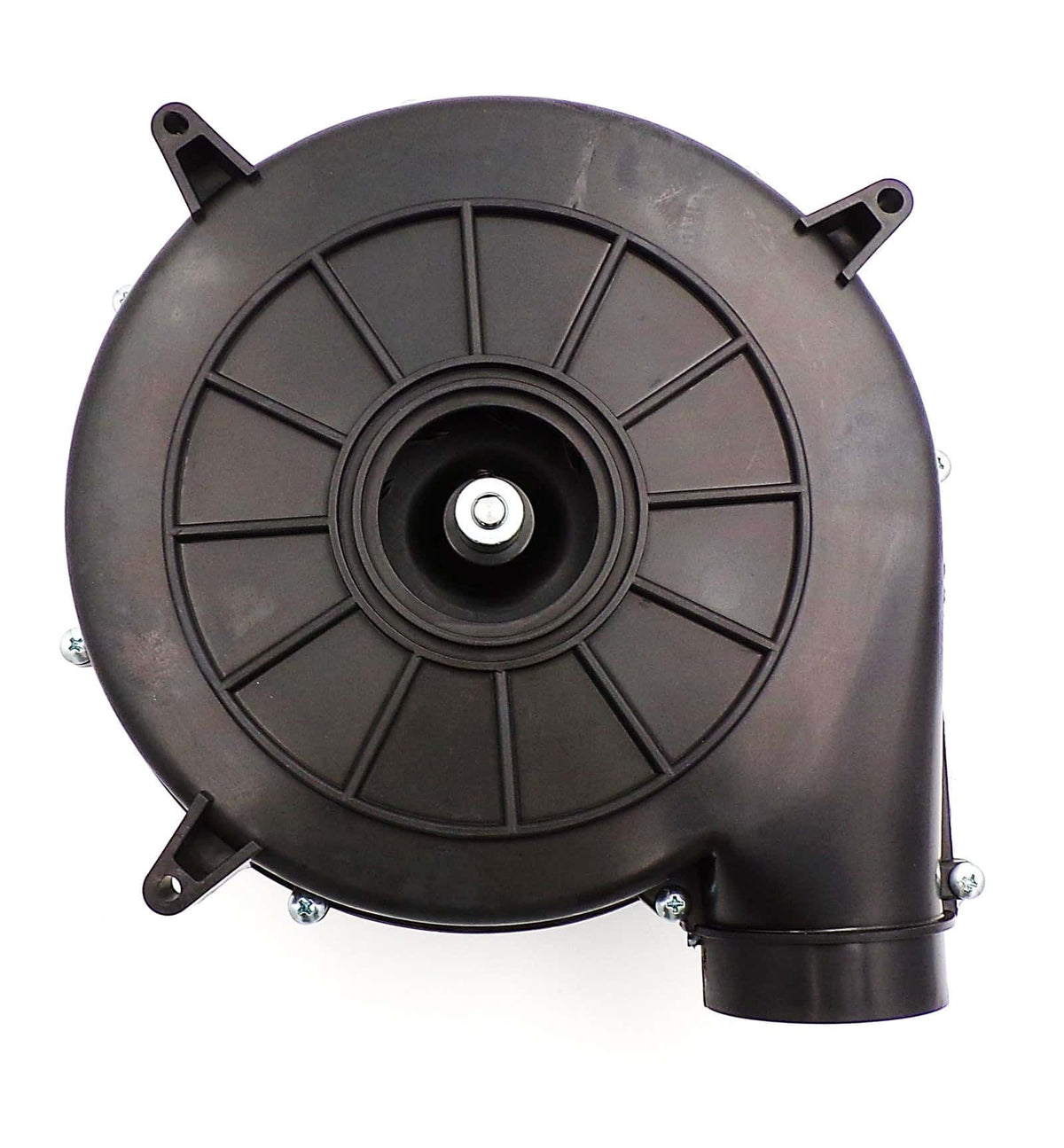

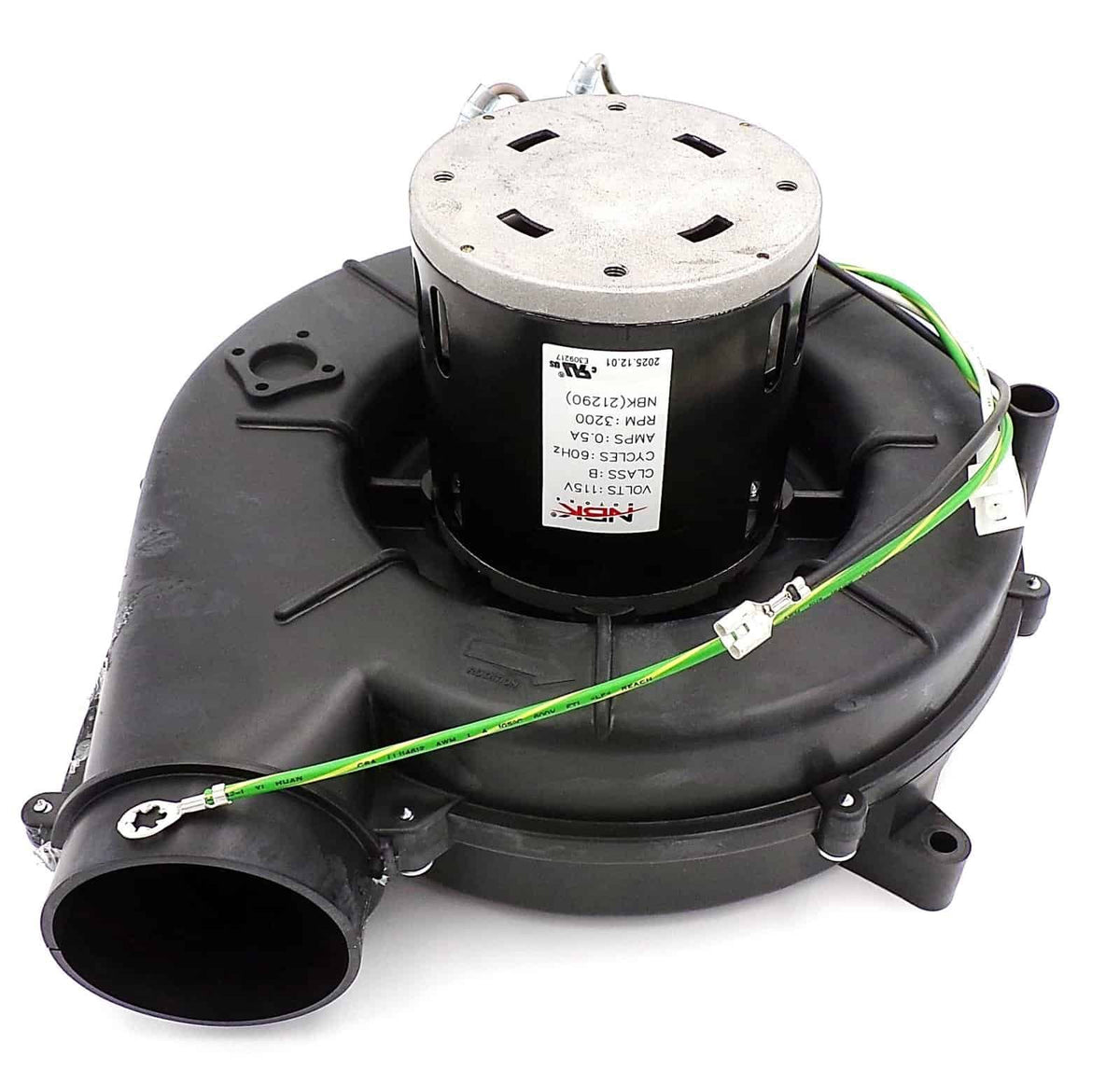

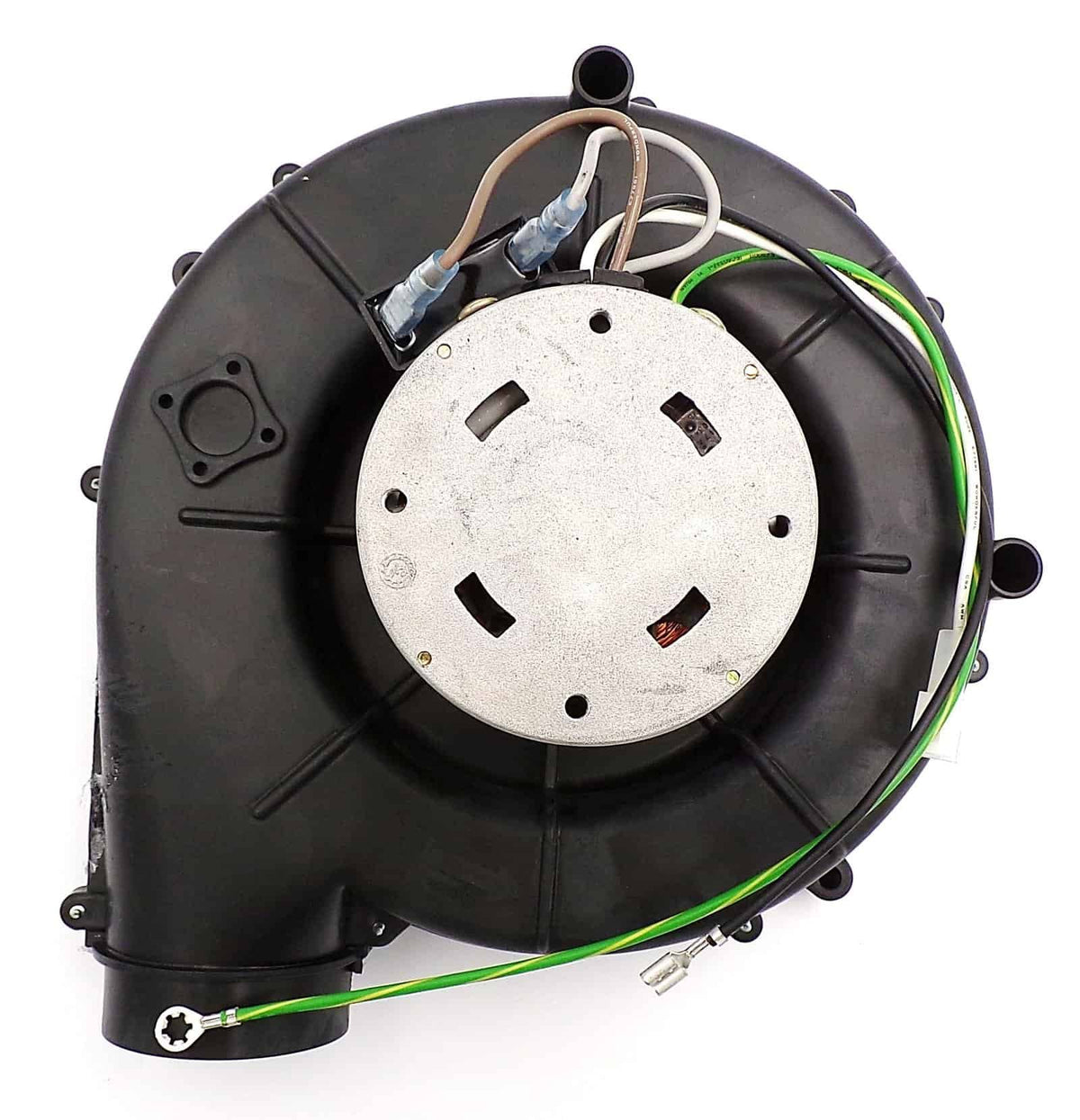

• Draft inducer motor and housing assembly with attached wiring.

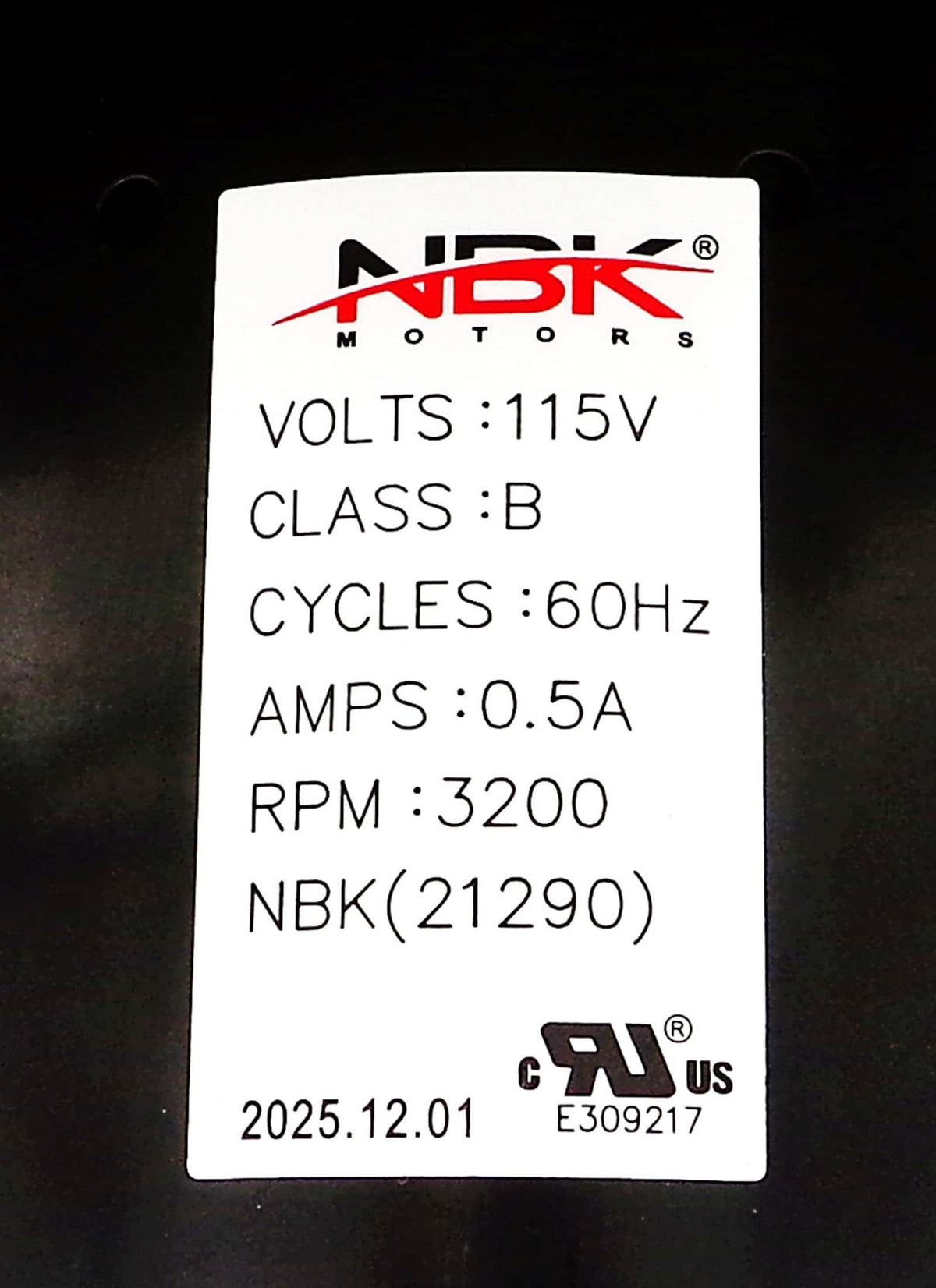

Specifications

NBK part number: 21290
Type: Draft Inducer Motor
Voltage: 115 V
Frequency: 60 Hz
Current: 0.5 A
Insulation class: B

Compatibility / Pairs With

Replacement part numbers:
Fasco: A196
Trane: BLW01138, BLW-1138, D330757P02, D342094P02, X38040313027, X38040313060

Match the complete original part number, equipment model, electrical ratings, mounting pattern and connections before ordering. Part-number references do not establish compatibility with every model from a brand.

Browse more replacement parts at Total Hearth.

What's in the Box

1 × NBK-21290 draft inducer assembly with attached wiring.

Important Note

This is an NBK aftermarket part. Disconnect electrical power and allow the equipment to cool before servicing. A qualified HVAC technician should install the assembly and complete the required venting and combustion-system checks according to the equipment manufacturer’s instructions.

Why Choose the NBK-21290?

Choose the NBK-21290 for a repair requiring Fasco A196 or a matching replacement reference above, with the correct electrical and mechanical fit.
