NBK-20912 Millivolt Natural Gas Valve, 70,000 BTU | Heatilator 060-500

NBK-20912 Millivolt Natural Gas Valve, 70,000 BTU | Heatilator 060-500

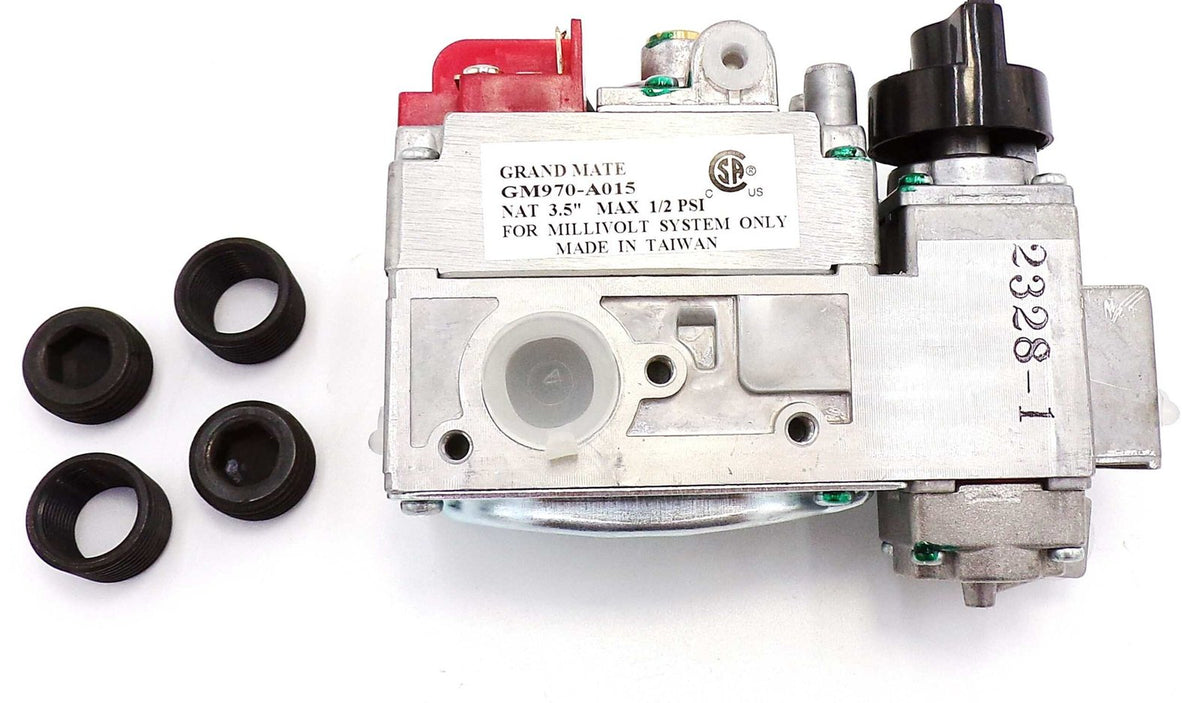

The NBK-20912 is an aftermarket natural gas valve for millivolt fireplace control systems, with a 70,000 BTU capacity. It replaces Heatilator 060-500 and the additional part numbers below when the appliance’s gas and control requirements match.

Key Features

• For millivolt gas-control systems.

• Natural gas configuration.

• 70,000 BTU capacity.

• Replaces Heatilator, Heat & Glo and Quadra-Fire 060-500.

• Manual control knob on the valve body.

Specifications

NBK part number: 20912
Type: Millivolt gas valve
Fuel: Natural gas
Capacity: 70,000 BTU
Maximum inlet pressure: 1/2 PSI

Compatibility / Pairs With

Replacement part numbers:
American Hearth: R8380
Canadian Heating: RGC1011
Continental: G-522A, WS725-13
Empire Comfort Systems: R8380
Heat & Glo: 060-500
Heatilator: 060-500
IHP: 9737, H2299, H4260
Insta Flame: 75-29-109, 7529109
Lennox: 9737, H2299, H4260
Lexington Forge: 75-29-109, 7529109
Majco: 75-29-109, 7529109
Majestic: 75-29-109, 7529109
Monessen: 75-29-109, 7529109
Montigo: RGC1011
Napoleon: G-522A, WS725-13
Quadra-Fire: 060-500
Real Fyre: SV6
RH Peterson: SV6

Match the full part number, appliance model, natural gas configuration, capacity, pressure requirements, millivolt system and port arrangement before ordering.

Browse more replacement parts at Total Hearth.

What's in the Box

1 × NBK-20912 millivolt natural gas valve.

Important Note

This is an NBK aftermarket part. Gas valve replacement must be performed by a qualified gas-service technician. Shut off the gas supply and electrical power before servicing. Follow the appliance manufacturer’s instructions, and complete required leak and operating checks before use.

Why Choose the NBK-20912?

Choose this valve when your natural gas appliance requires a millivolt control and one of the matching replacement part numbers above.
