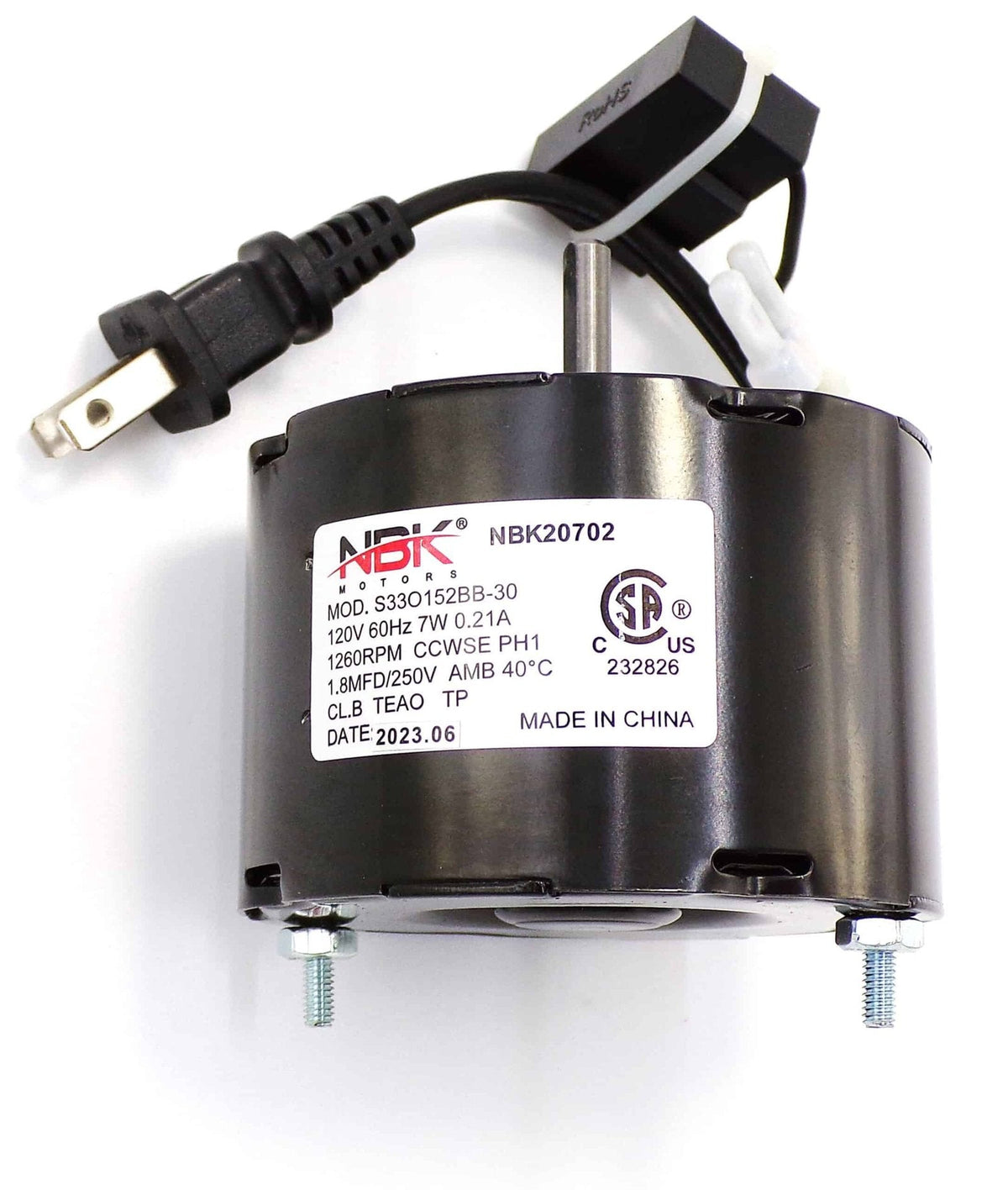

NBK-20702 Ventilation Fan Motor, 120V, for Broan S99080518 and 99080346

NBK-20702 Ventilation Fan Motor, 120V, for Broan S99080518 and 99080346

The NBK-20702 ventilation fan motor is an aftermarket replacement for the listed Broan motor references. It operates at 120V, 60Hz and 1260 RPM with counterclockwise shaft-end rotation.

Key Features

• Broan replacement references: Cross-references S99080518, 99080346, 7173-0149, 97009753 and JA2C227.

• 120V motor: Rated for single-phase, 60Hz operation.

• 1260 RPM speed: Matches compatible ventilation-fan applications requiring this speed.

• Counterclockwise rotation: Turns counterclockwise when viewed from the shaft end.

• Thermally protected: Class B motor with thermal protection.

Specifications

NBK part number: 20702
Type: Ventilation Fan Motor
Voltage: 120V
Frequency: 60Hz
Phase: Single phase
Power: 7W
Current: 0.21A
Speed: 1260 RPM
Rotation: Counterclockwise, shaft end (CCWSE)
Capacitor rating: 1.8 µF / 250V
Insulation class: B
Enclosure: TEAO
Ambient temperature rating: 40°C
Thermal protection: Thermally protected

Compatibility / Pairs With

Replacement references: Broan 7173-0149, 97009753, 99080346, JA2C227 and S99080518. Confirm the original motor number, shaft dimensions, mounting spacing, plug, electrical ratings and rotation before ordering. Match the motor to the fan model and existing blower wheel.

Important Note

This is an NBK aftermarket part. Disconnect power before servicing. Have a qualified technician install the motor according to the fan manufacturer’s instructions and applicable electrical codes.

Why Choose the NBK-20702?

Choose this motor when its Broan replacement reference, electrical ratings, speed and rotation match your existing ventilation fan.

What's in the Box

1 × NBK-20702 ventilation fan motor with attached cord.
