NBK-20451 Draft Inducer Blower Motor, 115V, for Goodman 0131M00002PSP

NBK-20451 Draft Inducer Blower Motor, 115V, for Goodman 0131M00002PSP

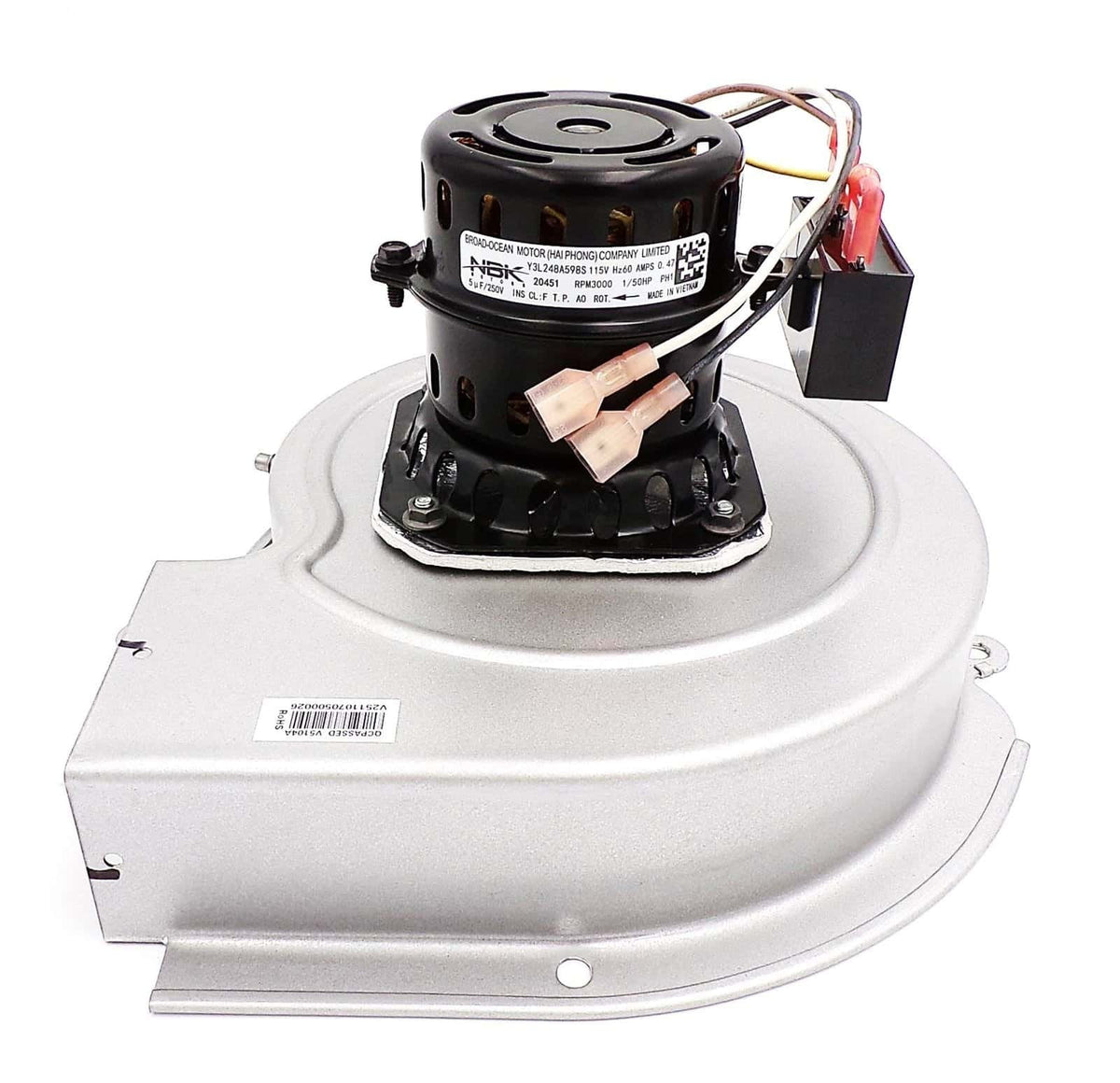

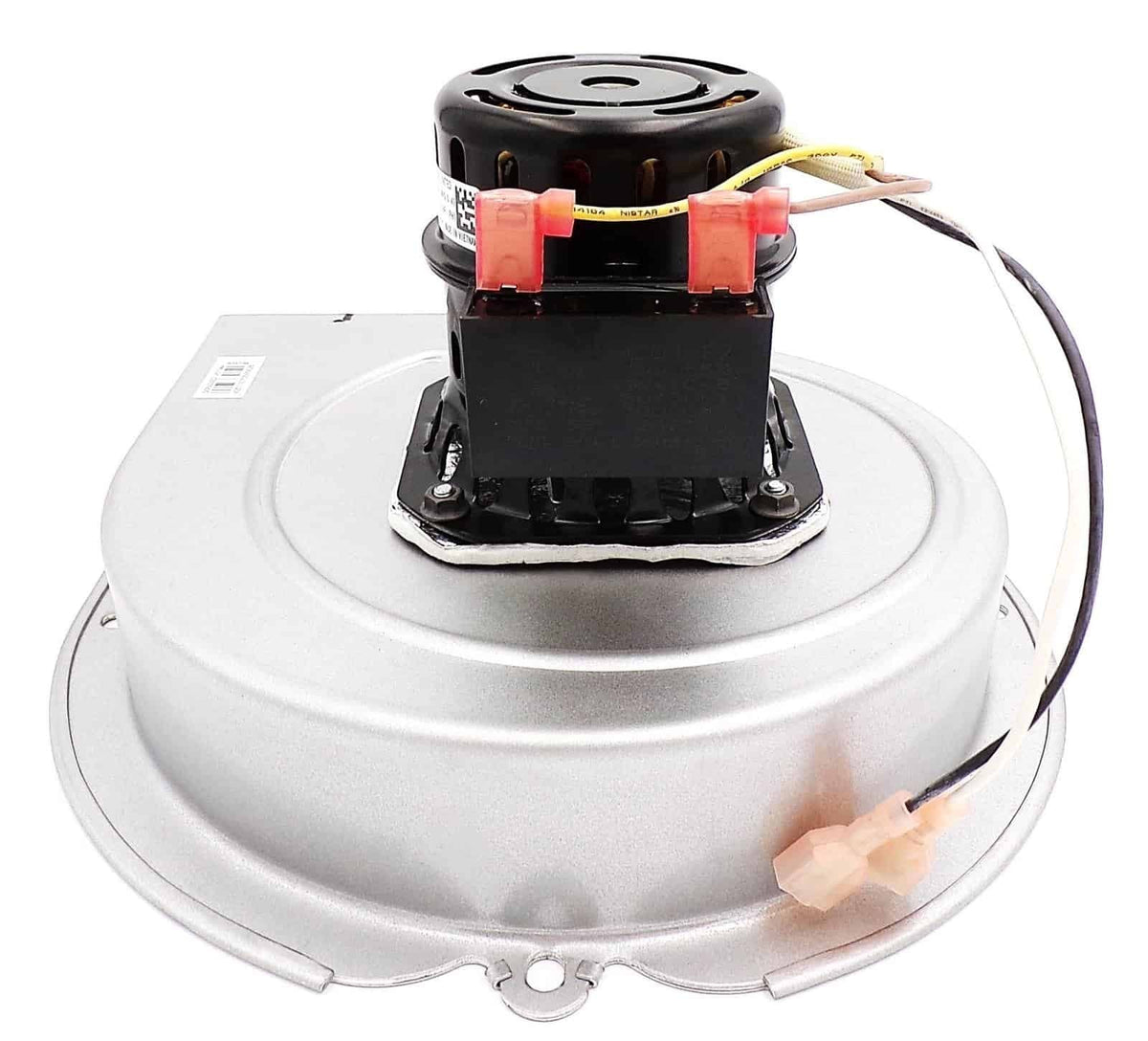

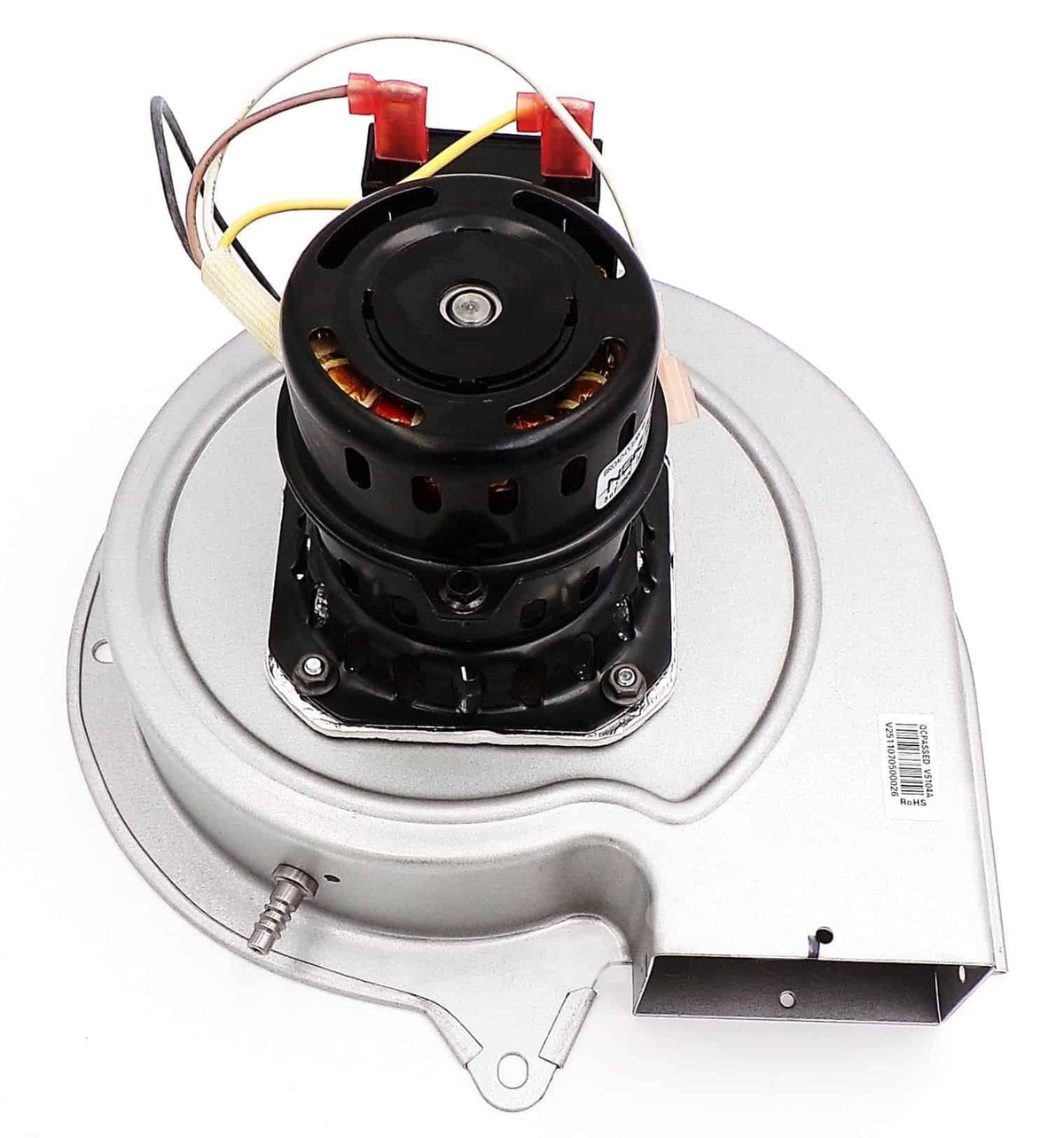

The NBK-20451 is a 115V, 60 Hz draft inducer blower motor assembly for Goodman 0131M00002PSP and the other listed replacement references. It combines the motor, blower wheel and housing for compatible inducer applications.

Key Features

• Goodman replacement: Cross-referenced to 0131M00002PSP and the other listed part references.

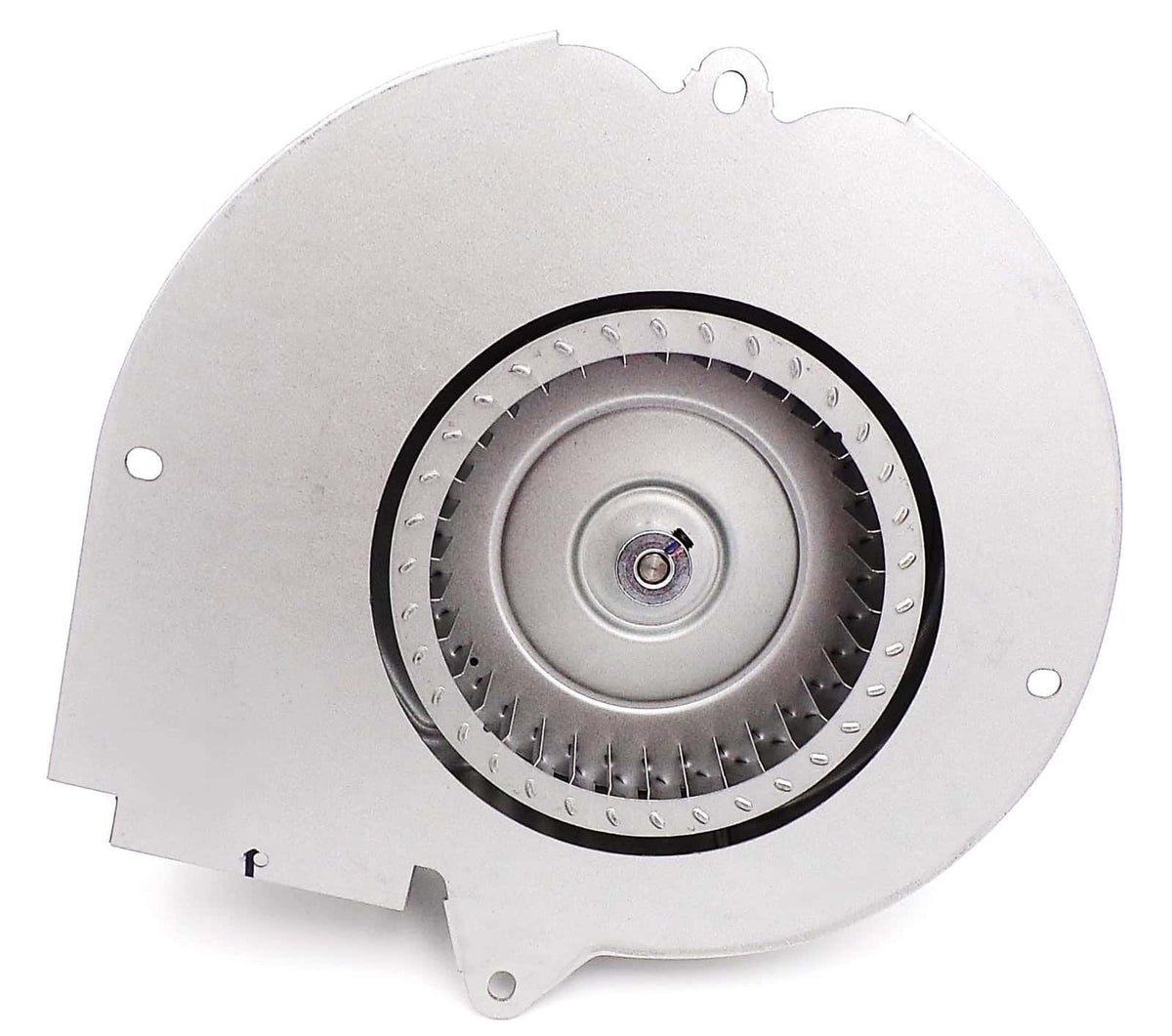

• Assembled inducer: Motor, blower wheel and scroll housing supplied together.

• 115V operation: Rated for 60 Hz, single-phase service.

• 1/50 HP motor: Rated operating speed of 3000 RPM.

• Additional cross-references: Includes Packard 66002 and Rotom FB-RFB276.

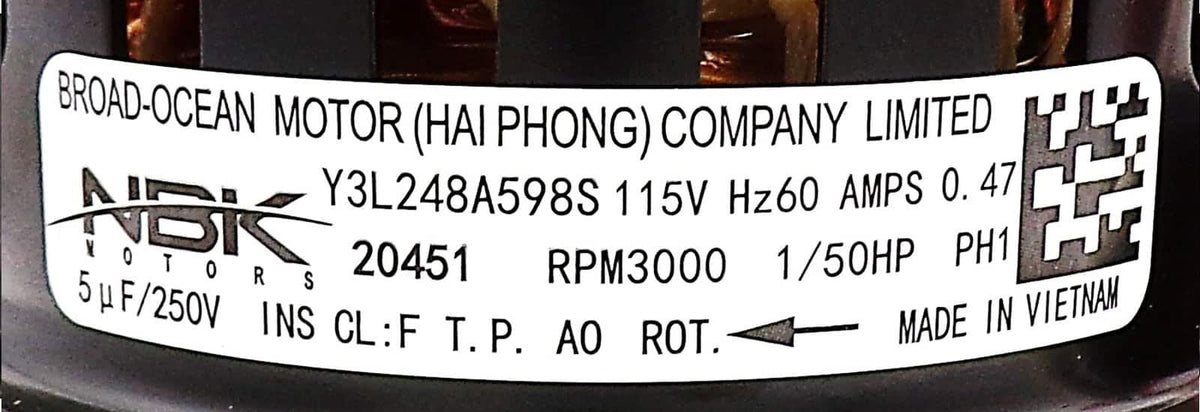

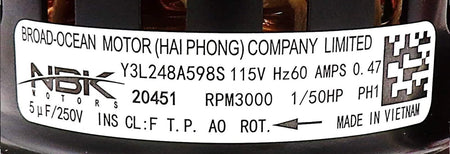

Specifications

NBK part number: 20451
Type: Draft Inducer Blower Motor
Application: Draft inducer
Voltage: 115V
Frequency: 60 Hz
Phase: Single phase
Motor output: 1/50 HP
Current: 0.47 A
Speed: 3000 RPM
Insulation class: F

Compatibility / Pairs With

Replacement references: Goodman 0131M00002PSP; Packard 66002; B4059001S, 0131M00002S, B4059001, B4059003 and B4059003S; Rotom FB-RFB276. Confirm the original part number, electrical requirements, rotation, mounting pattern, housing connections and wiring before ordering. Replacement references do not establish compatibility with every model from a listed brand.

Important Note

This is an NBK aftermarket part. Disconnect electrical power and allow the appliance to cool before service. Installation and operational checks should be performed by a qualified technician following the equipment manual.

Why Choose the NBK-20451?

Choose this inducer assembly when your equipment matches the listed Goodman, Packard or Rotom replacement references and installation requirements.

What's in the Box

1 × NBK-20451 draft inducer blower motor assembly.
