NBK-20288 Draft Inducer Blower Motor | Carrier 320725-756

NBK-20288 Draft Inducer Blower Motor | Carrier 320725-756

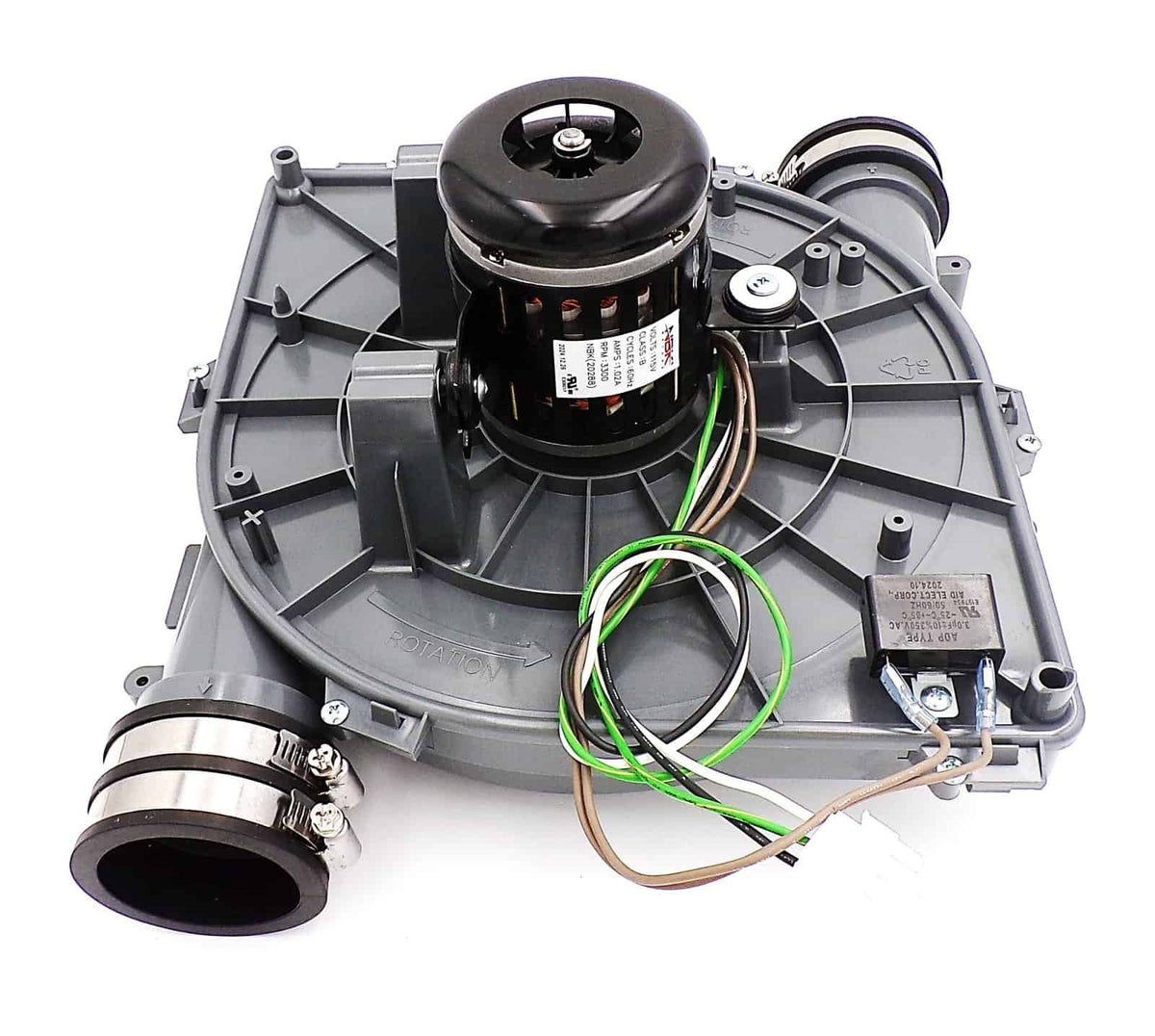

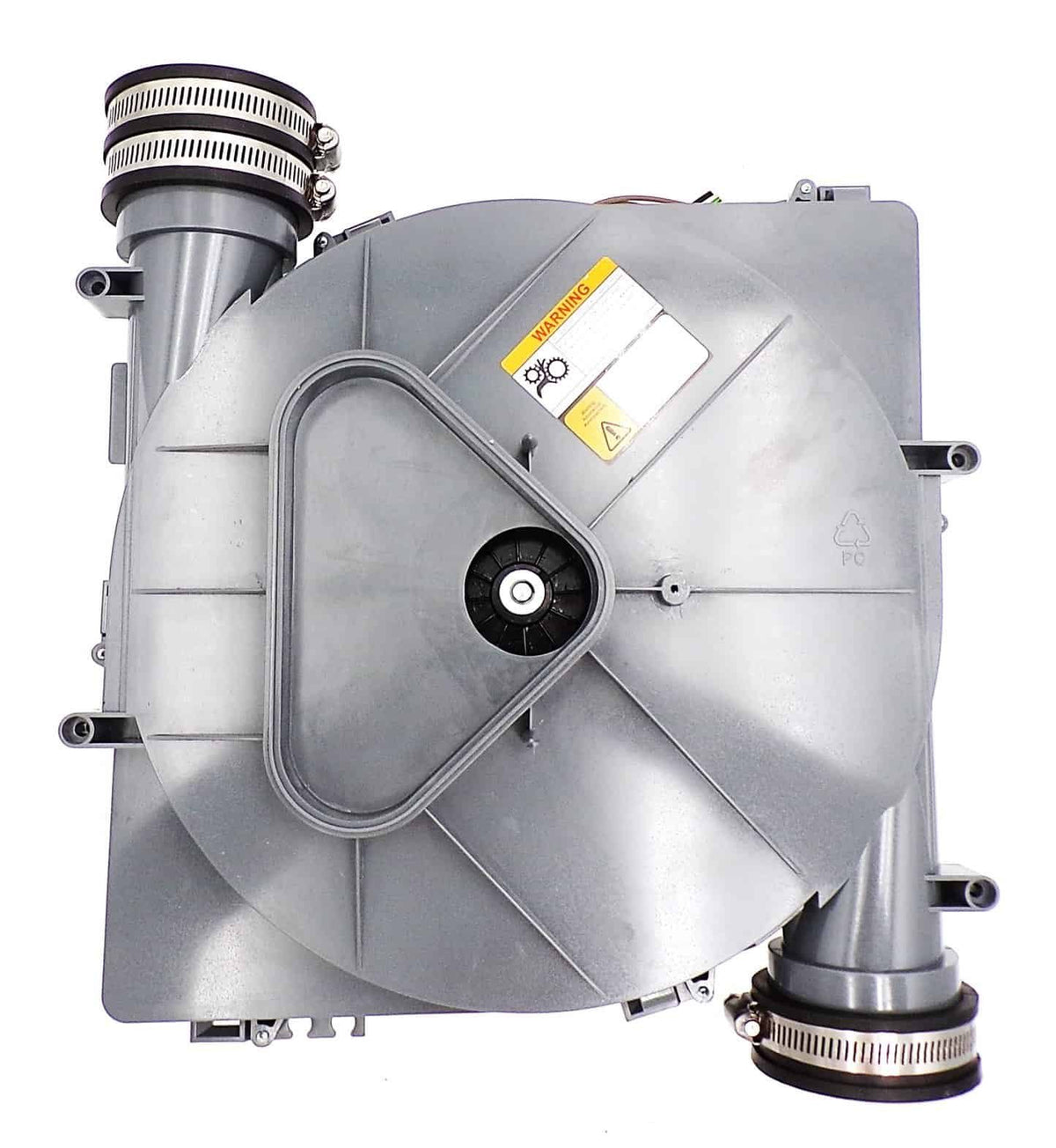

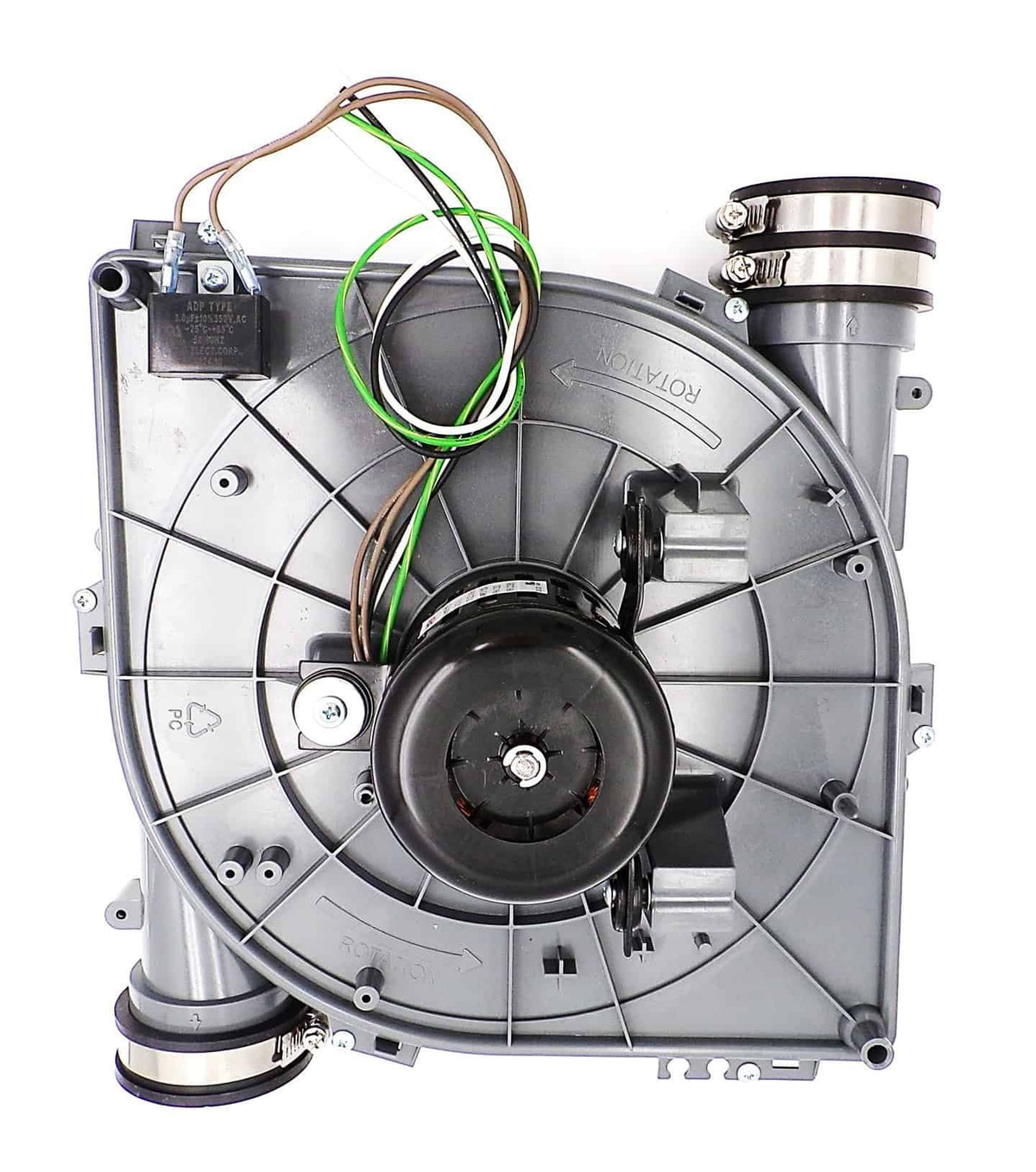

The NBK-20288 is an aftermarket 115V draft inducer blower motor assembly with a circular housing. It replaces Carrier 320725-756 and the additional part numbers below when the electrical ratings, mounting and connections match.

Key Features

• Replacement for Carrier 320725-756.

• 115 V operation at 60 Hz.

• Motor speed: 3300 RPM.

• Current rating: 1.02 A.

• Class B motor insulation.

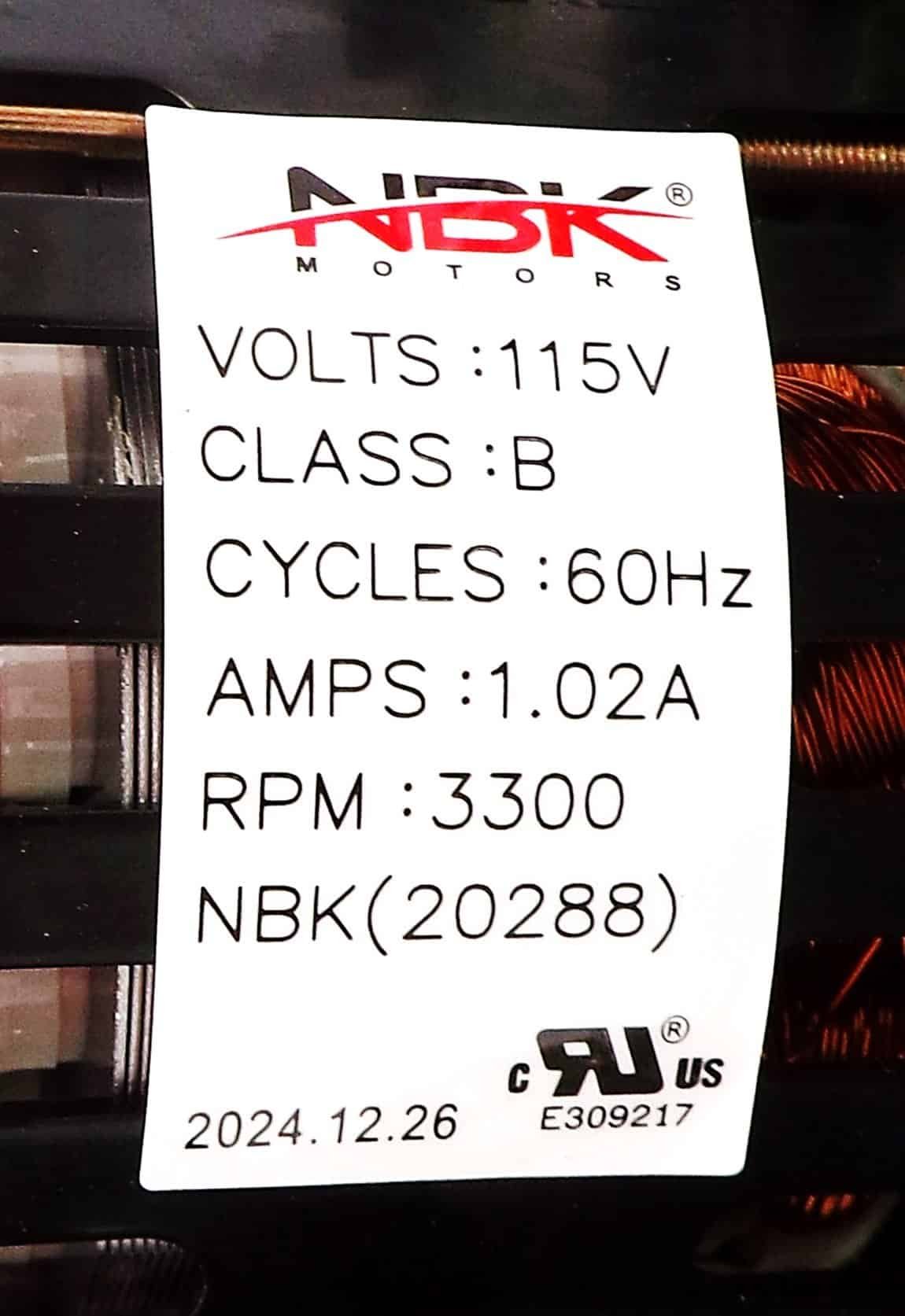

Specifications

NBK part number: 20288
Type: Draft Inducer Motor
Voltage: 115 V
Frequency: 60 Hz
Current: 1.02 A
Speed: 3300 RPM
Insulation class: B

Compatibility / Pairs With

Replacement part numbers:
Carrier: 1179081, 320725-756, 320725756
Heil Tempstar: 1179081
Packard: 66756

Match the complete original part number, equipment model, electrical ratings, mounting pattern and connections before ordering. Part-number references do not establish compatibility with every model from a brand.

Browse more replacement parts at Total Hearth.

What's in the Box

1 × NBK-20288 blower motor assembly.

Important Note

This is an NBK aftermarket part. Disconnect electrical power and allow the equipment to cool before servicing. Installation and combustion-system checks should be performed by a qualified HVAC technician following the equipment manufacturer’s instructions.

Why Choose the NBK-20288?

Choose this assembly for a repair requiring Carrier 320725-756 or a matching replacement reference above, with the correct electrical and mechanical fit.
