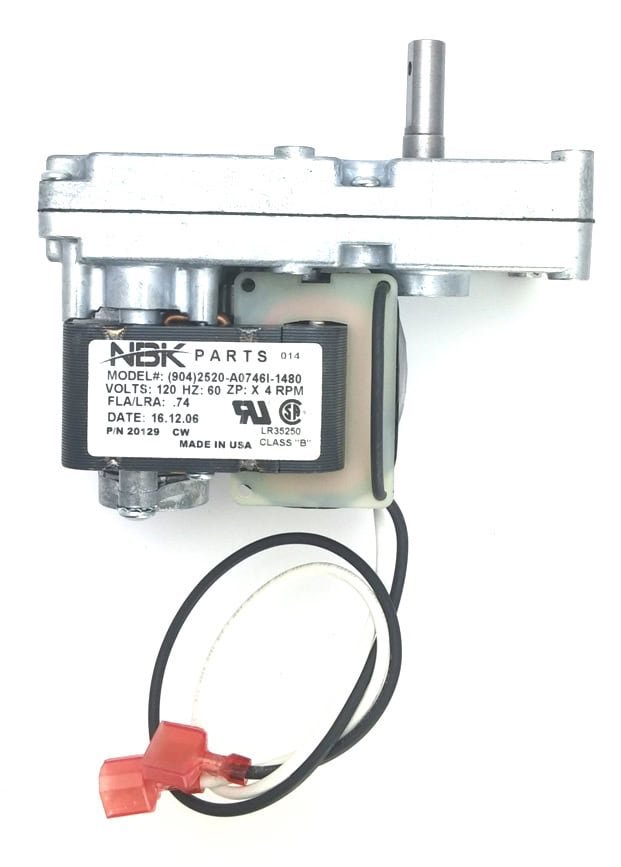

NBK-20129 Aftermarket Auger Motor, 4 RPM CW | US Stove 80456

NBK-20129 Aftermarket Auger Motor, 4 RPM CW | US Stove 80456

The NBK-20129 aftermarket auger motor replaces Breckwell CE-010, Harman 3-20-60906 and United States Stove 80456. Its geared output runs at 4 RPM with CW rotation for a matching pellet-stove feed system.

Key Features

• Replaces Breckwell CE-010, Harman 3-20-60906 and United States Stove 80456.

• 4 RPM geared output with CW rotation.

• 120V, 60 Hz operation.

• 0.74A current rating and Class B insulation.

• Attached black and white leads with terminals.

Specifications

NBK part number: 20129
Type: Auger Motor
Speed: 4 RPM
Rotation: CW
Voltage: 120 V
Frequency: 60 Hz
Current: 0.74 A
Insulation class: B

Compatibility / Pairs With

Replacement part numbers:
Breckwell: CE-010
Harman: 3-20-60906
United States Stove: 80456

Match the original part number, voltage, mounting, shaft, connections and rotation before ordering. Confirm the rotation viewing direction with the equipment manufacturer; references do not cover every model.

Browse more replacement parts at Total Hearth.

What's in the Box

1 × NBK-20129 geared auger motor with attached black and white electrical leads and terminals.

Important Note

This is an NBK aftermarket part. Disconnect power and let the stove cool before service. A qualified technician should install the motor and check the feed system and guards before operation.

Why Choose the NBK-20129?

Choose NBK-20129 for a matching 4 RPM, CW auger-motor repair with the geared assembly and electrical leads together.
