NBK-20065 Blower Motor Assembly for Quadra-Fire 812-0051

NBK-20065 Blower Motor Assembly for Quadra-Fire 812-0051

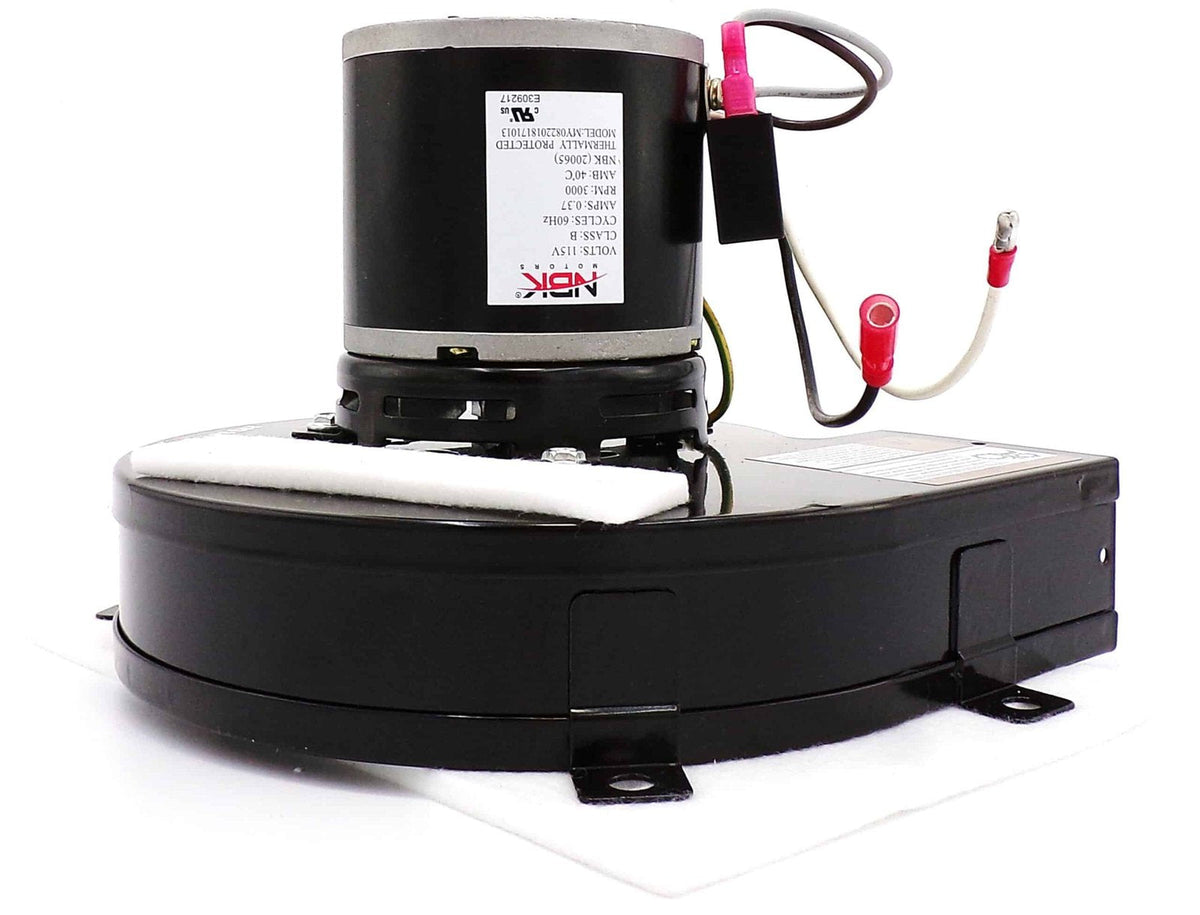

The NBK-20065 blower motor assembly is an aftermarket replacement for Quadra-Fire 250-00527, 812-0051 and 90-0391. The 115V, 60 Hz motor is supplied with its blower housing for compatible replacement applications.

Key Features

• Quadra-Fire replacement: Cross-referenced to 250-00527, 812-0051 and 90-0391.

• Assembled blower: Motor and blower housing supplied together.

• 115V operation: Rated for compatible 60 Hz equipment.

• 3000 RPM motor: Provides the specified speed for matched applications.

• Thermal protection: Thermally protected motor design.

Specifications

NBK part number: 20065
Type: Blower Motor Assembly
Voltage: 115V
Frequency: 60 Hz
Current: 0.37 A
Speed: 3000 RPM
Insulation class: B
Motor protection: Thermally protected

Compatibility / Pairs With

Replacement references: Quadra-Fire 250-00527, 812-0051 and 90-0391. Confirm the original part number, electrical requirements, rotation, mounting pattern, housing connections and wiring before ordering. Replacement references do not establish compatibility with every model from a listed brand.

Important Note

This is an NBK aftermarket part. Disconnect electrical power and allow the appliance to cool before service. Installation and operational checks should be performed by a qualified technician following the equipment manual.

Why Choose the NBK-20065?

Choose this blower assembly when replacing one of the listed Quadra-Fire part references after confirming your equipment requirements.

What's in the Box

1 × NBK-20065 blower motor assembly.
