NBK-20063 Blower Motor Assembly, 115V, for Dayton 1TDR2 / 4C754

NBK-20063 Blower Motor Assembly, 115V, for Dayton 1TDR2 / 4C754

The NBK-20063 is a 115V blower motor assembly for the listed Dayton and Fasco replacement applications. Its 1/20 HP motor is rated for 60 Hz service and is supplied with the blower housing.

Key Features

• Matched replacement: Cross-referenced to Dayton 1TDR2, Dayton 4C754 and Fasco 7063-5673.

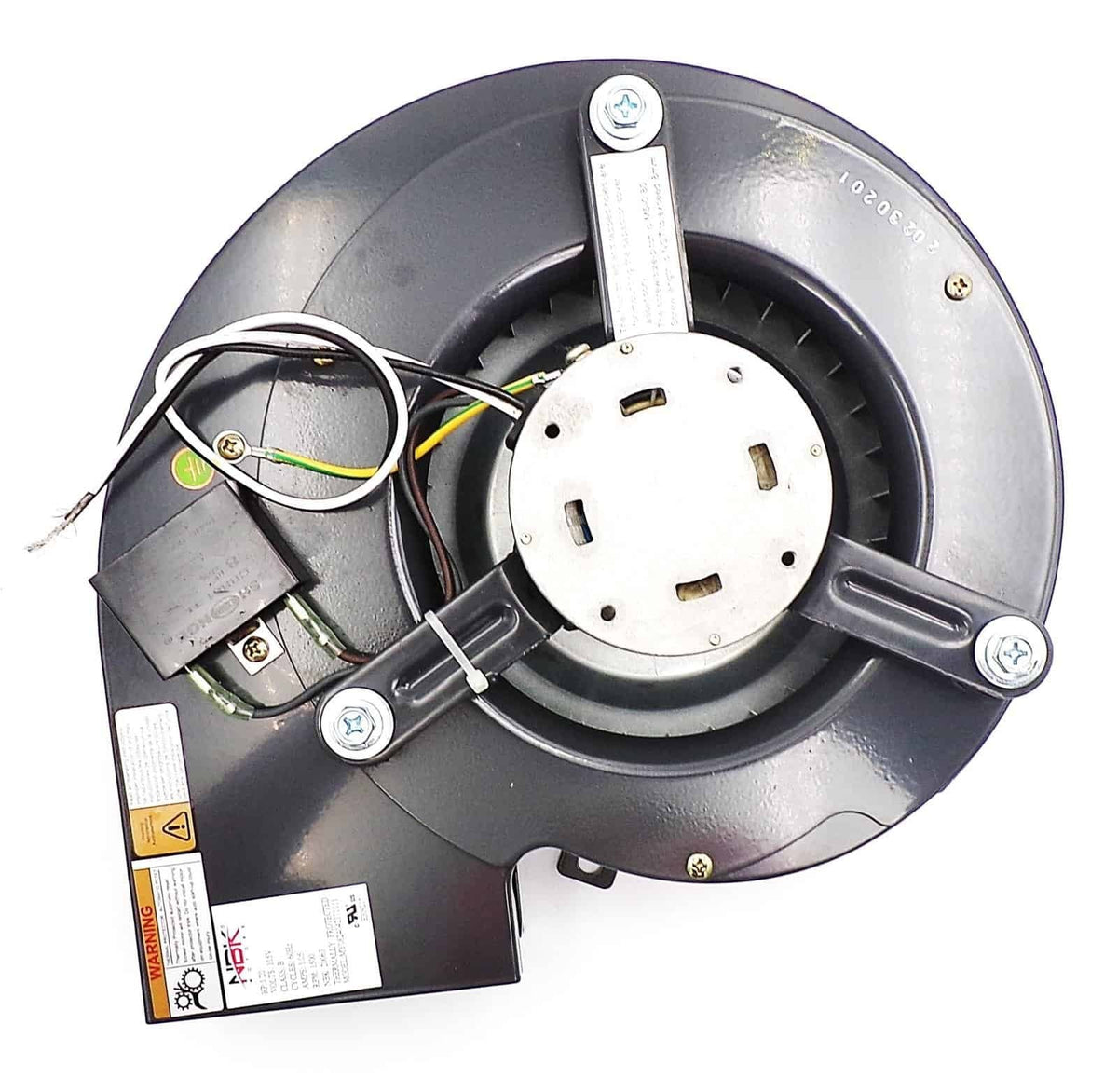

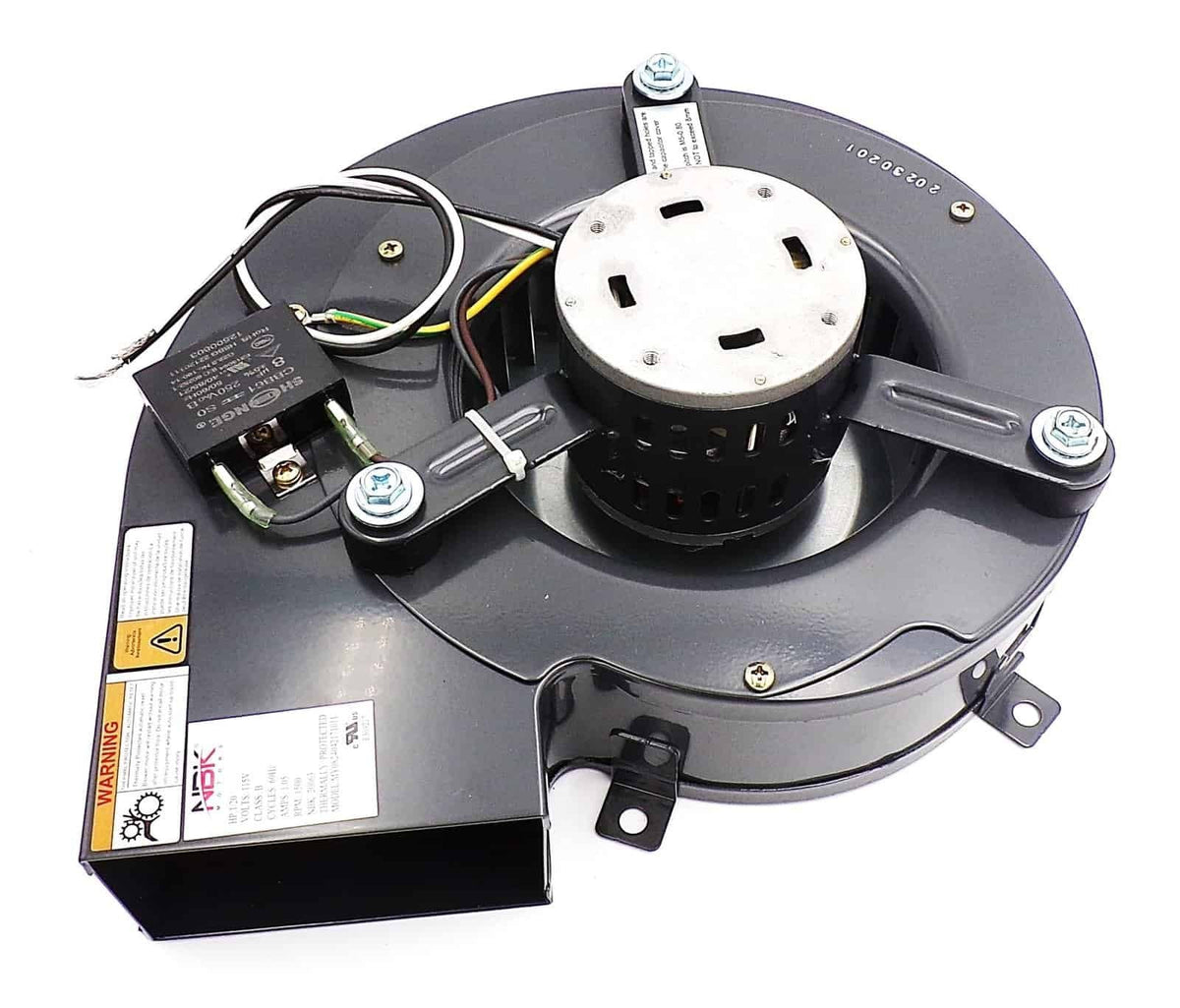

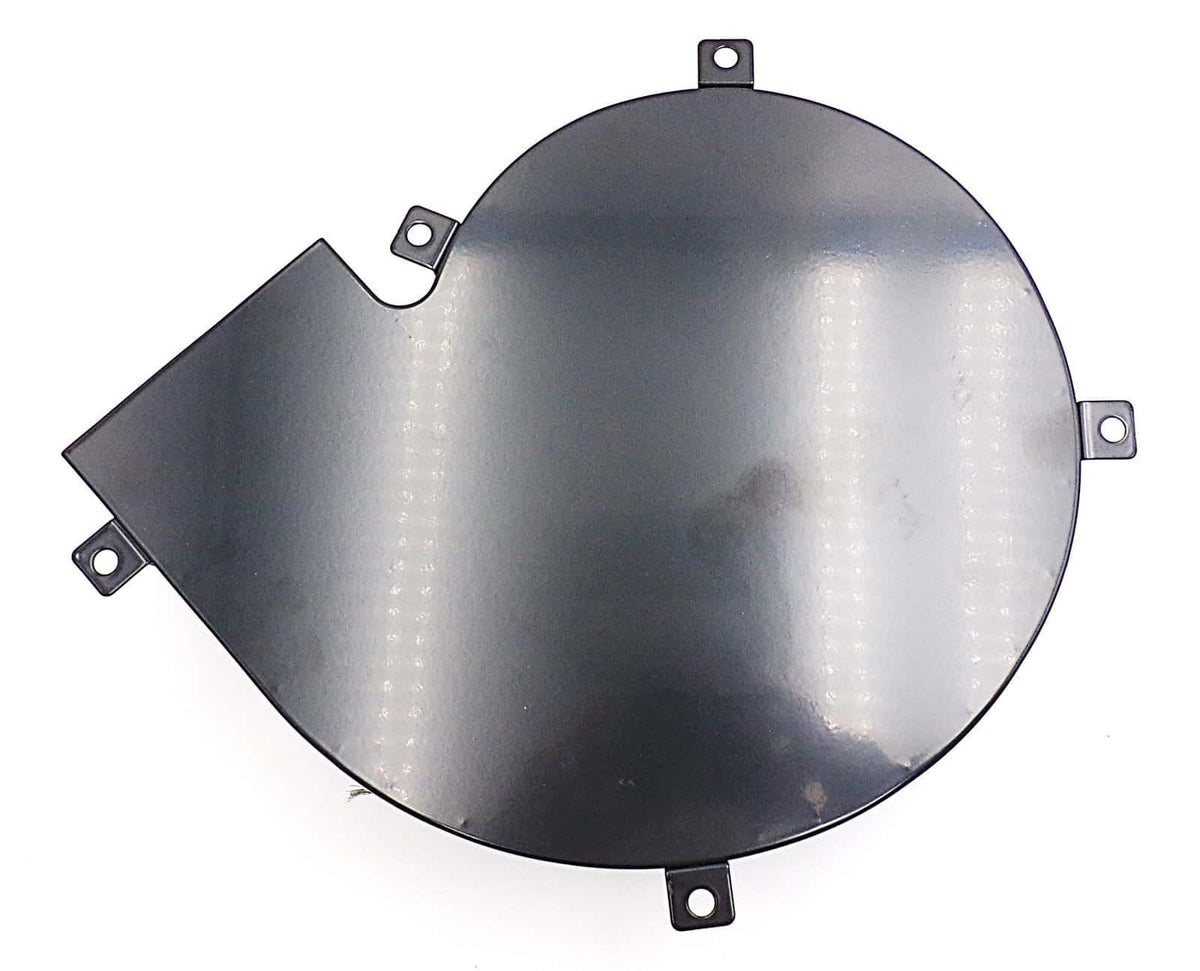

• Assembled blower: Motor and blower housing supplied together.

• 115V operation: Rated for 60 Hz service.

• 1/20 HP motor: Operates at a rated 1500 RPM.

• Thermal protection: Thermally protected motor for compatible blower applications.

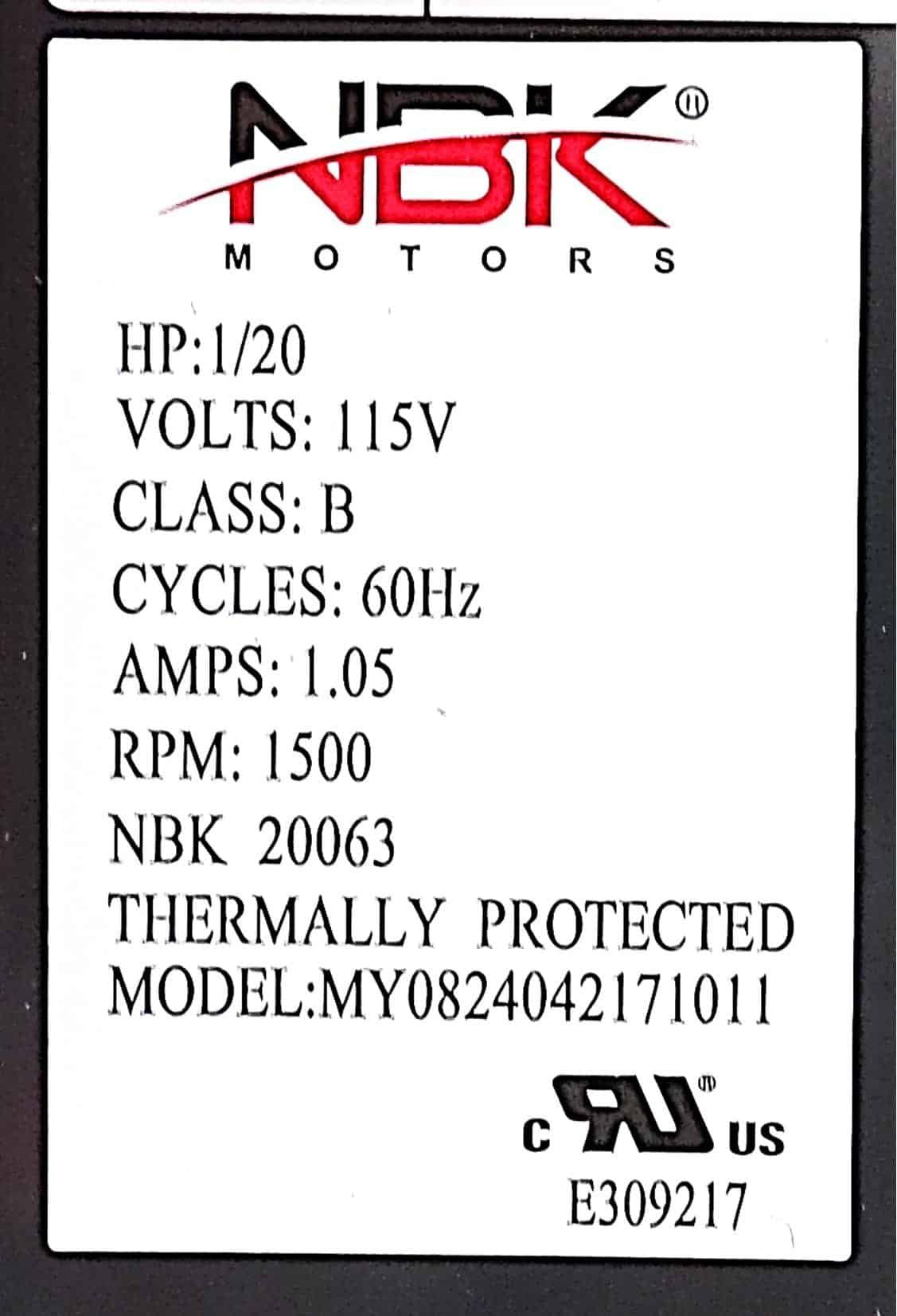

Specifications

NBK part number: 20063
Type: Blower Motor Assembly
Voltage: 115V
Frequency: 60 Hz
Motor output: 1/20 HP
Current: 1.05 A
Speed: 1500 RPM
Insulation class: B
Motor protection: Thermally protected

Compatibility / Pairs With

Replacement references: Dayton 1TDR2 and 4C754; Fasco 7063-5673. Confirm the original part number, electrical requirements, rotation, mounting pattern, housing connections and wiring before ordering. Replacement references do not establish compatibility with every model from a listed brand.

Important Note

This is an NBK aftermarket part. Disconnect electrical power and allow the appliance to cool before service. Installation and operational checks should be performed by a qualified technician following the equipment manual.

Why Choose the NBK-20063?

Choose this assembly when your equipment calls for one of the listed Dayton or Fasco references and its electrical and mounting requirements match.

What's in the Box

1 × NBK-20063 blower motor assembly.
