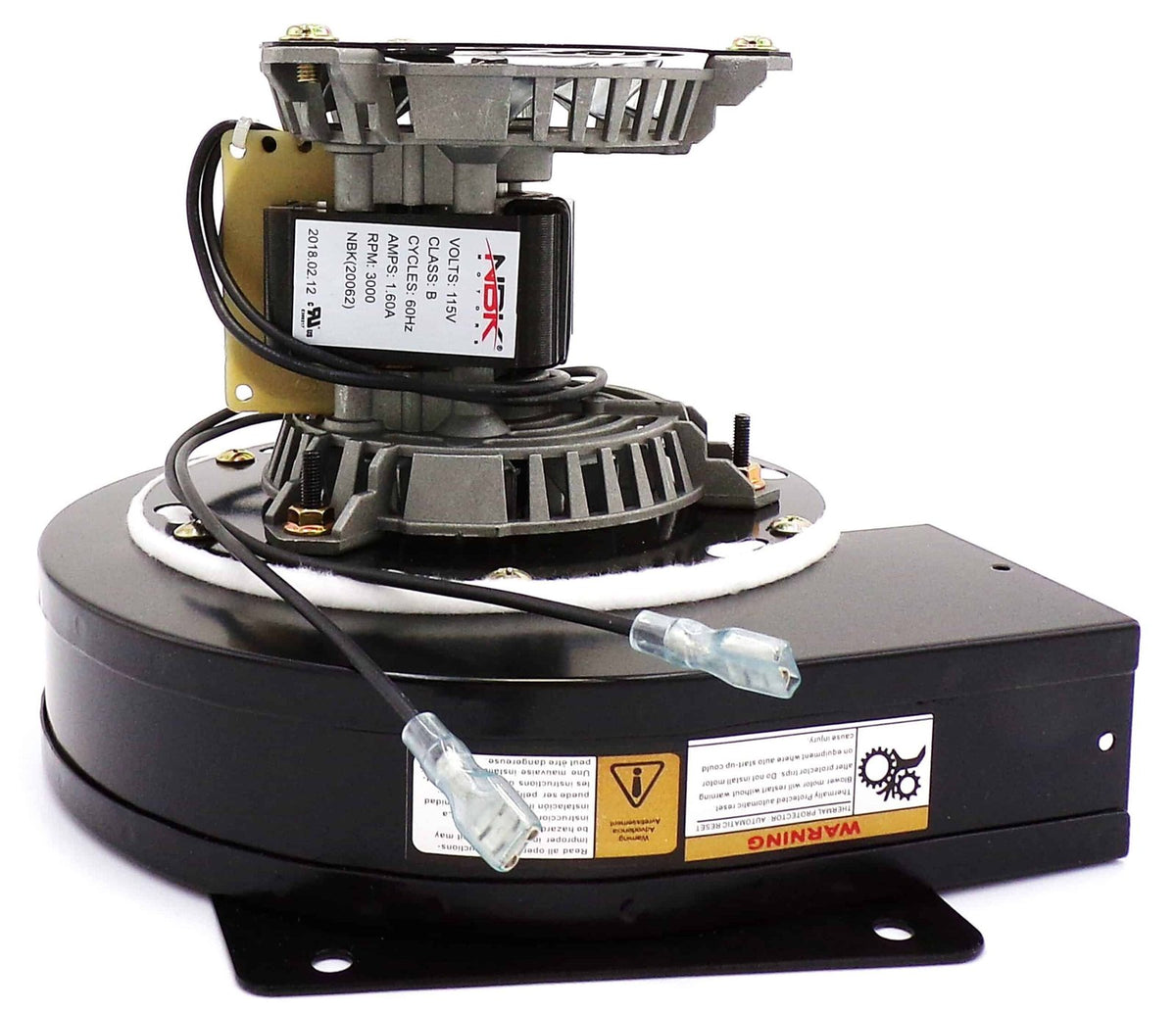

NBK-20062 Blower with Housing, 115V | Harman 3-21-00945

NBK-20062 Blower with Housing, 115V | Harman 3-21-00945

The NBK-20062 is a 115V aftermarket blower assembly that replaces Harman 3-21-00945 and Jakel J238-112-11276. It combines a 3000 RPM motor with the blower housing, attached wiring and gasket for compatible hearth equipment.

Key Features

• Replaces Harman 3-21-00945 and Jakel J238-112-11276.

• Complete blower motor and housing assembly.

• 115V, 60 Hz operation with a 1.60A current rating.

• 3000 RPM motor with Class B insulation.

• Attached wiring and gasket included.

Specifications

NBK part number: 20062
Type: Blower motor assembly with housing
Voltage: 115V
Frequency: 60 Hz
Current: 1.60A
Speed: 3000 RPM
Insulation class: B
Thermal protection: Automatic reset

Compatibility / Pairs With

Replacement part numbers:
Harman: 3-21-00945
Jakel: J238-112-11276

This 20062 assembly includes the blower housing. The NBK-20062M is the separate motor-insert version. Match the complete original part number, equipment model, electrical ratings, mounting pattern and connections before ordering. Part-number references do not establish compatibility with every model from a brand.

Browse more Harman replacement parts at Total Hearth.

What's in the Box

1 × NBK-20062 blower motor assembly with housing, attached wiring and gasket.

Important Note

This is an NBK aftermarket part. Disconnect electrical power and allow the equipment to cool before servicing. A qualified technician should install the assembly and follow the appliance manufacturer's servicing instructions.

Why Choose the NBK-20062?

Choose the NBK-20062 when your repair requires the motor and blower housing together for a matching Harman 3-21-00945 or Jakel J238-112-11276 application.
