NBK-12170 Blower Motor | Fasco A217

NBK-12170 Blower Motor | Fasco A217

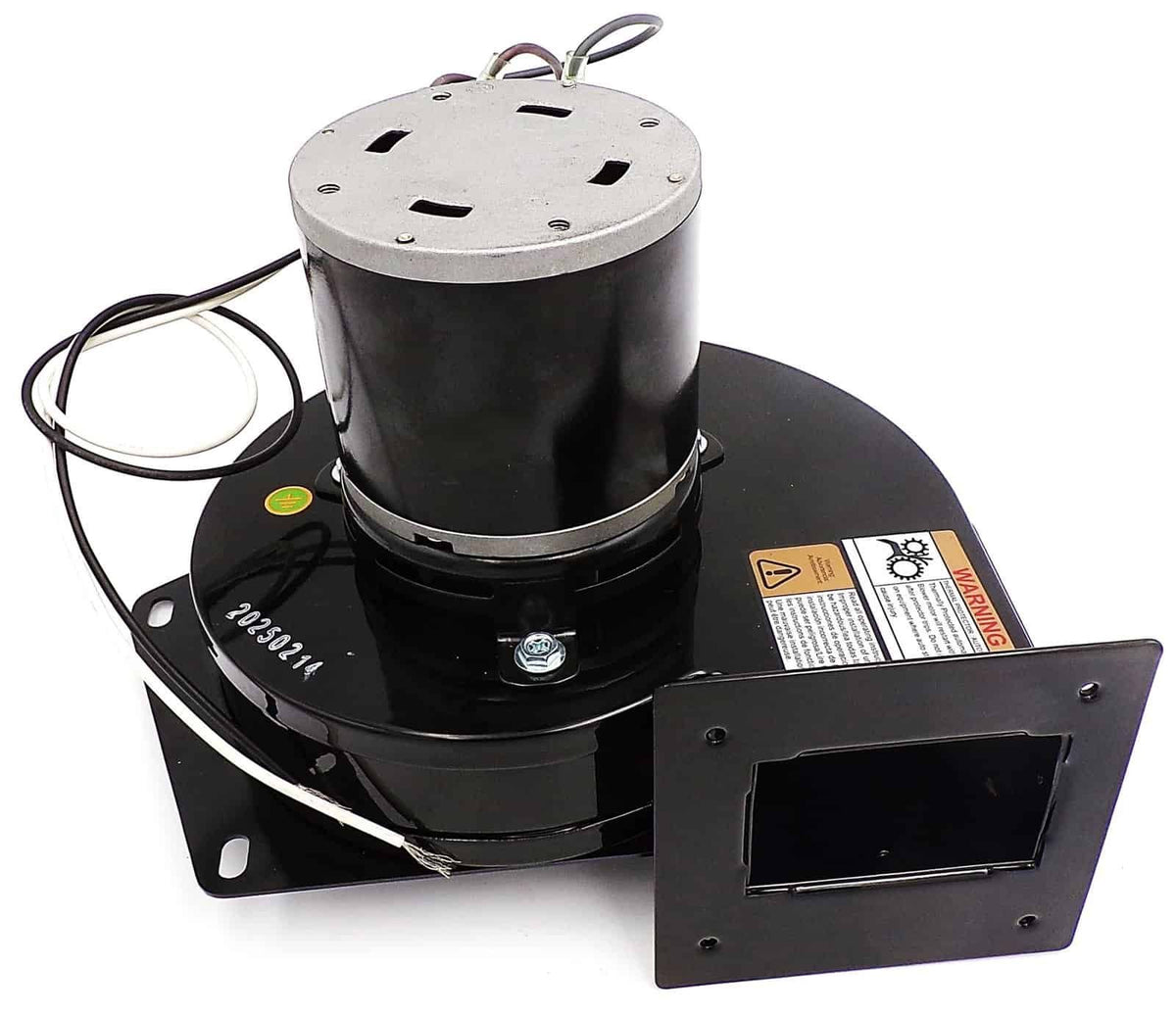

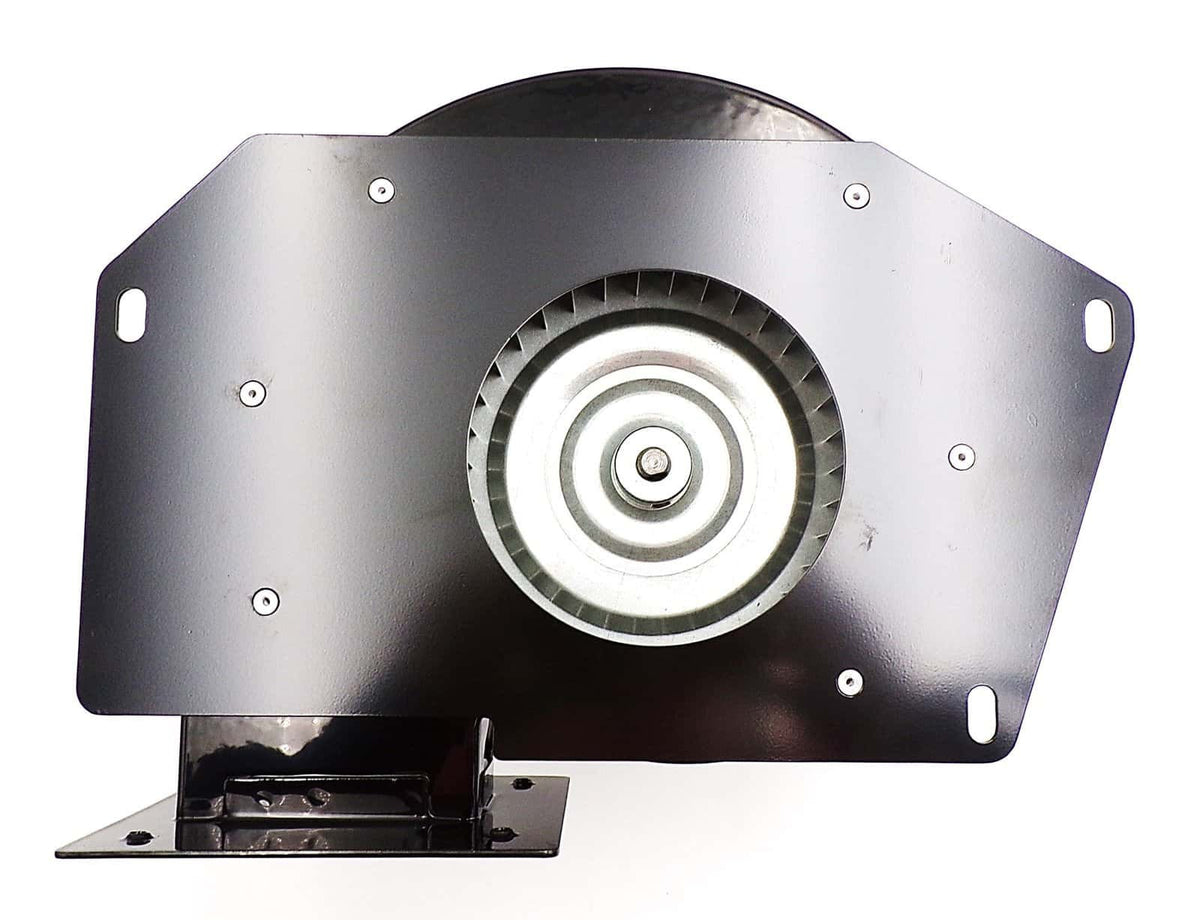

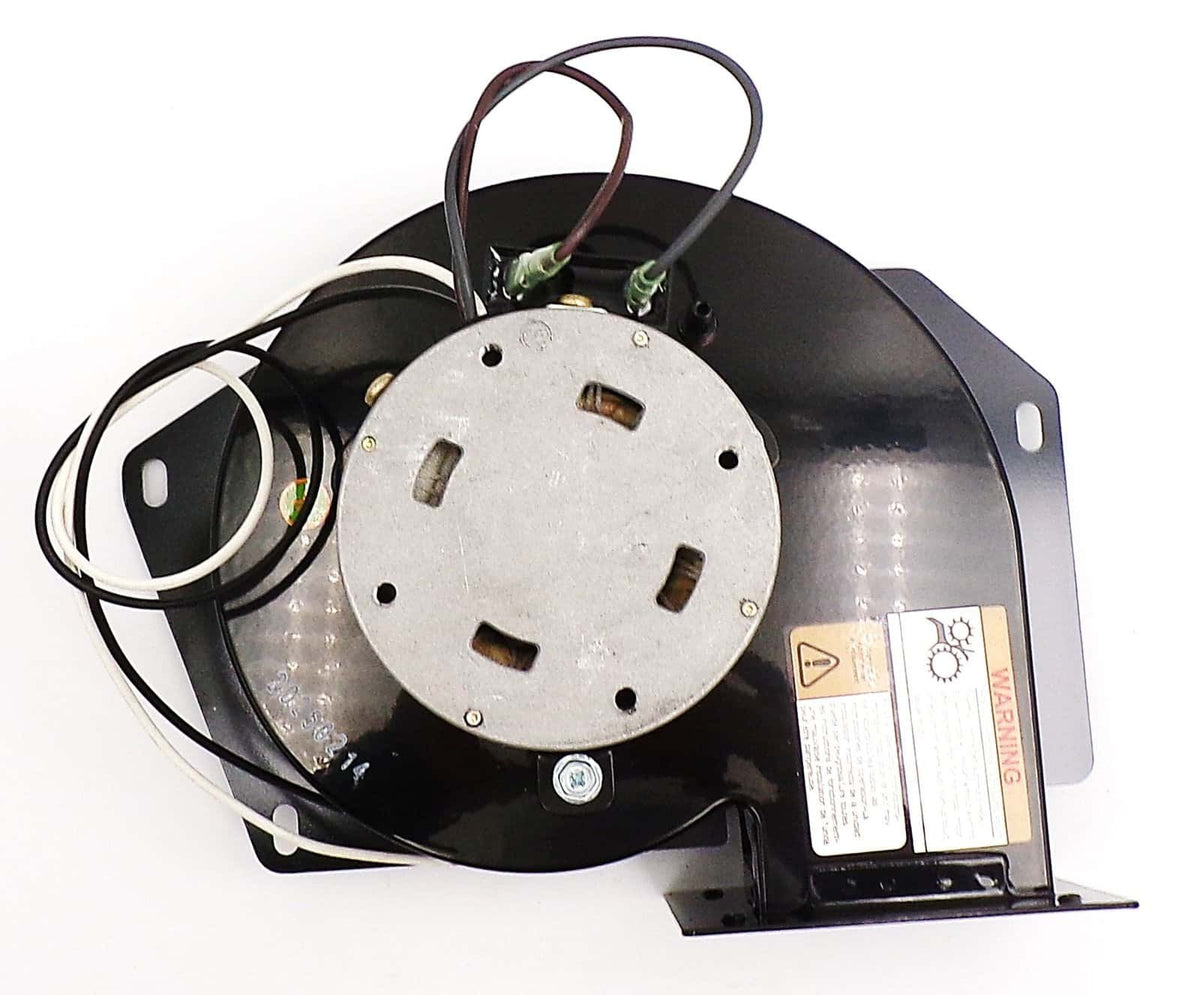

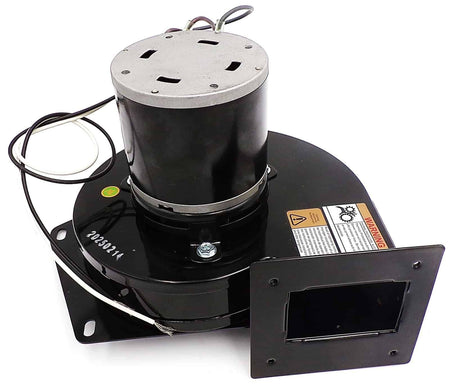

The NBK-12170 is an aftermarket 230V blower motor assembly with a rectangular outlet flange. It replaces Fasco A217 and the additional part numbers below when the electrical ratings, mounting and connections match.

Key Features

• Replacement for Fasco A217.

• 208–230 V operation at 60 Hz.

• Motor speed: 3000 RPM.

• Current rating: 0.36 A.

• Thermally protected motor.

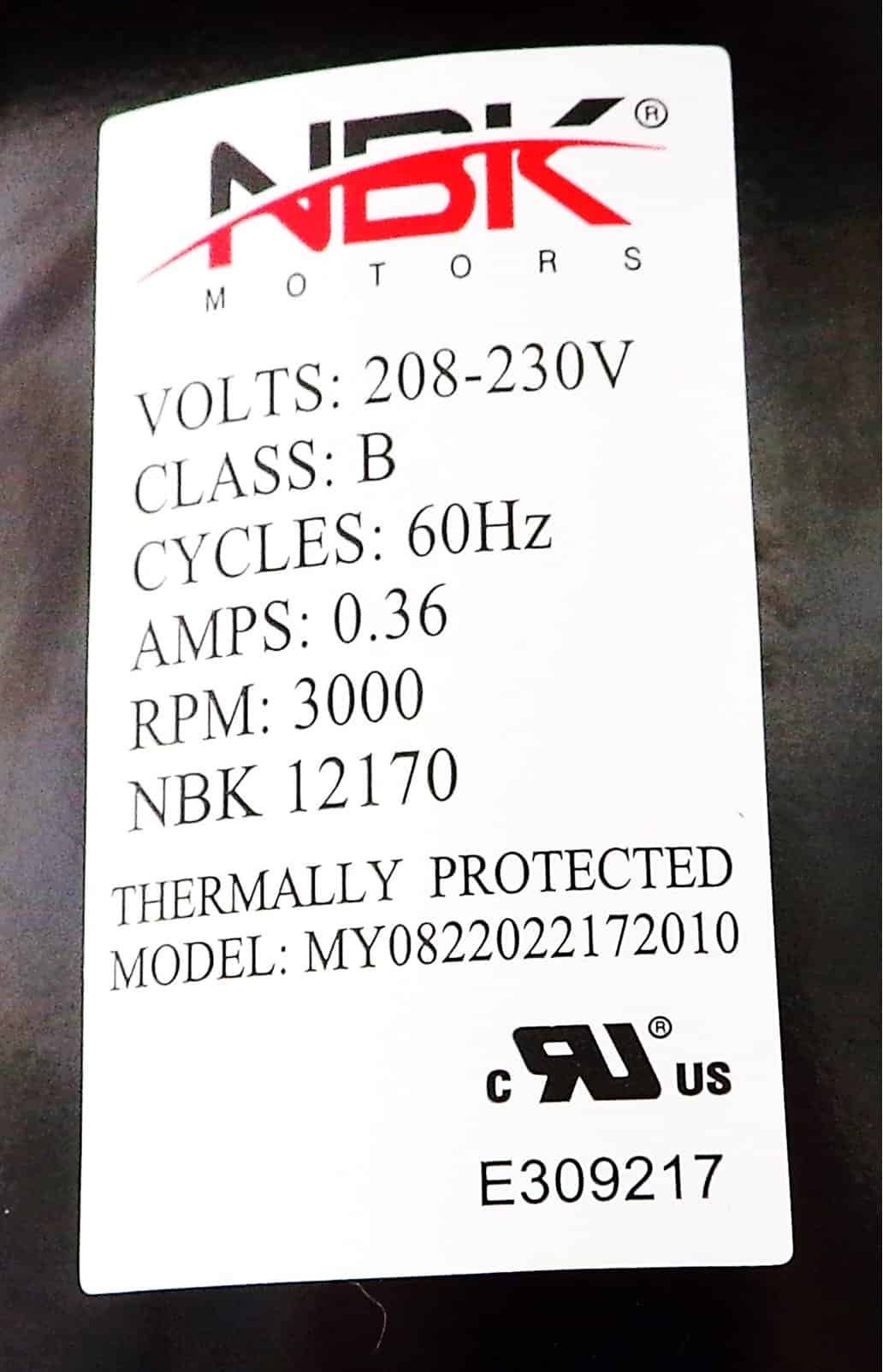

Specifications

NBK part number: 12170
Type: HVAC Blower Motor
Voltage: 208–230 V
Frequency: 60 Hz
Current: 0.36 A
Speed: 3000 RPM
Insulation class: B
Thermal protection: Thermally protected

Compatibility / Pairs With

Replacement part numbers:
Dayton: 45KD04
Fasco: A217
Lennox: 25M5501, 7021-11231, 7021-12094
Rotom: FB-RFB550

Match the complete original part number, equipment model, electrical ratings, mounting pattern and connections before ordering. Part-number references do not establish compatibility with every model from a brand.

Browse more replacement parts at Total Hearth.

What's in the Box

1 × NBK-12170 blower motor assembly.

Important Note

This is an NBK aftermarket part. Disconnect electrical power and allow the equipment to cool before servicing. Installation and combustion-system checks should be performed by a qualified HVAC technician following the equipment manufacturer’s instructions.

Why Choose the NBK-12170?

Choose this assembly for a repair requiring Fasco A217 or a matching replacement reference above, with the correct electrical and mechanical fit.
