Napoleon W750-0317 10-Foot Battery Harness Extension

Napoleon W750-0317 10-Foot Battery Harness Extension

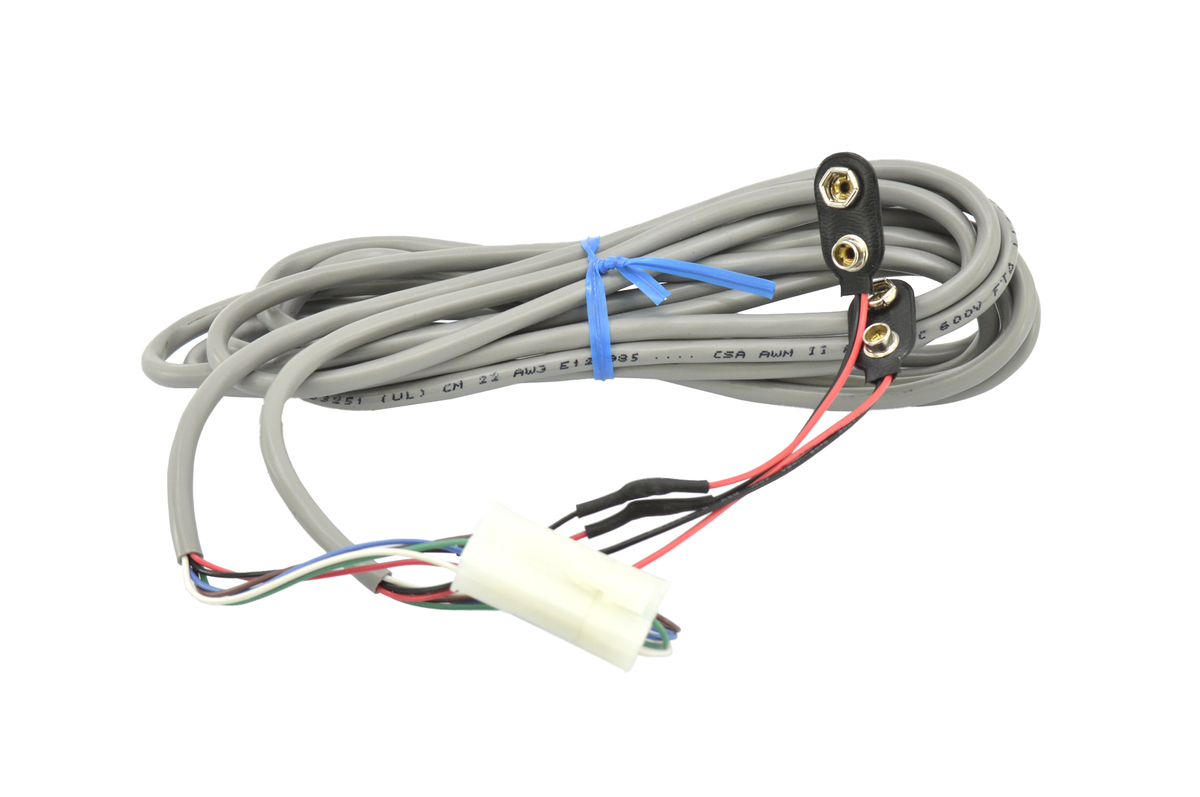

The W750-0317 is a 10-foot extension harness for the battery-pack/control connections in specified Napoleon and Continental gas fireplaces. The cable is supplied with the molded connector ends and snap lead shown; it is an extension component, not a new remote-control or ignition kit.

Key Features

• 10-foot extension length for the specified fireplace wiring application.
• Part number W750-0317 distinguishes it from the shorter battery-housing harness.
• Molded connectors are attached to the cable ends shown.
• Includes the attached battery-pack snap lead pictured.
• Verified in listed Vector, Luxuria, STARfire and Continental CX70-1 applications.

Specifications

• Part number: W750-0317
• Component: Battery-pack/control wire-harness extension
• Length: 10 ft.
• Connections: Molded connector ends and attached snap lead, as pictured
• Not included: Battery holder, batteries, remote transmitter and control module
• Different related part: W750-0268 battery-housing harness

Compatibility

Match W750-0317 in the exact appliance parts list and verify the existing connectors and required routing distance. This is not a general-purpose extension cable and is not a substitute for W750-0268 or the main control harness.

Cross Reference

• Napoleon: W750-0317
• Continental: W750-0317

Fireplace Models

• Napoleon: HDX52-2 STARfire. Specified HDX52-2 electronic-ignition versions; confirm the complete fuel/model suffix and part number.
• Napoleon: LV38-1, LV50-2, LV62, LV74. Specified Vector direct-vent models; do not assume other revision numbers are interchangeable.
• Napoleon: LVX38-1 and See Through, LVX50 and See Through, LVX62 and See Through, LVX74 and See Through. Specified Luxuria single-sided and see-through models. Confirm the exact model revision.
• Napoleon: HDX35 STARfire. Specified natural-gas and propane valve-train versions; match the original harness.
• Napoleon: LHD62 Vector. Specified direct-vent fireplace. Verify the harness part number and connections.
• Continental: CX70NTE-1, CX70PTE-1. Continental electronic-ignition models for natural gas and propane respectively. Use the specified 6 V battery pack, not a 9 V battery.

What's in the Box

One 10-foot W750-0317 extension wire harness with its attached connectors and snap lead, as pictured.

Important Note

Use only the appliance-specified battery pack and wiring diagram. Do not connect a 9-volt battery because a snap connector is present. Disconnect electrical power before service and have a qualified fireplace technician check routing, strain relief and clearance from hot surfaces.

Why Choose This Part?

The specified 10-foot harness provides the listed extended connection while retaining the part-specific connector arrangement.
