Napoleon W750-0268 Proflame 2 Battery Housing Wire Harness

Napoleon W750-0268 Proflame 2 Battery Housing Wire Harness

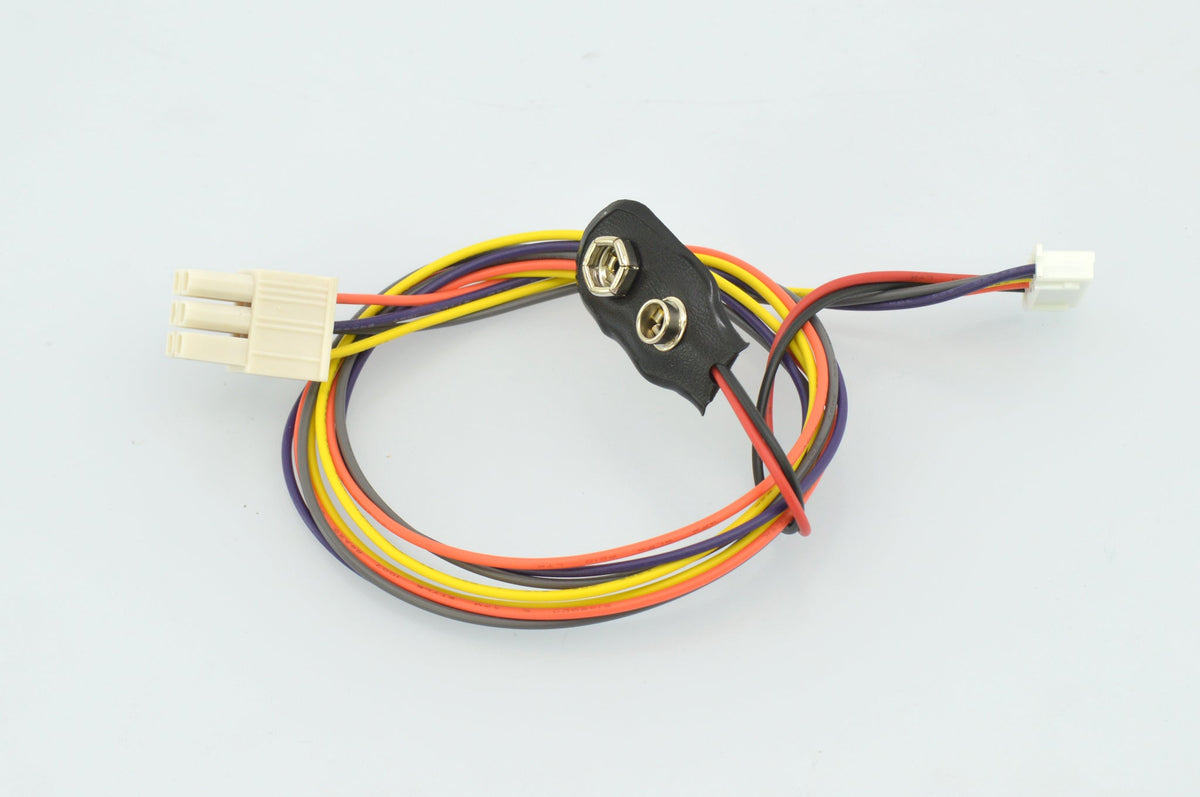

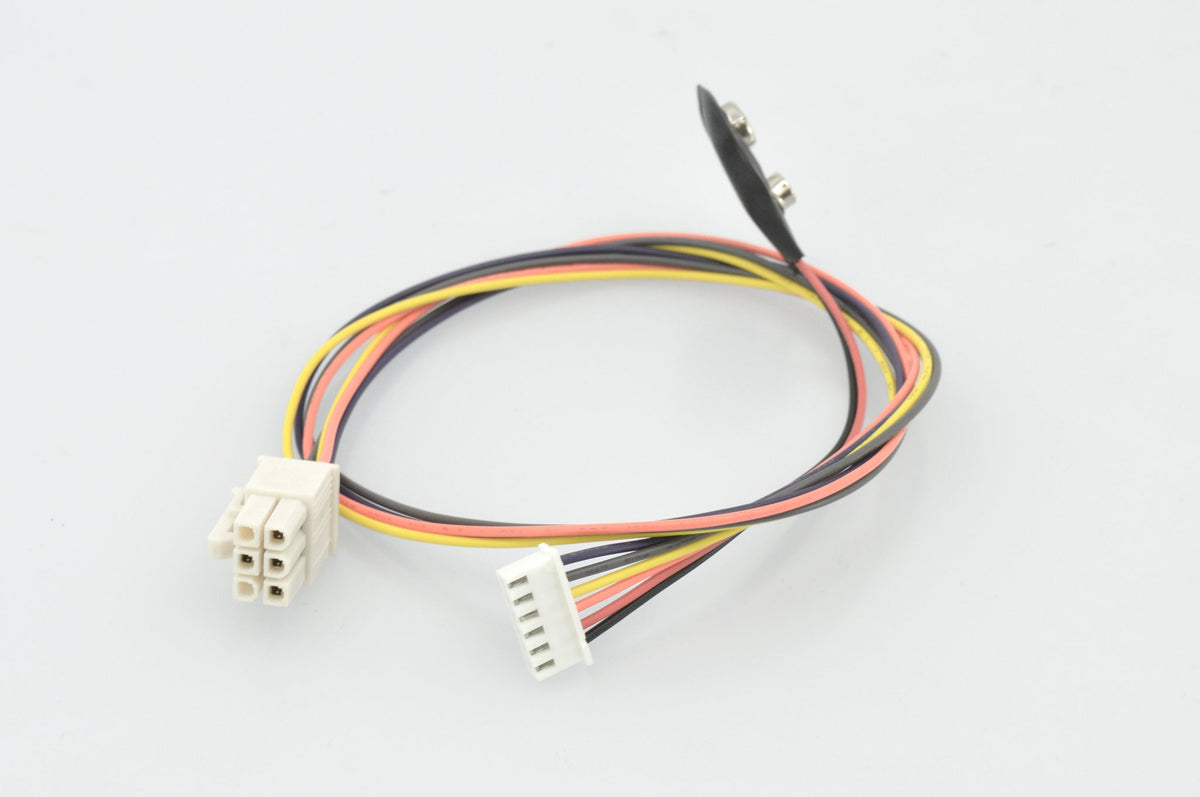

The W750-0268 harness connects the battery-housing side of the specified Proflame 2 fireplace control systems. It is supplied as the multi-wire harness shown, with molded connectors and an attached battery-pack snap lead, not as a battery box or complete ignition system.

Key Features

• Purpose-made battery-housing harness for the specified Proflame 2 systems.
• Molded multi-position connectors are already attached.
• Includes the battery-pack snap lead shown in the gallery.
• Color-coded wire branches retain the photographed connector arrangement.
• W750-0268 is used in listed Napoleon, Continental and Ambiance applications.

Specifications

• Part number: W750-0268
• Component: Proflame 2 battery-housing wire harness
• Connections: Molded plugs and battery-pack snap lead, as pictured
• Battery housing included: No
• Batteries included: No
• Separate extension harness: W750-0317 is a different part and is not included

Compatibility

Confirm W750-0268 in the exact model and serial-number parts listing, then compare every connector with the old harness. It is not interchangeable with the longer W750-0317 extension or the main W750-0276 Proflame 2 harness simply because the control system is Proflame 2.

Cross Reference

• Napoleon: W750-0268
• Continental: W750-0268
• Ambiance Fireplaces: W750-0268

Fireplace Models

• Napoleon: HDX52-2 STARfire. Specified HDX52-2 electronic-ignition versions; confirm the complete fuel/model suffix and part number.
• Napoleon: LV38-1, LV50-2, LV62, LV74. Specified Vector direct-vent models; do not assume other revision numbers are interchangeable.
• Napoleon: LVX38-1 and See Through, LVX50 and See Through, LVX62 and See Through, LVX74 and See Through. Specified Luxuria single-sided and see-through models. Confirm the exact model revision.
• Napoleon: HDX35 STARfire. Specified natural-gas and propane valve-train versions; match the original harness.
• Napoleon: LHD62 Vector. Specified direct-vent fireplace. Verify the harness part number and connections.
• Napoleon: AX42 Altitude, GX70NTE-1 Ascent, WHD48 Plazmafire. Specified electronic-ignition versions using W750-0268. No blanket fit across different revision numbers.
• Napoleon: GDIG3, GDIX3, GDIX4. Oakville gas-insert versions whose battery-housing wiring is W750-0268. Verify the complete fuel suffix.
• Napoleon: GDS25-1 Bayfield, GDS26-1 Castlemore. Specified -1 stove revisions. Earlier un-suffixed versions require separate confirmation.
• Continental: CX70NTE-1, CX70PTE-1. Natural-gas and propane electronic-ignition models respectively, using battery-housing harness W750-0268.
• Ambiance Fireplaces: AMB1056NTE, AMB1056PTE. Illusion 56 natural-gas and propane models respectively, using the specified PF2 battery housing.

What's in the Box

One W750-0268 battery-housing wire harness with attached molded connectors and snap lead, as pictured.

Important Note

Connect only to the battery pack and voltage specified for the appliance. A snap-style connection does not authorize use of a 9-volt battery. The battery housing, cells, remote transmitter and control module are not included. Qualified service and power isolation are recommended.

Why Choose This Part?

This harness-only replacement targets the battery-housing connection while leaving correctly functioning control components in place.
