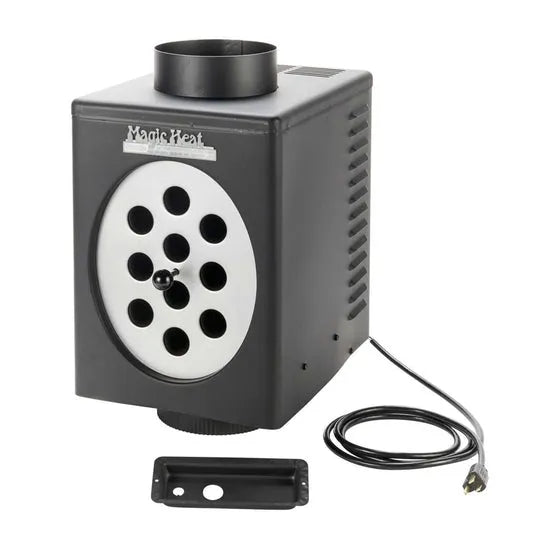

Magic Heat Wood Stove Heat Reclaimer for 8" Pipe (MH-8R) – 225 CFM Thermostatic Heat Exchanger Fan

Magic Heat Wood Stove Heat Reclaimer for 8" Pipe (MH-8R) – 225 CFM Thermostatic Heat Exchanger Fan

Reclaim valuable heat and improve your stove’s efficiency with the Magic Heat MH-8R — the only UL-listed 8" wood stove heat reclaimer available. This high-performance, flue-mounted heat exchanger captures up to 30% of otherwise lost heat and recirculates it into your home. Equipped with a built-in thermostat and a 225 CFM blower fan, the MH-8R automatically adjusts to optimize heat output and comfort.

Proudly made in the USA, this model fits standard 8" single-wall stove pipes and installs easily 12"–24" above the appliance. It’s an efficient upgrade for improving heating performance and reducing fuel consumption.

Key Features:

• Reclaims Up to 30% of Lost Heat: Redirects warm air back into your living space instead of losing it up the chimney
• 225 CFM Blower Fan: Circulates heated air efficiently for consistent comfort throughout your home
• Built-In Thermostat: Automatically activates at 150°F and shuts off at 120°F, or can run continuously
• UL-Listed: The only UL-approved 8" heat reclaimer certified for North America
• Durable Construction: Heavy-duty steel housing with crimped pipe connection for a secure, lasting fit
• Easy Installation: Mounts in-line with 8" single-wall stove pipe in minutes
• Made in the USA: Built to exacting standards for quality, performance, and safety

Specifications:

• Type: Heat Reclaimer
• Flue Size: 8" diameter (single-wall pipe only)
• Airflow: 225 CFM
• BTU Recovery: 8,000 – 30,000 BTU
• Voltage: 115V AC
• Amperage: 0.31A
• Fan Speed: 3000 RPM
• Color: Black
• Material: Steel
• Overall Dimensions: 10¾" W x 14½" H x 14" D
• Mounting Height: 12"–24" above the stove
• Clearance: Minimum 18" from combustibles
• Power Cord: 6-foot cord with standard 110V plug
• Fan Modes: Thermostatic or continuous (toggle switch)

Suitable For:

• Wood-burning stoves with 8" flue
• Coal-burning stoves with natural draft
• Not for use with double-wall or insulated pipes

Maintenance & Cleaning:

• Daily: Use the integrated soot scraper knob to clear heat exchange tubes
• Every Other Day: Burn paper or cardboard to assist internal cleaning
• Periodic Maintenance: Brush heat tubes using a long-handled brush with soot remover or cleaning solvent
• Tool-Free Access: Removable rear panel allows full interior servicing

How It Works:
The Magic Heat MH-8R utilizes ten internal heat exchange tubes to absorb heat from rising exhaust gases. A 225 CFM fan pushes cool air over these tubes and into your living space, increasing warmth while maintaining proper draft. The open design ensures safe airflow and does not reduce flue gas diameter.

Save energy, reclaim lost heat, and enhance your home’s comfort — upgrade to the Magic Heat MH-8R today!
