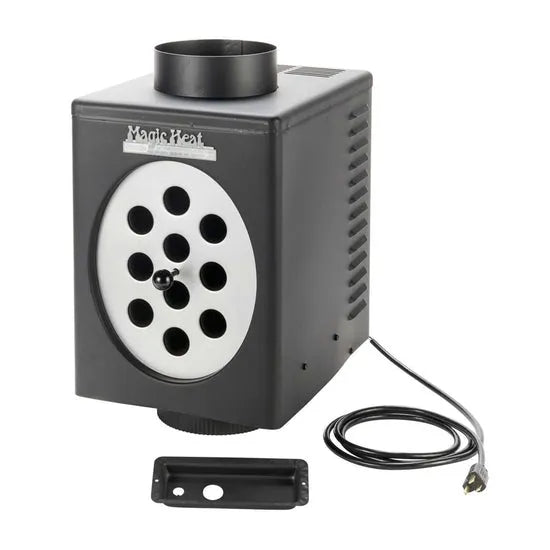

Magic Heat Wood Stove Heat Reclaimer for 6" Pipe (MH-6R) – 225 CFM Thermostatic Blower Fan

Magic Heat Wood Stove Heat Reclaimer for 6" Pipe (MH-6R) – 225 CFM Thermostatic Blower Fan

Reclaim lost heat and enhance your stove’s efficiency with the Magic Heat MH-6R Heat Reclaimer. Designed for 6" single-wall stove pipes, this innovative in-line heat exchanger captures up to 30% of the heat typically lost through exhaust gases and redirects it into your living space. Proudly built in the USA and UL-listed for both the United States and Canada, it’s the only UL-approved heat reclaimer on the market, capable of producing up to 30,000 BTU of recovered heat without reducing flue diameter.

Key Features:

• Energy-Efficient Design: Reclaims up to 30% of lost heat, reducing fuel consumption and heating costs
• 225 CFM High-Performance Fan: Circulates warm air efficiently throughout your home
• Built-In Thermostat: Fan automatically activates at 150°F and shuts off at 120°F, with an option for continuous mode
• UL Listed for Safety: The only UL-approved heat reclaimer certified for both wood and coal stoves
• Made in the USA: Heavy-duty steel construction ensures long-term reliability and safety
• Easy Maintenance: Integrated soot scraper and removable back panel allow for quick, simple cleaning
• Universal Fit: Compatible with standard 6" single-wall stove pipe systems

Specifications:

• Type: Wood Stove Heat Reclaimer
• Airflow: 225 CFM
• Voltage: 115V
• Amperage: 0.31A
• Fan Speed: 3000 RPM
• BTU Recovery Range: 8,000 – 30,000 BTU
• Pipe Size: 6" diameter
• Material: Steel
• Color: Black
• Mounting Height: 12"–24" above stove
• Clearance: Minimum 18" from combustibles
• Overall Dimensions: 14½" H x 10¾" W x 14" D
• Fan Blade Diameter: Approximately 4"
• Power Cord: 6-foot cord plugs into standard 110V outlet
• Control Modes: Thermostat-controlled or continuous operation
• Mount Type: In-line with single-wall stove pipe
• Use Case: Wood and coal-burning stoves with flue temperatures above 350°F

Compatible Stove Types:

• Wood-burning stoves with 6" flue
• Coal-burning stoves with natural draft
  Note: Not compatible with double-wall or insulated pipe systems.

Maintenance & Cleaning:

• Daily: Turn soot scraper knob and burn paper or cardboard to remove deposits
• Periodically: Clean heat exchange tubes with a brush and soot remover
• Easy Access: Rear panel removes easily for full internal cleaning

How It Works:
The Magic Heat MH-6R uses ten internal heat exchange tubes to capture rising exhaust heat. A 225 CFM fan then circulates the warmed air into your room. The open design ensures full venting efficiency and does not reduce flue diameter, maintaining safe draft flow while improving room comfort.

Experience increased warmth and energy savings with the Magic Heat MH-6R – order today to reclaim your stove’s lost heat and enjoy a more efficient home heating system!
